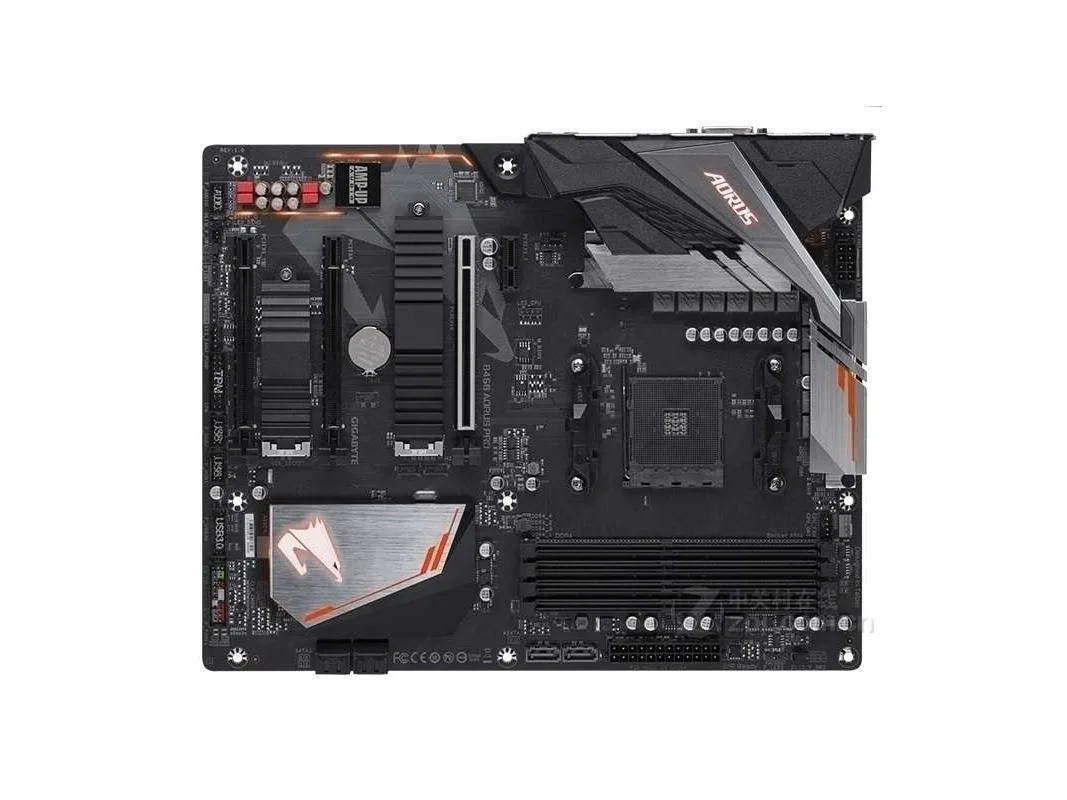

ATX motherboard with black PCB, silver heatsinks, four DDR4 slots, one PCIe x16 slot, rear I/O shield included

GIGABYTE

GIGABYTE B450 AORUS PRO AMD motherboard 64GB

SKU CH-DBEY-53X6A

AM4 ATX board with B450 chipset, 64GB DDR4 maximum, Intel gigabit LAN and Realtek 7.1 audio

  • ChipsetAMD B450
  • Maximum Memory Supported64GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID2XM.2 interface, 6xSATA III interface
  • Audio Chipset1. Built-in Realtek ® ALC1220-VB chip 2. Support High Defini
  • LAN ChipsetBuilt-in Intel ® GbE network chip (10/100/1000 Mbit)
  • Supports up to 64GB DDR4 memory for demanding multitasking
  • Realtek ALC1220-VB audio delivers 7.1-channel high-definition sound
  • Intel Gigabit LAN provides 1000 Mbit wired network connectivity
  • Rear USB 3.1 Gen 2 Type-C and Type-A ports enable fast peripheral transfers
  • ATX form factor at 30.5 by 24.4 cm fits standard chassis

AM4 Platform Board

This GIGABYTE B450 AORUS PRO motherboard uses the AMD B450 chipset and fits Socket AM4 processors. It provides four DDR4 DIMM slots and a single PCI Express x16 slot that runs at x16 electrical when the installed CPU supports it. The ATX form factor measures 30.5 by 24.4 centimetres.

DDR4 Memory Limit

Maximum supported memory is 64GB across the four slots. The single x16 slot delivers full bandwidth only with CPUs that expose enough lanes; otherwise the slot operates at a reduced width. Rear I/O includes one USB 3.1 Gen 2 Type-C port and one USB 3.1 Gen 2 Type-A port.

Storage and Audio Headroom

Six SATA III ports and two M.2 interfaces give plenty of room for SATA drives and M.2 modules. The Realtek ALC1220-VB codec drives up to 7.1 channel audio with S/PDIF output. Wired networking is handled by an Intel Gigabit Ethernet controller rated at 10/100/1000 Mbit.

Highlights

  • Supports up to 64GB DDR4 memory for demanding multitasking
  • Realtek ALC1220-VB audio delivers 7.1-channel high-definition sound
  • Intel Gigabit LAN provides 1000 Mbit wired network connectivity
  • Rear USB 3.1 Gen 2 Type-C and Type-A ports enable fast peripheral transfers
  • ATX form factor at 30.5 by 24.4 cm fits standard chassis

Specifications

BrandGIGABYTE
SeriesGIGABYTE B450 AORUS PRO
ChipsetAMD B450
Maximum Memory Supported64GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
* Whether this specification is supported depends on the CPU.
To maximize the effectiveness of the display adapter, it is necessary to install the PCIEX16 slot when installing a display adapter.
(PCIEX16 slot supports PCI Express 3.0)
2. 1 PCI Express x16 slot, supporting x4 operating specification (PCIEX4)
* Since PCIEX4 slots share bandwidth with PCIEX1_1 and PCIEX1_2 slots, PCIEX4 slots * operate at x2 bandwidth when expansion cards are installed in PCIEX1_1/PCIEX1_2 slots, and x4 bandwidth when expansion ca
SATA RAID2XM.2 interface, 6xSATA III interface
Audio Chipset1. Built-in Realtek ® ALC1220-VB chip
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
4. Support S/PDIF output
LAN ChipsetBuilt-in Intel ® GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1 USB Type-C ™ interface on the rear panel, supporting USB 3.1 Gen 2
2.1 USB 3.1 Gen 2 Type-A interface (red) on the rear panel
2 USB 3.1 Gen 1 ports, which need to be connected from the USB socket in the main board via a cable
4.4 USB 2.0/1 interfaces, which need to be connected from the USB socket in the main board through the cable
Built-in processor:
5.4 USB 3.1 Gen 1 ports on the rear panel
