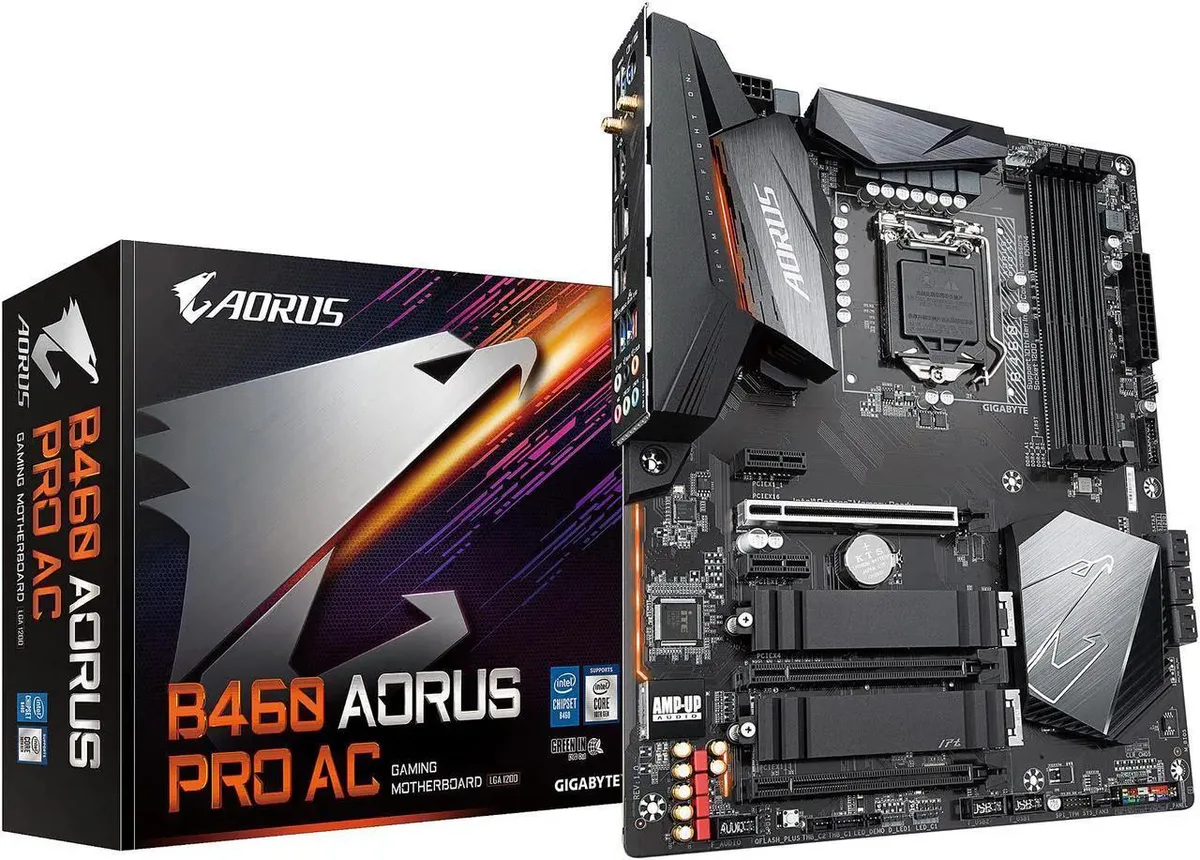

ATX motherboard dark PCB silver heatsinks rear I/O shield installed

GIGABYTE

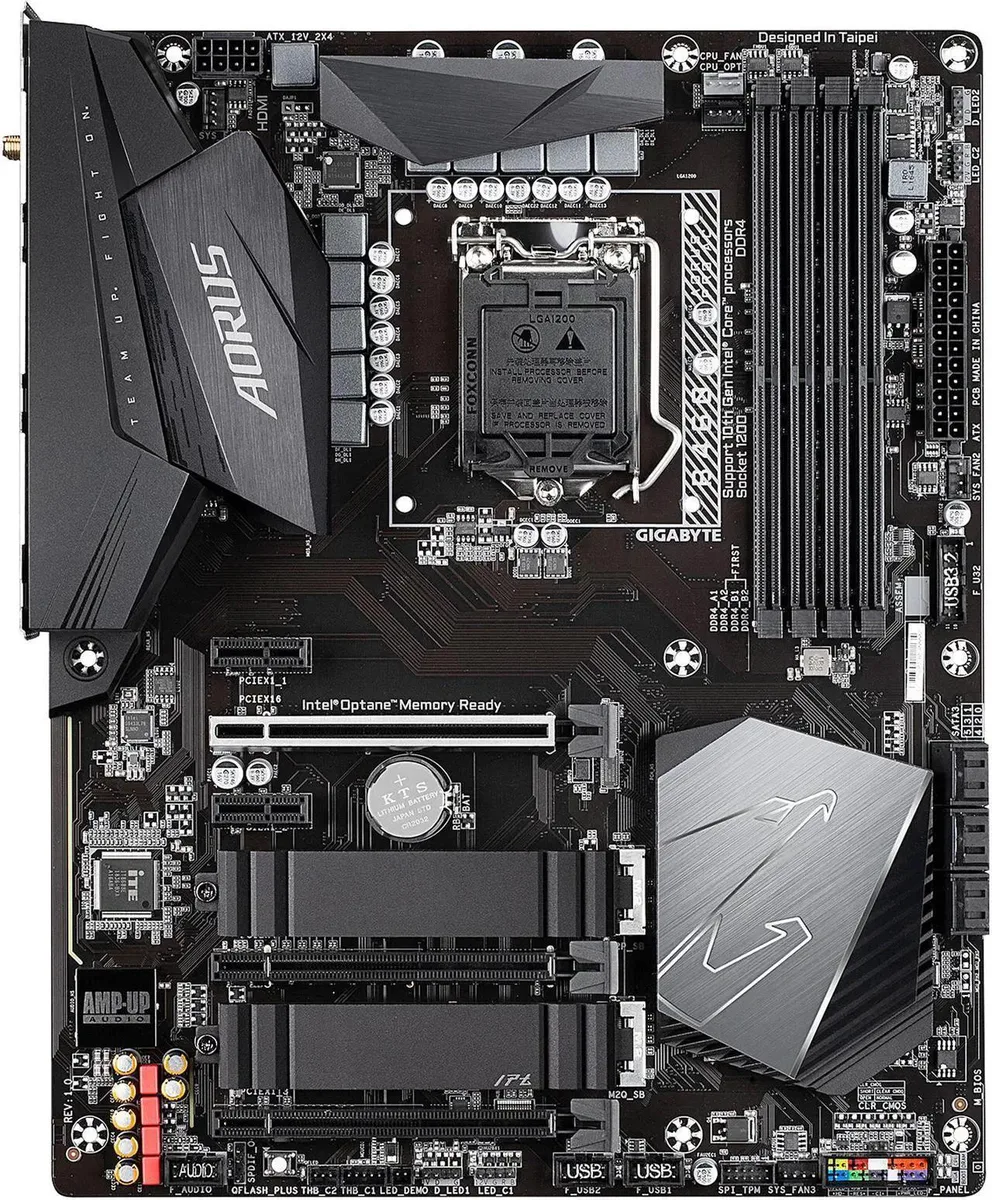

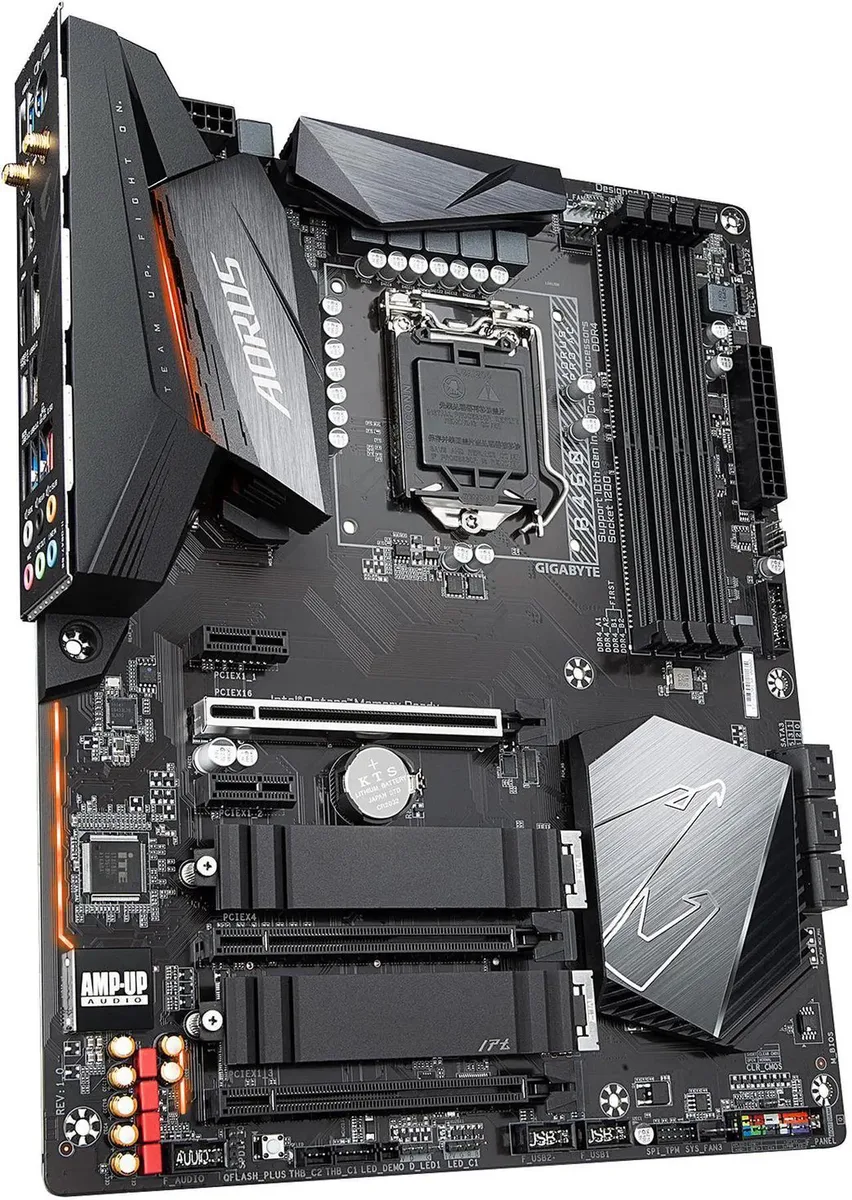

GIGABYTE B460 AORUS PRO AC Intel motherboard

SKU CH-8KBH-EAZA1

ATX board for 10th Gen Intel Core with dual M.2, 2.5 GbE LAN, Intel 802.11ac Wi-Fi, USB 3.2 Gen 2 and 128 GB DDR4 support

  • CPU Socket TypeLGA 1200
  • CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processor
  • ChipsetIntel B460
  • Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support: 1 x
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardIntel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 24
  • Supports 10th Gen Intel Core processors with LGA 1200 socket
  • 8-phase digital VRM delivers stable power for demanding CPUs
  • Dual M.2 slots with thermal guards enable fast NVMe storage
  • Intel 2.5 GbE LAN provides high-speed wired networking
  • Realtek ALC1220-VB audio codec supports 7.1-channel output

B460 ATX board for 10th Gen Intel CPUs

This GIGABYTE motherboard uses the Intel B460 chipset and an LGA 1200 socket to support 10th generation Core i9, i7, i5, i3, Pentium and Celeron processors. It delivers a direct 8-phase digital VRM and an enlarged heatsink for stable power delivery. Four DDR4 slots accept up to 128 GB of dual-channel memory at speeds up to 2933 MHz depending on the installed CPU.

Suits builders needing dual M.2 and 2.5 GbE LAN

The board provides two M.2 sockets with PCIe 3.0 x4 and SATA support, six SATA 6Gb/s ports and an Intel 2.5 GbE LAN controller for high-throughput networking. Integrated Intel 802.11ac Wi-Fi adds wireless connectivity. Users who require PCIe 4.0 support, 11th generation CPU compatibility or more than one full-length PCIe x16 slot should consider a different chipset.

LGA 1200 socket locks you to 10th Gen Intel only

The physical socket and B460 chipset combination accepts only 10th generation Intel processors in the LGA 1200 package. No BIOS update can enable newer CPU generations on this platform. Verify your processor generation before purchase to ensure compatibility.

Highlights

  • Supports 10th Gen Intel Core processors with LGA 1200 socket
  • 8-phase digital VRM delivers stable power for demanding CPUs
  • Dual M.2 slots with thermal guards enable fast NVMe storage
  • Intel 2.5 GbE LAN provides high-speed wired networking
  • Realtek ALC1220-VB audio codec supports 7.1-channel output

Specifications

BrandGIGABYTE
ModelB460 AORUS PRO AC
CPU Socket TypeLGA 1200
CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1200 package
ChipsetIntel B460
Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512MB
Number of Memory Slots4x288pin (DDR4)
Memory StandardIntel Core i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz
Intel Core i5/i3/ Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
PCI Express x13 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
Intel Optane ReadyIntel Optane Memory Ready
* System Acceleration with Intel Optane Memory enabled on the M2Q_SB connector only.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN ChipsetIntel 2.5GbE LAN chip
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 9260
Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
BluetoothBLUETOOTH 5.0
Back I/O Ports1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt add-in card connectors
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by

Questions about this item

Should I choose the M.2 slot that supports both SATA and PCIe or the PCIe-only slot for my SSD?

Use the M2P_SB slot if you have a SATA M.2 drive; it accepts both SATA and PCIe x4 or x2 SSDs in 2242, 2260, 2280 or 22110 sizes. The M2Q_SB slot only takes PCIe x4 or x2 drives and is the one enabled for Intel Optane Memory acceleration.

What resolution can I actually get from the HDMI port when using integrated graphics?

The HDMI 1.4 output is limited to 4096x2160 at 30 Hz with HDCP 2.3 support, so 4K at 60 Hz is not possible over this connector.

Does the 2.5 GbE LAN run at full speed on a standard Gigabit switch?

No, a 1 Gbps switch caps the connection at 1 Gbps; you need a 2.5 Gbps or faster switch and Cat 5e or better cabling to reach the 2.5 Gbps rating of the Intel LAN chip.
