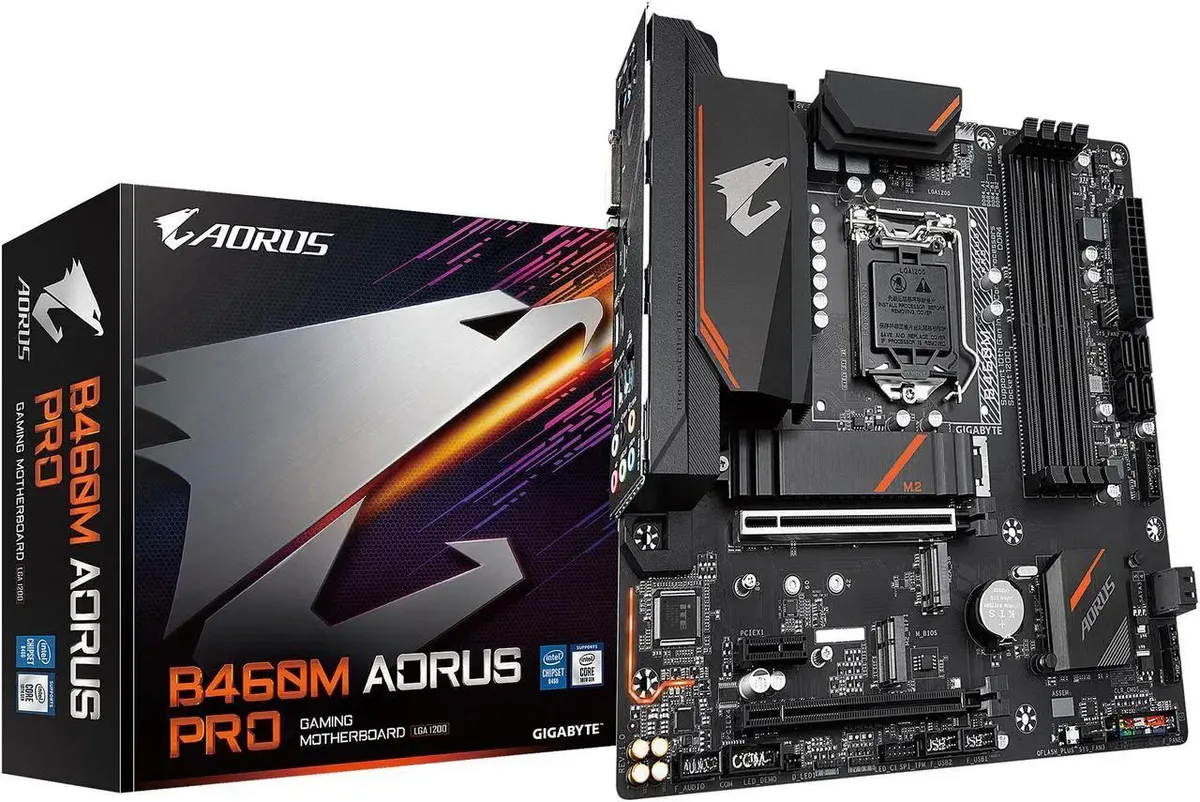

Micro-ATX motherboard, dark PCB with silver heatsinks and rear I/O shield

GIGABYTE

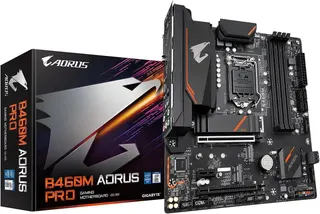

GIGABYTE B460M AORUS PRO LGA 1200 Intel motherboard

SKU CH-JR70-ZZF6J

A Micro-ATX Intel B460 board for 10th Gen Core processors with four DDR4 slots up to 128 GB, dual M.2 sockets, six SATA ports, 1 GbE LAN and USB 3.2 Gen 1 Type-C

  • CPU Socket TypeLGA 1200
  • CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processor
  • ChipsetIntel B460
  • Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support: 1 x
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardIntel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 24
  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots deliver up to 128 GB maximum memory capacity
  • Dual M.2 connectors accept 2242/2260/2280/22110 form factors for fast NVMe storage
  • Realtek ALC1200 codec enables 7.1-channel audio with Nichicon MW capacitors
  • Intel GbE LAN with cFosSpeed provides 1 Gbps wired networking

LGA 1200 Micro-ATX board for 10th Gen Intel Core

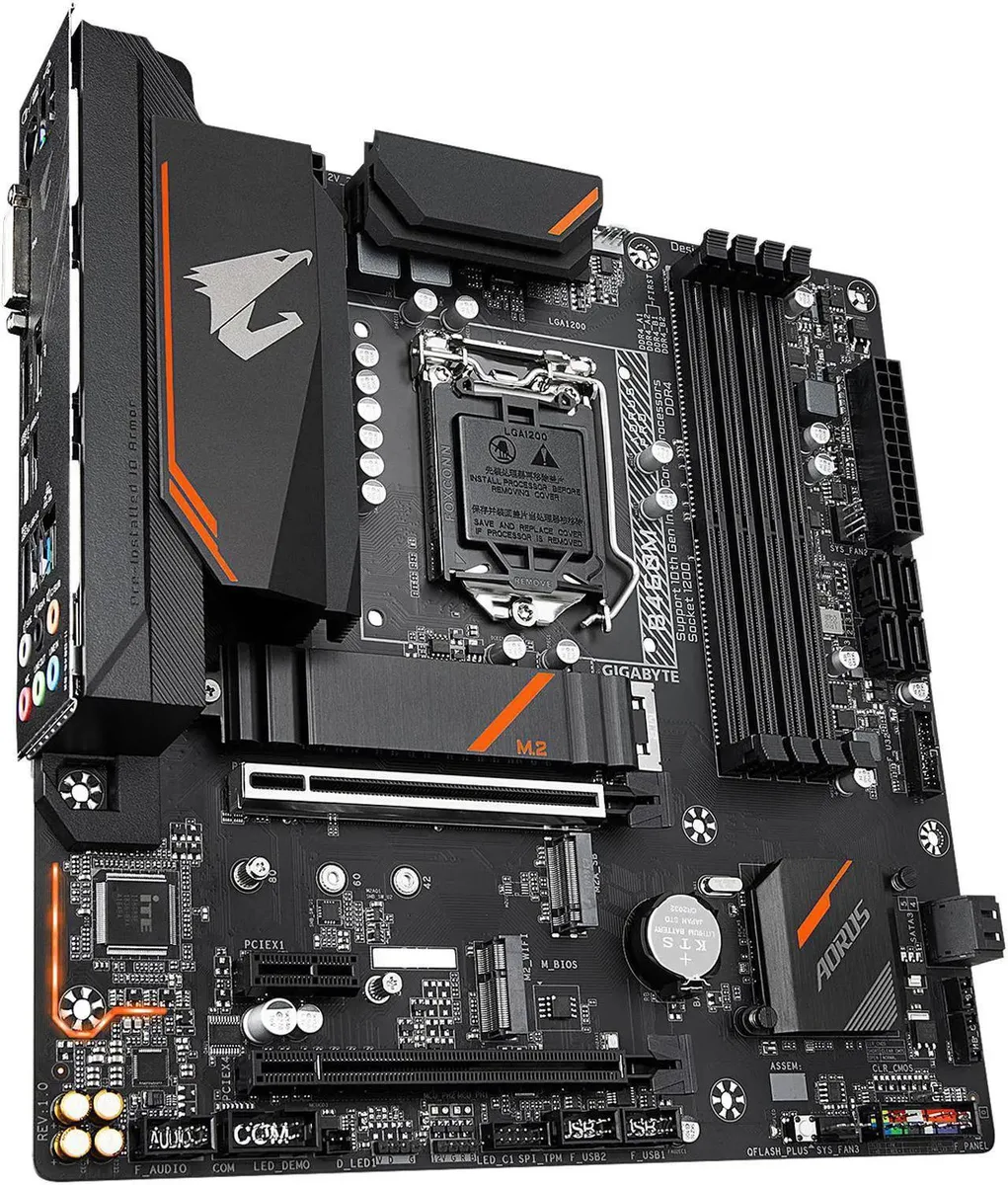

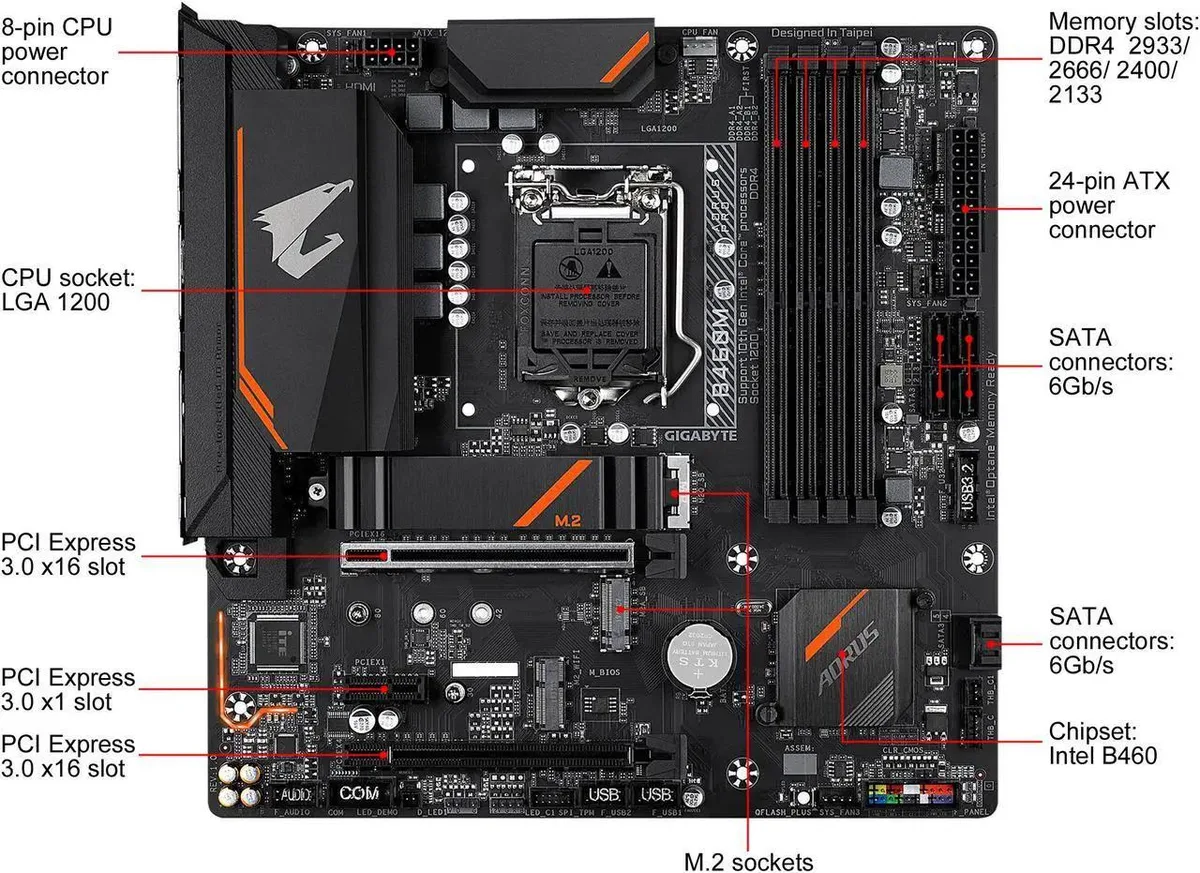

The GIGABYTE B460M AORUS PRO is a Micro-ATX motherboard built on the Intel B460 chipset for LGA 1200 processors. It supports 10th Generation Intel Core i9, i7, i5 and i3 CPUs plus Pentium and Celeron models. Four DDR4 slots accept up to 128 GB of memory. The board includes dual M.2 connectors, six SATA 6Gb/s ports and Intel Gigabit LAN.

Builders needing dual M.2 and 128 GB RAM ceiling

This board suits builders who want two M.2 sockets for SATA or PCIe SSDs and a high memory limit in a compact form factor. It also provides Realtek ALC1200 audio with 7.1-channel output and an Intel GbE LAN controller with cFosSpeed software. Users requiring more than one full-length PCIe x16 slot or memory speeds above 2933 MHz should consider a different chipset.

Dual M.2 with PCIe 3.0 x4 and SATA support

The primary M.2 slot (M2Q_SB) runs at PCIe 3.0 x4 and also enables Intel Optane Memory. The second slot (M2A_SB) accepts both PCIe and SATA M.2 drives in 2242, 2260, 2280 and 22110 lengths. This combination decides whether the board matches your storage plan.

Highlights

  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots deliver up to 128 GB maximum memory capacity
  • Dual M.2 connectors accept 2242/2260/2280/22110 form factors for fast NVMe storage
  • Realtek ALC1200 codec enables 7.1-channel audio with Nichicon MW capacitors
  • Intel GbE LAN with cFosSpeed provides 1 Gbps wired networking

Specifications

BrandGIGABYTE
ModelB460M AORUS PRO
CPU Socket TypeLGA 1200
CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1200 package
ChipsetIntel B460
Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Maximum shared memory of 512MB
Number of Memory Slots4x288pin (DDR4)
Memory StandardIntel Core i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz
Intel Core i5/i3/ Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz
Maximum Memory Supported128GB
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x11 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Other Slots1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
Intel Optane ReadyIntel Optane Memory Ready
* System Acceleration with Intel Optane Memory enabled on the M2Q_SB connector only.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1200
Audio Channels2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN ChipsetIntel GbE LAN chip
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesI/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
F

Questions about this item

Will my existing DDR4-2666 memory run at its rated speed with a Core i5 on this B460M AORUS PRO?

Yes — the board supports DDR4 2666 MHz with Core i5, i3, Pentium and Celeron CPUs, so your modules will operate at their rated frequency.

How can I confirm the M.2 NVMe drive on the M2Q_SB slot is running at PCIe 3.0 x4 after installation?

Check the BIOS storage information page or run a benchmark; the M2Q_SB connector is wired for PCIe 3.0 x4 NVMe and will report that link speed when a compatible drive is detected.

Does the box include the I/O shield and Wi-Fi module, or must I buy them separately?

The I/O shield is pre-installed on the board, while the M.2 E-key slot is provided for a Wi-Fi module that you purchase separately.
