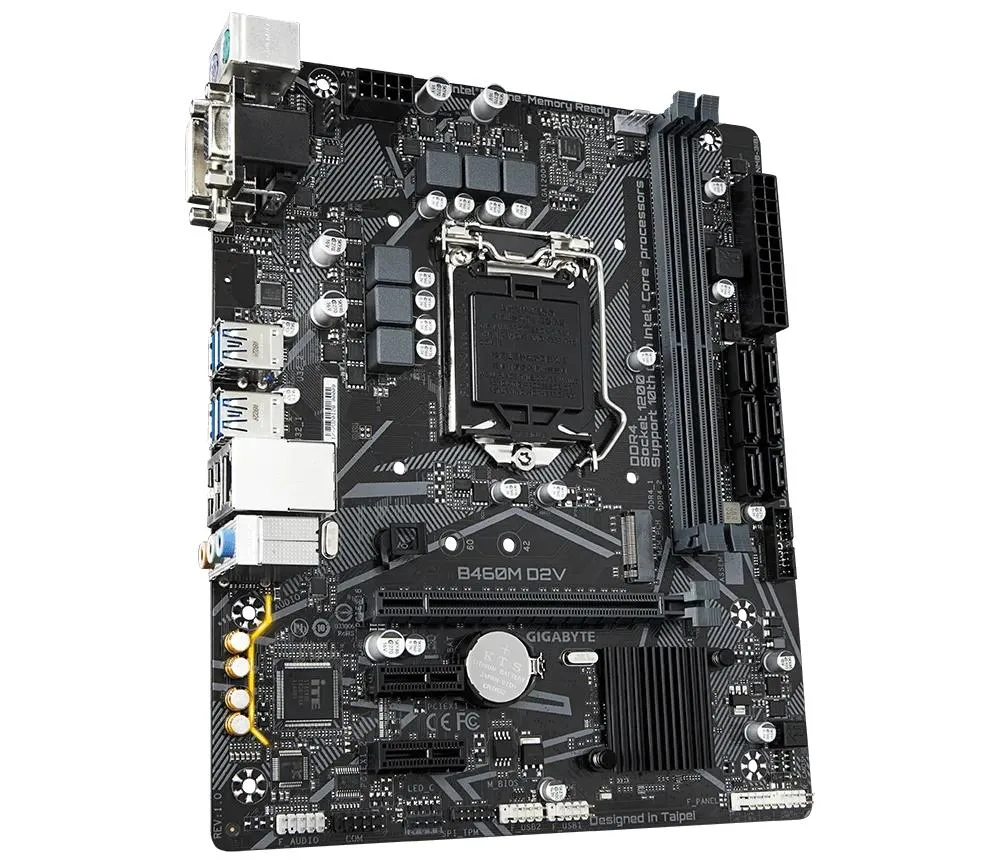

Micro ATX motherboard, matte black PCB with silver heatsinks

GIGABYTE

GIGABYTE B460M D2V Intel motherboard

SKU CH-TSM3-JJD55

Micro-ATX LGA 1200 board with dual DDR4 slots up to 64 GB, PCIe Gen3 x4 M.2, 8118 Gaming LAN and Smart Fan 5 cooling

  • CPU Socket TypeLGA 1200
  • CPU TypeCeleron Dual-Core
  • ChipsetIntel B460
  • Form FactorMicro ATX
  • Supports 10th Gen Intel Core processors via LGA1200 socket
  • Dual-channel DDR4 memory up to 64 GB across two DIMM slots
  • Ultra-fast M.2 slot with PCIe Gen3 x4 and SATA interface
  • GIGABYTE 8118 Gaming LAN with bandwidth management for low-latency networking
  • Smart Fan 5 with multiple temperature sensors and hybrid fan headers including FAN STOP

Micro-ATX LGA 1200 board for 10th Gen Core

The GIGABYTE B460M D2V is a Micro-ATX motherboard built around the Intel B460 chipset and LGA 1200 socket. It accepts 10th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron processors. Two DDR4 DIMM slots support dual-channel memory up to 64 GB with XMP profiles. Onboard video outputs include D-Sub and DVI-D at 1920x1200@60 Hz.

Hybrid PWM, Smart Fan 5 and 8118 LAN

A hybrid digital PWM design delivers clean power to the CPU while Smart Fan 5 uses multiple temperature sensors and hybrid fan headers with FAN STOP for quiet operation. High-quality audio capacitors and Audio Noise Guard with LED trace-path lighting reduce interference. The exclusive 8118 Gaming LAN adds bandwidth management for lower latency during network traffic.

PCIe Gen3 x4 M.2 with SATA support

The Ultra-Fast M.2 slot runs at PCIe Gen3 x4 and also accepts SATA interface drives, giving flexibility for fast storage upgrades. Anti-sulfur resistors protect the board from environmental corrosion. Realtek audio and the listed video outputs complete the feature set for a compact Intel platform build.

Highlights

  • Supports 10th Gen Intel Core processors via LGA1200 socket
  • Dual-channel DDR4 memory up to 64 GB across two DIMM slots
  • Ultra-fast M.2 slot with PCIe Gen3 x4 and SATA interface
  • GIGABYTE 8118 Gaming LAN with bandwidth management for low-latency networking
  • Smart Fan 5 with multiple temperature sensors and hybrid fan headers including FAN STOP

Specifications

BrandGIGABYTE
SeriesB460M D2V
CPU Socket TypeLGA 1200
CPU TypeCeleron Dual-Core
ChipsetIntel B460
Form FactorMicro ATX

Questions about this item

How do I install the CPU into the LGA 1200 socket and what is the common mistake?

Lift the retention arm, align the triangle on the processor with the socket marker, lower the chip without force, then close and lock the arm. The step people get wrong is pressing down on the CPU before the arm is fully latched, which can bend socket pins.

Which components on this board are most likely to need replacement after extended use?

The Smart Fan 5 system uses multiple temperature sensors and hybrid fan headers that can wear out over time. The audio section relies on high-quality capacitors and an audio noise guard with LED trace path lighting, which may degrade after years of continuous operation.

What limit appears first when the M.2 slot runs at PCIe Gen3 x4 speeds under sustained heavy workloads?

The PCIe Gen3 x4 interface caps sequential throughput at the lane limit, so sustained large-file transfers will hit that bandwidth ceiling before the M.2 drive’s own maximum speed is reached.
