Green micro-ATX board with silver heatsinks, black slots and rear I/O panel

GIGABYTE

GIGABYTE B460M D2V Intel Motherboard LGA 1200 DDR4 Micro ATX

SKU CH-ERBV-963QP

Micro-ATX board with Intel B460 chipset, LGA 1200 socket, two DDR4 slots, VGA and DVI outputs, six SATA3 ports and one M.2 connector

  • Supports 10th and 11th Gen Intel Core CPUs via LGA 1200 socket
  • Dual-channel DDR4 memory with two slots for up to 16 GB capacity
  • Fast NVMe storage on M.2 PCIe Gen3 x4 2280 connector
  • Realtek 8118 Gigabit LAN with automatic bandwidth allocation
  • 4+2 hybrid digital VRM with Low RDS(on) MOSFETs for efficient power delivery

Intel B460 Micro-ATX board for LGA 1200 CPUs

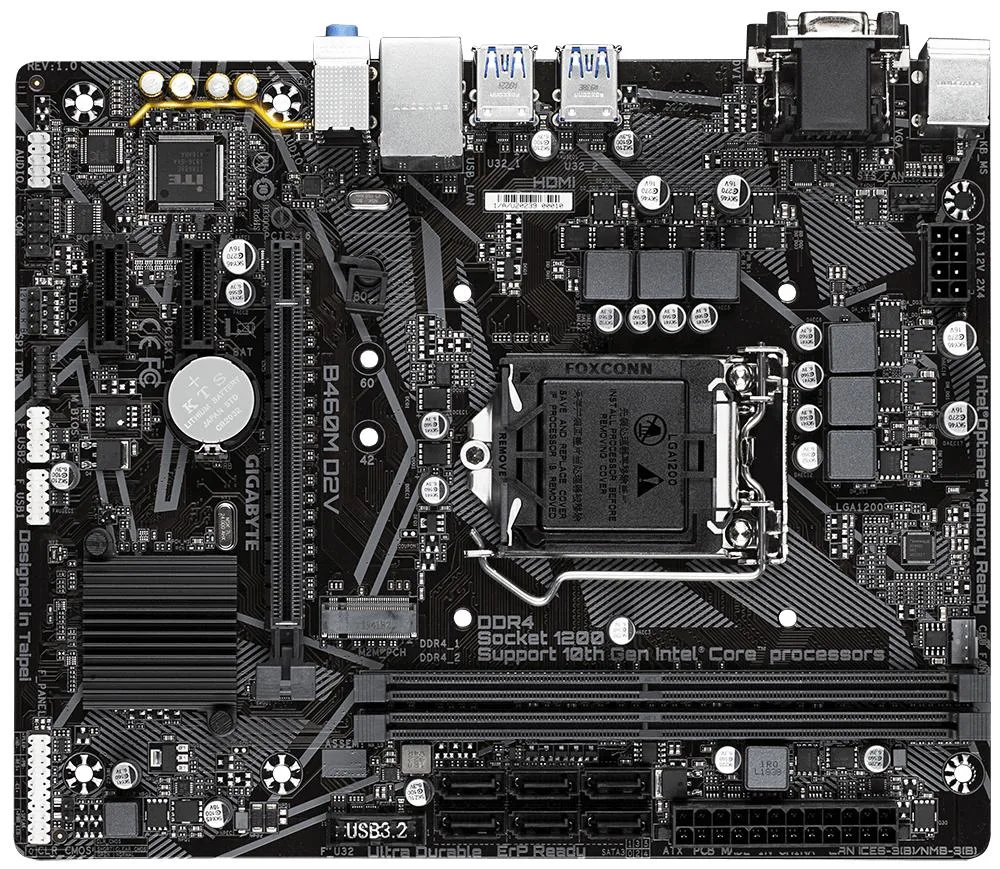

The GIGABYTE B460M D2V is a Micro-ATX motherboard built around the Intel B460 chipset and LGA 1200 socket. It supports DDR4 memory across two slots and provides a single PCIe x16 slot plus two PCIe x1 slots for expansion. Integrated graphics output is available through VGA and DVI ports. Six SATA 6 Gb/s ports and one M.2 connector that accepts both SATA and PCIe drives handle storage. A Realtek 8118 Gigabit LAN controller manages networking.

Check CPU cooler clearance and memory capacity

Verify that your chosen LGA 1200 processor fits the board's power delivery and that the cooler mounting holes match the Micro-ATX layout. Only two DDR4 slots are present, so maximum memory capacity is limited to two modules. Confirm that your power supply provides the required ATX 24-pin and 8-pin CPU connectors. The single M.2 slot supports both SATA and PCIe signalling, but only one drive can be installed there. Ensure the case has enough expansion brackets for the three rear slots.

4+2 hybrid digital VRM with low RDS(on) MOSFETs

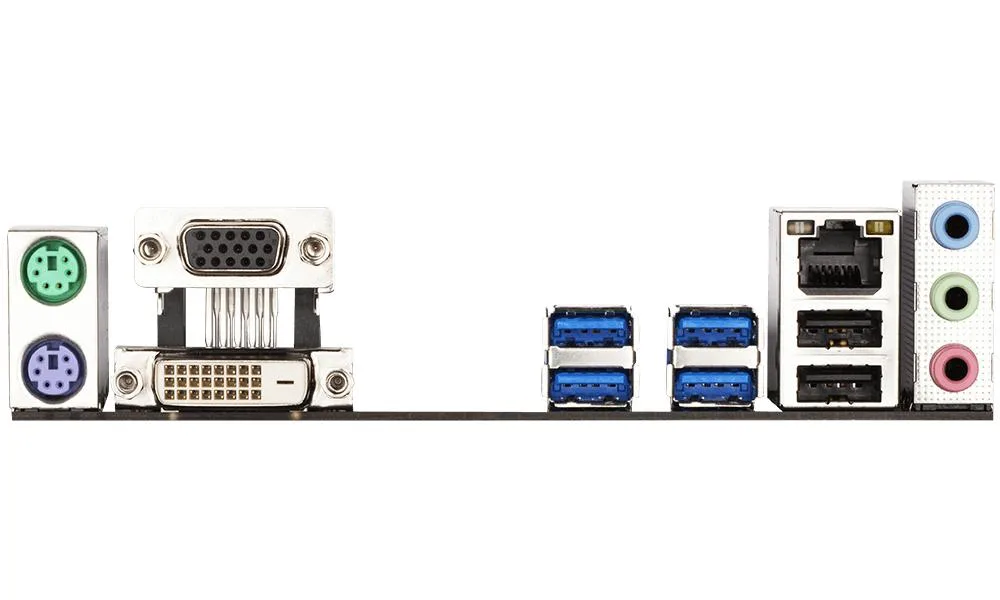

The board uses a 4+2 phase hybrid digital VRM equipped with low RDS(on) MOSFETs to reduce residual heat and improve energy efficiency. Rear I/O includes six USB 3.2 ports, six USB 2.0 ports, VGA, DVI, Gigabit LAN and three analogue audio jacks. Internal headers provide additional USB 2.0, USB 3.2 and an optional COM port. A Trusted Platform Module header is present for firmware security. The Micro-ATX form factor fits most standard cases while keeping the layout compact.

Highlights

  • Supports 10th and 11th Gen Intel Core CPUs via LGA 1200 socket
  • Dual-channel DDR4 memory with two slots for up to 16 GB capacity
  • Fast NVMe storage on M.2 PCIe Gen3 x4 2280 connector
  • Realtek 8118 Gigabit LAN with automatic bandwidth allocation
  • 4+2 hybrid digital VRM with Low RDS(on) MOSFETs for efficient power delivery

Specifications

No published specifications for this item yet.

Questions about this item

What comes in the retail box and what must be purchased separately?

The retail package includes the Micro ATX motherboard with Intel B460 chipset and LGA 1200 socket. You will need to buy a compatible CPU, DDR4 memory modules, storage drives, a power supply, a case and a graphics card if your processor lacks integrated graphics.

How do I choose between the single M.2 slot and the six SATA3 ports for my boot drive?

The board provides one M.2 connector that accepts both SATA and PCIe Gen3 x4 2280 SSDs, plus six SATA3 ports for 2.5-inch or 3.5-inch drives. Pick an NVMe PCIe M.2 drive for the fastest boot times or a SATA M.2 / 2.5-inch SSD if you prefer lower cost and still want solid performance.

What does the Realtek 8118 Gigabit LAN actually deliver in everyday use?

The onboard Realtek 8118 controller provides a 1 Gigabit Ethernet connection with automatic bandwidth allocation, so gaming or streaming traffic gets priority over background downloads. In practice you will see full wired gigabit throughput to your router or switch, limited only by your internet plan and cable quality.
