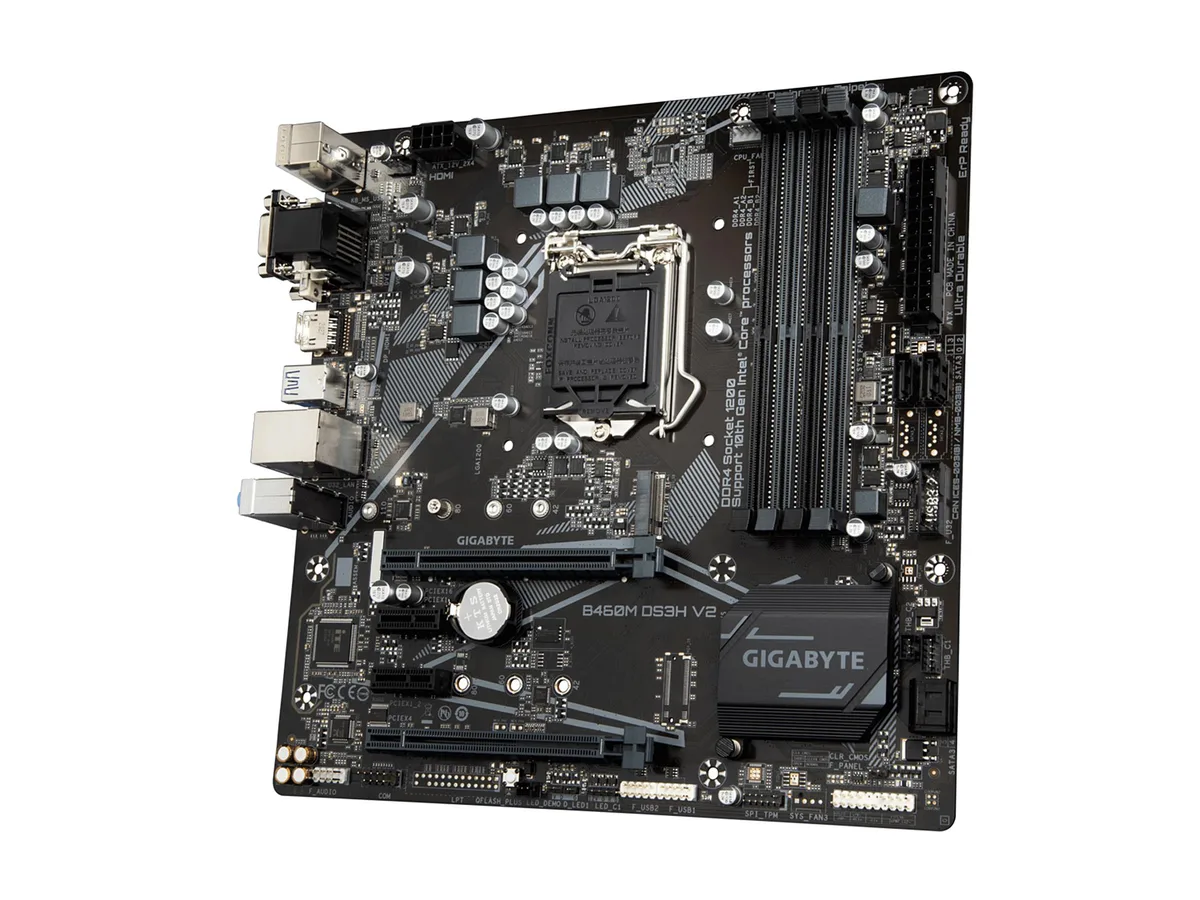

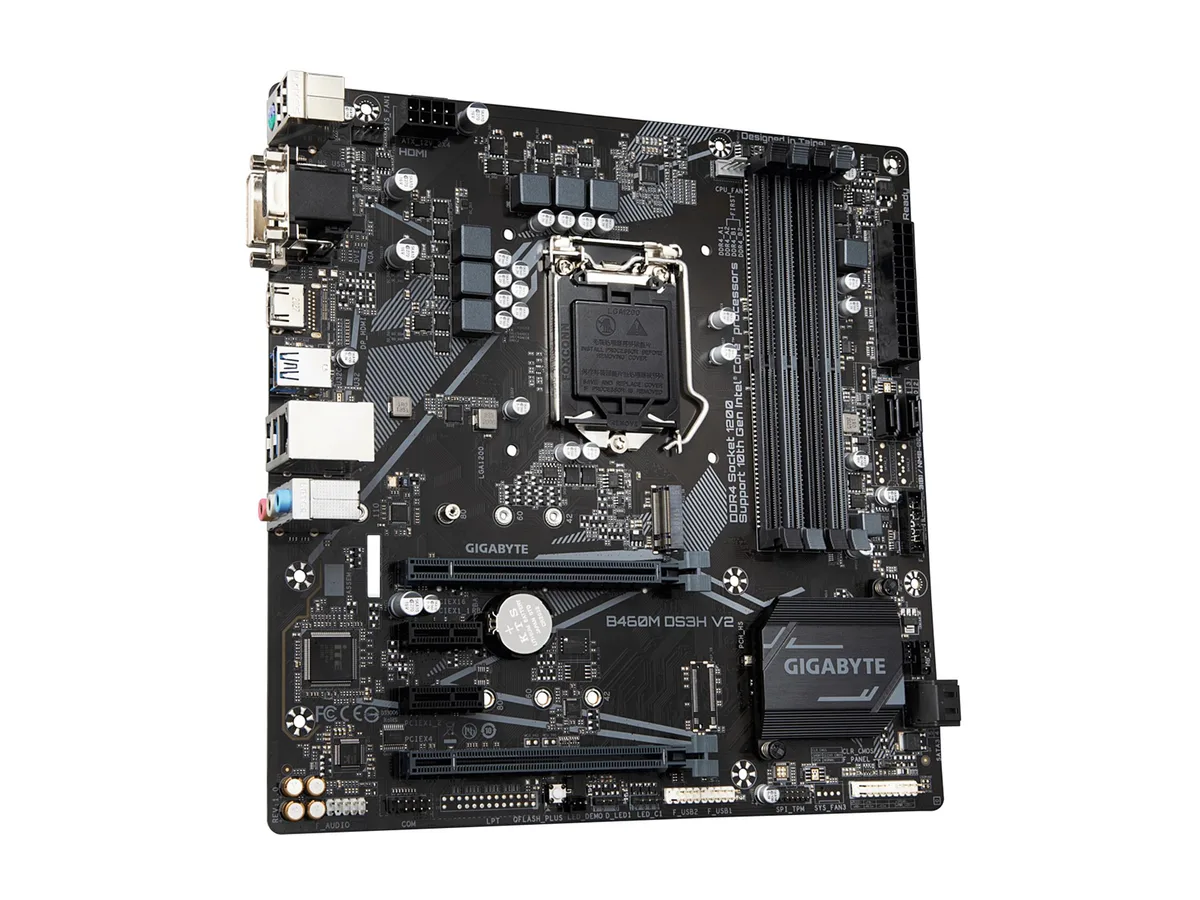

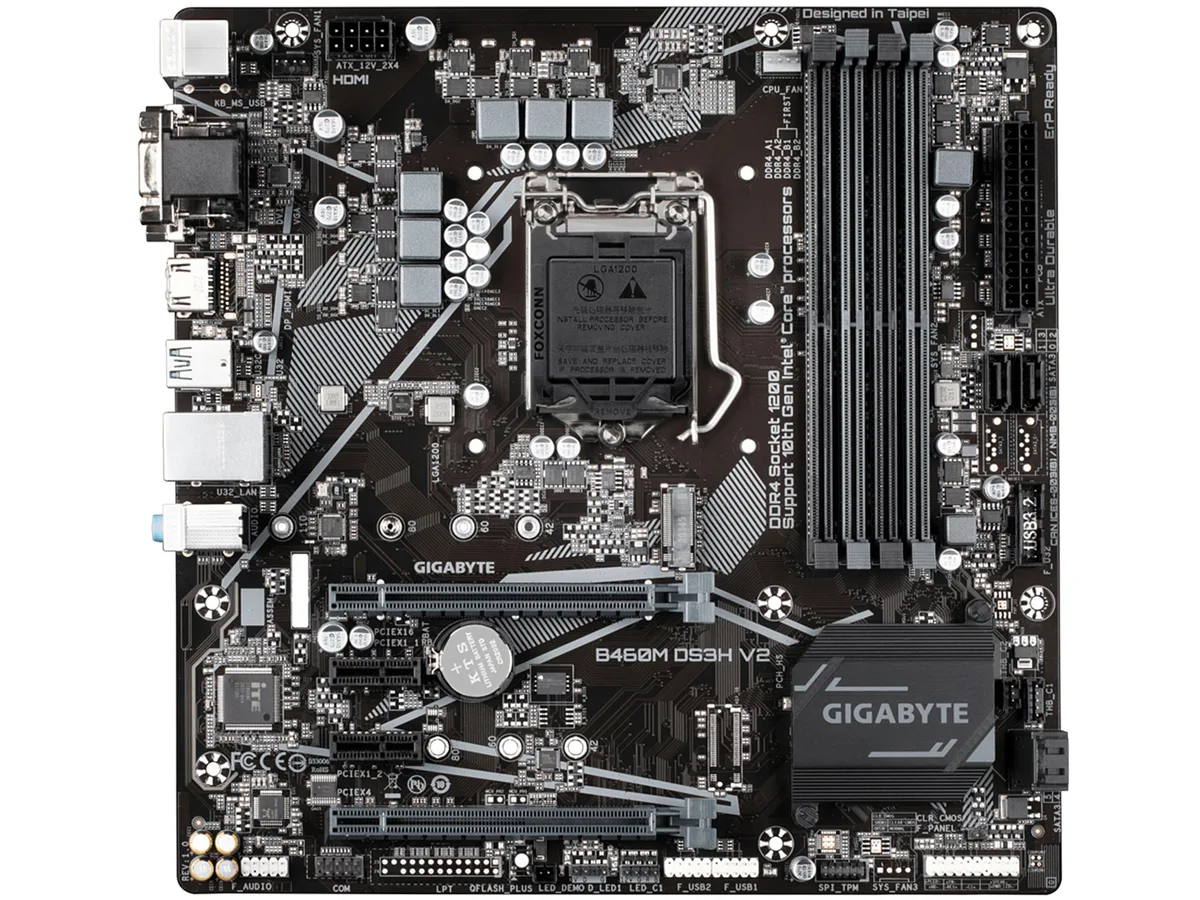

Micro-ATX board in matte black with four DDR4 slots, two full-length PCIe slots, one M.2 slot and rear I/O including HDMI, DVI, D-Sub

GIGABYTE

GIGABYTE B460M DS3H V2 (rev 1.0) Intel motherboard

SKU CH-P517-BVNXJ

Micro-ATX board for 10th and 11th Gen Intel CPUs with four DDR4 slots up to 128 GB, dual PCIe 3.0 x16, four SATA ports and one M.2 socket

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
  • ChipsetIntel B460
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 2933 / 2666 / 2400 / 2133 (Intel Core i9 / i7 processor
  • Maximum Memory Supported128GB
  • Supports 10th and 11th generation Intel Core processors on LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB at speeds up to 2933 MHz
  • Two PCI Express 3.0 x16 slots plus two x1 slots for expansion cards
  • One M.2 socket with PCIe x4 support plus four SATA 6 Gb/s ports
  • Realtek 7.1 channel audio and Intel 1 Gbps LAN with multiple USB 3.2 Gen 1 ports

LGA 1200 Micro ATX Board

The GIGABYTE B460M DS3H V2 (rev 1.0) is a Micro ATX motherboard built for Intel Core i9, i7, i5 and i3 processors from the 10th and 11th generations. It uses the Intel B460 chipset and provides four DDR4 slots supporting up to 128GB of system memory. The board targets builders who need a compact foundation for mainstream desktop work or gaming.

Upgrade From Older Chipsets

This board replaces platforms limited to 8th or 9th generation CPUs and adds native support for 10th and 11th generation LGA 1200 processors. The jump is worth it when you need higher core counts or updated instruction sets without moving to a Z series chipset. It also adds an M.2 socket for PCIe x4 or x2 SSDs in 2242, 2260, 2280 or 22110 form factors.

Straightforward Installation

Standard Micro ATX mounting holes align with most cases and the 24 pin plus 8 pin power connectors follow the usual layout. The single M.2 slot shares bandwidth with the second PCI Express 3.0 x16 slot so populating both can reduce the second slot to x1 speed. Four SATA 6Gb/s ports and dual channel memory routing are clearly labelled to avoid wiring errors.

Highlights

  • Supports 10th and 11th generation Intel Core processors on LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB at speeds up to 2933 MHz
  • Two PCI Express 3.0 x16 slots plus two x1 slots for expansion cards
  • One M.2 socket with PCIe x4 support plus four SATA 6 Gb/s ports
  • Realtek 7.1 channel audio and Intel 1 Gbps LAN with multiple USB 3.2 Gen 1 ports

Specifications

BrandGIGABYTE
ModelB460M DS3H V2 (rev 1.0)
CPU Socket TypeLGA 1200
CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
ChipsetIntel B460
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2933 / 2666 / 2400 / 2133 (Intel Core i9 / i7 processors)//DDR4 2666 / 2400 / 2133 (Intel Core i5 / i3 / Pentium / Celeron processors)
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16
PCI Express x12 x PCI Express 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek Audio CODEC
Audio Channels7.1 Channels*//* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN ChipsetIntel GbE LAN chip
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard/mouse port/1 x D-Sub port/1 x DVI-D port/1 x HDMI port/3 x USB 3.2 Gen 1 ports/2 x USB 2.0/1.1 ports/1 x RJ-45 port/3 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header/2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header/2 x RGB LED strip headers/1 x front panel header/1 x front panel audio header/1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)/2 x serial port headers/1 x parallel port header/1 x Clear CMOS jumper/1 x Q-Flash Plus button
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector/1 x 8-pin ATX 12V power connector
FeaturesI/O Controller:/iTE I/O Controller Chip//H/W Monitoring:/Voltage detection/Temperature detection/Fan speed detection/Fan fail warning/Fan speed control/* Whether the fan speed control function is supported will depend on the fan you install.//BIOS:/1 x 256 Mbit flash/Use of licensed AMI UEFI BIOS/PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0//Unique Features:/Support for APP Center/* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications./@BIOS/EasyTune/Fast Boot/Game Boost/

Questions about this item

Will this board support a 10th Gen Core i5 and 128 GB of DDR4 memory?

Yes, the LGA 1200 socket and B460 chipset accept 10th Gen Core i5 CPUs, and the four DDR4 slots support up to 128 GB total.

Can I use the HDMI and DVI ports for dual monitors with a CPU that has integrated graphics?

Yes, the back panel provides one HDMI and one DVI-D output, both driven by the processor’s integrated graphics, allowing two displays simultaneously.

What M.2 SSD lengths does the single M.2 slot accept?

The M key slot supports 2242, 2260, 2280 and 22110 form factors, so most common M.2 SATA or PCIe drives will fit.
