Green Micro-ATX board with black slots, silver heatsinks and LED audio trace

GIGABYTE

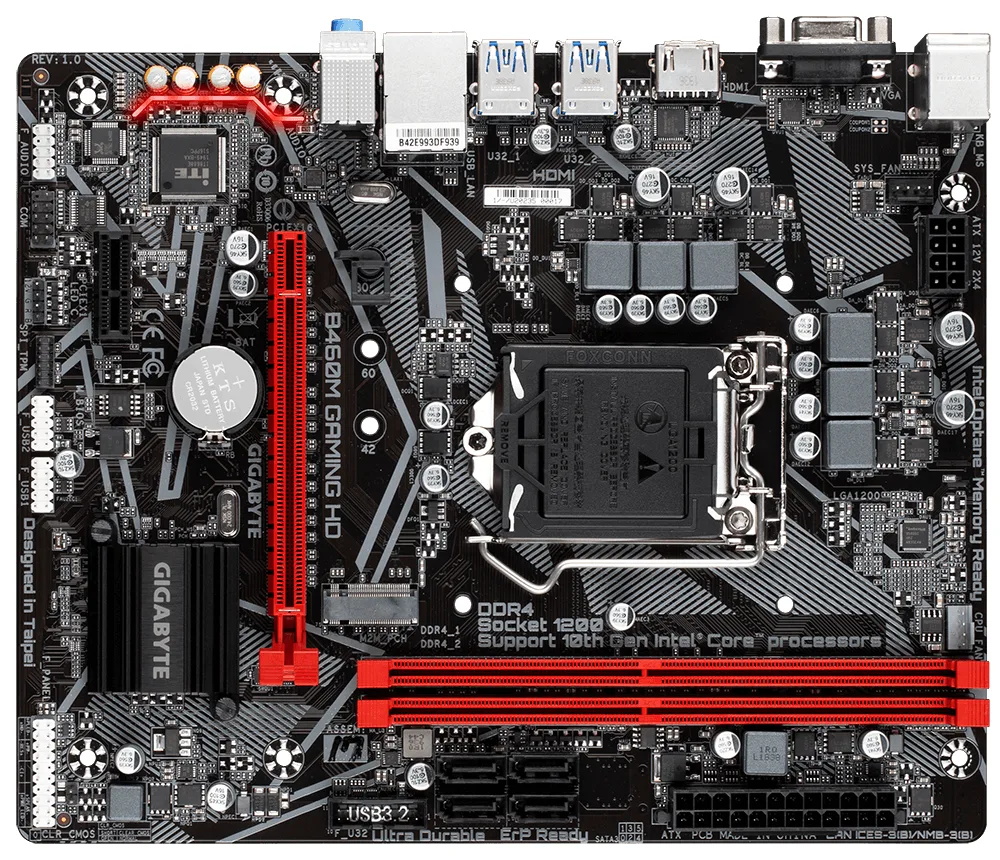

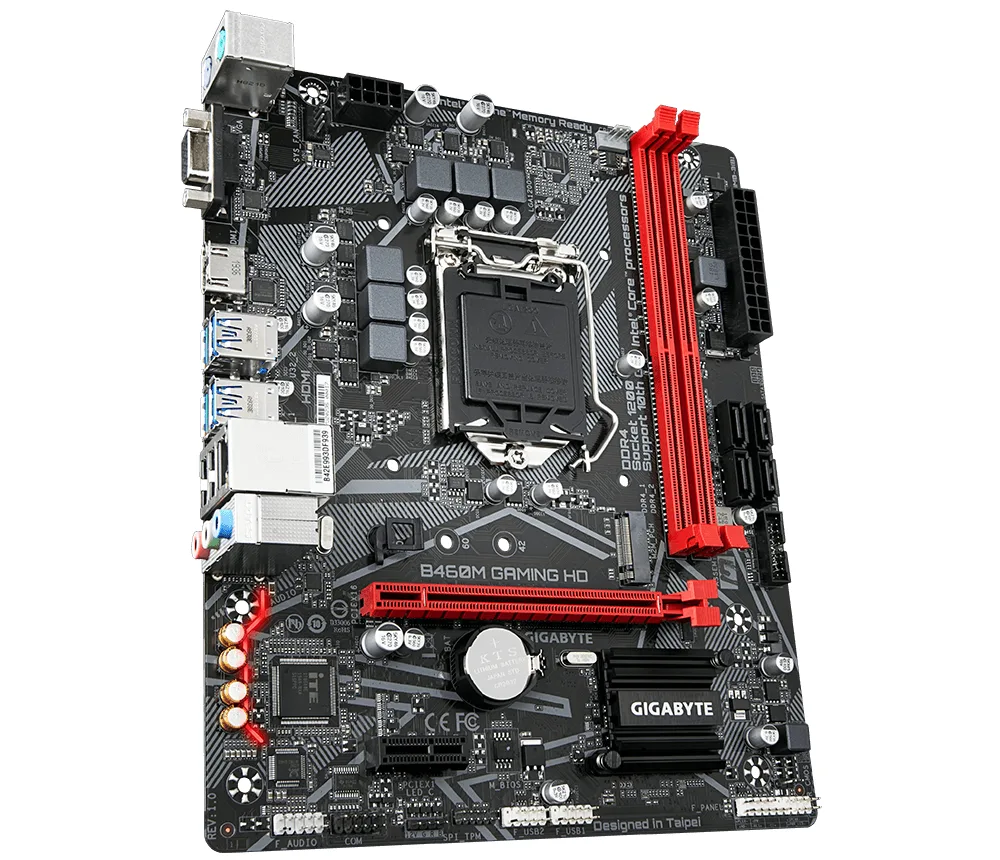

GIGABYTE B460M Gaming HD Intel Motherboard

SKU CH-E983-7AR9K

Micro-ATX board for 10th Gen Intel LGA 1200 CPUs with dual-channel DDR4 up to 64 GB, PCIe Gen3 x4 M.2, 8118 Gaming LAN and Smart Fan 5

  • CPU Socket TypeLGA 1200
  • CPU TypeCeleron Dual-Core
  • ChipsetIntel
  • Form FactorMicro ATX
  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Ultra-Fast M.2 with PCIe Gen3 x4 and SATA interface
  • GIGABYTE 8118 Gaming LAN with bandwidth management
  • Smart Fan 5 with multiple temperature sensors and hybrid fan headers
  • Anti-Sulfur resistors and 15KV surge LAN protection for durability

Processor support

The board uses the Intel B460 chipset and an LGA 1200 socket for 10th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron processors. Two DDR4 DIMM slots provide dual-channel memory up to 64 GB total with a 32 GB per-module limit. Supported speeds reach 2933 MHz with i9 or i7 CPUs and 2666 MHz with i5, i3, Pentium or Celeron CPUs, plus XMP profile support.

Storage and LAN

A single M.2 slot accepts PCIe Gen3 x4 or SATA drives for fast boot and storage expansion. The integrated 8118 Gaming LAN controller adds bandwidth-management software and 15 KV surge protection for wired network reliability. Anti-sulfur resistors on the PCB improve long-term durability in humid environments.

Video outputs and cooling

Onboard graphics from compatible CPUs drive one D-Sub port at 1920 x 1200 @ 60 Hz and one HDMI 1.4 port at 4096 x 2160 @ 30 Hz with HDCP 2.3, sharing up to 512 MB of system memory. Smart Fan 5 uses multiple temperature sensors and hybrid headers with Fan Stop to keep temperatures low and noise down during everyday use.

Highlights

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Ultra-Fast M.2 with PCIe Gen3 x4 and SATA interface
  • GIGABYTE 8118 Gaming LAN with bandwidth management
  • Smart Fan 5 with multiple temperature sensors and hybrid fan headers
  • Anti-Sulfur resistors and 15KV surge LAN protection for durability

Specifications

BrandGIGABYTE
SeriesB460M GAMING HD
CPU Socket TypeLGA 1200
CPU TypeCeleron Dual-Core
ChipsetIntel
Form FactorMicro ATX

Questions about this item

Will the board run with a 10th Gen Intel Core i5 and my existing DDR4 2666 memory?

Yes, 10th Gen Core i5 processors are supported and the board runs DDR4 at 2666 MHz with those CPUs, so your current modules will work at their rated speed.

How can I confirm the 8118 Gaming LAN is active after I build the system?

Install the LAN driver from the support page, then check Device Manager — the adapter will appear as the 8118 Gaming LAN and the status LEDs on the rear port will light when a cable is connected.

Does the box include an M.2 screw and standoff, or do I need to buy them separately?

The motherboard ships with the M.2 mounting screw and standoff pre-installed, so no extra hardware is required to fit a PCIe Gen3 x4 or SATA M.2 drive.
