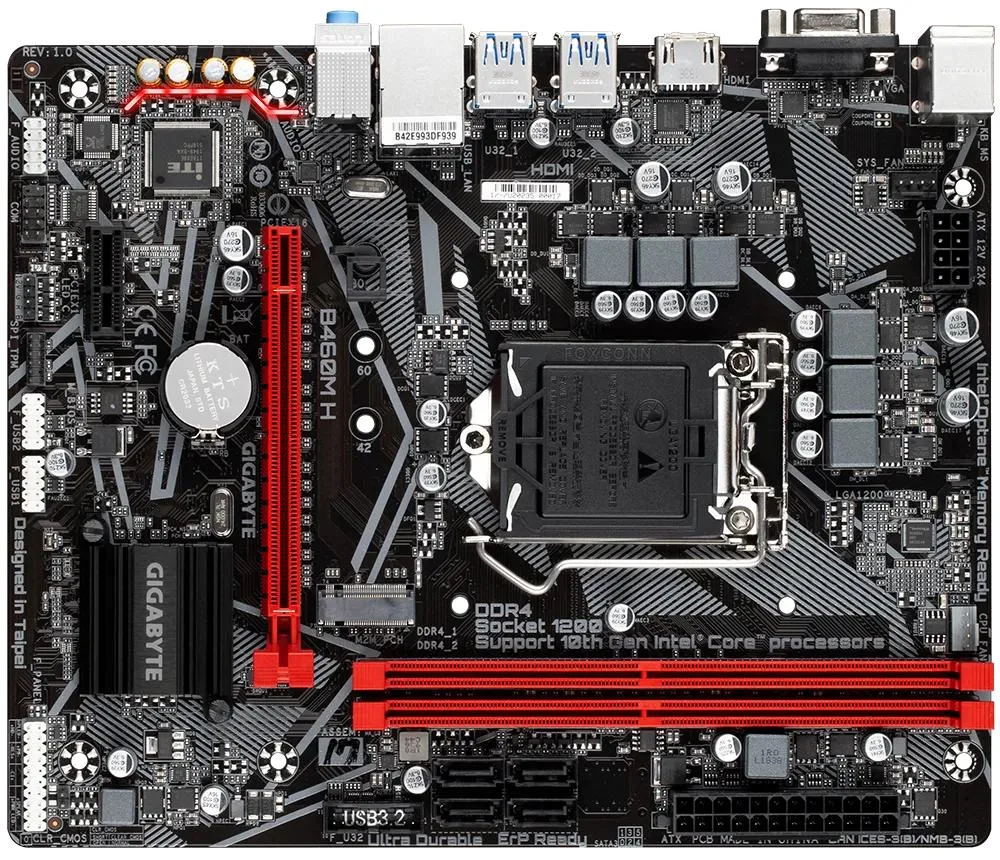

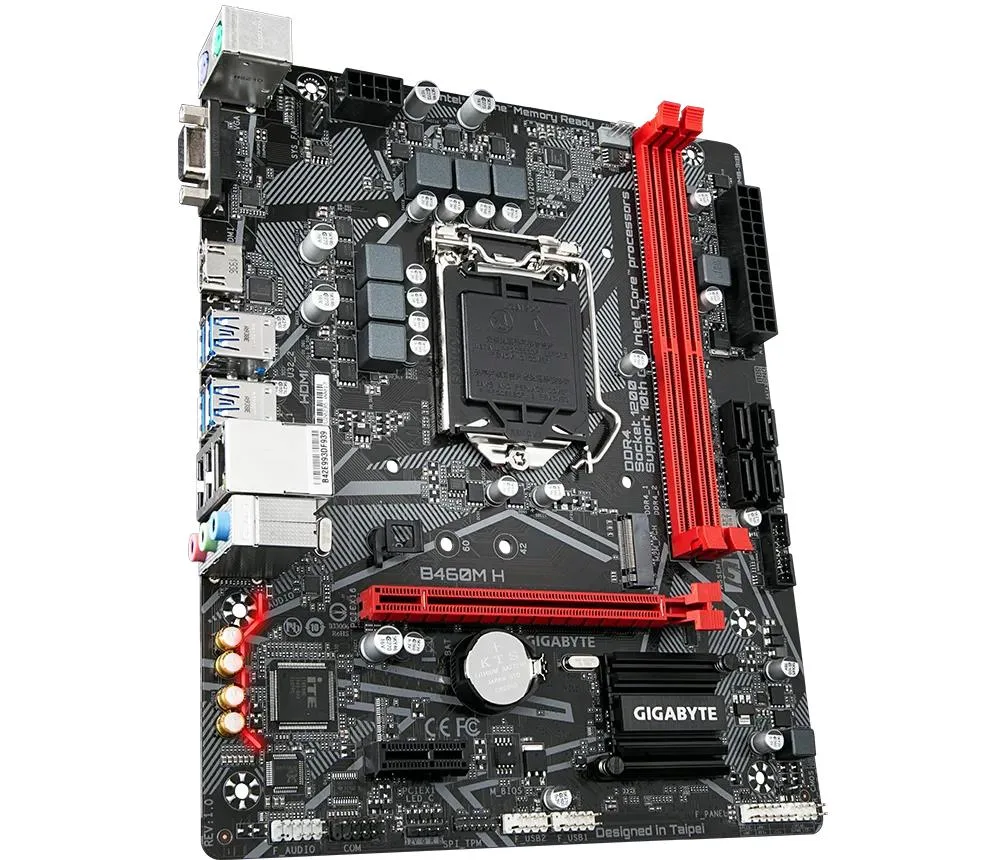

Micro-ATX motherboard with black PCB, silver heatsinks, blue audio path lighting, two RAM slots, single M.2 slot, HDMI and VGA ports

GIGABYTE

GIGABYTE B460M H Intel motherboard

SKU CH-J1MT-SXNZP

A micro-ATX board for 10th Gen Intel Core CPUs with dual-channel DDR4 up to 64 GB, PCIe Gen3 x4 M.2, 8118 Gaming LAN and Smart Fan 5 cooling

  • CPU TypeIntel Core 10th Gen (LGA 1200)
  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 64 GB across two DIMMs
  • Ultra-fast M.2 slot with PCIe Gen3 x4 and SATA interface
  • 8118 Gaming LAN with bandwidth management and 15 KV surge protection
  • Smart Fan 5 with multiple sensors and hybrid headers featuring fan stop

Socket LGA 1200 motherboard for 10th Gen Intel Core

This GIGABYTE B460M H board accepts 10th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron processors in the LGA 1200 package. It is built for office workstations and budget gaming rigs that need a compact micro-ATX foundation. The Intel B460 Express Chipset handles platform duties without overclocking support.

Dual-channel DDR4 layout

Two DDR4 DIMM sockets support up to 64 GB total capacity with XMP memory profiles. An Ultra-Fast M.2 slot provides PCIe Gen3 x4 and SATA interface options for a single solid-state drive. Anti-Sulfur Resistors and 15 KV surge LAN protection harden the PCB against environmental wear. Smart Fan 5 uses multiple temperature sensors and hybrid headers with Fan Stop for quiet daily operation.

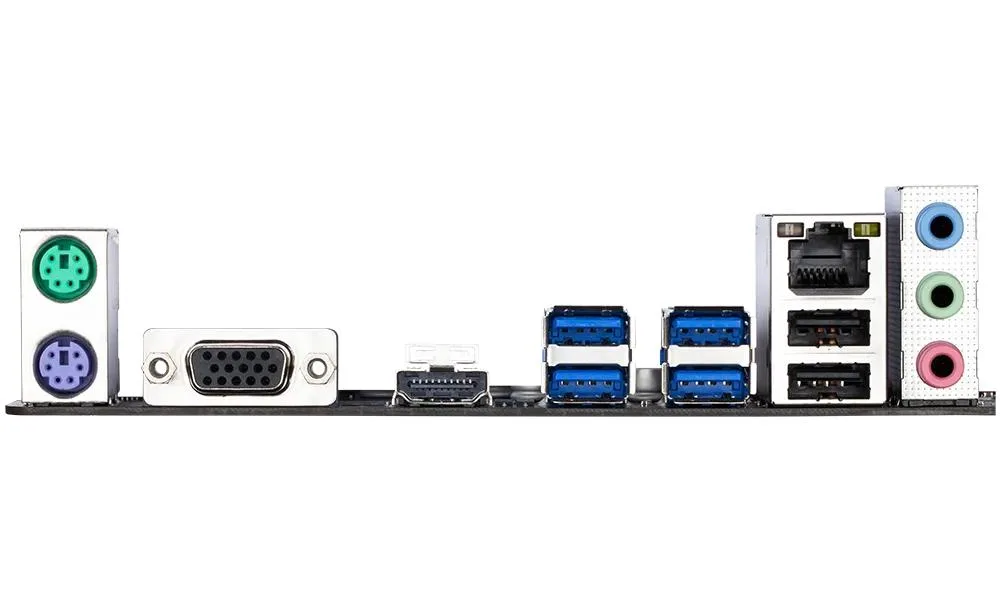

Video outputs limited to D-Sub and HDMI 1.4

Integrated graphics connect through one D-Sub port at 1920 x 1200 at 60 Hz and one HDMI 1.4 port at 4096 x 2160 at 30 Hz with HDCP 2.3. Builders who need DisplayPort, USB-C video or higher refresh rates at 4K must add a discrete graphics card. The board supplies GIGABYTE 8118 Gaming LAN with bandwidth management for wired networking.

Highlights

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 64 GB across two DIMMs
  • Ultra-fast M.2 slot with PCIe Gen3 x4 and SATA interface
  • 8118 Gaming LAN with bandwidth management and 15 KV surge protection
  • Smart Fan 5 with multiple sensors and hybrid headers featuring fan stop

Specifications

CPU TypeIntel Core 10th Gen (LGA 1200)

Questions about this item

What PCIe generation and lane width does the M.2 slot on this B460M H board use?

The Ultra-Fast M.2 slot runs at PCIe Gen3 x4 and also supports SATA interface drives.

How many DDR4 DIMM slots are on this micro-ATX board and what is the maximum capacity?

Two DDR4 DIMM sockets support up to 64 GB total, with a 32 GB limit per module.

Which fan headers does Smart Fan 5 monitor and what feature stops fans at low load?

Smart Fan 5 reads multiple temperature sensors and controls hybrid fan headers with FAN STOP.
