GIGABYTE
GIGABYTE B550 Eagle WIFI6 AMD motherboard
AM4 board with 10+3+1 power phases, dual-channel DDR4 up to 128 GB, PCIe 4.0 x16, two M.2 slots, WIFI6 and 1GbE LAN
- CPU Socket TypeAM4
- CPU TypeAMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Proces
- ChipsetAMD B550
- Number of Memory Slots4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single
- Memory StandardDDR4 2133 / DDR3 1600 / DDR4 2400 / DDR4 2667 / DDR4 2933 /
- Maximum Memory Supported128GB
- Supports Ryzen 5000 and 3000 series CPUs on AM4 socket
- Four DDR4 DIMM slots enable up to 128 GB system memory
- DDR4 overclocking headroom up to 4733 MT/s with XMP and EXPO profiles
- 10+3+1 phase digital VRM with full-metal heatsinks for stable multi-core power
- PCIe 4.0 x16 slot and dual M.2 slots for high-speed GPU and storage
- WIFI6 and 1 GbE LAN deliver fast wired and wireless network connectivity
AM4 Ryzen 5000 Ready

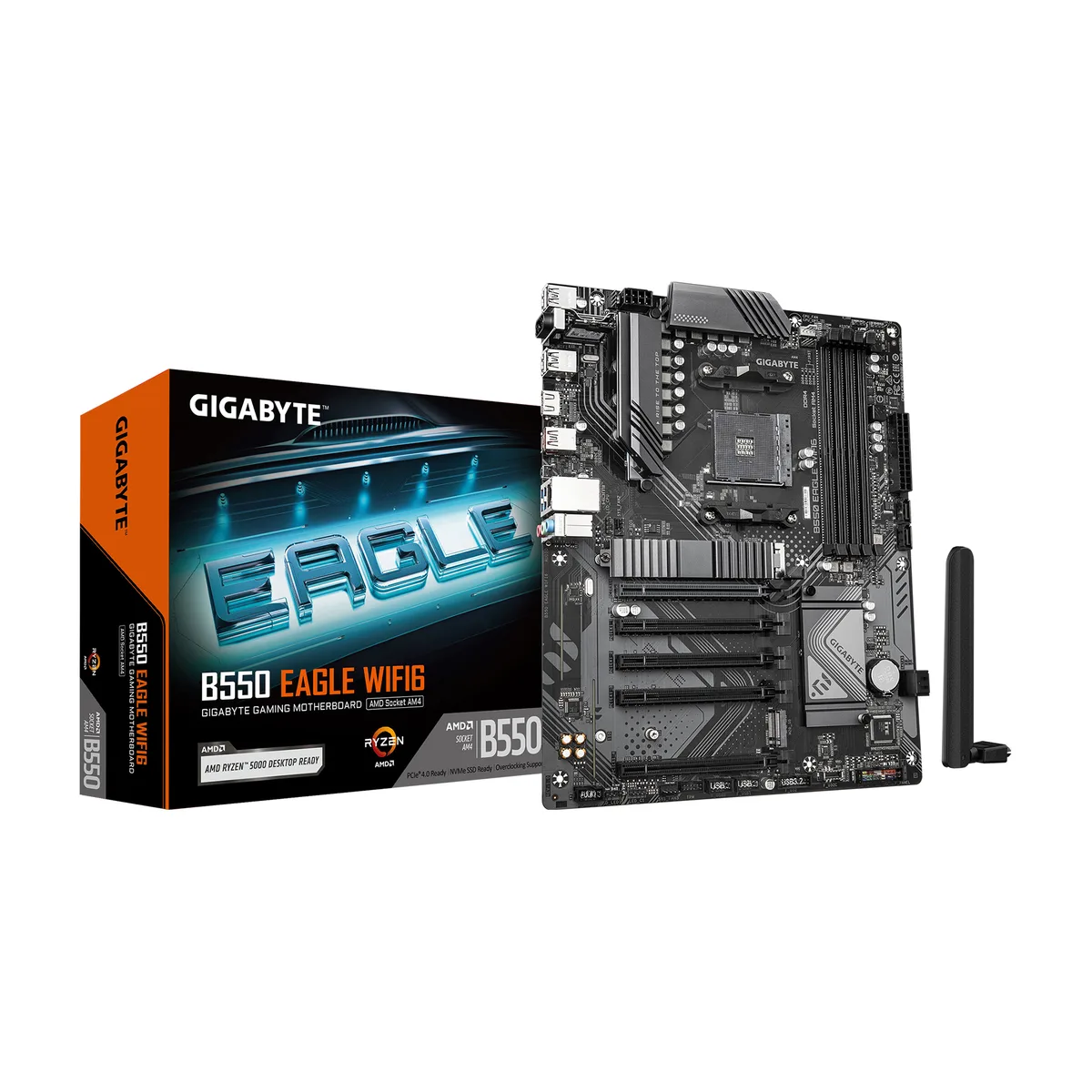

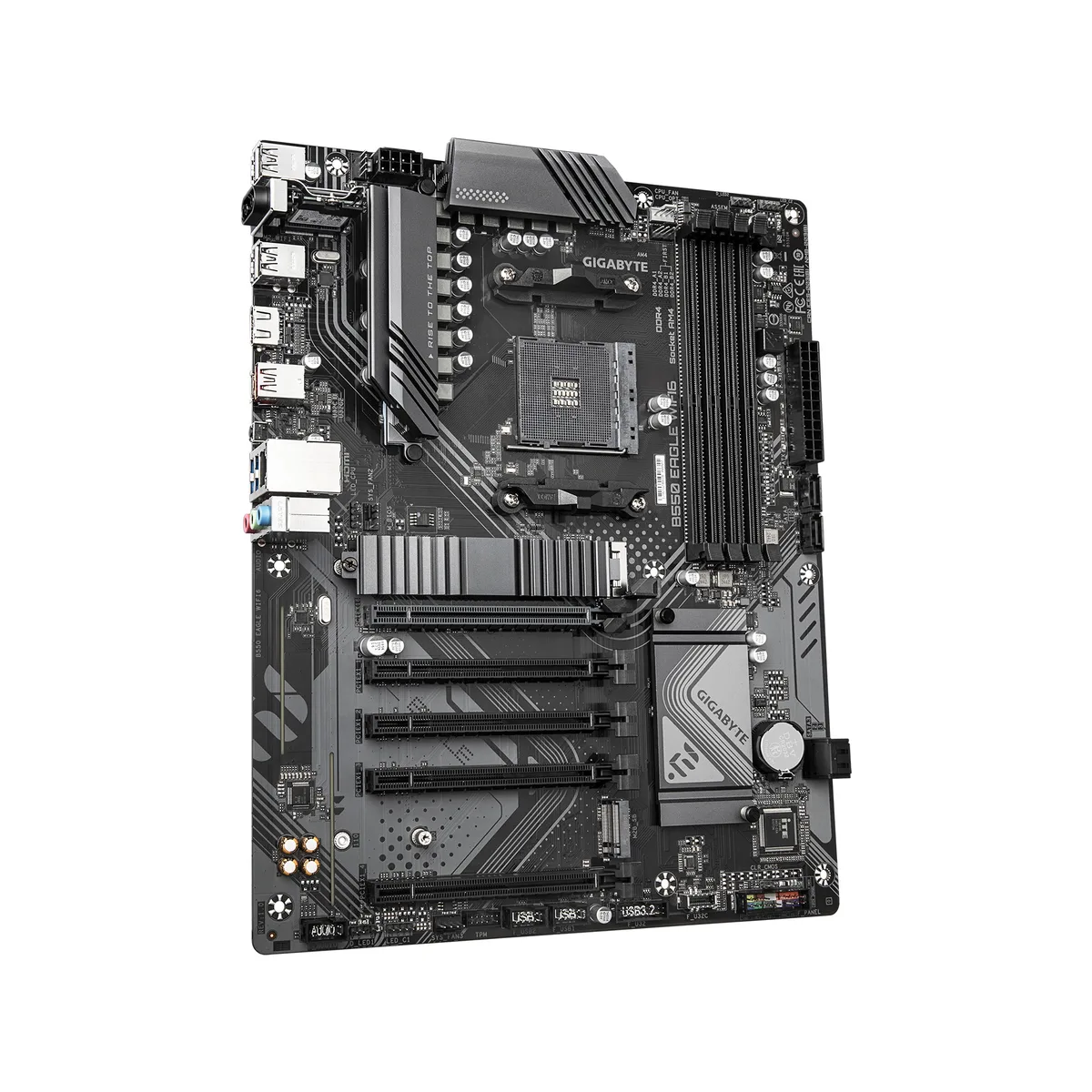

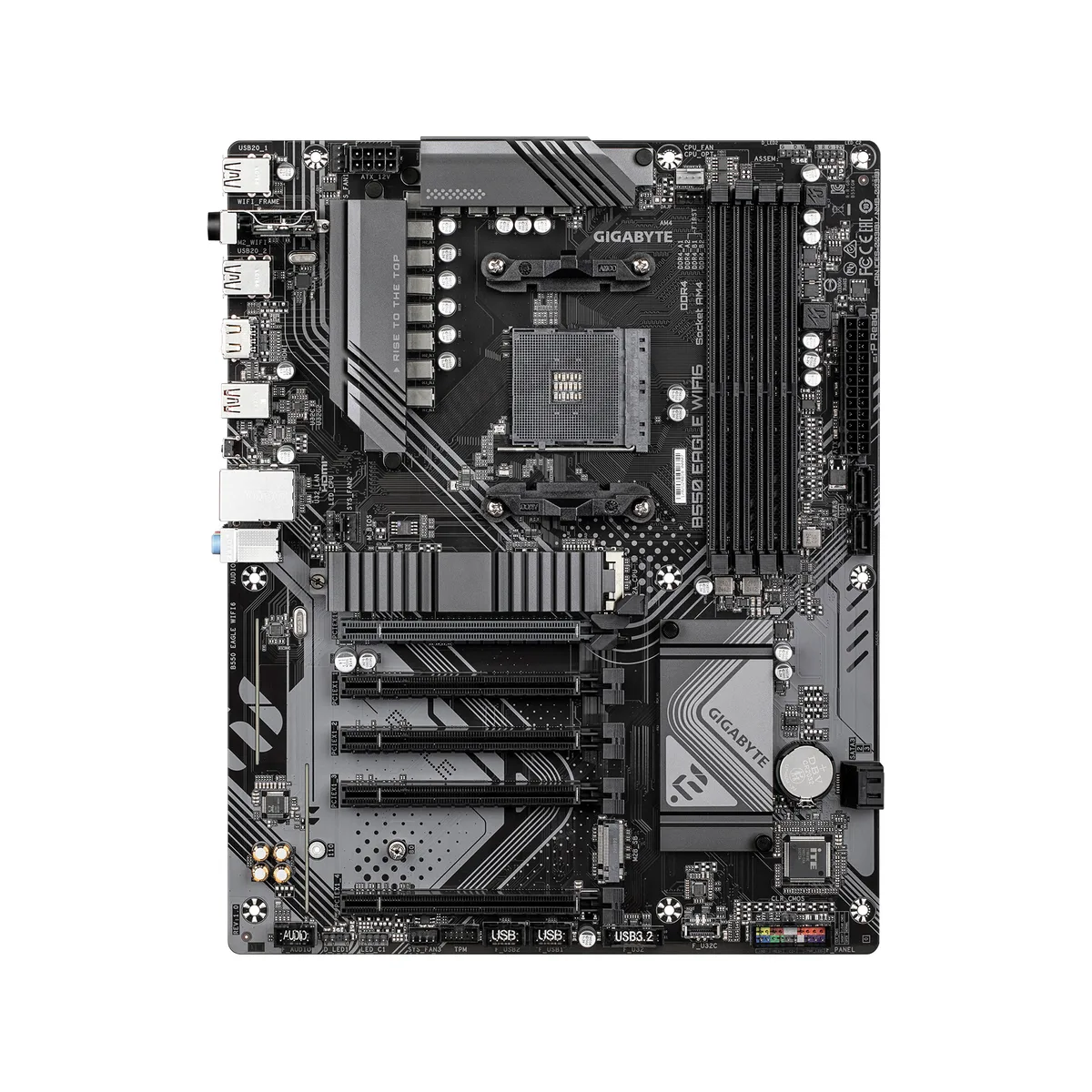

The GIGABYTE B550 Eagle WIFI6 is an ATX motherboard built for AMD Socket AM4 processors including Ryzen 5000, 4000 and 3000 series CPUs. It supports up to 128 GB of DDR4 memory across four slots with speeds up to 3200 MT/s and XMP capability. The board provides PCIe 4.0 x16 from the CPU and two M.2 slots for storage. Integrated WIFI6 and 1 GbE LAN handle networking.
EZ-Latch PCIe And M.2
Installation is simplified by the PCIe EZ-Latch release mechanism that lets you remove a graphics card without fumbling for a rear latch. The two M.2 slots also use tool-free latches so SSDs drop in and lock without screws. The ATX layout follows standard mounting points and the 24-pin plus 8-pin CPU power connectors sit in the usual positions. Clear the CMOS jumper if the system fails to post after a memory change.
Check CPU Cooler Clearance And QVL
Verify that your CPU cooler fits within the VRM heatsink area before ordering because the board uses a substantial thermal armor design. Confirm your power supply delivers an 8-pin EPS connector for the 10+3+1 phase VRM. Cross-reference your DDR4 kit with the manufacturer QVL to ensure 3200 MT/s or higher operation. Ensure your chassis has an ATX standoff pattern and enough rear I/O cutout space for the supplied shield.
Highlights
- Supports Ryzen 5000 and 3000 series CPUs on AM4 socket
- Four DDR4 DIMM slots enable up to 128 GB system memory
- DDR4 overclocking headroom up to 4733 MT/s with XMP and EXPO profiles
- 10+3+1 phase digital VRM with full-metal heatsinks for stable multi-core power
- PCIe 4.0 x16 slot and dual M.2 slots for high-speed GPU and storage
- WIFI6 and 1 GbE LAN deliver fast wired and wireless network connectivity
Specifications
| Brand | GIGABYTE |
|---|---|
| Series | Prime |
| Model | B550 EAGLE WIFI6 |
| Part Number | B550 EAGLE WIFI6 |
| CPU Socket Type | AM4 |
| CPU Type | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B550 |
| Number of Memory Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules |
| Memory Standard | DDR4 2133 / DDR3 1600 / DDR4 2400 / DDR4 2667 / DDR4 2933 / DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Memory Feature | DDR4, 3200 MHz, 4, 128 GB |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x4 | 3 x PCI Express x4 |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio Channels | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN Chipset | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Max LAN Speed | (1 Gbps/100 Gbps/10 Mbps) |
| Wireless LAN | Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Bluetooth | BLUETOOTH 5.3 |

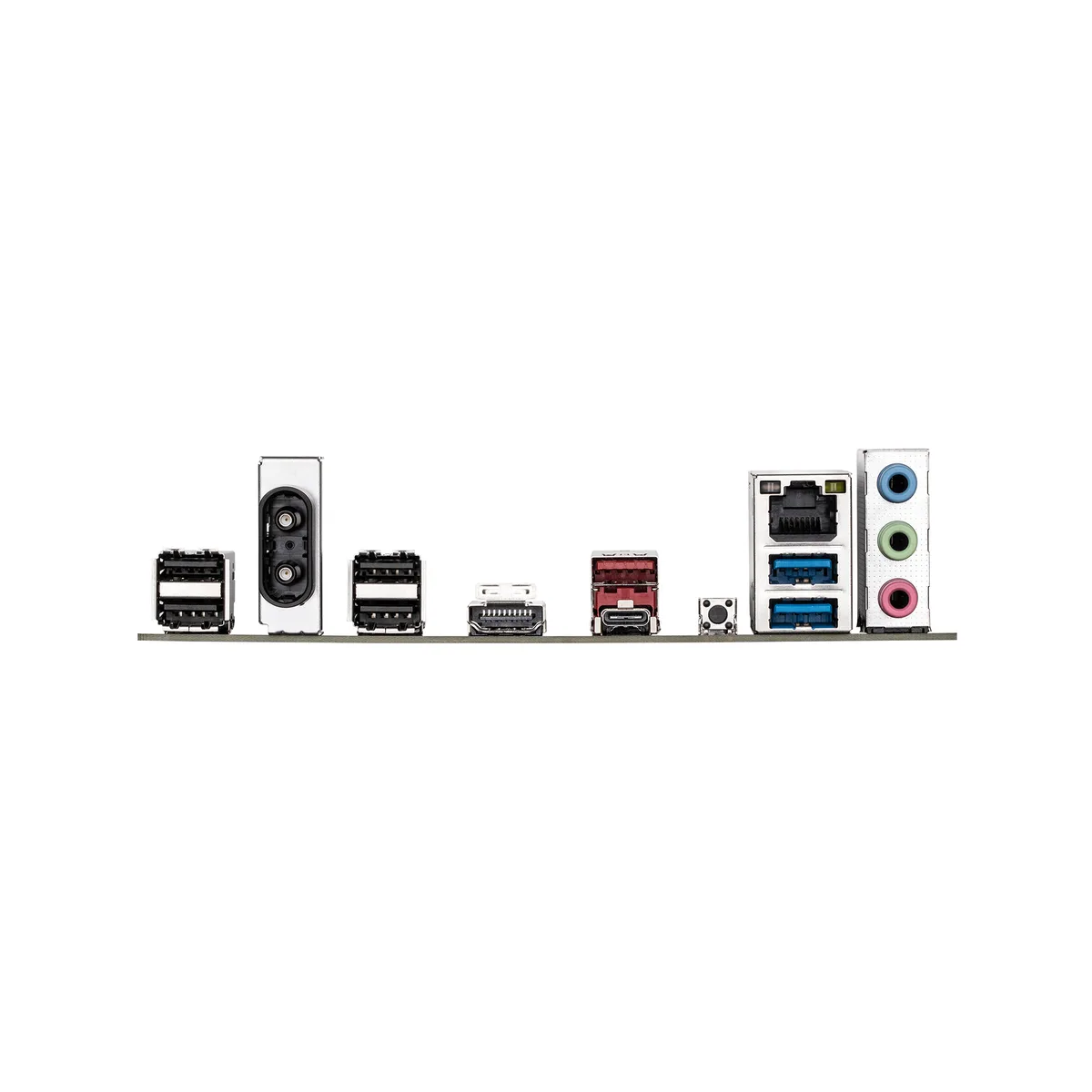

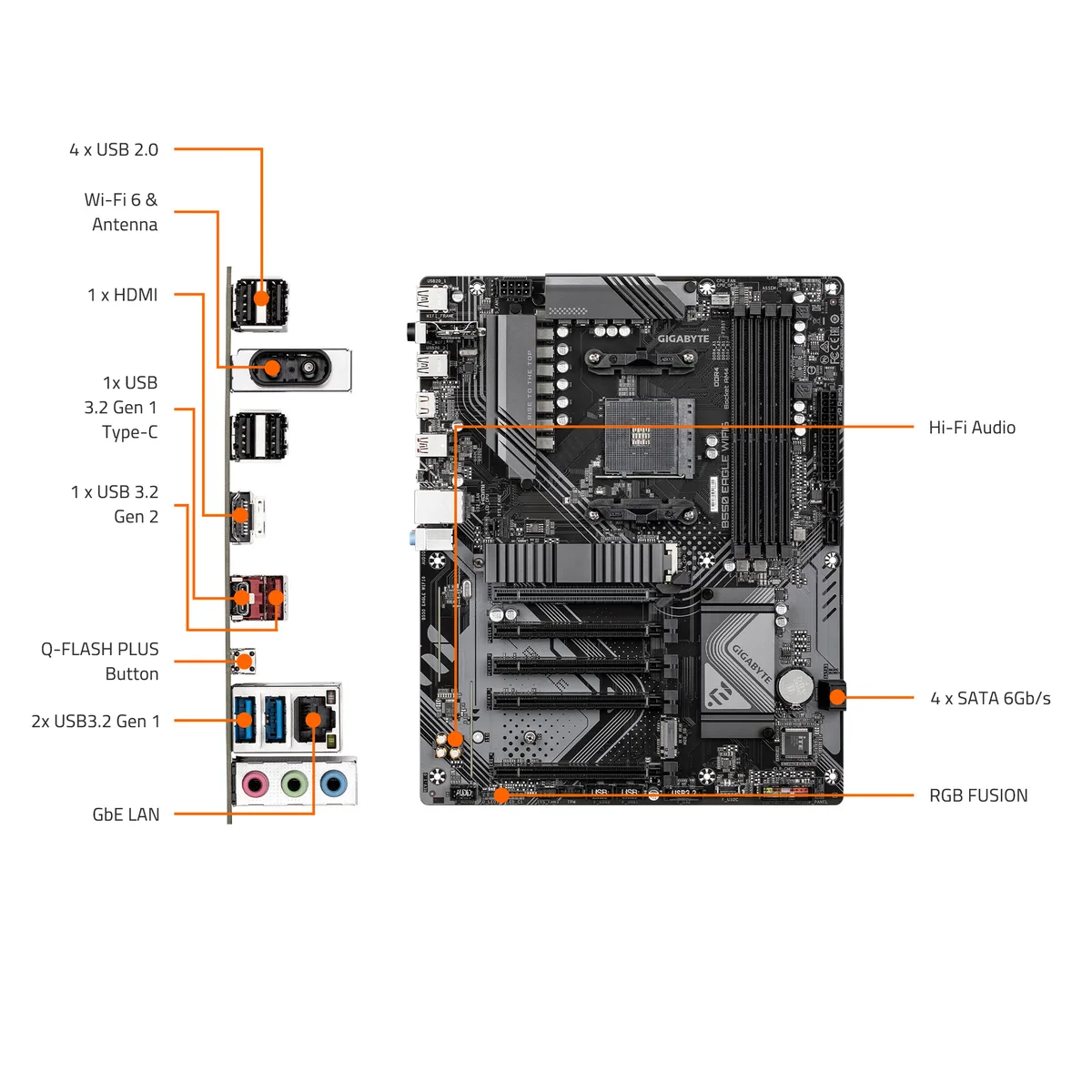

| Back I/O Ports | 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks (Note) Actual support may vary by CPU. |
| PS/2 | 1 |
| COM | 3 |
| Video Ports | 1 |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| USB 3.0 | 10 x USB 3.0 |
| USB 1.1/2.0 | 9 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| Game/MIDI Ports | 1 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.0 + 8 x USB 2.0 |
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Dimensions (W x L) | 30.5cm x 24.4cm |
| Power Pin | 24 Pin |
| Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Features | AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors Digital twin 10+3+1 phases VRM solution Dual Channel DDR4 : 4*DIMMs with AMD EXPO™Memory Module Support EZ-Latch : PCIe slots with Quick Release Design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x1 Efficient Thermal : VRM Thermal Armor Advanced Fast Networking : GbE LAN & Wi-Fi 6 Extended Connectivity : HDMI, Displayport PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effec |
| Package Contents | 1 unit |
| Shipping weight | 1.27 kg |
| Package size | 333 × 279 × 84 mm |
Questions about this item
How can I verify the board is working after I install a Ryzen 5000 CPU and DDR4 memory?
Power on the system and check that the POST screen appears, the BIOS detects the installed DDR4 modules up to 128 GB, and the PCIe 4.0 x16 slot reports a graphics card at the correct link speed.
What ships in the box and what must I provide separately?
The package includes the ATX motherboard, I/O shield, driver disc and manual; you must supply an AM4 Ryzen processor, DDR4 DIMMs up to 128 GB, M.2 storage and a graphics card if your CPU lacks integrated graphics.
Which memory speed should I target for a Ryzen 5000 build on this board?
The board supports DDR4 up to 3200 MT/s natively and up to 4733 MT/s with XMP/EXPO modules; choose 3200 MT/s for guaranteed stability or a faster kit from the QVL if you plan to overclock.
