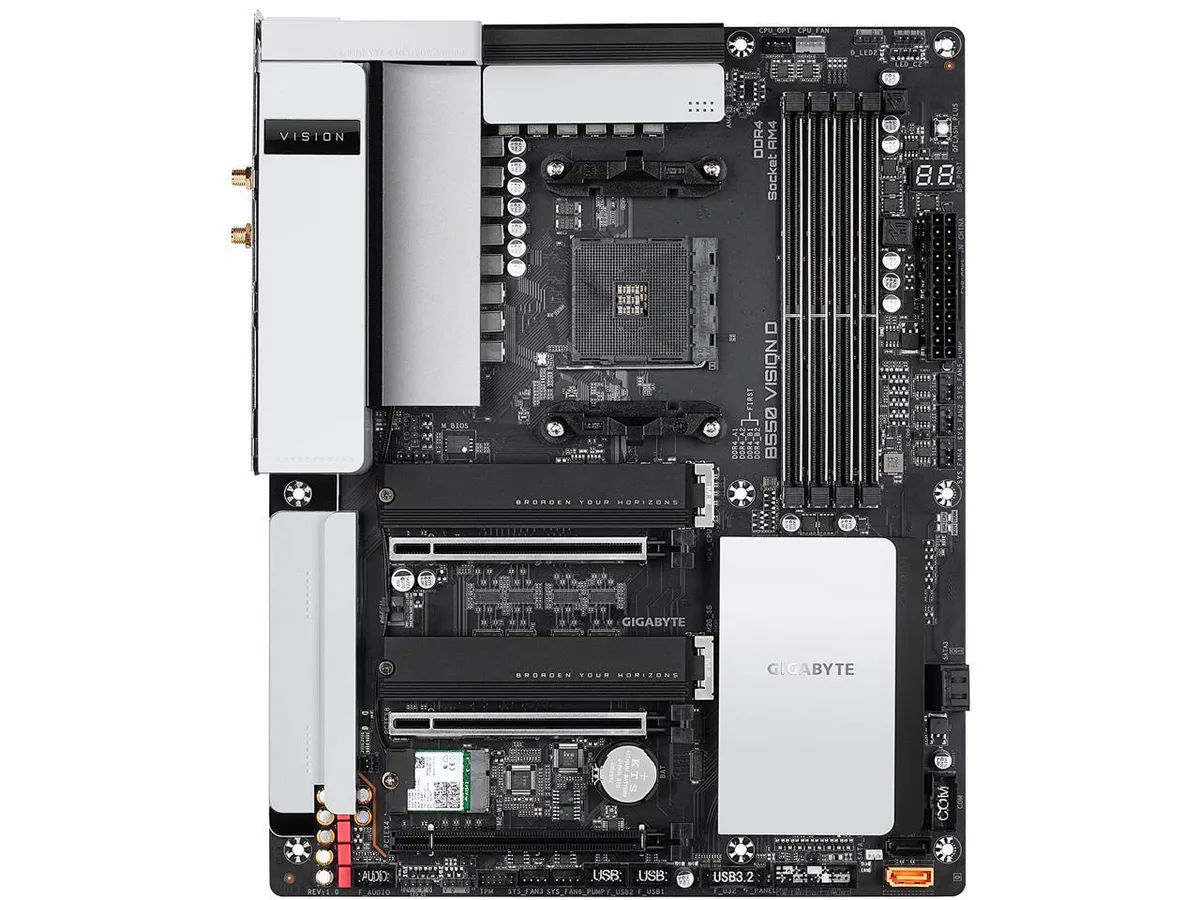

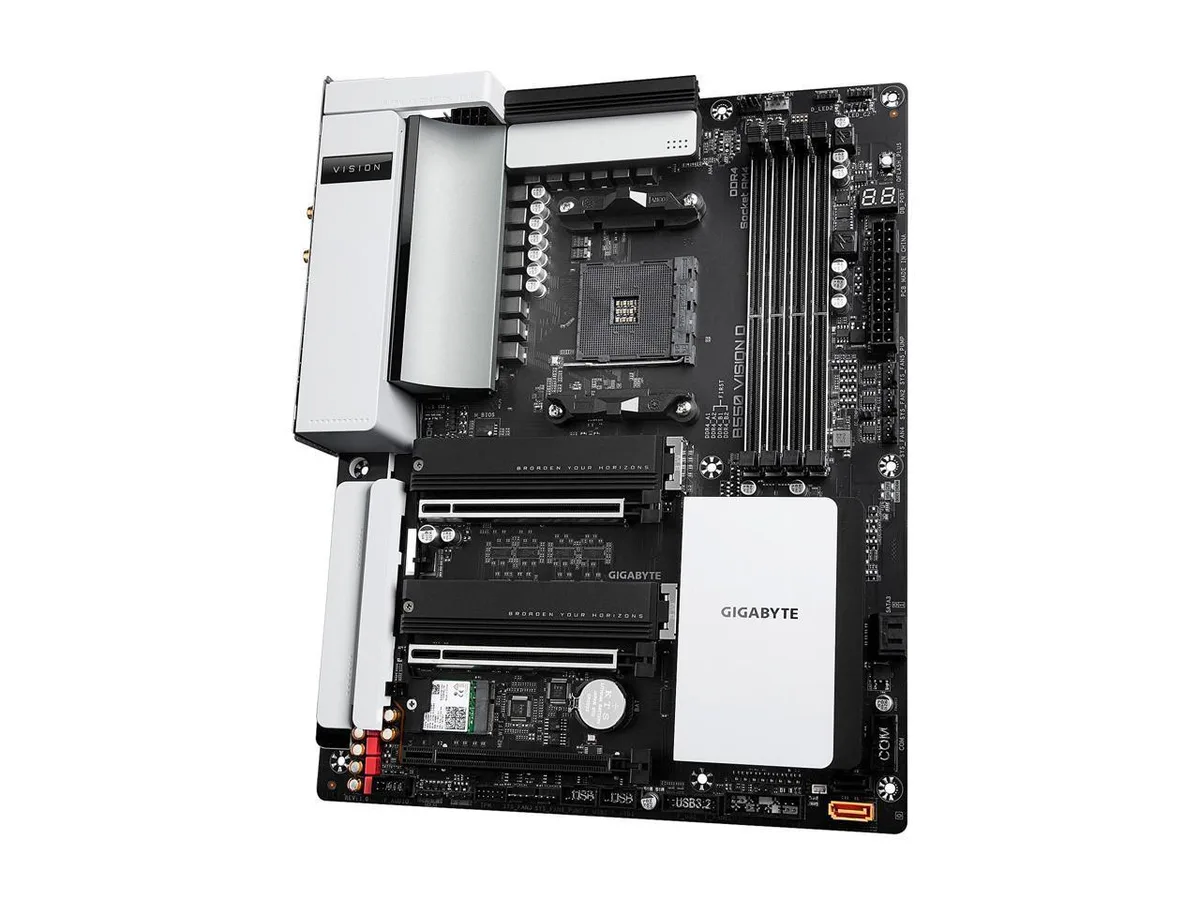

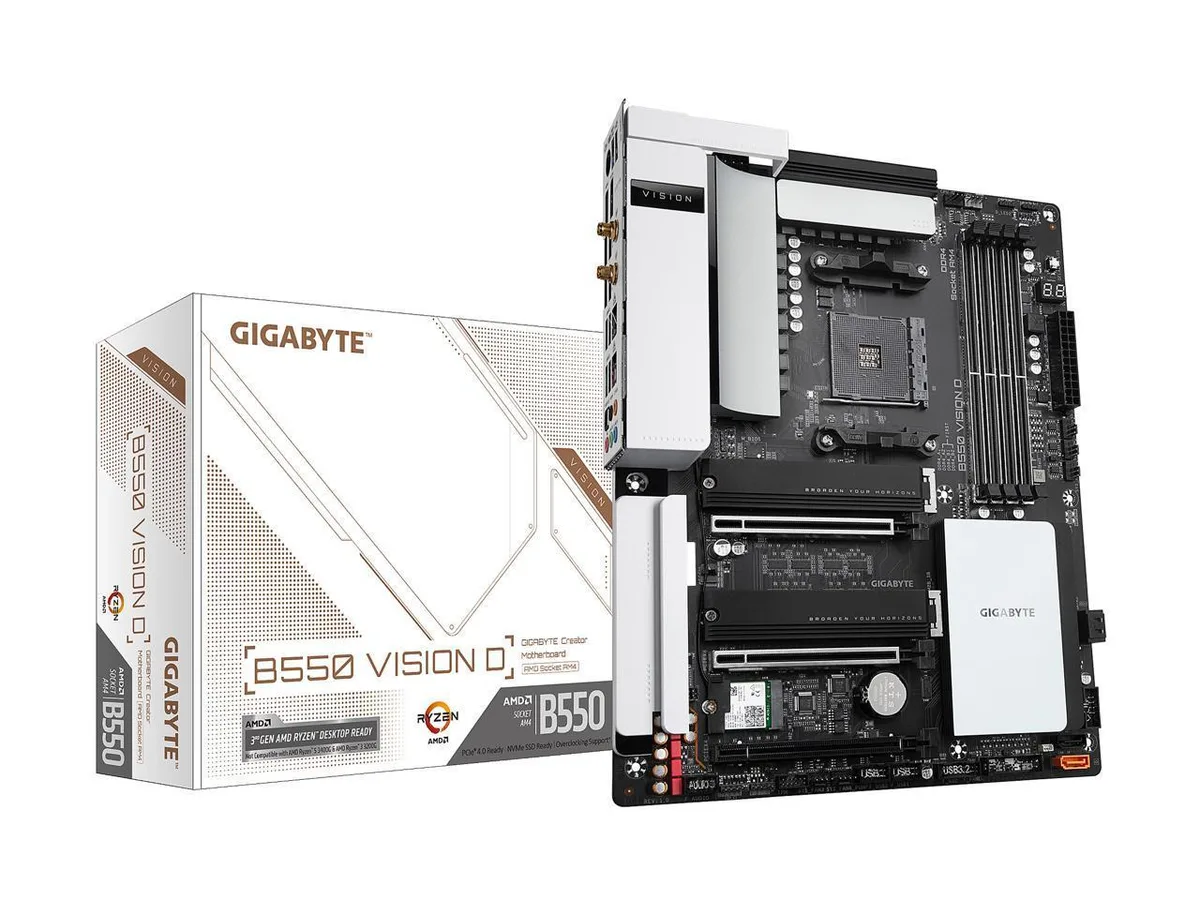

ATX motherboard in silver and white finish with metal shields over the I/O and M.2 slots

GIGABYTE

GIGABYTE B550 VISION D AM4 AMD motherboard

SKU CH-WPZ9-V5XDZ

ATX board for AM4 Ryzen CPUs with four DDR4 slots up to 128 GB, PCIe 4.0 graphics, dual M.2, four SATA 6Gb/s, Thunderbolt 3 Type-C, dual Intel 1 GbE LAN and Wi-Fi 6

  • CPU Socket TypeAM4
  • CPU TypeAMD Socket AM4, support for: Ryzen 5000 Series / 3rd Generat
  • ChipsetAMD B550
  • Number of Memory Slots4x288pin (DDR4)
  • Memory Standard3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.)/ 5
  • Maximum Memory Supported128GB
  • Supports Ryzen 5000 Series with a BIOS update for latest processors
  • Dual M.2 slots with PCIe 4.0 and 3.0 x4 for ultra-fast NVMe storage
  • Thunderbolt 3 on two USB 3.2 Type-C ports enables DisplayPort video out
  • Dual Intel GbE LAN plus Wi-Fi 6 AX200 for wired and wireless networking
  • 128 GB DDR4 across four slots at up to 5400 MHz overclocked memory support

Creator Workstation Board

The GIGABYTE B550 VISION D is an ATX motherboard built for content creators and professionals who need Thunderbolt 3 connectivity on the AM4 platform. It supports 3rd Generation Ryzen and Ryzen 5000 Series processors with a BIOS update, making it suitable for video editing, 3D rendering and multi-tasking workloads.

Dual Intel LAN and Thunderbolt 3 I/O

Two Intel GbE ports provide reliable wired networking for studio environments, while dual USB 3.2 Type-C ports with Thunderbolt 3 deliver 40 Gbps bandwidth for external storage and displays. Four SATA 6Gb/s ports and two M.2 slots — one PCIe 4.0 x4 from the CPU and one PCIe 3.0 x4 from the chipset — give flexible high-speed storage options. The second M.2 slot shares bandwidth with the PCIEX4 expansion slot.

Smart Fan 5 Cooling and 128 GB Memory

Smart Fan 5 uses multiple temperature sensors and hybrid fan headers with Fan Stop and noise detection to keep thermals in check during long render sessions. The Realtek ALC1220-VB codec supports 7.1-channel audio with DSD output for monitoring. Four DDR4 slots accept up to 128 GB of memory at speeds up to 5400 MHz overclocked on compatible APUs, running dual-channel for bandwidth-heavy applications.

Highlights

  • Supports Ryzen 5000 Series with a BIOS update for latest processors
  • Dual M.2 slots with PCIe 4.0 and 3.0 x4 for ultra-fast NVMe storage
  • Thunderbolt 3 on two USB 3.2 Type-C ports enables DisplayPort video out
  • Dual Intel GbE LAN plus Wi-Fi 6 AX200 for wired and wireless networking
  • 128 GB DDR4 across four slots at up to 5400 MHz overclocked memory support

Specifications

BrandGIGABYTE
ModelB550 VISION D
CPU Socket TypeAM4
CPU TypeAMD Socket AM4, support for: Ryzen 5000 Series / 3rd Generation AMD Ryzen processors/3rd Gen AMD Ryzen with Radeon Graphics processors
* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.
ChipsetAMD B550
Number of Memory Slots4x288pin (DDR4)
Memory Standard3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x8 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x8 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot.
PCI Express 3.0 x161 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
* The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
SATA RAID0/1/10
Onboard Video ChipsetIntegrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors+Intel Titan Ridge Controller:
2 x USB Type-C ports with Titan Ridge, supporting DisplayPort video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16GB
Audio ChipsetRealtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN Chipset2 x Intel GbE LAN chips
Max LAN Speed2 x 1Gbps
Wireless LANIntel Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
BluetoothBLUETOOTH 5
Back I/O Ports1 x PS/2 keyboard/mouse port
1 x DisplayPort In port
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB Type-C ports with Titan Ridge (USB 3.2 Gen2 support)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
1 x SATA DOM power connector
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Cente

Questions about this item

What PCIe standard does the primary M.2 slot use and what speed does it cap at with a Ryzen 5000 CPU?

The M2A_CPU slot runs PCIe 4.0 x4 from the CPU, so NVMe drives hit full Gen 4 throughput with a Ryzen 5000 processor installed.

Which case standoffs and clearance zones does this ATX board need?

Standard ATX mounting holes plus room for the rear I/O shield, four DDR4 slots along the top edge, and two full-length PCIe x16 slots spaced for dual graphics cards.

How is Thunderbolt 3 enabled on the dual USB-C ports and what step is often missed?

Connect the Titan Ridge header to the motherboard, install the Intel Thunderbolt driver, then enable Thunderbolt in BIOS — skipping the BIOS toggle leaves the ports running plain USB only.
