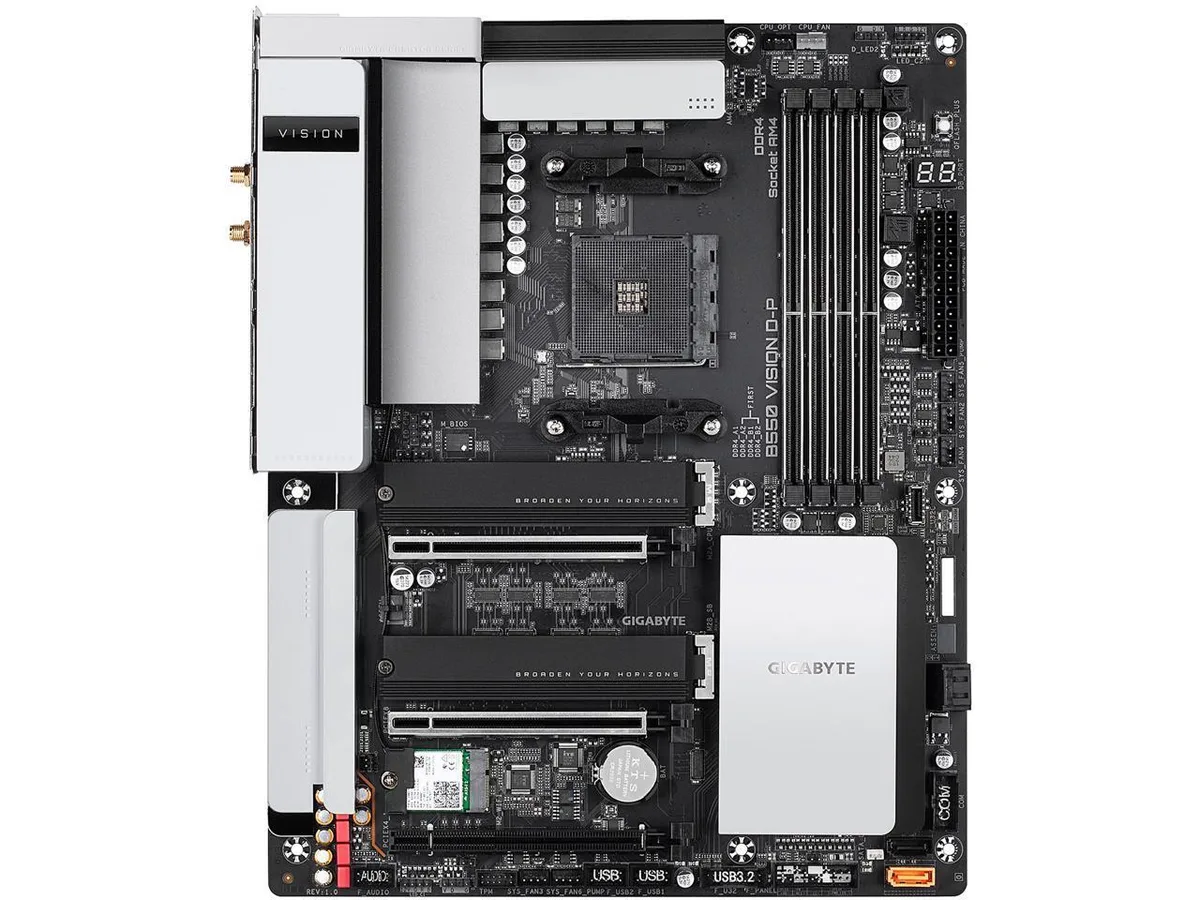

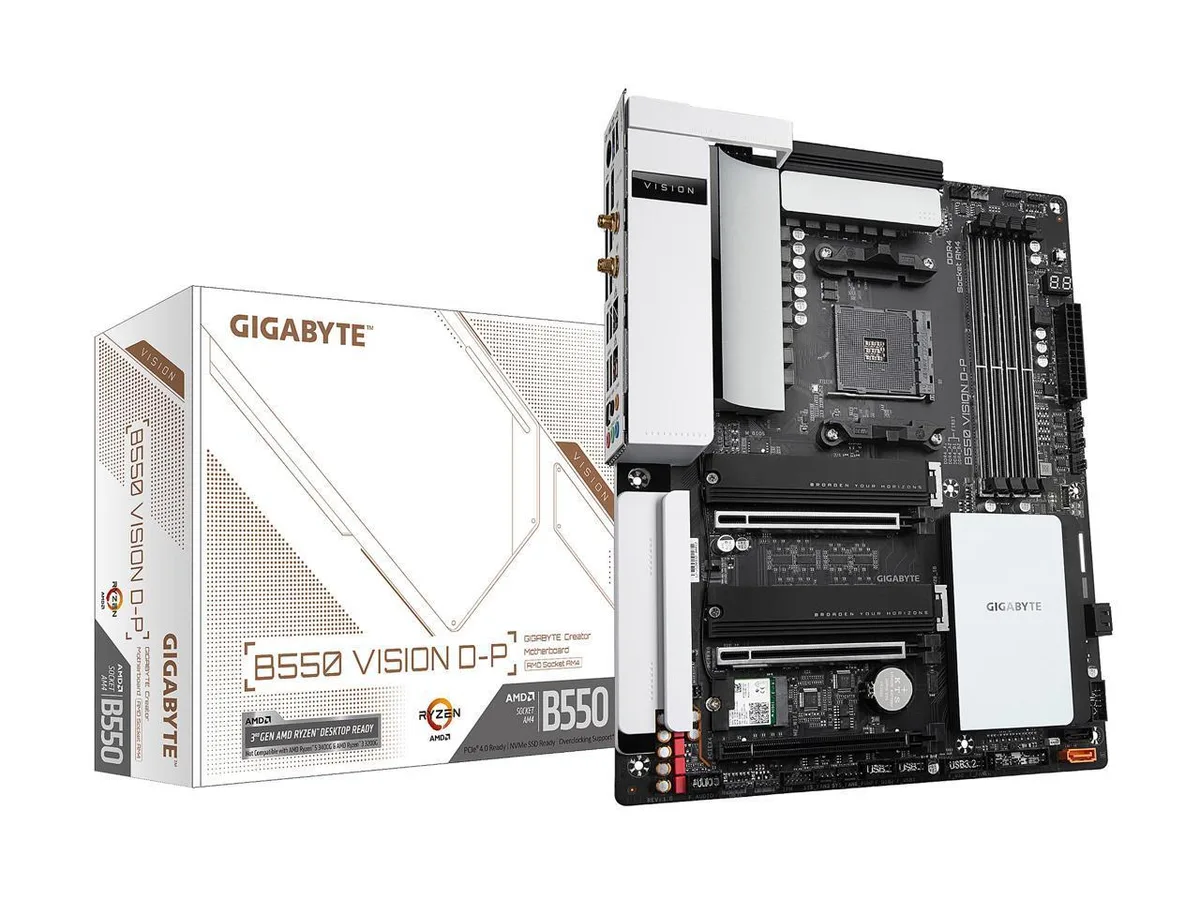

A full-size ATX motherboard with a silver-and-black finish, four DDR4 slots, twin M.2 heatsinks, and rear I/O showing USB-C

GIGABYTE

GIGABYTE B550 VISION D-P AM4 AMD motherboard

SKU CH-A08A-9YTJQ

ATX motherboard for AMD Ryzen processors with four DDR4 slots up to 128 GB, dual PCIe 4.0 x16 slots, dual 2.5 GbE LAN, Wi-Fi 6, Thunderbolt 3 and four SATA 6 Gb/s ports

  • CPU Socket TypeAM4
  • CPU TypeSupports AMD Ryzen 5000 / 5000 G / 4000 G / 3000 Series Proc
  • ChipsetAMD B550
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 5400(OC) / 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC) /
  • Maximum Memory Supported128GB
  • Supports AMD Ryzen 5000, 4000G and 3000 series CPUs via AM4 socket
  • Dual-channel DDR4 memory up to 128 GB across four 288-pin slots
  • PCIe 4.0 and 3.0 x16 slots enable multi-GPU configurations
  • Dual 2.5 GbE LAN plus Intel Wi-Fi 6 for high-bandwidth networking
  • Thunderbolt 3 over USB 3.2 Type-C delivers versatile high-speed connectivity

AMD Ryzen AM4 Creator Board

The GIGABYTE B550 VISION D-P targets content creators who need Thunderbolt 3 and dual 2.5GbE LAN on a B550 chipset. It supports Ryzen 5000, 5000 G, 4000 G and 3000 series processors in the AM4 socket. Four DDR4 slots accept up to 128GB of memory at speeds up to 5400(OC). Realtek ALC1220-VB audio with DSD support rounds out the workstation feature set.

Straightforward ATX Install With One Cable Trap

Standard ATX mounting points and clearly labelled front-panel headers make the physical build routine. The PCIEX4 slot shares bandwidth with the M2B_SB M.2 connector, so installing a drive in M2B_SB disables that slot — plan your expansion cards accordingly. Q-Flash Plus lets you update the BIOS without a CPU, memory or graphics card installed, which helps if a new processor needs a newer firmware revision.

Verify CPU Cooler Clearance And Power Phases

Confirm your cooler fits the AM4 keep-out zone and that your power supply provides an 8-pin EPS connector for the CPU VRM. Check that your chassis has a USB 3.2 Gen 2 Type-C header if you want the front-panel Type-C port active. Ensure the M.2 key-M lengths you own (2242, 2260, 2280 or 22110) match the two onboard slots, and note that PCIe 4.0 M.2 speed requires a Ryzen 5000 or 3000 series CPU.

Highlights

  • Supports AMD Ryzen 5000, 4000G and 3000 series CPUs via AM4 socket
  • Dual-channel DDR4 memory up to 128 GB across four 288-pin slots
  • PCIe 4.0 and 3.0 x16 slots enable multi-GPU configurations
  • Dual 2.5 GbE LAN plus Intel Wi-Fi 6 for high-bandwidth networking
  • Thunderbolt 3 over USB 3.2 Type-C delivers versatile high-speed connectivity

Specifications

BrandGIGABYTE
ModelB550 VISION D-P
CPU Socket TypeAM4
CPU TypeSupports AMD Ryzen 5000 / 5000 G / 4000 G / 3000 Series Processors
ChipsetAMD B550
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5400(OC) / 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3600(OC) / 3333(OC) / 3200 / 2933 / 2667 / 2400 / 2133
Maximum Memory Supported128GB
Channel SupportedDual Channel
ECC SupportedECC memory (ECC mode) support varies by CPU.
Buffer SupportedUn-buffered
PCI Express 4.0 x162 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
PCI Express 3.0 x161 x PCI Express 3.0 x16*
* Supporting PCIe 3.0 x4 mode.
* The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
PCI Express x161 x PCI Express x16
PCI Slots2 x PCI Slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
SATA RAID0/1/10
Onboard Video ChipsetSupported only by CPU with integrated graphic
Audio ChipsetRealtek ALC1220-VB
* The back panel line out jack supports DSD audio.
Audio Channels7.1 Channels
LAN ChipsetIntel 2.5GbE LAN chip
Second LAN ChipsetRealtek 2.5GbE LAN chip
Max LAN Speed2 x 2.5Gbps
Wireless LANIntel Wi-Fi 6 AX200
WIFI a,b,g,n,ac with wave 2 features, ax
BluetoothBluetooth 5

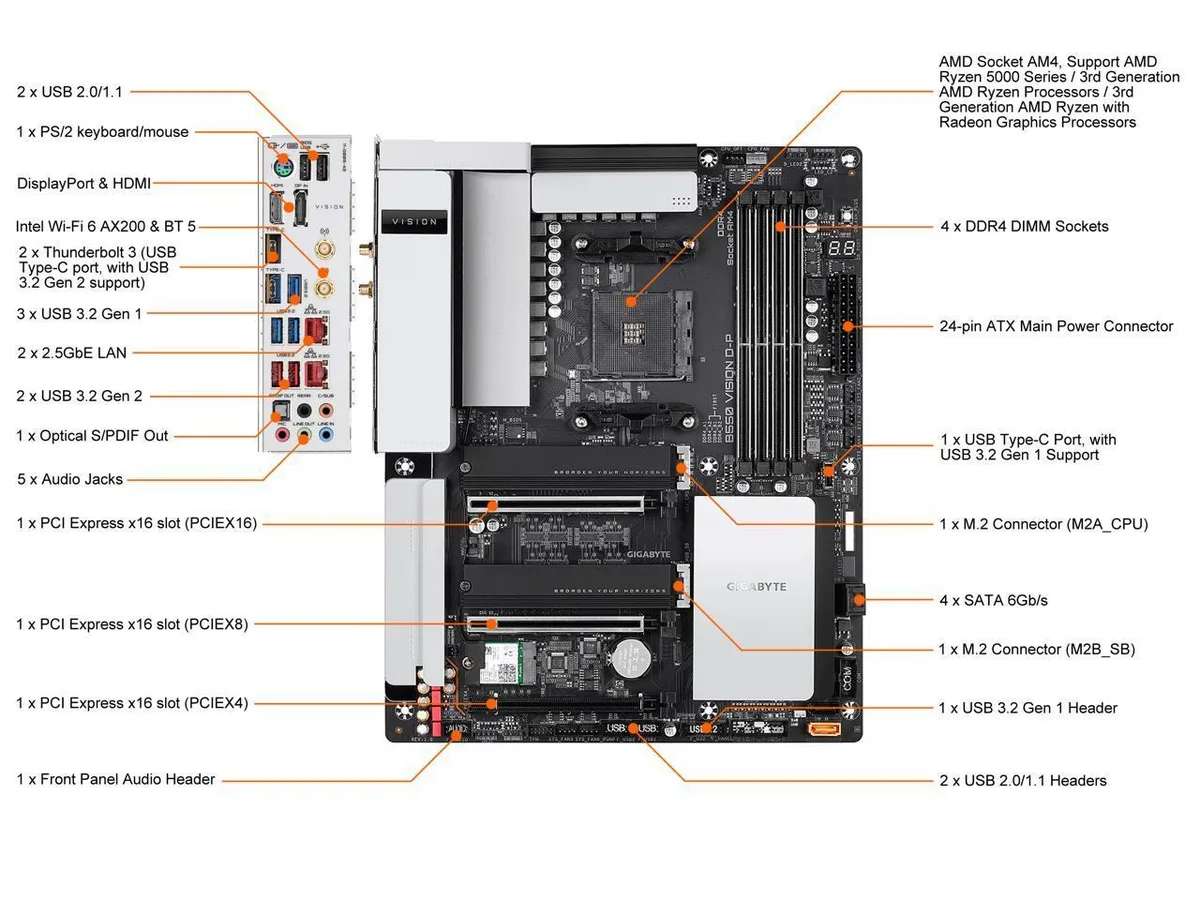

Back I/O Ports1 x PS/2 keyboard/mouse port
1 x DisplayPort In port
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x Thunderbolt 3 connectors (USB Type-C port, with USB 3.2 Gen 2 support)
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
USB 3.02 x USB 3.0
Onboard USB1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
1 x SATA DOM power connector
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability o
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Supported
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Cente

Questions about this item

How can I confirm the board is working after I install the CPU and memory?

Power on the system and watch for the POST screen or the motherboard’s debug LED codes; a successful boot to BIOS means the CPU, DDR4 memory and chipset are communicating correctly.

What comes in the box and what must I buy separately?

The box includes the ATX motherboard, I/O shield, SATA cables, M.2 screws and driver disc; you must purchase an AM4 Ryzen processor, DDR4 modules, storage drives, graphics card if your CPU lacks integrated Radeon graphics, and a power supply.

Which M.2 slot should I use for a PCIe 4.0 NVMe SSD?

Use the M2A_CPU slot wired to the CPU; it supports PCIe 4.0 x4 with Ryzen 5000 or 3000 series processors, while the second M.2 slot runs at PCIe 3.0 x4 and shares bandwidth with the PCIEX4 expansion slot.
