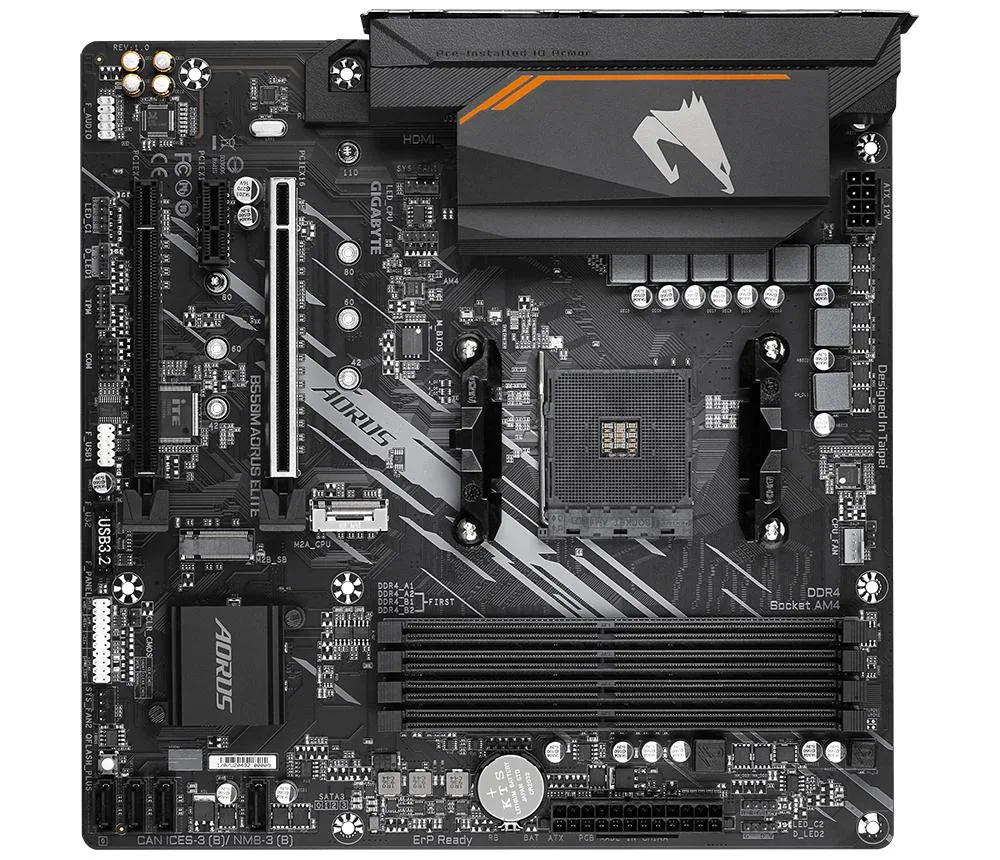

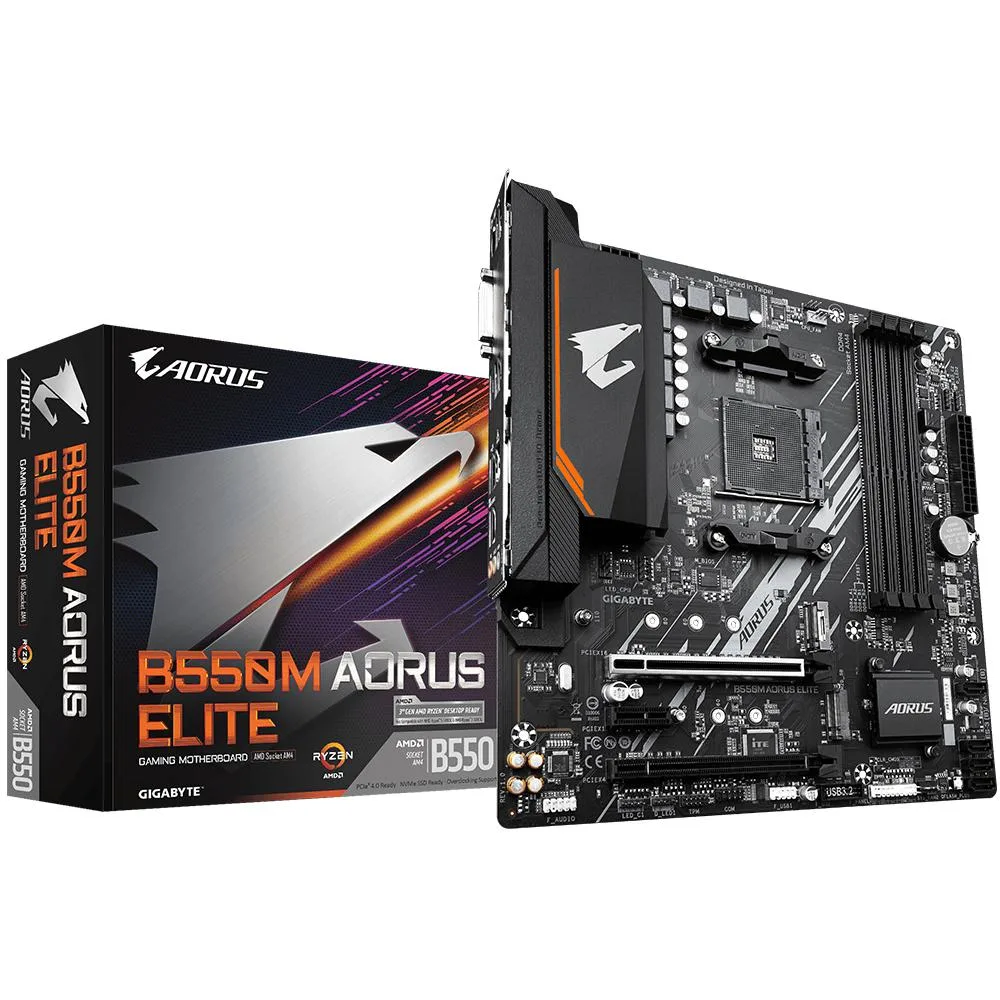

Micro ATX motherboard with black PCB and silver heatsinks

GIGABYTE

GIGABYTE B550M AORUS ELITE AMD motherboard Micro ATX DDR4-SDRAM

SKU CH-9KA8-PG647

Micro ATX AMD B550 board with four DDR4 slots up to 128 GB, two PCIe 4.0 x16 slots, dual M.2, four SATA 6Gb/s and 7.1 Realtek ALC887 audio

  • CPU Socket TypeAM4
  • CPU TypeRyzen 3000 Series / Ryzen 4000 Series / Ryzen 4000G Series /
  • ChipsetAMD B550
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3200
  • Maximum Memory Supported128GB
  • Supports Ryzen 3000 to 5000 series CPUs on AM4 socket
  • Four DDR4 slots accept up to 128 GB at 3200 MHz
  • Two PCIe 4.0 x16 slots for modern graphics and storage
  • Dual M.2 sockets plus four SATA 6 Gb/s ports
  • Realtek ALC887 delivers 7.1 channel audio with 1 Gbps LAN

Socket AM4 Platform

The GIGABYTE B550M AORUS ELITE is a Micro ATX motherboard built around the AMD B550 chipset. It accepts Ryzen 3000, 4000, 4000G, 5000 and 5000G series processors in the AM4 socket. The board targets builders who want a compact foundation for gaming or productivity systems.

Expansion Layout

Four 288-pin DDR4 slots support up to 128 GB of memory running at 3200 MT/s. Two PCI Express 4.0 x16 slots and one PCI Express x1 slot provide room for a graphics card and add-in boards. Storage connectivity includes four SATA 6 Gb/s ports and two M.2 sockets. Rear I/O supplies six USB 3.1 ports, HDMI, 1 Gbps LAN and PS/2.

Sustained Operation

The 12+2 phase digital power design with DrMOS delivers stable current to the CPU during extended workloads. An enlarged heatsink on the VRM area and a dedicated M.2 thermal guard help dissipate heat without relying on high fan speeds. Realtek ALC887 7.1-channel audio and GbE LAN maintain consistent throughput during long sessions.

Highlights

  • Supports Ryzen 3000 to 5000 series CPUs on AM4 socket
  • Four DDR4 slots accept up to 128 GB at 3200 MHz
  • Two PCIe 4.0 x16 slots for modern graphics and storage
  • Dual M.2 sockets plus four SATA 6 Gb/s ports
  • Realtek ALC887 delivers 7.1 channel audio with 1 Gbps LAN

Specifications

BrandGIGABYTE
SeriesAORUS
ModelB550M AORUS ELITE
CPU Socket TypeAM4
CPU TypeRyzen 3000 Series / Ryzen 4000 Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series
ChipsetAMD B550
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported128GB
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x11 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
Max LAN Speed1Gbps
PS/21
HDMI1 x HDMI
RJ451 x RJ45
USB 3.16 x USB 3.1
USB 1.1/2.06 x USB 2.0
Form FactorMicro ATX
LED LightingRGB

Questions about this item

What is the maximum DDR4 capacity this B550M AORUS ELITE board can handle?

The board supports up to 128 GB of DDR4 memory across its four 288-pin slots running at 3200 standard speed.

How does the VRM area behave during long sessions with a Ryzen 5000 series CPU?

The digital VRM design with heatsinks keeps temperatures in check, so fan noise stays low even when all cores are loaded for hours.

Which Ryzen processor must I already have to use this AM4 motherboard?

You need a Ryzen 3000, 4000, 4000G, 5000 or 5000G series CPU that fits the AM4 socket.
