GIGABYTE
GIGABYTE B550M AORUS ELITE AX AMD motherboard
Micro-ATX AM4 board with four DDR4 slots, dual M.2 connectors, PCIe 4.0 x16 and Realtek GbE LAN
- CPU Socket TypeAM4
- CPU TypeRyzen 3000G Series / Ryzen 4000G Series / Ryzen 5000 Series
- ChipsetAMD B550
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 3200
- Maximum Memory Supported128GB

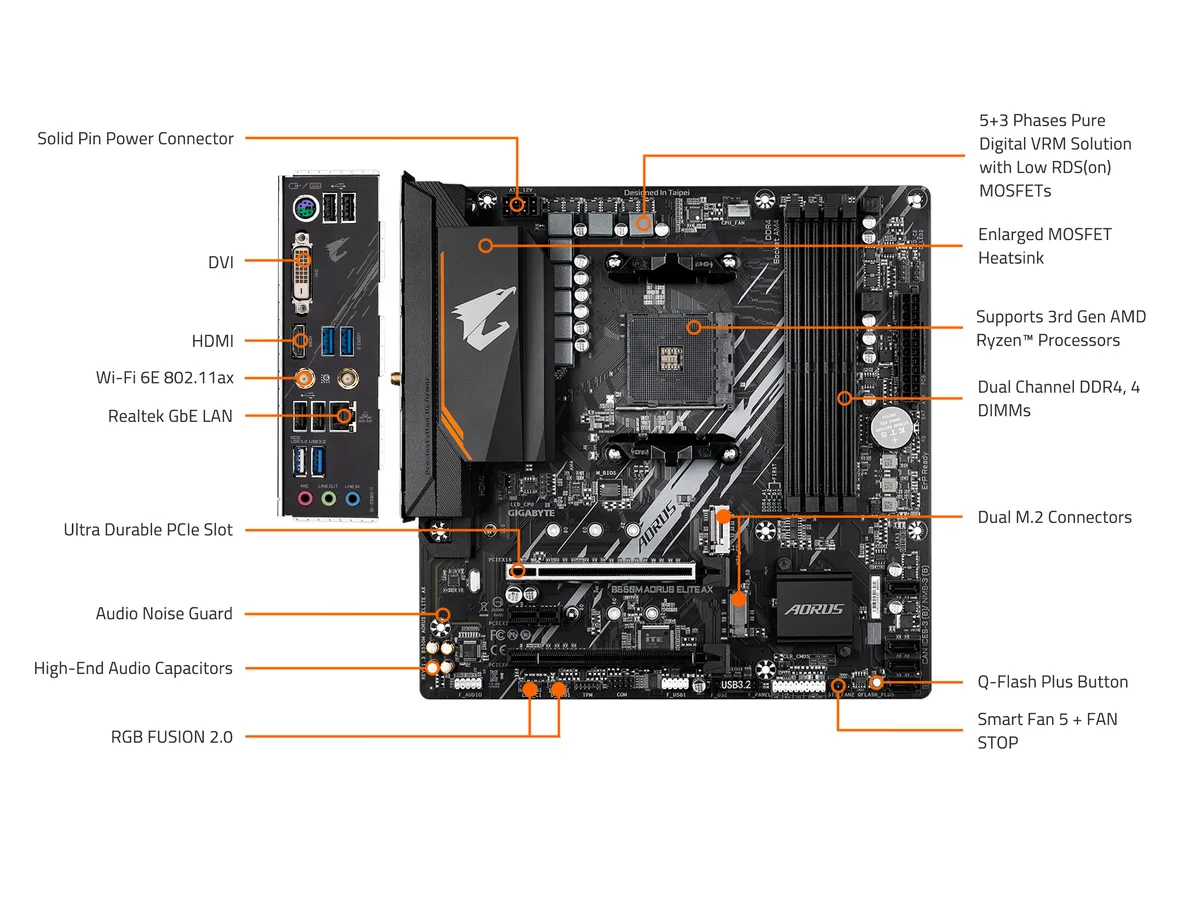

- Supports Ryzen 3000 to 5000 series processors with AM4 socket
- Dual-channel DDR4 3200 memory up to 128 GB capacity
- 5+3 phase digital VRM delivers stable power to CPU
- PCIe 4.0 x16 slot plus dual M.2 connectors for fast storage
- RGB Fusion 2.0 and Smart Fan 5 for custom lighting and cooling

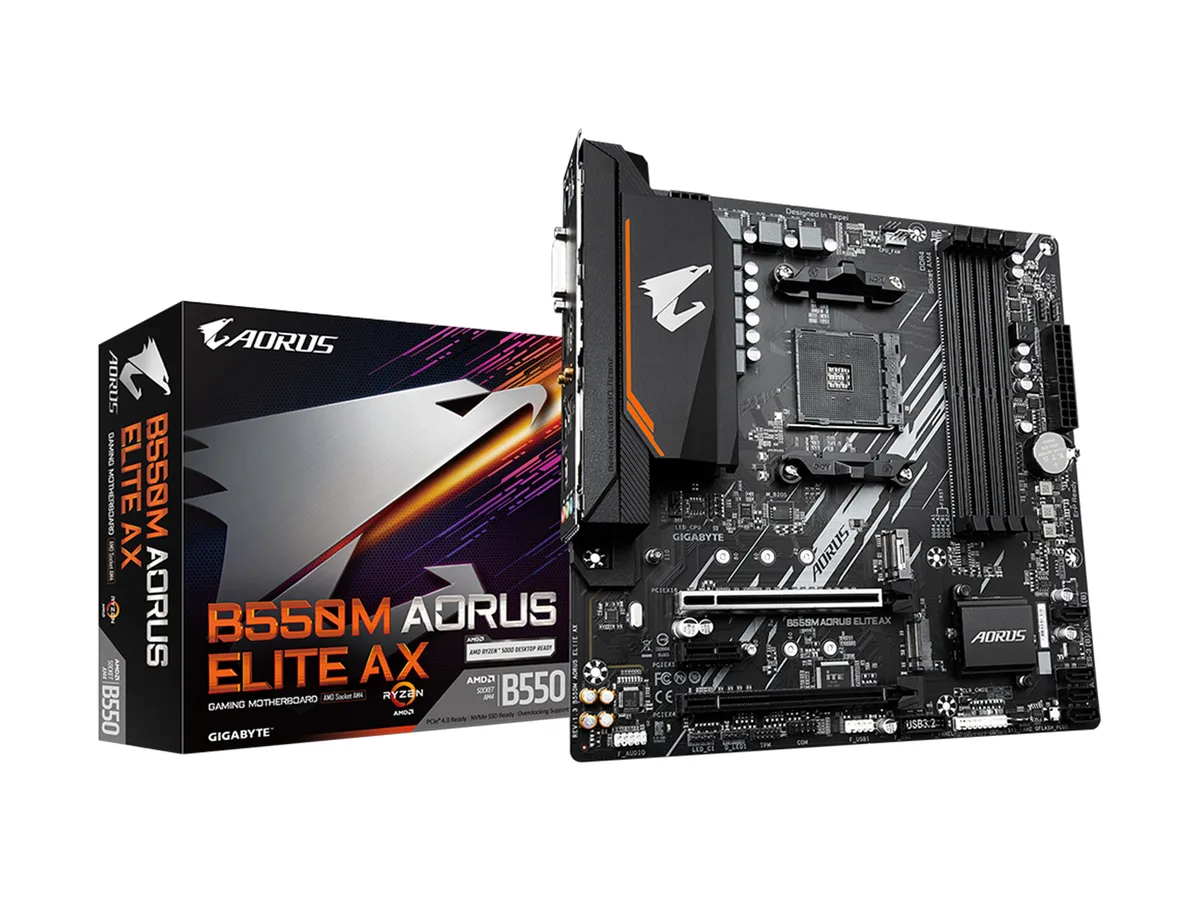

Micro-ATX AM4 board for Ryzen 3000 to 5000 builds

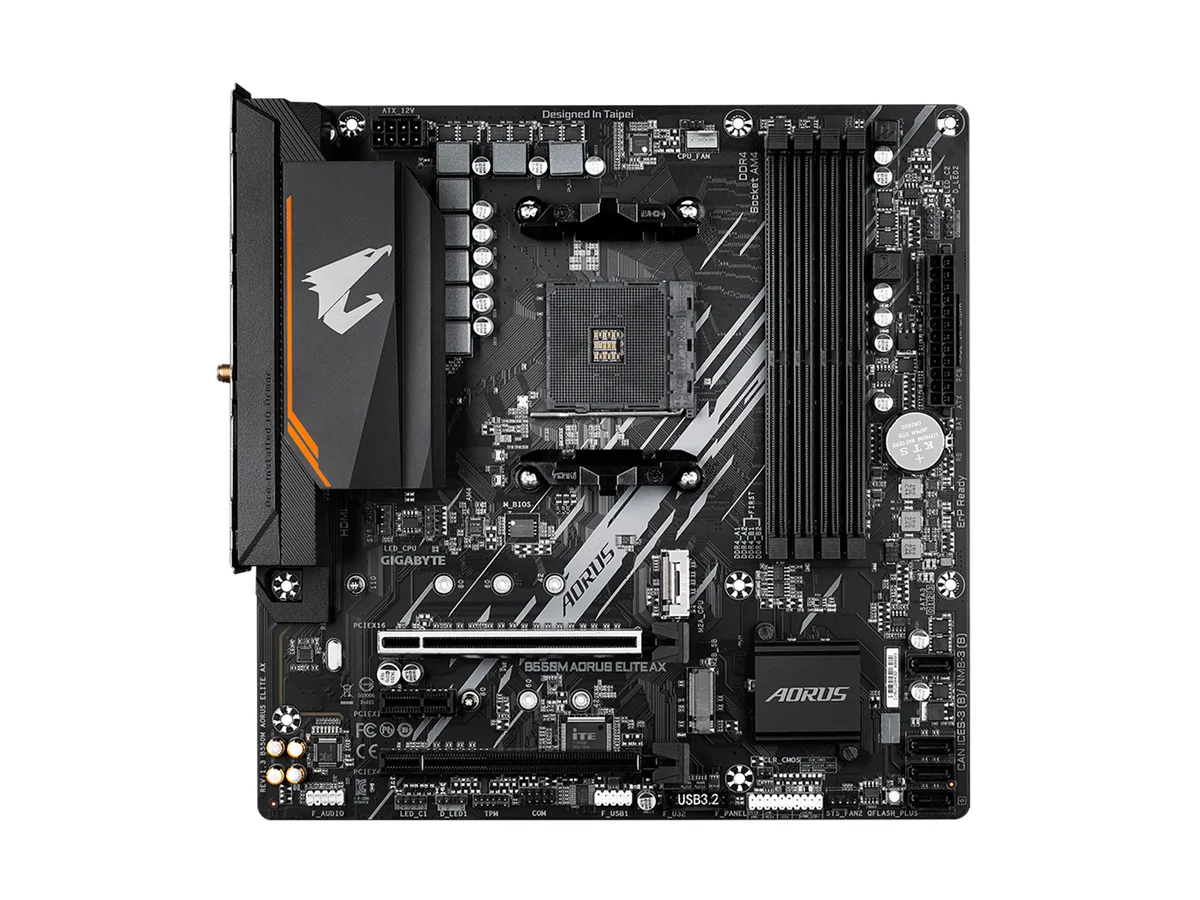

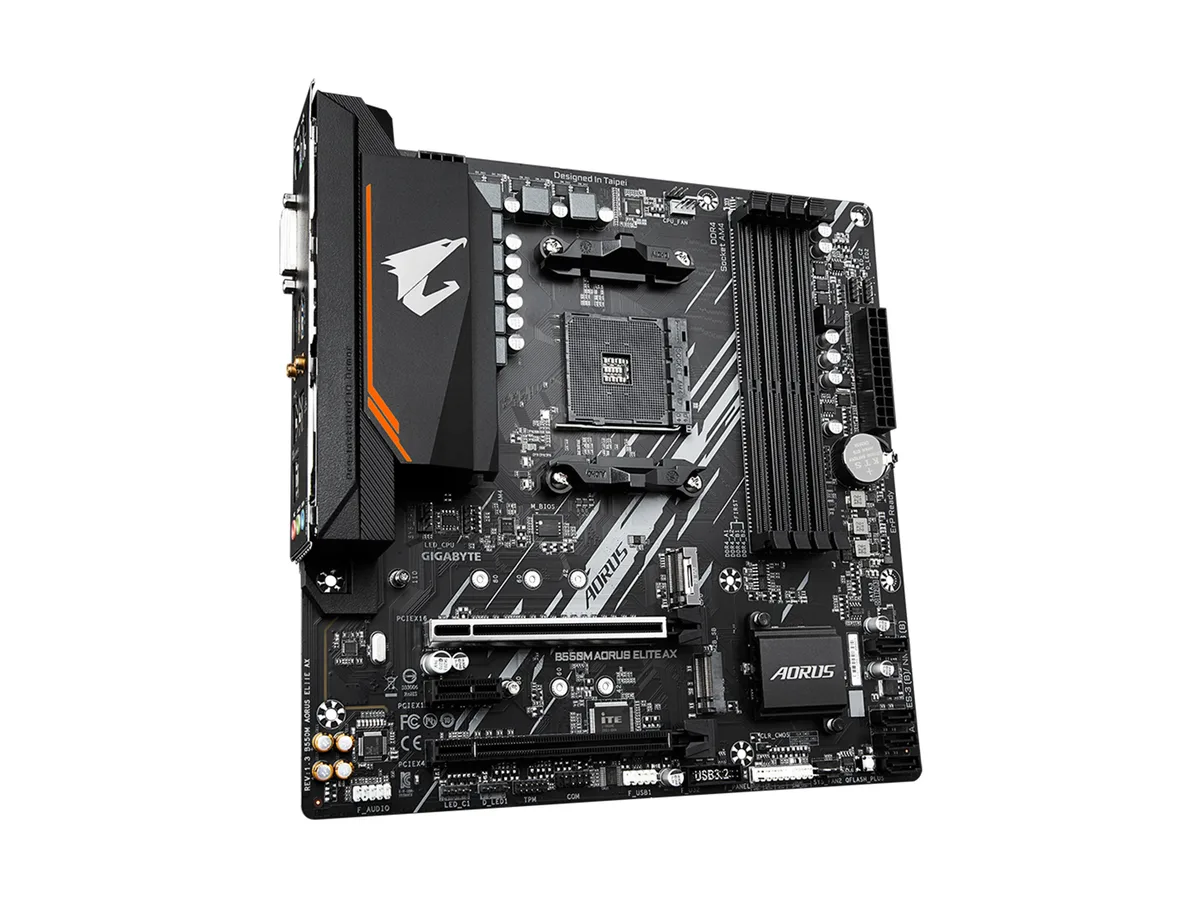

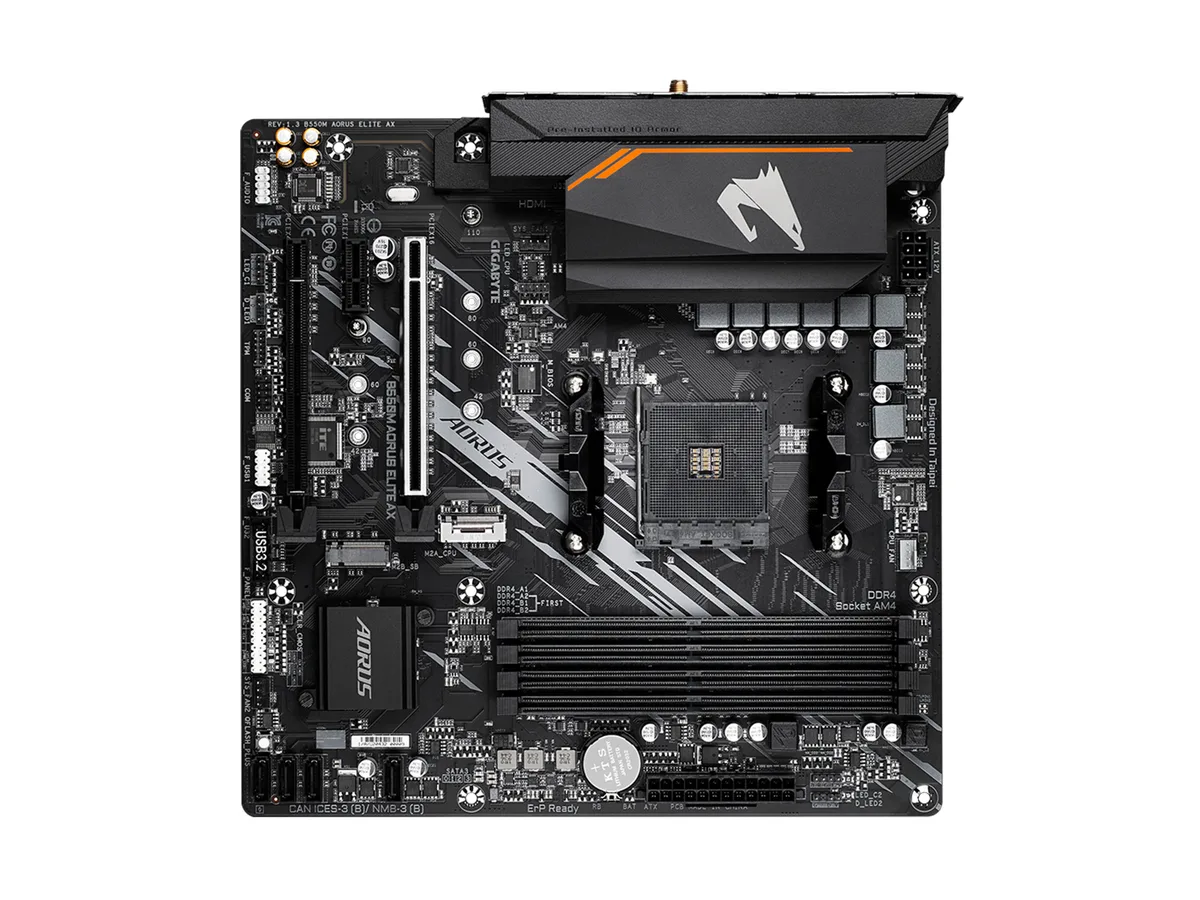

This Micro-ATX motherboard uses the AMD B550 chipset and an AM4 socket. It accepts Ryzen 3000, 4000 and 5000 series processors. Four DDR4 slots support up to 128 GB in dual-channel mode with XMP 2.0 profiles and ECC un-buffered modules.
Builders needing PCIe 4.0 graphics
The single PCIe 4.0 x16 slot from the CPU suits one modern graphics card. The chipset provides one M.2 connector for a PCIe 4.0 or 3.0 NVMe SSD. Realtek GbE LAN covers wired networking. Users who need multiple M.2 slots, PCIe 5.0 or integrated Wi-Fi should choose a different board.
Single PCIe 4.0 x16 slot from the CPU
The top expansion slot runs at PCIe 4.0 x16 when a Ryzen 5000 or 3000 series CPU is installed. Ryzen 4000 G-Series and 5000 G-Series processors operate the slot at PCIe 3.0 x16. This single lane-width decision determines graphics and high-speed add-in card compatibility.
Highlights
- Supports Ryzen 3000 to 5000 series processors with AM4 socket
- Dual-channel DDR4 3200 memory up to 128 GB capacity
- 5+3 phase digital VRM delivers stable power to CPU
- PCIe 4.0 x16 slot plus dual M.2 connectors for fast storage
- RGB Fusion 2.0 and Smart Fan 5 for custom lighting and cooling
Specifications
| Brand | GIGABYTE |
|---|---|
| Series | Prime |
| Model | B550M AORUS ELITE AX |
| Part Number | B550M AORUS ELITE AX |
| CPU Socket Type | AM4 |
| CPU Type | Ryzen 3000G Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series |
| Chipset | AMD B550 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 2.0 |
| ECC Supported | Yes |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x4 | 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode |
| PCI Express x1 | 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| PCI Slots | 1 x PCI Slot |
| Other Slots | 1 x CNR |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs |
| SATA RAID | 0/1/10 |
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.3 |

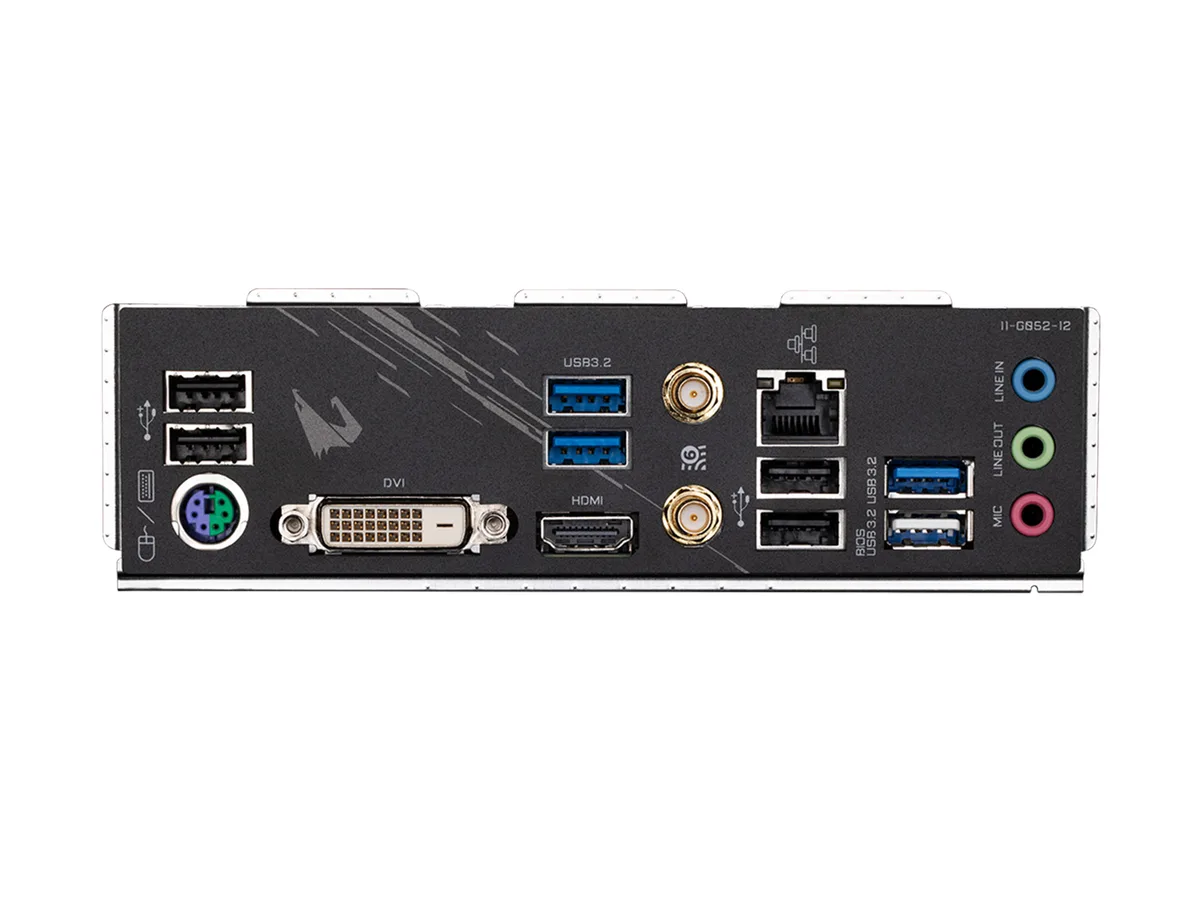

| Back I/O Ports | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| PS/2 | 1 |
| COM | 3 |
| Video Ports | 1 |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| USB 3.0 | 10 x USB 3.0 |
| USB 1.1/2.0 | 9 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| S/PDIF In | 1 x Optical, 1 x Coaxial |
| Game/MIDI Ports | 1 |
| Audio Ports | 6 Ports |
| Onboard USB | 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header |
| Other Connectors | 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
| Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Package Contents | 1 unit |
| Shipping weight | 1.18 kg |
| Package size | 279 × 279 × 76 mm |
Questions about this item
Will my Ryzen 5000 processor fit this AM4 socket?
Yes, the board supports Ryzen 5000 Series and Ryzen 5000 G-Series CPUs on the AM4 socket.
Can I run four DDR4 sticks at 3200 speed?
The board has four 288-pin slots for dual-channel DDR4 up to 3200 and a maximum of 128 GB.
Does the primary M.2 slot run at PCIe 4.0 with a Ryzen 5000 CPU?
With a Ryzen 5000 processor the top M.2 connector operates at PCIe 4.0 x4 speeds.
