GIGABYTE B550M GAMING X WIFI6 AMD motherboard
Micro-ATX AM4 board supports Ryzen 3000, 4000G and 5000 series CPUs with four DDR4 slots up to 128 GB, PCIe 4.0 x16 graphics, one M.2 2280, four SATA 6 Gb/s, 1 GbE LAN and Wi-Fi 6
- CPU Socket TypeAM4
- CPU TypeRyzen 3000 Series / Ryzen 3000G Series / Ryzen 4000G Series
- ChipsetAMD B550
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 2133 / DDR4 2667 / DDR4 2933 / DDR4 3200
- Maximum Memory Supported128GB
Option
- GIGABYTE B550M GAMING X WIFI6 AM4
- GIGABYTE B550M GAMING X WIFI6 AM4 + AMD Ryzen 5 5500 + Team T-Force Delta RGB Model TF3D416G3200HC16FDC01
Struck-through versions exist but are not stocked here.
- Supports Ryzen 3000 and 5000 series CPUs on AM4 socket
- Dual-channel DDR4 memory up to 128GB at 3200MHz
- PCIe 4.0 x16 graphics slot with compatible Ryzen processors
- One M.2 slot for 2280 SSDs plus four SATA 6Gb/s ports
- Built-in WIFI6 and 7.1-channel audio for networking and sound
Socket AM4 B550 micro-ATX board

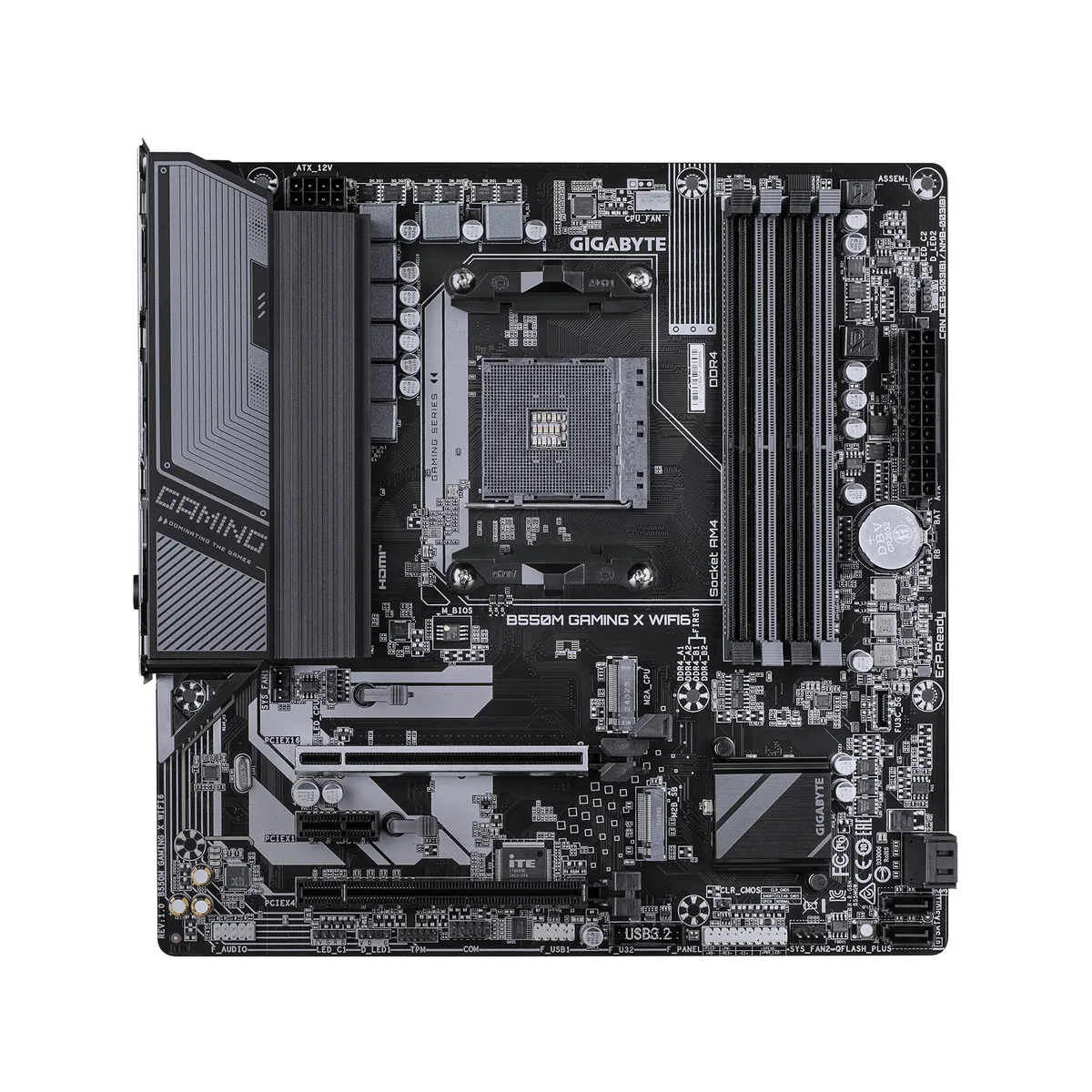

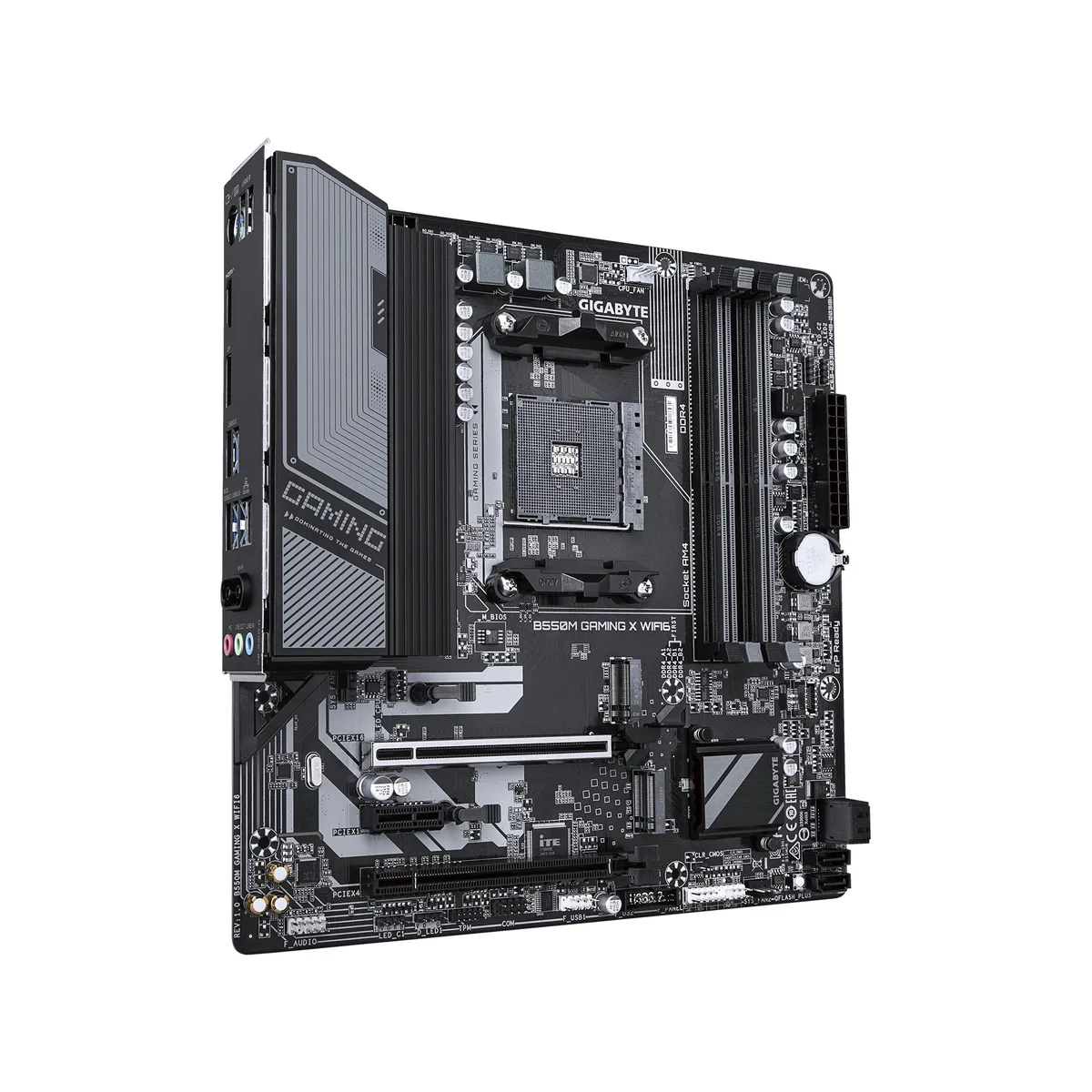

The GIGABYTE B550M GAMING X WIFI6 is a micro-ATX motherboard built on the AMD B550 chipset for Socket AM4 processors. It supports Ryzen 3000, 4000G and 5000 series CPUs, including G-series APUs. Four DDR4 slots accept up to 128 GB of memory at speeds up to 3200 MHz. Integrated Wi-Fi 6 and 1 Gbps LAN provide wireless and wired connectivity.
Builders needing one PCIe 4.0 x16 slot and one M.2
This board suits builders who want a single PCIe 4.0 x16 graphics slot and one CPU-attached M.2 2280 slot that runs at PCIe 4.0 x4 with Ryzen 5000 or 3000 series CPUs. A second x16-sized slot runs at PCIe 3.0 x4 and a PCIe 3.0 x1 slot rounds out expansion. Four SATA 6 Gb/s ports support RAID 0, 1 and 10 for both NVMe and SATA drives. Users requiring multiple M.2 slots or more than one PCIe 4.0 x16 slot should look at full-size ATX alternatives.
One CPU-attached M.2 2280 slot at PCIe 4.0 x4
The decisive specification is the single M.2 connector (M2A_CPU) that delivers PCIe 4.0 x4 bandwidth only when paired with a Ryzen 5000 or 3000 series processor. With Ryzen 5000G, 4000G or 3000G APUs the same slot falls back to PCIe 3.0 x4. If your build depends on two high-speed NVMe drives or a second PCIe 4.0 x16 lane, this board will not meet that requirement.
Highlights
- Supports Ryzen 3000 and 5000 series CPUs on AM4 socket
- Dual-channel DDR4 memory up to 128GB at 3200MHz
- PCIe 4.0 x16 graphics slot with compatible Ryzen processors
- One M.2 slot for 2280 SSDs plus four SATA 6Gb/s ports
- Built-in WIFI6 and 7.1-channel audio for networking and sound
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | B550M GAMING X WIFI6 |
| CPU Socket Type | AM4 |
| CPU Type | Ryzen 3000 Series / Ryzen 3000G Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series |
| Chipset | AMD B550 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 2133 / DDR4 2667 / DDR4 2933 / DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| PCI Express x4 | 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 |
| PCI Express x1 | 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | BLUETOOTH 5.3 |

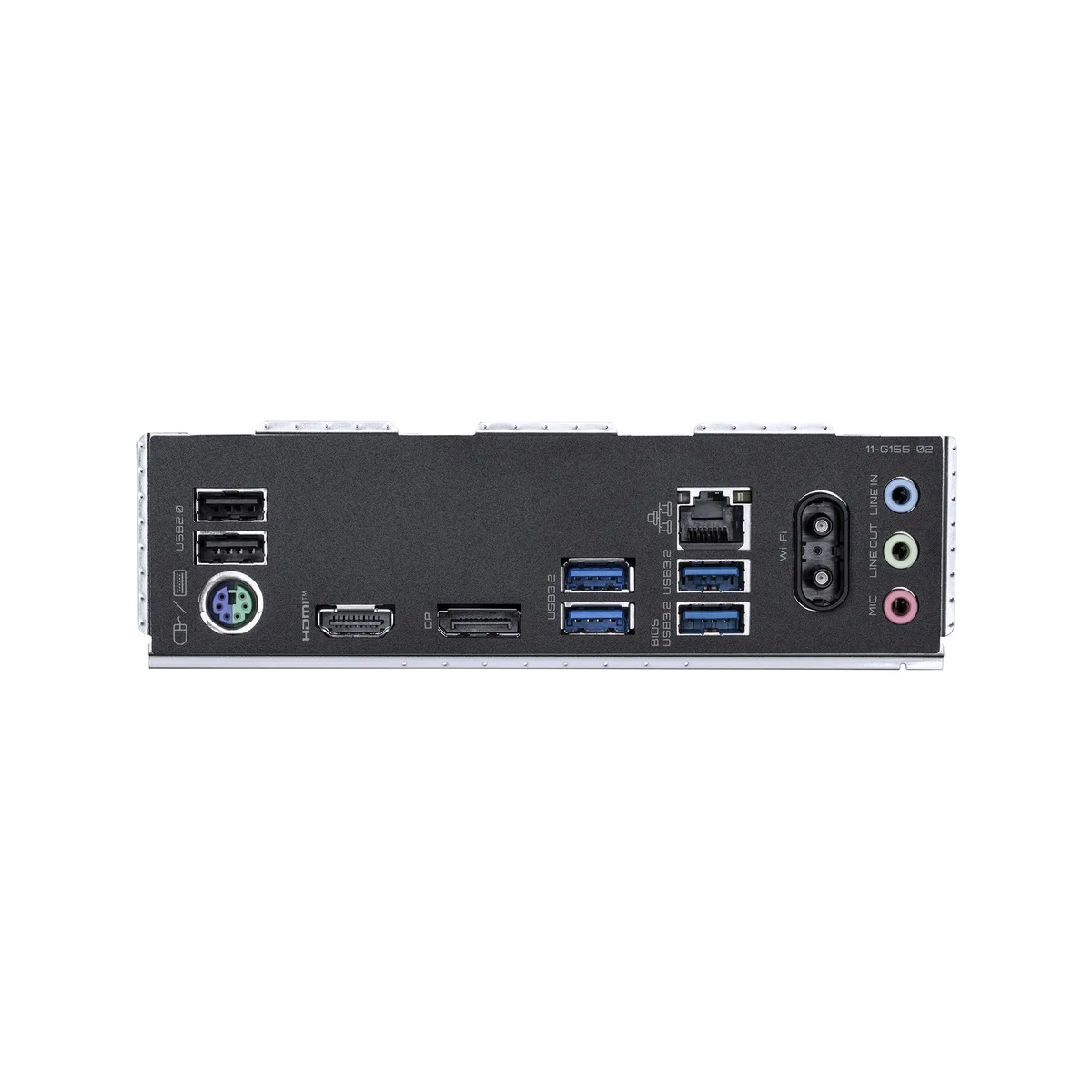

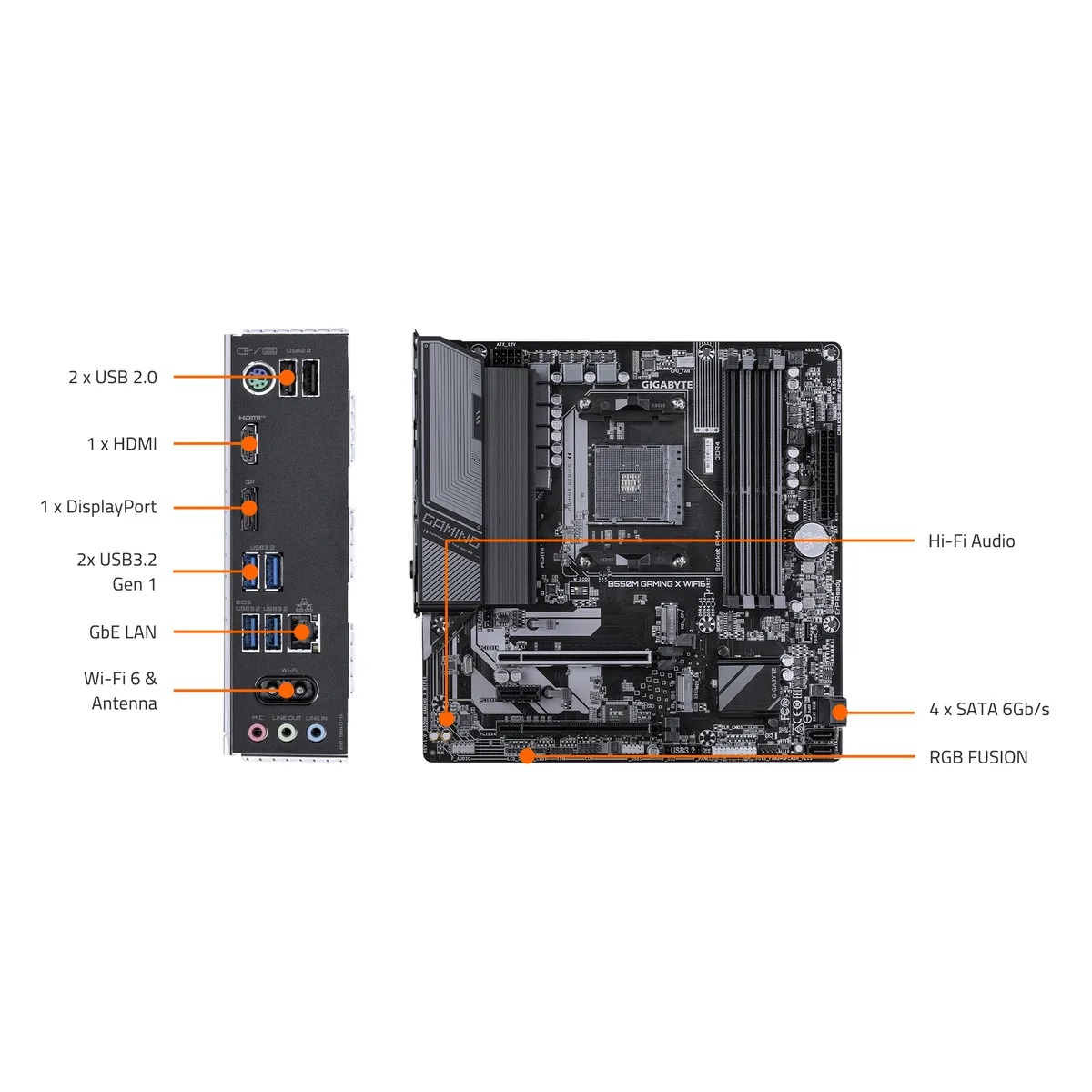

| Back I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header |
| Other Connectors | 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| BIOS Feature | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Windows 11 | Supported |
| Features | Support for APP Center - @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash |
| Shipping weight | 1.18 kg |
| Package size | 267 × 267 × 76 mm |
Questions about this item
Will a Ryzen 5000 series CPU run the primary PCIe slot at 4.0 x16?
Yes, Ryzen 5000 and 3000 series processors enable PCIe 4.0 x16 mode on the top slot, while G-series CPUs run it at 3.0 x16.
Can I populate all four memory slots with 32 GB modules for 128 GB total?
The board supports up to 128 GB across four DDR4 slots, so four 32 GB unbuffered DIMMs will reach the maximum capacity.
Does the M.2 slot accept SATA as well as PCIe SSDs?
With a Ryzen 5000 or 3000 series CPU the M.2 connector supports both SATA and PCIe 4.0 x4 or x2 drives; G-series CPUs limit it to PCIe 3.0.
