Green ATX motherboard with silver heatsinks and black slots

GIGABYTE

GIGABYTE B560 HD3 Intel motherboard

SKU CH-FRSJ-BH3WH

LGA 1200 ATX board with Intel B560 chipset, four DDR4 slots for up to 128 GB, one PCIe 4.0 x16 slot, six SATA ports and two M.2 sockets

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th / 10th Gen Intel Core processors Supports Inte
  • ChipsetIntel B560
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4
  • Supports 11th and 10th Gen Intel Core CPUs on LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB dual-channel memory
  • PCIe 4.0 x16 slot plus CPU-linked M.2 for fast graphics and storage
  • Six SATA 6Gb/s ports and a second M.2 from chipset expand drive options
  • Realtek 7.1 audio and 1 Gbps LAN handle sound and networking needs

LGA 1200 B560 platform

This ATX motherboard uses the Intel B560 chipset and the LGA 1200 socket. It supports 11th and 10th Gen Intel Core processors as well as selected Pentium and Celeron models. The board targets builders who need a full-size layout for a mainstream desktop system.

DDR4 5333 OC memory ceiling

Four 288-pin slots accept dual-channel DDR4 up to 128 GB. With an 11th Gen Core i9, i7 or i5 the board validates speeds from 2133 up to 5333 when overclocked. 10th Gen CPUs top out at 2933 for i9 and i7 or 2666 for i5, i3, Pentium and Celeron parts.

Chipset VRM heatsink cooling

The power delivery uses a heatsink on the VRM area to handle typical desktop loads without active fans. A single 1 Gbps Realtek LAN port and Realtek 7.1 channel audio add minimal heat. Six SATA 6Gb/s ports and two M.2 slots draw little power under normal operation.

Highlights

  • Supports 11th and 10th Gen Intel Core CPUs on LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB dual-channel memory
  • PCIe 4.0 x16 slot plus CPU-linked M.2 for fast graphics and storage
  • Six SATA 6Gb/s ports and a second M.2 from chipset expand drive options
  • Realtek 7.1 audio and 1 Gbps LAN handle sound and networking needs

Specifications

BrandGIGABYTE
ModelB560 HD3
CPU Socket TypeLGA 1200
CPU TypeSupports 11th / 10th Gen Intel Core processors
Supports Intel Pentium / Celeron processors*
* Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.
ChipsetIntel B560
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (11th Gen Intel Core i9 / i7 / i5 processors)
DDR4 2933 / 2666 / 2400 / 2133 (10th Gen Intel Core i9 / i7 processors)
DDR4 2666 / 2400 / 2133 (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
PCI Express 3.0 x161 x PCI Express 3.0 x16*
* Running at x4.
PCI Express x12 x PCI Express 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
* System Acceleration with Intel Optane Memory enabled on the M2P_CPU connector only.
* Supported by 11th Generation processors only.
Intel Optane ReadyYes
Audio ChipsetRealtek Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek GbE LAN chip
Max LAN Speed1Gbps

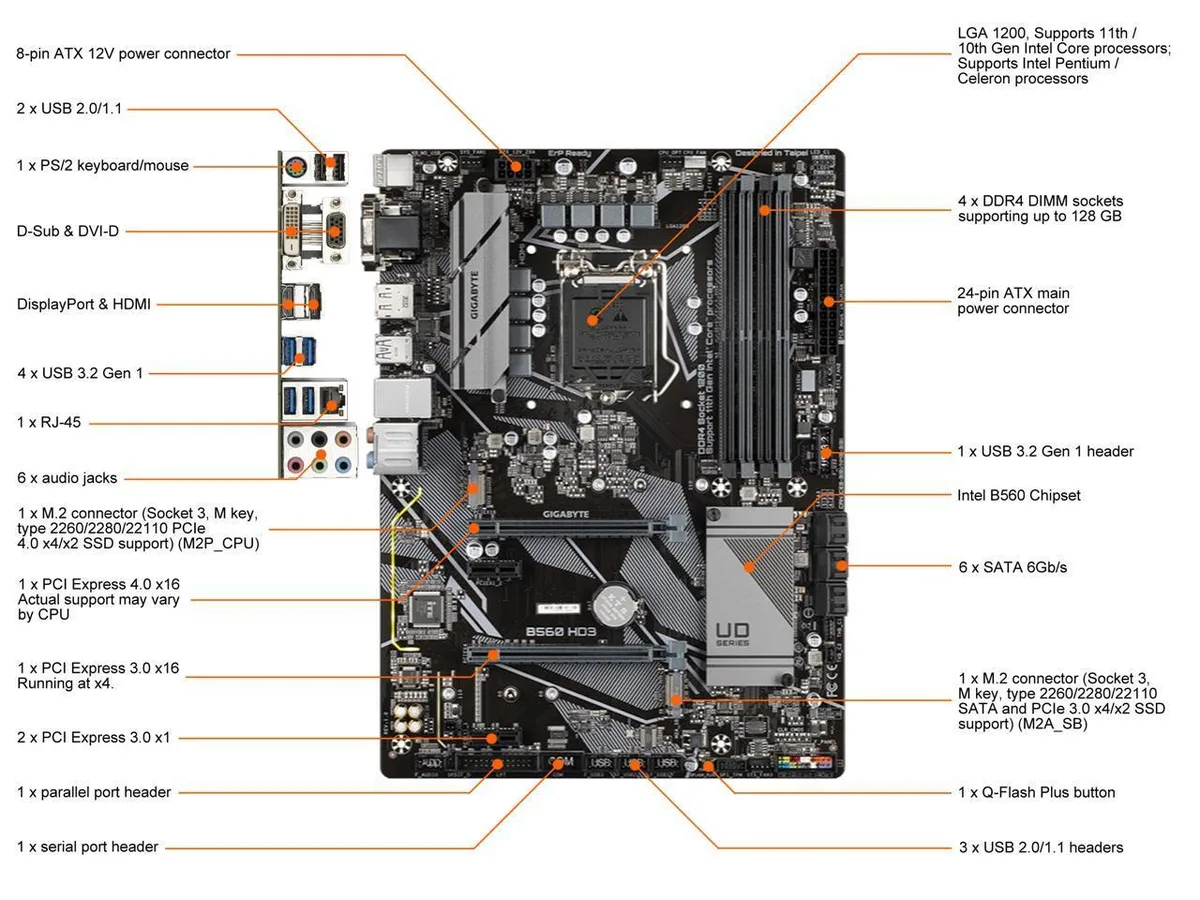

Back I/O Ports1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 8.9"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesI/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
F

Questions about this item

What does the 5333(OC) DDR4 rating mean once the board is in a working PC?

It is the highest overclocked memory speed the board can reach with an 11th Gen Core i9, i7 or i5 CPU; actual stability depends on the memory kit and BIOS tuning.

How does the PCIe 4.0 x16 slot and the CPU-linked M.2 connector limit expansion choices?

The top x16 slot runs at PCIe 4.0 only with an 11th Gen CPU; with a 10th Gen CPU it drops to 3.0. The CPU-attached M.2 socket supports PCIe 4.0 x4 or x2 SSDs (2260, 2280, 22110) when an 11th Gen processor is installed.

What physical space and mounting does the ATX B560 HD3 need in a case?

The board follows the standard ATX form factor, so it requires a case with ATX motherboard mounting holes and an I/O shield cut-out; it has four 288-pin DDR4 slots, one PCIe 4.0 x16, one PCIe 3.0 x16 (x4 electrical), two PCIe 3.0 x1 slots, six SATA 6Gb/s ports and two M.2 sockets (2260/2280/22110).
