Dark green Micro-ATX board with black heatsinks and silver I/O shield

GIGABYTE

GIGABYTE B560M AORUS PRO AX Intel motherboard

SKU CH-XDY9-ADSRA MPN B560M

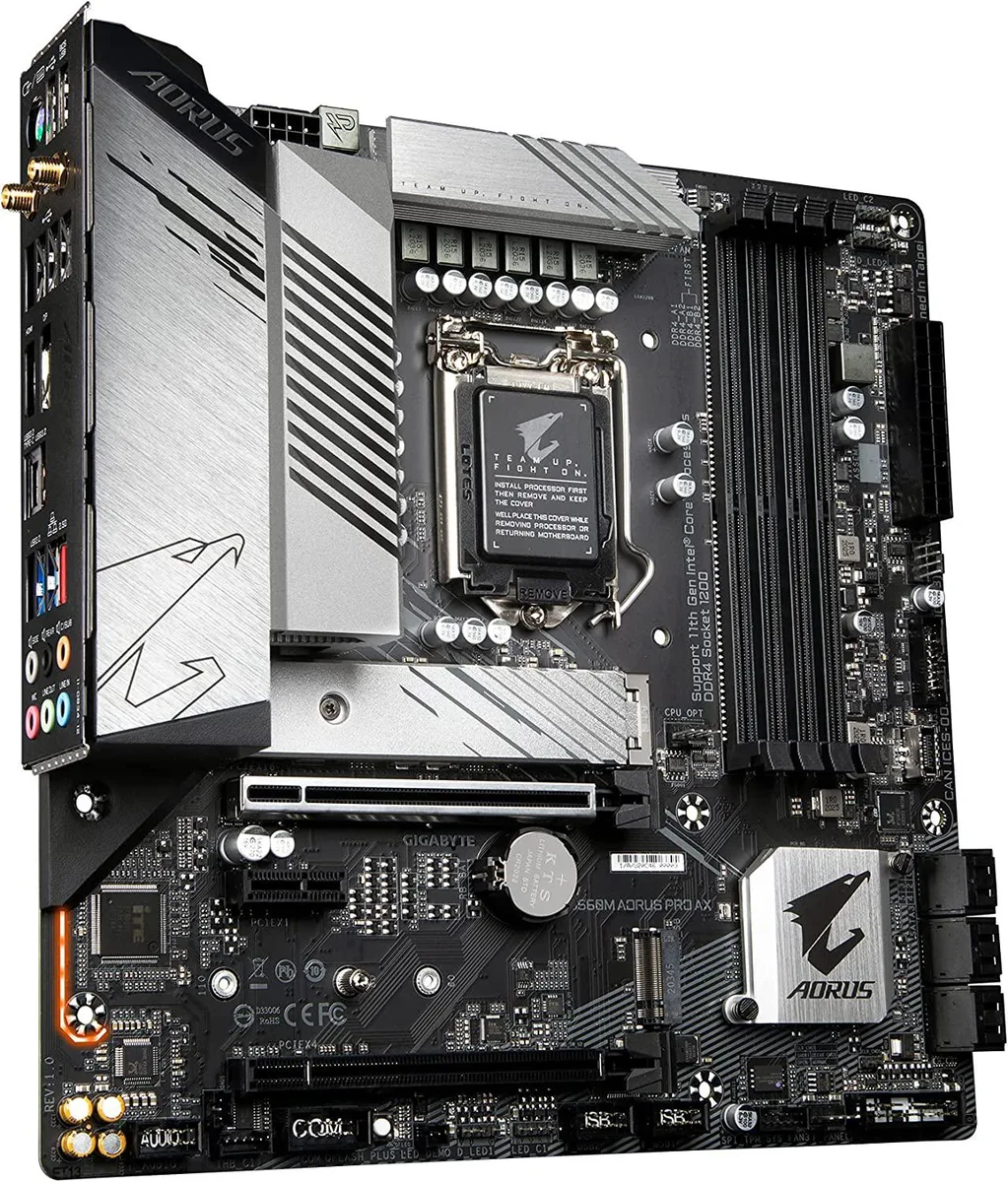

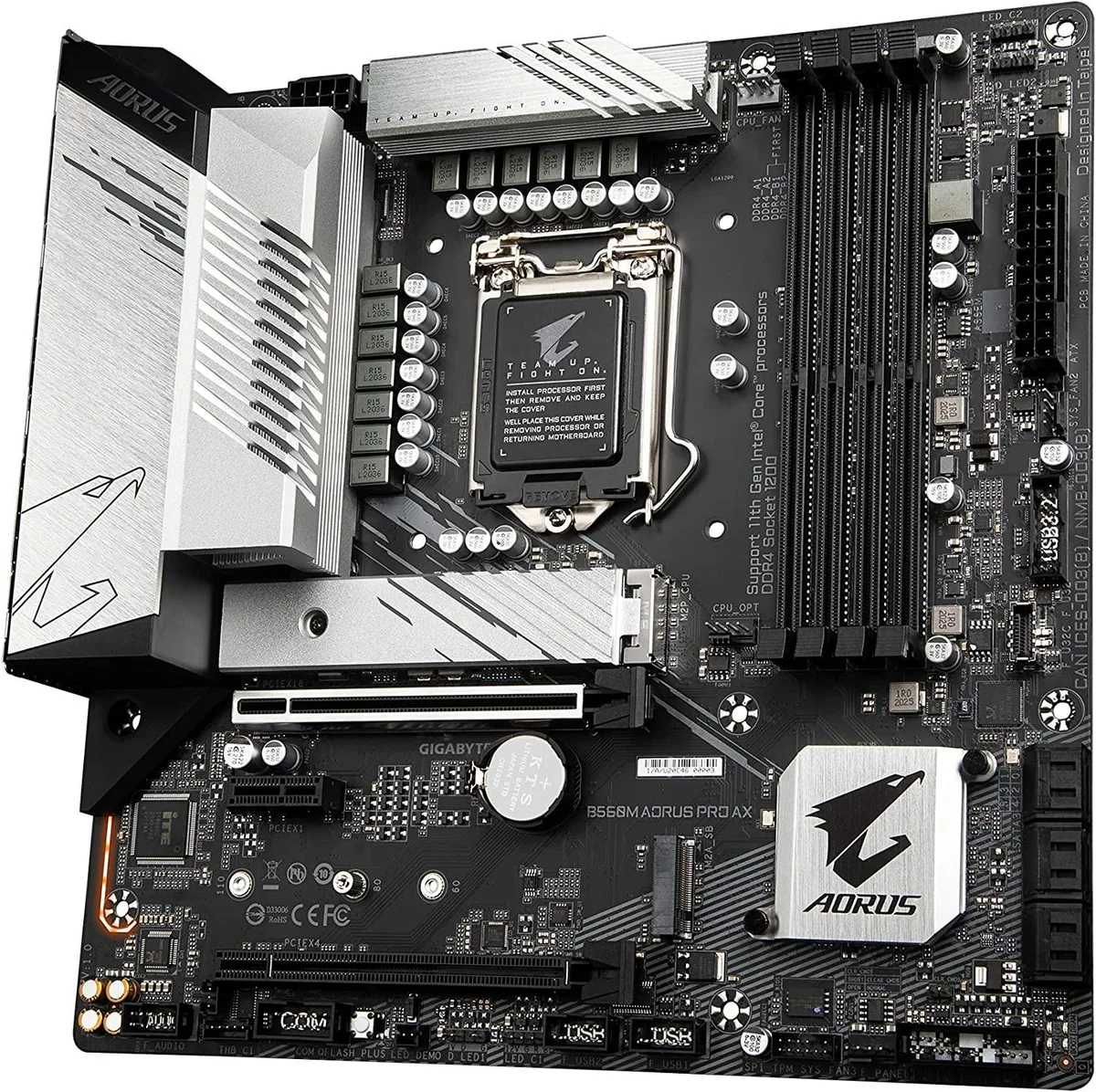

MicroATX LGA 1200 board with Intel B560 chipset, dual M.2 slots, PCIe 4.0 x16 and 128 GB DDR4 support

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
  • ChipsetIntel B560
  • Memory StandardDDR4
  • Maximum Memory Supported128GB
  • PCI Express 4.0 x161 x PCI Express 4.0 x16
  • Supports 10th and 11th Gen Intel Core processors with LGA 1200 socket
  • PCIe 4.0 x16 slot enables high-bandwidth graphics and expansion cards
  • Two M.2 slots provide fast storage options for system and data drives
  • Micro ATX form factor fits compact cases while retaining full feature set
  • Includes I/O shield for clean rear-panel installation

Socket and form factor

This motherboard uses the Intel LGA 1200 socket and the B560 chipset on a Micro ATX board. It supports 10th and 11th generation Core i9, i7, i5 and i3 processors. The layout fits smaller cases while keeping a full-size PCIe 4.0 x16 slot.

Who should consider this board

Builders upgrading an existing LGA 1200 system or assembling a compact desktop will find the socket and chipset match their CPU. The single PCIe 4.0 x16 slot and two M.2 sockets cover a graphics card and fast storage. Anyone needing more than one full-size expansion slot or a different CPU socket should look elsewhere.

The deciding specification

The LGA 1200 socket combined with the Intel B560 chipset determines whether this board fits your processor. If your CPU requires a different socket or chipset, this motherboard will not work.

Highlights

  • Supports 10th and 11th Gen Intel Core processors with LGA 1200 socket
  • PCIe 4.0 x16 slot enables high-bandwidth graphics and expansion cards
  • Two M.2 slots provide fast storage options for system and data drives
  • Micro ATX form factor fits compact cases while retaining full feature set
  • Includes I/O shield for clean rear-panel installation

Specifications

BrandGIGABYTE
SeriesAORUS
ModelB560M AORUS PRO AX
CPU Socket TypeLGA 1200
CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
ChipsetIntel B560
Memory StandardDDR4
Maximum Memory Supported128GB
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x161
PCI Slots1 x PCI Slot
M.22 x M.2
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.11 x USB 3.1
Form FactorMicro ATX

Questions about this item

How can I confirm the B560M AORUS PRO AX is functioning correctly after installation?

Power on the system and verify the BIOS splash screen appears; the I/O shield should show the DisplayPort and USB 3.1 ports active, and the single PCI Express 4.0 x16 slot should detect any installed graphics card.

What comes in the box and what must I purchase separately?

Only the motherboard and the I/O shield are included; SATA cables, Wi-Fi antennas, M.2 screws, driver media and a user manual are not supplied and must be sourced independently.

Which B560M AORUS PRO AX version should I choose for my build?

The board is offered as a single Micro-ATX LGA 1200 model with two M.2 slots and one PCI Express 4.0 x16 slot, so select this version when you need that exact feature set.
