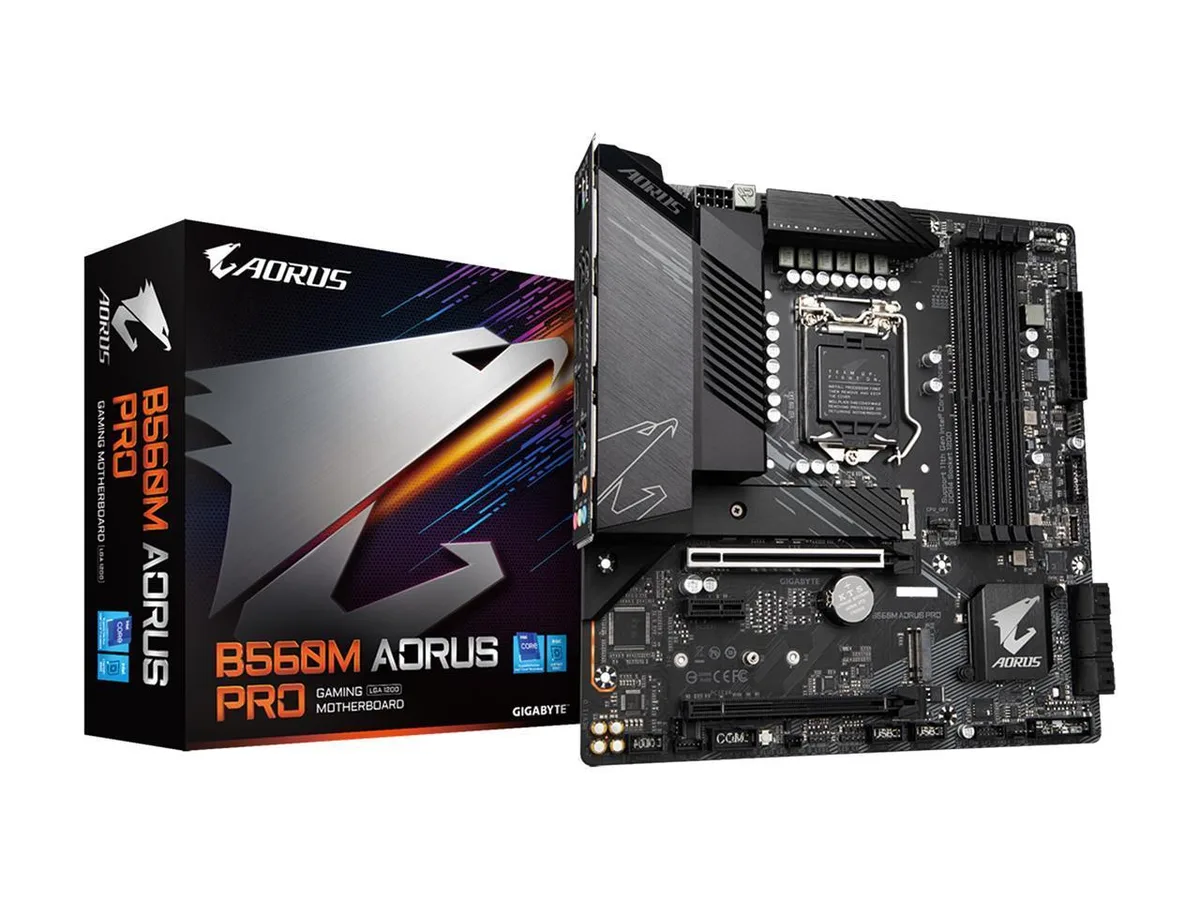

Dark rectangular Micro ATX motherboard with black heatsinks and silver accents

GIGABYTE

GIGABYTE B560M AORUS PRO Intel Motherboard LGA 1200 Micro ATX

SKU CH-G7BW-J7MTB

Micro ATX board for 10th and 11th Gen Intel Core CPUs with 12+1 phase 50A DrMOS VRM, dual PCIe 4.0 M.2 slots, 2.5GbE LAN and USB 3.2 Gen2x2 Type-C

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th / 10th Gen Intel Core processors Supports Inte
  • ChipsetIntel B560
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4
  • Supports 11th and 10th Gen Intel Core processors via LGA 1200 socket
  • Direct 12+1 phases digital VRM with 50A DrMOS for stable power delivery
  • Dual-channel DDR4 up to 128GB across four 288-pin slots with shielded routing
  • Dual M.2 slots for PCIe 4.0 and 3.0 x4 NVMe SSDs with thermal guards
  • Intel 2.5GbE LAN with cFosSpeed plus USB 3.2 Gen2x2 Type-C at 20Gb/s

Socket LGA 1200 Micro-ATX Foundation

The GIGABYTE B560M AORUS PRO is a micro-ATX motherboard built for Intel LGA 1200 processors. It supports 11th and 10th Generation Core CPUs along with select Pentium and Celeron models. The board targets compact builds that still want a full feature set.

128 GB DDR4 Dual-Channel Capacity

Four 288-pin slots accept up to 128 GB of dual-channel DDR4 memory. The validated overclock list runs from 3466 through 5333 MT/s, giving headroom for high-speed kits. Memory topology is shielded to help stability at the top end.

12+1 Phase DrMOS VRM and Dual M.2 Guards

A direct 12+1 phase digital VRM uses 50 A DrMOS devices under full-coverage heatsinks for sustained power delivery. Two M.2 sockets — one CPU-attached PCIe 4.0 x4 and one chipset PCIe 3.0 x4 — both carry thermal guards. Rear I/O includes 2.5 GbE LAN, USB 3.2 Gen 2x2 Type-C and 7.1-channel audio.

Highlights

  • Supports 11th and 10th Gen Intel Core processors via LGA 1200 socket
  • Direct 12+1 phases digital VRM with 50A DrMOS for stable power delivery
  • Dual-channel DDR4 up to 128GB across four 288-pin slots with shielded routing
  • Dual M.2 slots for PCIe 4.0 and 3.0 x4 NVMe SSDs with thermal guards
  • Intel 2.5GbE LAN with cFosSpeed plus USB 3.2 Gen2x2 Type-C at 20Gb/s

Specifications

BrandGIGABYTE
SeriesAORUS
CPU Socket TypeLGA 1200
CPU TypeSupports 11th / 10th Gen Intel Core processors
Supports Intel Pentium / Celeron processors*
* Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.
ChipsetIntel B560
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (11th Gen Intel Core i9 / i7 / i5 processors)
DDR4 2933 / 2666 / 2400 / 2133 (10th Gen Intel Core i9 / i7 processors)
DDR4 2666 / 2400 / 2133 (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x161 x PCI Express 3.0 x16*
* Running at x4.
PCI Express x11 x PCI Express 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
* Supported by 11th Generation processors only.
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Intel Optane ReadyYes
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Back I/O Ports1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen2x2 support
1 x USB 3.2 Gen2 Type-A port (red)
2 x USB 3.2 Gen1 ports
6 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"

Questions about this item

Will my existing DDR4 3600 MHz memory work with the four 288-pin slots on this board?

Yes, the board supports DDR4 speeds up to 5333 MHz overclocked and runs dual-channel across all four slots, so your 3600 MHz modules will operate at their rated speed.

How can I confirm the 2.5 Gbps LAN and PCIe 4.0 M.2 are active after building?

Check Device Manager for an Intel 2.5GbE controller and verify the M.2 SSD reports a PCIe 4.0 x4 link in the BIOS hardware monitor or CrystalDiskInfo.

Does the box include the I/O shield and M.2 mounting screws, or must I buy them separately?

The I/O shield is pre-installed on the board, and M.2 screws are included; no separate purchase is needed for either.
