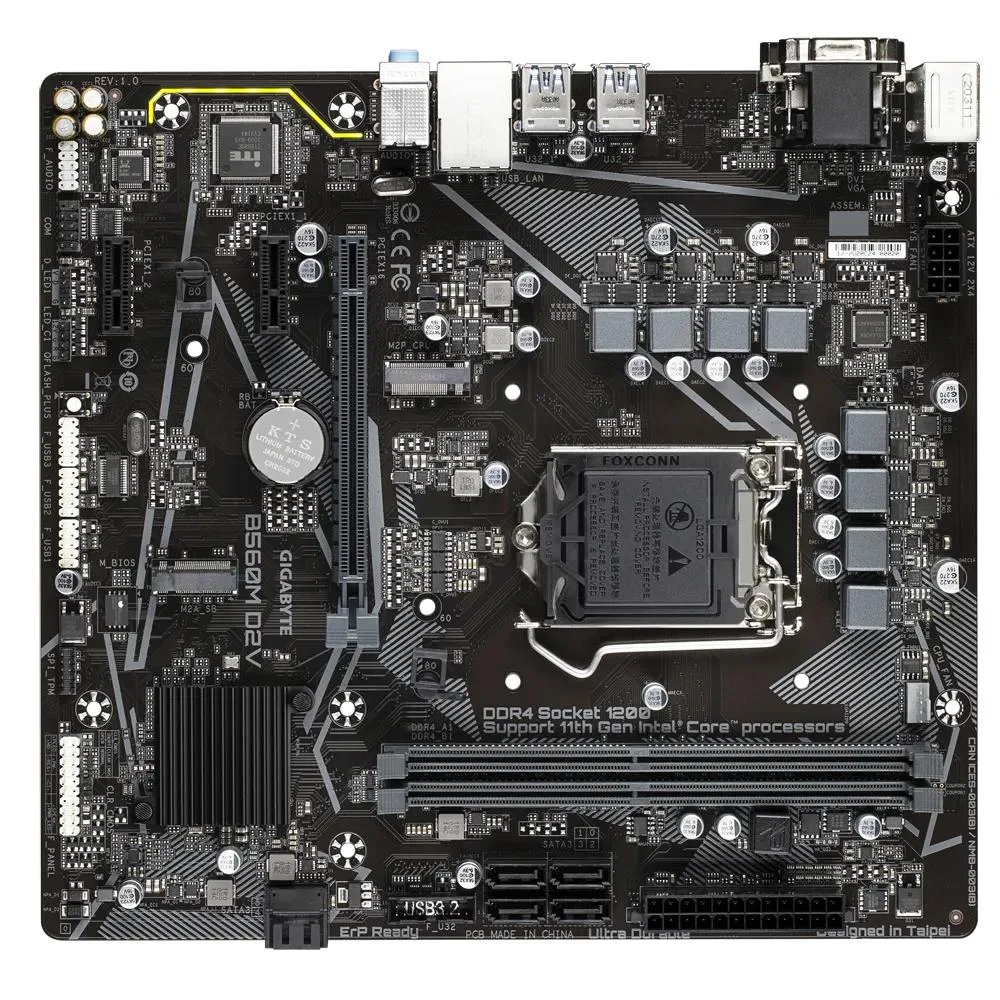

Micro-ATX board with dark PCB and silver heatsinks

GIGABYTE

GIGABYTE B560M D2V Intel motherboard

SKU CH-BXRM-PBA5J

Supports 11th and 10th Gen Intel Core processors with dual-channel DDR4, direct 6+2 phases digital VRM, dual NVMe PCIe 4.0 M.2 slots, 8118 Gaming LAN, and RGB Fusion 2.0

  • CPU TypeIntel Core 11th Gen (LGA 1200)
  • Supports 11th and 10th Gen Intel Core processors on LGA 1200 socket
  • Direct 6+2 phases digital VRM with low RDS(on) MOSFETs for stable power delivery
  • Dual ultra-fast NVMe PCIe 4.0 / 3.0 x4 M.2 slots for high-speed storage
  • GIGABYTE 8118 Gaming LAN with bandwidth management for low-latency networking
  • RGB Fusion 2.0 supports addressable LED and RGB LED strips for customisable lighting

11th and 10th Gen Intel LGA 1200 Motherboard

This micro-ATX board targets builders pairing 11th or 10th Generation Intel Core i9, i7, i5, i3, Pentium or Celeron processors with dual-channel DDR4 memory. It suits compact gaming or workstation rigs that need PCIe 4.0 storage and wired networking.

Direct 6+2 Phase Digital VRM and Connectivity

Low RDS(on) MOSFETs feed the CPU through a 6+2 phase digital design, while dual M.2 slots accept NVMe PCIe 4.0 and 3.0 x4 drives. The 8118 Gaming LAN adds bandwidth management, and Smart Fan 6 uses multiple sensors with hybrid headers that can stop fans entirely.

Dual DDR4 DIMMs up to 64 GB

Two slots support up to 64 GB of non-ECC unbuffered DDR4 at speeds from 2133 MHz to 3200 MHz depending on the installed processor generation. This capacity ceiling decides whether the board fits a given memory plan.

Highlights

  • Supports 11th and 10th Gen Intel Core processors on LGA 1200 socket
  • Direct 6+2 phases digital VRM with low RDS(on) MOSFETs for stable power delivery
  • Dual ultra-fast NVMe PCIe 4.0 / 3.0 x4 M.2 slots for high-speed storage
  • GIGABYTE 8118 Gaming LAN with bandwidth management for low-latency networking
  • RGB Fusion 2.0 supports addressable LED and RGB LED strips for customisable lighting

Specifications

BrandGIGABYTE
SeriesB560M D2V
CPU TypeIntel Core 11th Gen (LGA 1200)

Questions about this item

What PCIe generation does the B560M D2V's M.2 slot use, and what throughput does that cap at?

The board provides dual M.2 slots wired for PCIe 4.0 x4, so an NVMe drive can reach the full 4.0 bandwidth ceiling.

What CPU cooler clearance or mounting pattern does the LGA 1200 socket area require?

The socket follows the standard LGA 1200 ILM hole pattern, so any cooler rated for that socket will bolt on without an adapter.

How do I update the BIOS on the B560M D2V without a CPU installed, and where do people slip up?

Use Q-Flash Plus: rename the BIOS file to GIGABYTE.bin, copy it to a FAT32 USB stick, plug the stick into the marked USB port, then press the rear Q-Flash Plus button — the common mistake is forgetting to rename the file exactly.
