Green micro-ATX board with black heatsinks and silver sockets

GIGABYTE

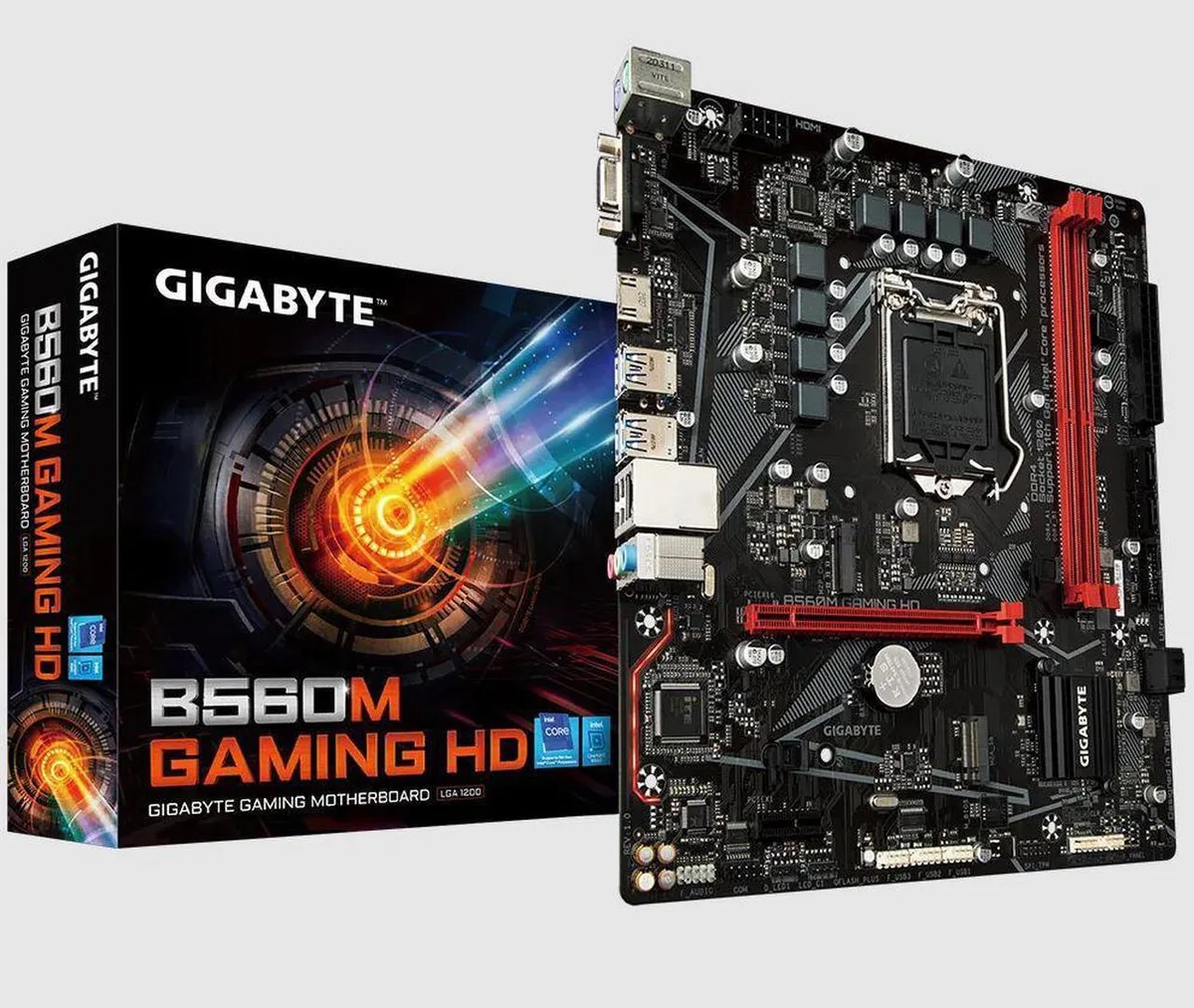

GIGABYTE B560M GAMING HD Intel motherboard LGA 1200

SKU CH-V05P-PDW44

Micro-ATX LGA 1200 board with Intel B560 chipset, two DDR4 slots for 64 GB, one PCIe x16 slot, four SATA III ports and dual M.2 sockets

  • CPU Socket TypeLGA 1200
  • CPU TypeLGA1200 slot, supports: 11th generation Intel ® Core ™ i9 pr
  • ChipsetIntel B560
  • Maximum Memory Supported64GB
  • PCI Slots1 PCI-E x16 slot, supporting x16 operation specification (PC
  • SATA RAID2XM.2 interface, 4xSATA III interface
  • Supports 10th and 11th generation Intel Core processors via LGA 1200 socket
  • Up to 64 GB DDR4 memory across two DIMM slots
  • PCIe 3.2 x16 slot for graphics card expansion
  • Four SATA III ports and two M.2 interfaces for storage
  • Realtek GbE LAN and 7.1-channel High Definition Audio

LGA 1200 Micro ATX Motherboard

The GIGABYTE B560M GAMING HD fits LGA 1200 processors from Intel 10 and 11 generation Core i9, i7 and i5 families. Its Micro ATX form factor measures 24.4 by 22.5 cm and provides two DDR4 DIMM slots for up to 64 GB of memory. One full-size PCI-E x16 slot handles graphics duties while the Intel B560 chipset manages storage and I/O.

Sustained Load Behaviour

The board delivers 1.6 USB 3.2 Gen 1 ports and 2.8 USB 2.0 ports for steady peripheral bandwidth during long sessions. Integrated Realtek GbE LAN maintains 1 Gbit or 100 Mbit network throughput without a discrete controller. Realtek audio drives 2, 4, 5.1 or 7.1 channel output continuously. Four SATA III and two M.2 interfaces keep storage arrays fed under constant read-write cycles.

64 GB DDR4 Limit

Maximum memory capacity is 64 GB across the two DDR4 slots, so the kit you choose must not exceed that total. Populating both slots with matched modules reaches the ceiling; a single larger module cannot surpass it. This figure decides whether the board suits your workload or if a four-slot alternative is required.

Highlights

  • Supports 10th and 11th generation Intel Core processors via LGA 1200 socket
  • Up to 64 GB DDR4 memory across two DIMM slots
  • PCIe 3.2 x16 slot for graphics card expansion
  • Four SATA III ports and two M.2 interfaces for storage
  • Realtek GbE LAN and 7.1-channel High Definition Audio

Specifications

BrandGIGABYTE
SeriesGIGABYTE B560M GAMING HD
ModelGIGABYTE B560M GAMING HD
CPU Socket TypeLGA 1200
CPU TypeLGA1200 slot, supports:
11th generation Intel ® Core ™ i9 processor/Intel ® Core ™ i7 processor/Intel ® Core ™ i5 processor
10th generation Intel ® Core ™ i9 processor/Intel ® Core ™ i7 processor/Intel ® Core ™ i5 processor/Intel ® Core ™ i3 processor/Intel ® Pentium ® processors/Intel ® Celeron ® processors *
** 4 MB Intel ® Smart Cache, i.e. Intel ® Celeron ® G5xx5 series processors
3. L3 cache depends on CPU
ChipsetIntel B560
Maximum Memory Supported64GB
PCI Slots1 PCI-E x16 slot, supporting x16 operation specification (PCIEX16)
To maximize the performance of the graphics card, it is necessary to install the PCIEX16 slot when installing a graphics card.
(PCIEX16 slot supports PCI-E 4.0) (Note)
2. 1 PCI-E x1 slot (PCIEX1)
(PCIEX1 slot supports PCI-E 3.0)
SATA RAID2XM.2 interface, 4xSATA III interface
Audio Chipset1. Integrated Realtek ® audio chip
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 - Channel
LAN ChipsetIntegrated Realtek ® GbE network chips (1 Gbit/100 Mbit)
Onboard USBBased on chipset:
1.6 USB 3.2 Gen 1 ports (4 in the rear window IO, 2 need to be connected from the USB socket in the main board via the cable)
Based on chipset + 1 USB 2.0 Hub:
2.8 USB 2.0/1 (2 in the rear window IO, 6 need to be connected from the main board USB socket via cable)

Questions about this item

How much power does the B560M GAMING HD draw under continuous load?

The board uses a standard LGA 1200 socket and Intel B560 chipset; total system draw depends on the installed CPU and graphics card rather than the motherboard alone.

Which components must I already have to boot this motherboard?

You need an LGA 1200 processor from the 10th or 11th generation Core i9, i7 or i5 families, at least one DDR4 DIMM up to 64 GB total, a graphics card for the PCIe x16 slot, and an ATX power supply with 24-pin and CPU connectors.

Will my existing SATA SSDs and hard drives work with the B560M GAMING HD?

Yes, the board provides four SATA III ports and two M.2 interfaces, so current SATA drives connect directly without adapters.
