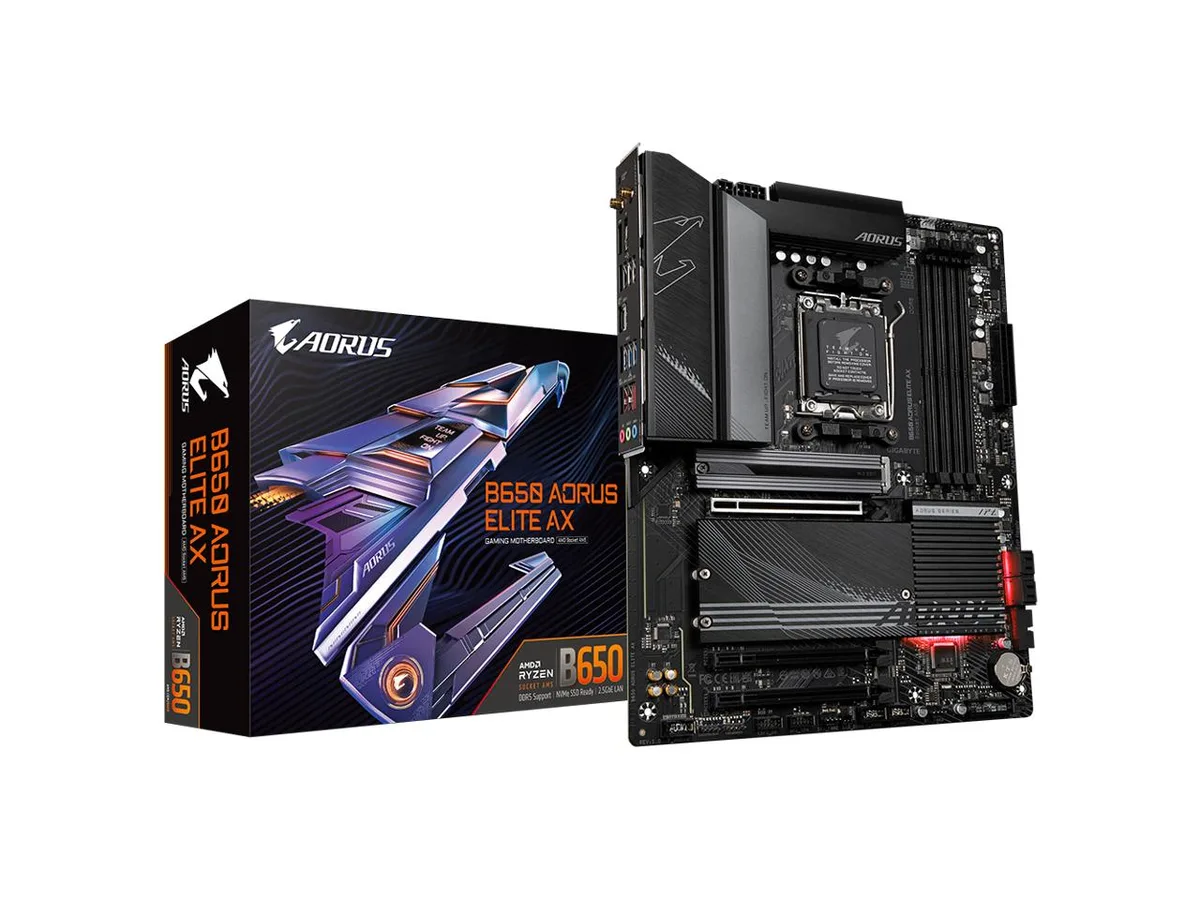

Rectangular ATX motherboard with black PCB, silver heatsinks and four DDR5 slots

GIGABYTE

GIGABYTE B650 AORUS ELITE AX AM5 LGA 1718 AMD motherboard

SKU CH-YV23-MH08P

ATX board for AM5 Ryzen 7000 CPUs with four DDR5 slots up to 128 GB, PCIe 5.0 M.2, 2.5 GbE LAN and WiFi 6E

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) /
  • Maximum Memory Supported128GB (32GB Single DIMM Capacity)
  • AM5 socket runs Ryzen 7000 series processors
  • Four DDR5 slots support up to 128 GB memory
  • 14+2+1 phase VRM with 70 A power stages
  • PCIe 5.0 M.2 slot plus EZ-Latch screwless release
  • 5 GbE LAN and WiFi 6E for fast networking

Socket AM5 Platform

This ATX motherboard uses the AMD B650 chipset and the AM5 socket to support Ryzen 7000 series processors. It targets builders who want a modern DDR5 platform with strong connectivity for gaming or productivity work.

Memory And Storage Headroom

Four DDR5 slots accept up to 128 GB total with a 32 GB per DIMM limit and speeds up to 6600 MT/s when overclocked. One M.2 socket runs at PCIe 5.0 x4 and a second at PCIe 4.0 x4 for fast NVMe drives, while four SATA ports handle additional storage.

Thermals And Power Delivery

A 14+2+1 phase digital VRM with 70 A power stages sits on an 8-layer 2X copper PCB and is cooled by a 6 mm heatpipe and fully covered MOSFET heatsinks. An M.2 thermal guard and PCIe armor keep key components at stable temperatures during sustained loads.

Highlights

  • AM5 socket runs Ryzen 7000 series processors
  • Four DDR5 slots support up to 128 GB memory
  • 14+2+1 phase VRM with 70 A power stages
  • PCIe 5.0 M.2 slot plus EZ-Latch screwless release
  • 5 GbE LAN and WiFi 6E for fast networking

Specifications

BrandGIGABYTE
SeriesB650 AORUS ELITE AX
ModelB650 AORUS ELITE AX
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory module
Maximum Memory Supported128GB (32GB Single DIMM Capacity)
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 4.0 x161 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x162 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
SATA RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio ChipsetRealtek® Audio CODEC
High Definition Audio
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANAMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
BluetoothBluetooth 5.2
Back I/O Ports1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI 2.0 port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Other Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SP
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Windows 11Support for Windows 11 64-bit
Support for Windows 10 64-bit
FeaturesAMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance:Twin 14*+2+1 Phases Digital VRM Solution
Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage:1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Fully Covered Heatpipe & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity:DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
Smart Fan

Questions about this item

Can I reuse my current DDR5 modules rated at 6000 MHz with the B650 AORUS ELITE AX?

Yes, the board supports DDR5 speeds from 4800 up to 6600 MHz, so 6000 MHz modules will run at their rated frequency when EXPO or XMP is enabled.

How do I confirm the 2.5 GbE LAN and WiFi 6E are active after first boot?

Open Device Manager in Windows; the Intel 2.5 GbE controller and WiFi 6E adapter should appear without error codes, and the WiFi tray icon will show available 6 GHz networks.

What comes in the box and which items must be purchased separately?

The motherboard, I/O shield, SATA cables, M.2 screws, WiFi antennas and documentation are included; CPU, DDR5 memory, M.2 SSDs, graphics card and power supply are not.
