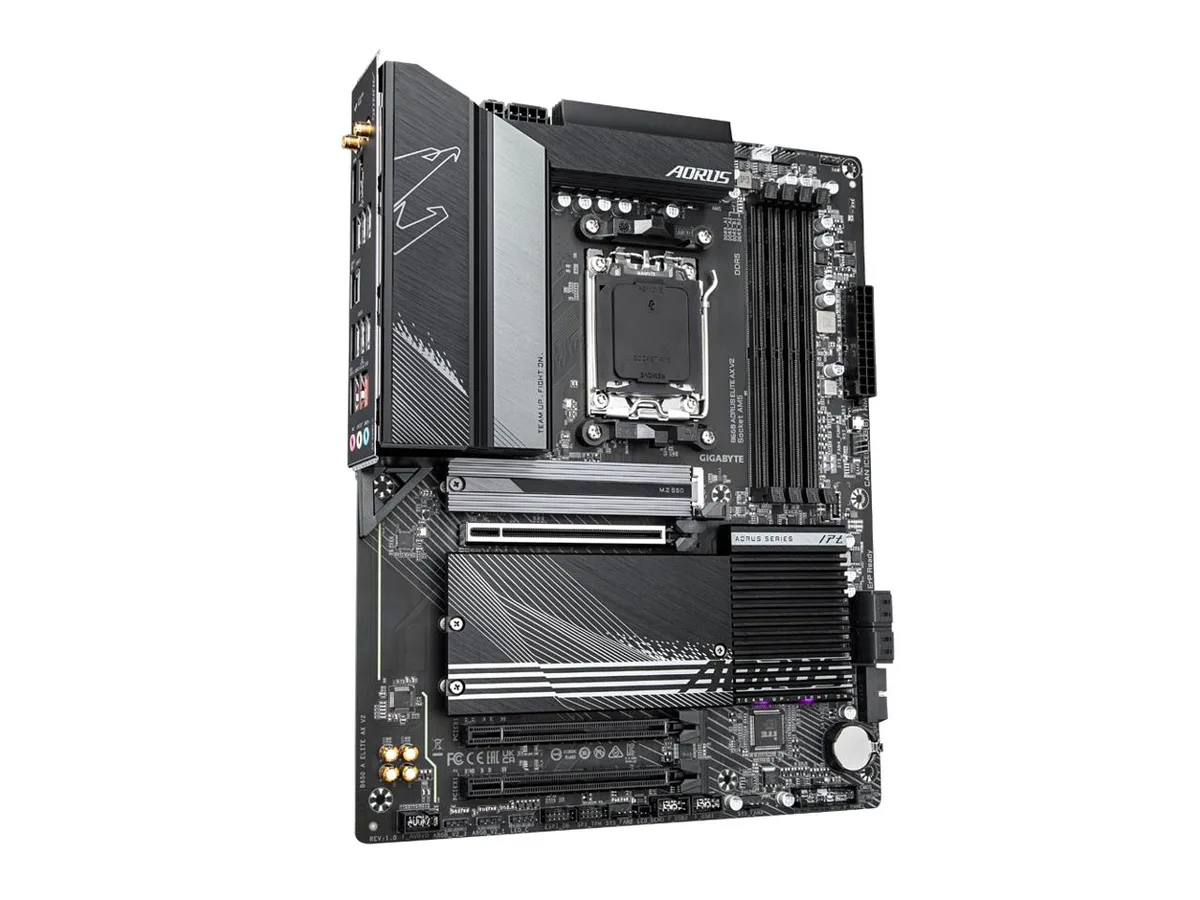

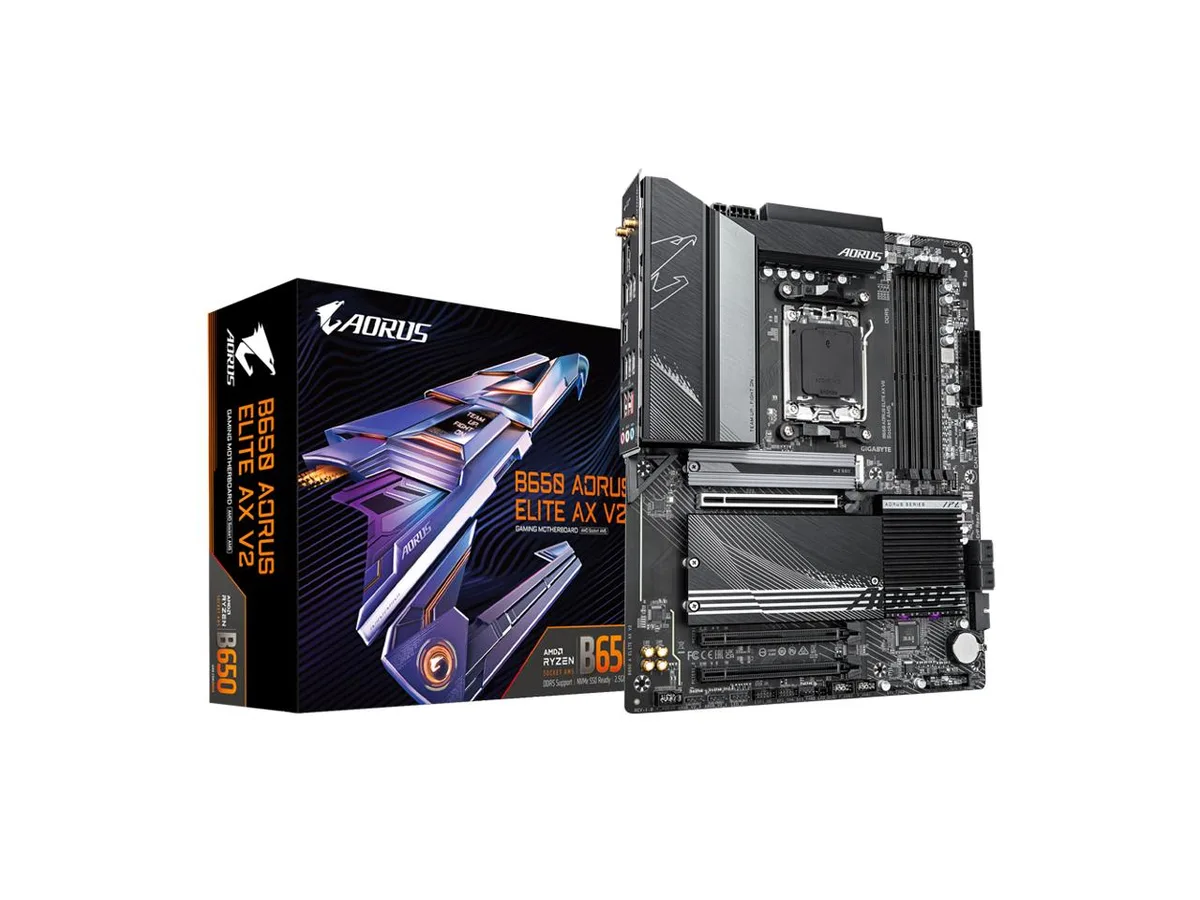

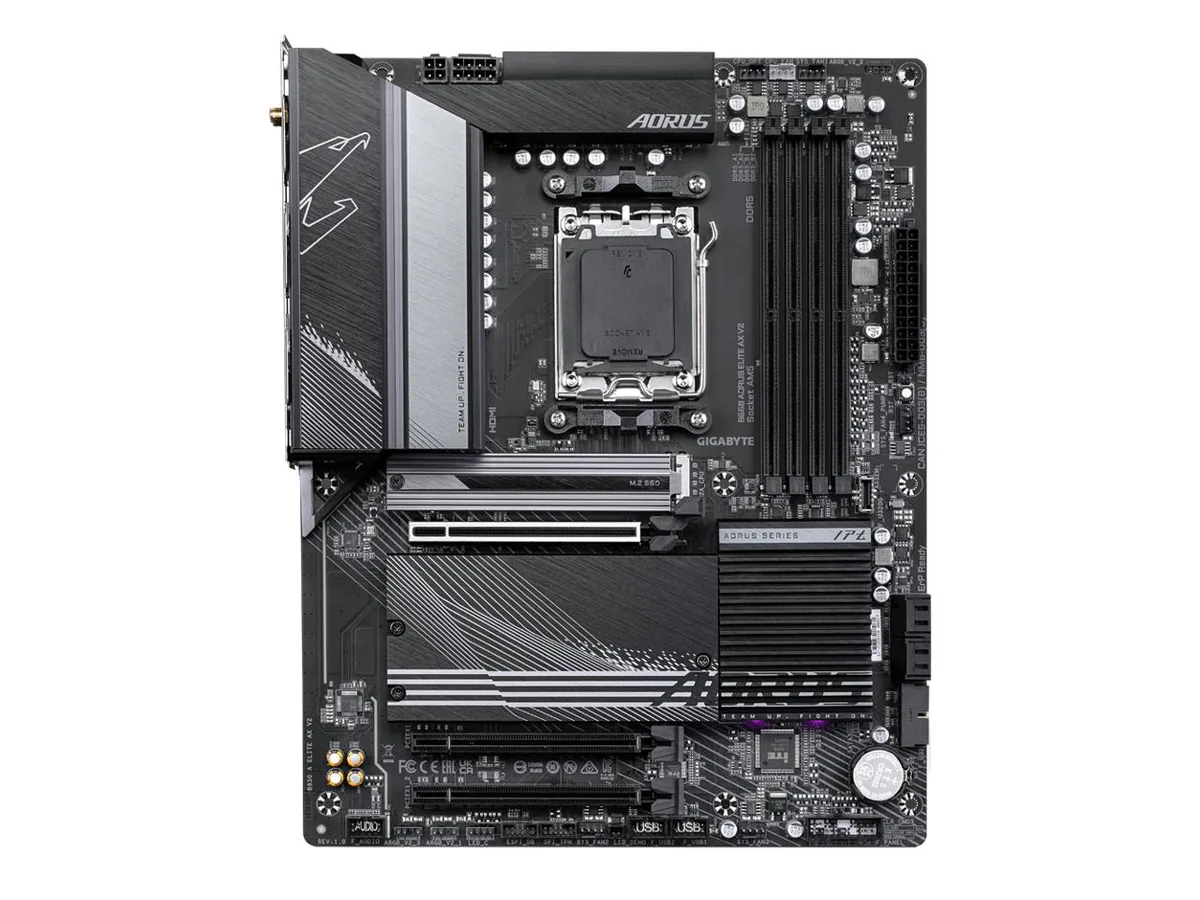

Rectangular ATX motherboard in dark grey with silver heatsinks and a metallic rear I/O shield

GIGABYTE

GIGABYTE B650 AORUS ELITE AX V2 AMD motherboard

SKU CH-FDDM-ADHVA

AM5 motherboard with 12+2+2 phase power, four DDR5 slots up to 192 GB, triple M.2 including PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6E and 2.5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC
  • Maximum Memory Supported192GB
  • Supports AMD Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Four DDR5 slots handle up to 192 GB with EXPO and XMP 3.0 profiles
  • PCIe 5.0 x4 M.2 slot plus two additional PCIe 4.0 M.2 connectors for fast storage
  • 5 GbE LAN and WiFi 6E deliver high-speed wired and wireless networking
  • EZ-Latch quick-release design simplifies graphics card and M.2 drive installation

AMD B650 ATX motherboard for Ryzen 7000-9000

The board fits the AM5 socket and supports AMD Ryzen 7000, 8000 and 9000 series processors. It provides four DDR5 DIMM slots with a maximum capacity of 192 GB using 48 GB modules. Dual-channel architecture and AMD EXPO plus Intel XMP 3.0 profiles are available for non-ECC unbuffered memory.

PCIe 5.0 M.2 and 2.5 GbE LAN limits

One M.2 slot runs at PCIe 5.0 x4 from the CPU while two further slots operate at PCIe 4.0 and PCIe 3.0 from the chipset. The 2.5 GbE wired connection and WiFi 6E wireless link share the same I/O panel. Four SATA 6 Gb/s ports support RAID 0, 1 and 10 alongside NVMe RAID on the M.2 interfaces.

12+2+2 phase power design for sustained loads

The VRM uses a twin 12+2+2 phase layout on an 8-layer 2X copper PCB to deliver stable current to high-core-count Ryzen CPUs. This specification determines whether the board can maintain boost clocks under prolonged all-core workloads without thermal throttling.

Highlights

  • Supports AMD Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Four DDR5 slots handle up to 192 GB with EXPO and XMP 3.0 profiles
  • PCIe 5.0 x4 M.2 slot plus two additional PCIe 4.0 M.2 connectors for fast storage
  • 5 GbE LAN and WiFi 6E deliver high-speed wired and wireless networking
  • EZ-Latch quick-release design simplifies graphics card and M.2 drive installation

Specifications

BrandGIGABYTE
ModelB650 AORUS ELITE AX V2
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory Feature4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
PCI Express 4.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
SATA RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio ChipsetRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed2.5Gbps
Wireless LANRealtek Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- Support for 11ax 160MHz wireless
(Actual data rate may vary depending on environment and equipment.)
BluetoothBLUETOOTH 5.3
Back I/O Ports1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus

Questions about this item

Should I pick 48 GB or 192 GB total DDR5 capacity for this board?

The board has four DDR5 slots and accepts up to 48 GB per module, so 192 GB total is possible if you populate all four slots with 48 GB DIMMs; 48 GB total works with a single module or a pair.

What does the DDR5 8000 MT/s OC rating mean once the kit is installed?

8000 MT/s is an overclocked speed that requires an AMD EXPO or Intel XMP 3.0 profile and a Ryzen 7000/8000/9000 CPU with a strong memory controller; actual stability depends on the specific CPU sample and cooling.

How fast can the PCIe 5.0 M.2 slot run an NVMe drive in practice?

The top M.2 slot is wired to the CPU with four PCIe 5.0 lanes, giving up to 5.0 x4 bandwidth for a compatible NVMe SSD; the second CPU M.2 slot runs at PCIe 4.0 x4 and the chipset slot at PCIe 4.0 x4.
