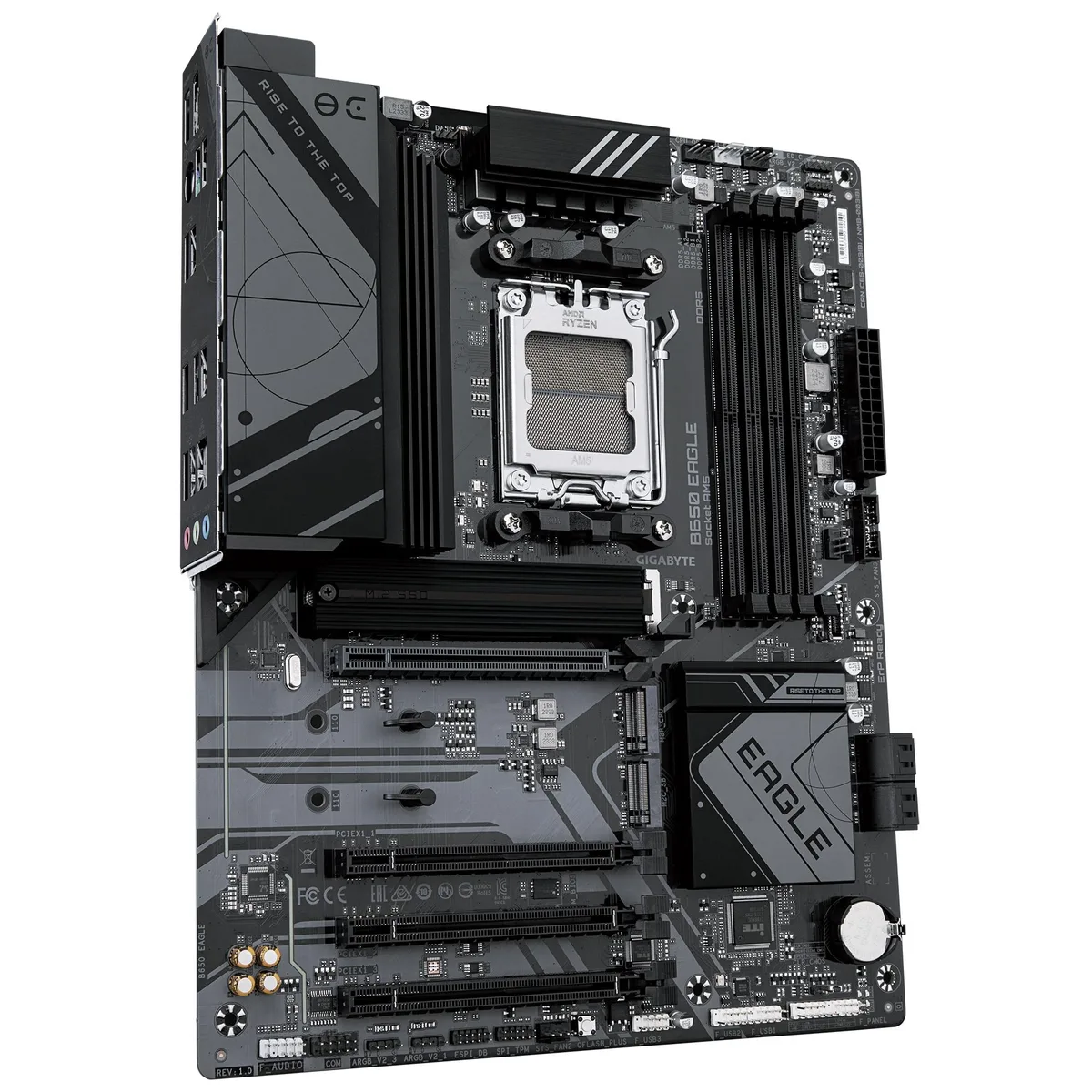

Rectangular ATX board, dark grey PCB with silver heatsinks and black slots

GIGABYTE

GIGABYTE B650 EAGLE AMD motherboard

SKU CH-F71T-K3A0X

Socket AM5 board for Ryzen 7000, 8000 and 9000 CPUs with 12+2+2 phase digital VRM, DDR5 up to 7600 MHz, one PCIe 5.0 and two PCIe 4.0 M.2 slots, GbE LAN and USB 3.2 Gen2

  • Supports AMD Ryzen 7000, 8000 and 9000 series processors via AM5 socket
  • 12+2+2 phases digital VRM delivers stable power for high-end CPUs
  • Dual-channel DDR5 memory up to 7600 MHz overclocked with AMD EXPO support
  • One PCIe 5.0 and two PCIe 4.0 M.2 slots for fast storage expansion
  • Q-Flash Plus updates BIOS without CPU, memory or graphics card installed

Socket AM5 platform

This motherboard uses the AMD Socket AM5 and accepts Ryzen 7000, 8000 and 9000 series processors. It is built for users who want a current-generation AMD desktop foundation with a 12+2+2 phase digital VRM design.

Memory speed ceiling

Four DDR5 DIMM slots support AMD EXPO and Intel XMP profiles up to 7600 MHz when overclocked. This single figure decides whether the board matches the memory kit you plan to run.

Installation aids and common pitfalls

The PCIe x16 slot includes a quick-release latch and the board offers Q-Flash Plus for BIOS updates without a CPU installed. Builders who need more than one PCIe 5.0 M.2 slot or integrated Wi-Fi should look elsewhere.

Highlights

  • Supports AMD Ryzen 7000, 8000 and 9000 series processors via AM5 socket
  • 12+2+2 phases digital VRM delivers stable power for high-end CPUs
  • Dual-channel DDR5 memory up to 7600 MHz overclocked with AMD EXPO support
  • One PCIe 5.0 and two PCIe 4.0 M.2 slots for fast storage expansion
  • Q-Flash Plus updates BIOS without CPU, memory or graphics card installed

Specifications

No published specifications for this item yet.

Questions about this item

What does the 12+2+2 phases digital VRM mean for a Ryzen 9000 CPU in daily use?

The 12+2+2 phases digital VRM delivers stable power to the CPU cores, SoC and I/O, keeping Ryzen 9000 processors running at their rated boost clocks under sustained loads without throttling.

How fast can the PCIe 5.0 M.2 slot actually run a drive?

The single PCIe 5.0 M.2 connector provides up to 5.0 x4 bandwidth, so a compatible drive can reach its rated sequential speeds, while the two PCIe 4.0 M.2 connectors operate at 4.0 x4.

What clearance do I need for the 25110 M.2 thermal guard?

The board includes a heatsink sized for 25110-form-factor drives; ensure your case allows at least the height of that heatsink above the M.2 slot and that the motherboard tray has the standard AM5 mounting holes.
