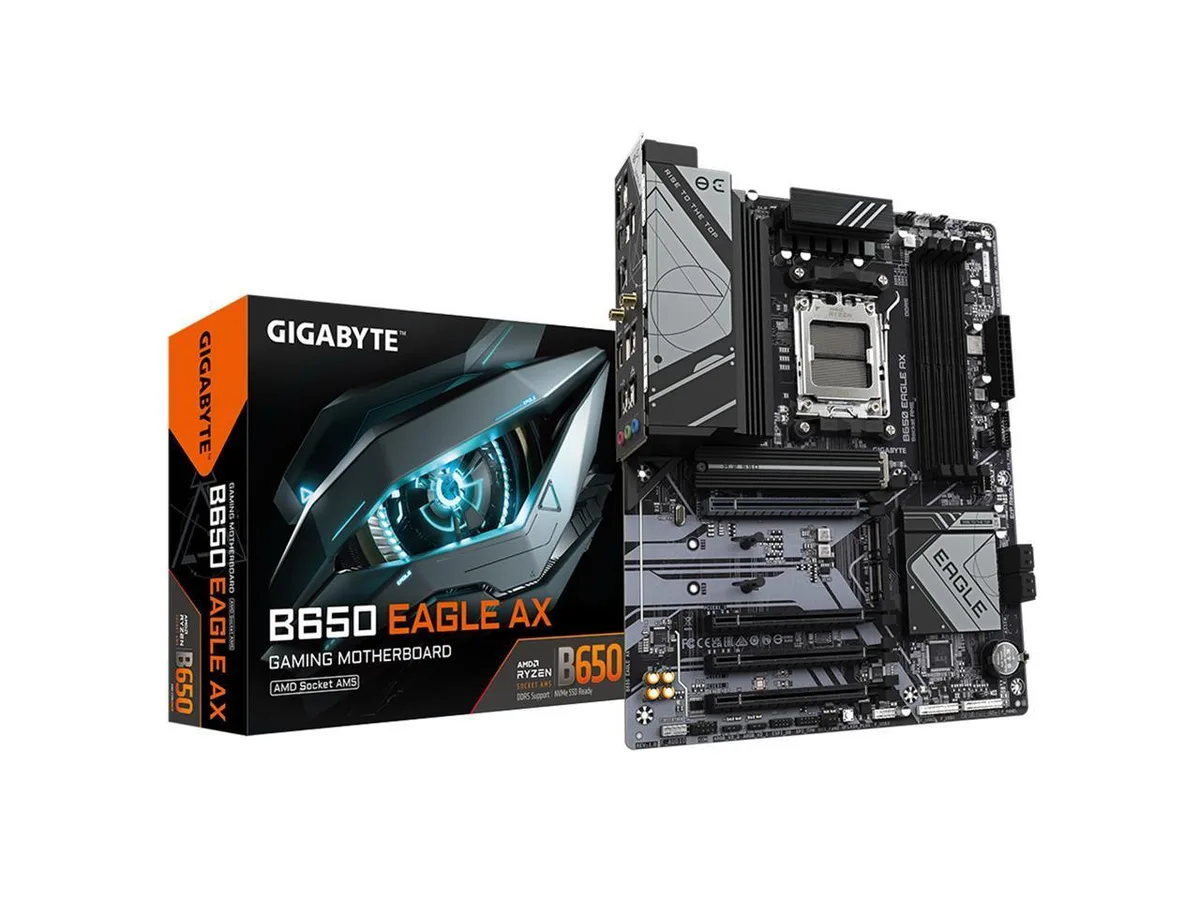

Black rectangular ATX motherboard with silver heatsinks and four vertical DDR5 slots

GIGABYTE

GIGABYTE B650 EAGLE AX AM5 LGA 1718 AMD motherboard

SKU CH-XWD2-PGBTV

ATX AM5 board with 12+2+2 phase VRM, four DDR5 slots up to 192 GB, one PCIe 5.0 and two PCIe 4.0 M.2 sockets, USB 3.2 Gen 2x2 Type-C, Wi-Fi 6E and 7.1 audio

  • CPU Socket TypeAM5
  • CPU TypeRyzen 8000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported192GB
  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 12+2+2 phase digital VRM delivers stable power for high loads
  • Four DDR5 slots up to 192 GB with EXPO and XMP profiles
  • One PCIe 5.0 plus two PCIe 4.0 M.2 slots for fast storage
  • Gigabit LAN and Wi-Fi 6E provide reliable wired and wireless networking

AM5 Socket for Ryzen 7000, 8000 and 9000 Series

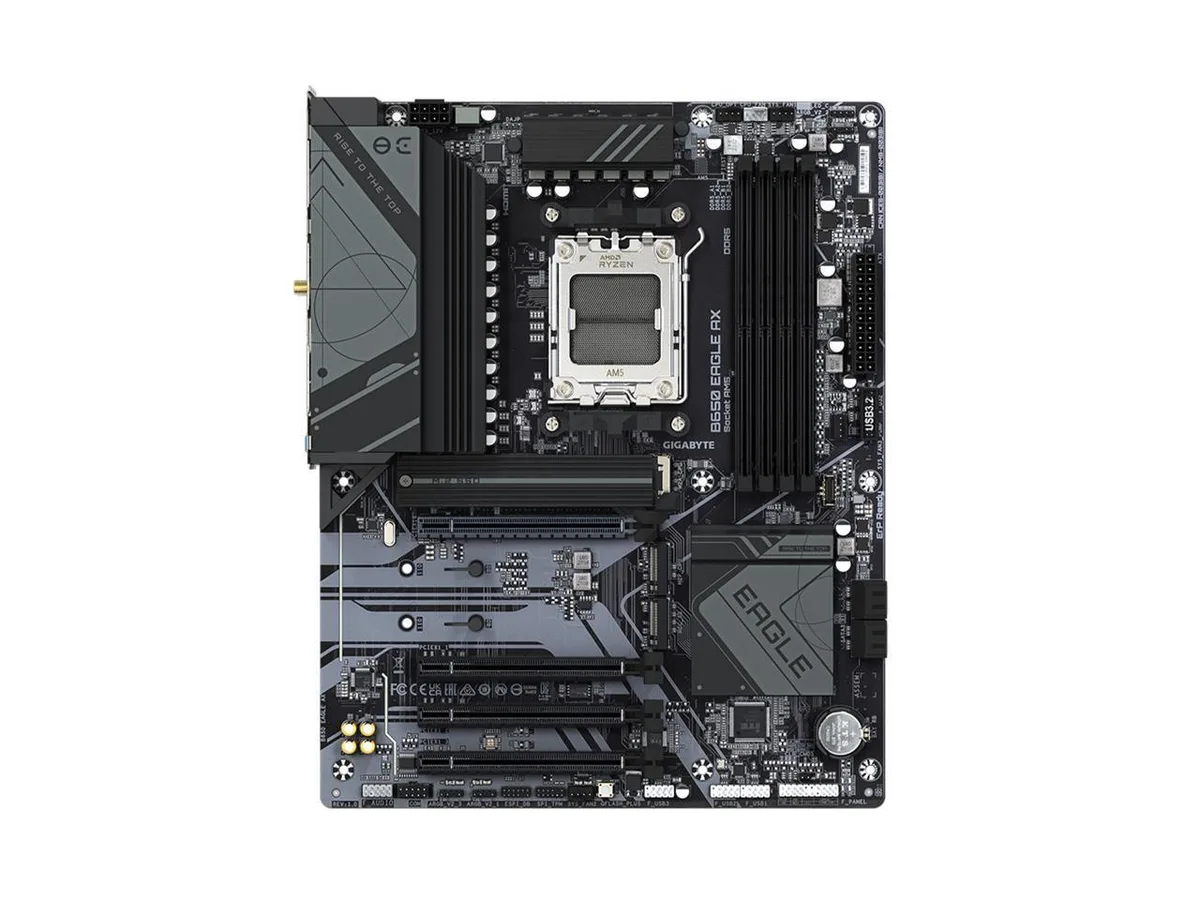

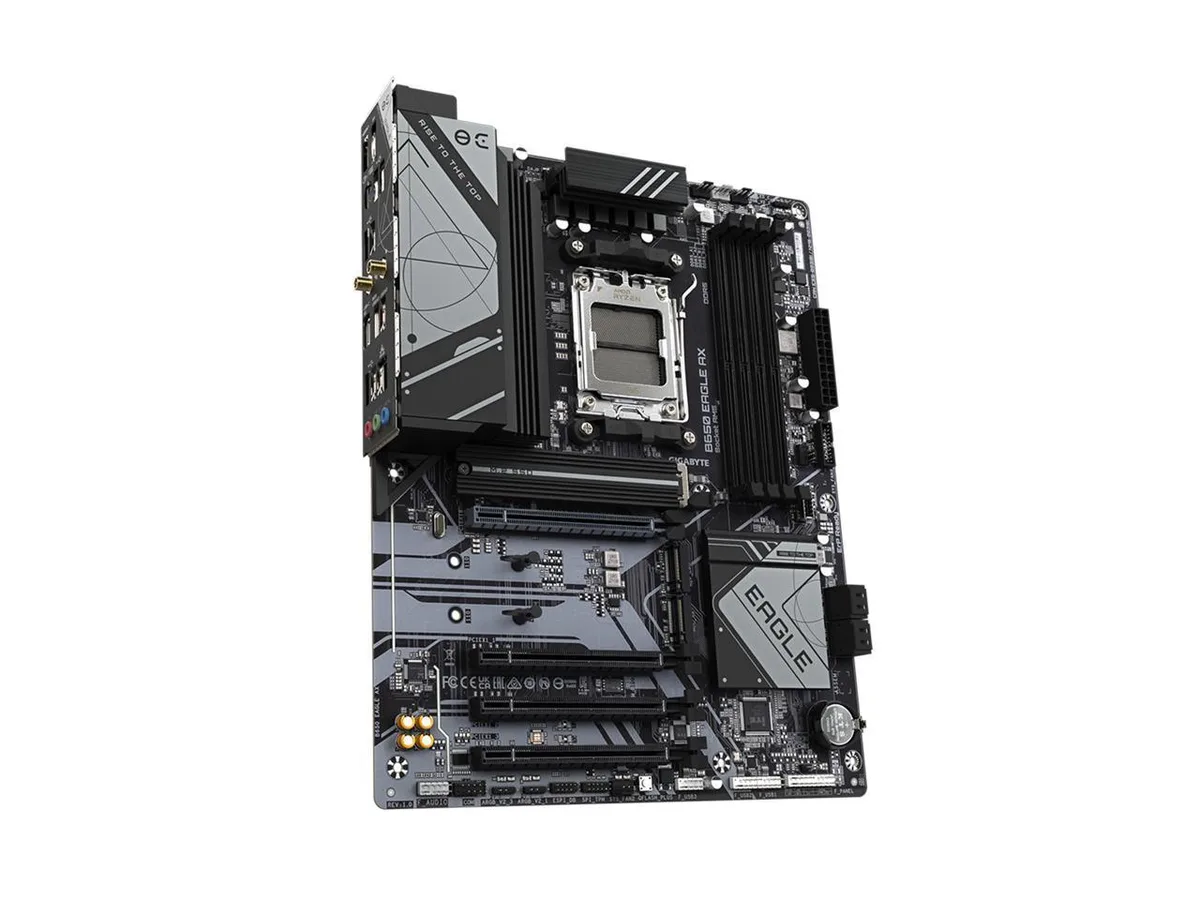

The GIGABYTE B650 EAGLE AX is an ATX motherboard built around the AMD B650 chipset and AM5 LGA 1718 socket. It supports Ryzen 7000, Ryzen 8000 and Ryzen 9000 Series processors. Four DDR5 DIMM slots accept up to 192 GB of dual-channel memory at 5200 MT/s with AMD EXPO and Intel XMP 3.0 profiles.

12+2+2 Phase Digital VRM with M.2 Thermal Guard

A 12+2+2 phase digital VRM delivers stable power to the CPU during extended workloads. Advanced thermal design covers the VRM heatsinks and includes an M.2 Thermal Guard to maintain SSD performance under sustained load. Smart Fan 6 provides configurable cooling curves for system fans.

PCIe 5.0 M.2, USB 3.2 Gen 2x2 Type-C and Wi-Fi 6E

The primary M.2 slot (M2A_CPU) runs at PCIe 5.0 x4 with Ryzen 7000 Series CPUs and at PCIe 4.0 with Ryzen 8000 Series Phoenix 1 processors. Two additional M.2 slots operate at PCIe 4.0. Rear I/O includes a USB 3.2 Gen 2x2 Type-C port for 20 Gbps transfers. Networking comprises Realtek GbE LAN and AMD Wi-Fi 6E.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 12+2+2 phase digital VRM delivers stable power for high loads
  • Four DDR5 slots up to 192 GB with EXPO and XMP profiles
  • One PCIe 5.0 plus two PCIe 4.0 M.2 slots for fast storage
  • Gigabit LAN and Wi-Fi 6E provide reliable wired and wireless networking

Specifications

BrandGIGABYTE
ModelB650 EAGLE AX
CPU Socket TypeAM5
CPU TypeRyzen 8000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Memory FeatureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules
PCI Express 4.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x163 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors su
SATA RAIDRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Additional RAID ControllerRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Audio Channels7.1 Channels
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ax
Back I/O Ports1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x serial port header j
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Support for Windows 11 64-bit
Support for Windows 10 64-bit

Questions about this item

How loud or hot does the 12+2+2 phase VRM get when the board runs all day?

The 12+2+2 phase digital VRM is paired with an advanced thermal design and M.2 thermal guard to maintain power stability and SSD performance during sustained loads.

Which DDR5 memory kits must I already own to populate the four 288-pin slots?

You need non-ECC unbuffered DDR5 DIMMs in 1Rx8, 2Rx8 or 1Rx16 organisation; the board supports AMD EXPO and Intel XMP 3.0 profiles up to 5200 MT/s and a maximum of 192 GB.

Will my existing PCIe 3.0 x16 add-in cards work in the three x16 slots that run at x1?

Yes, the three PCIe 3.0 x16 slots operate at x1 electrical and accept legacy x16 cards; note that the two lower slots become unavailable with certain Ryzen 8000 Phoenix 2 processors.
