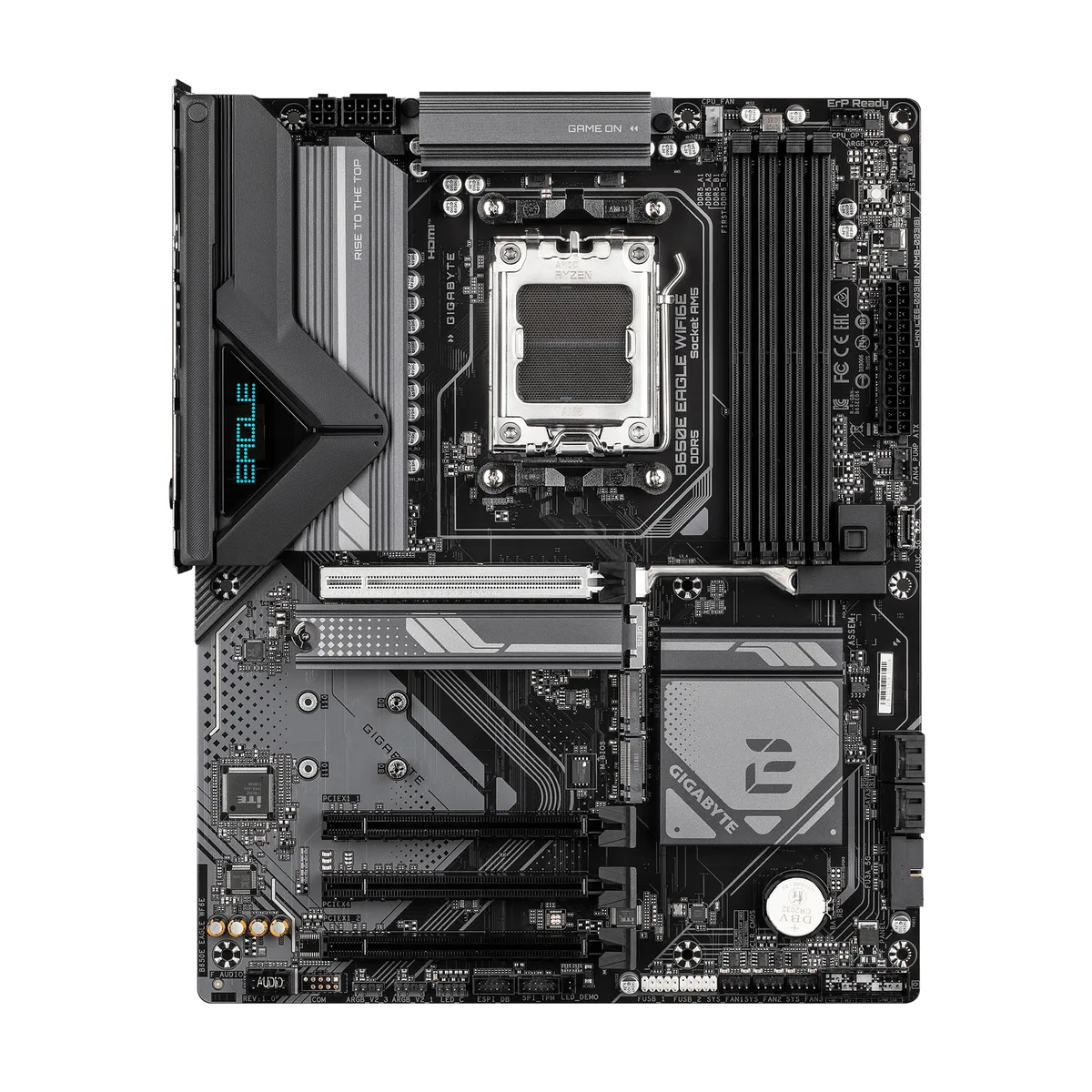

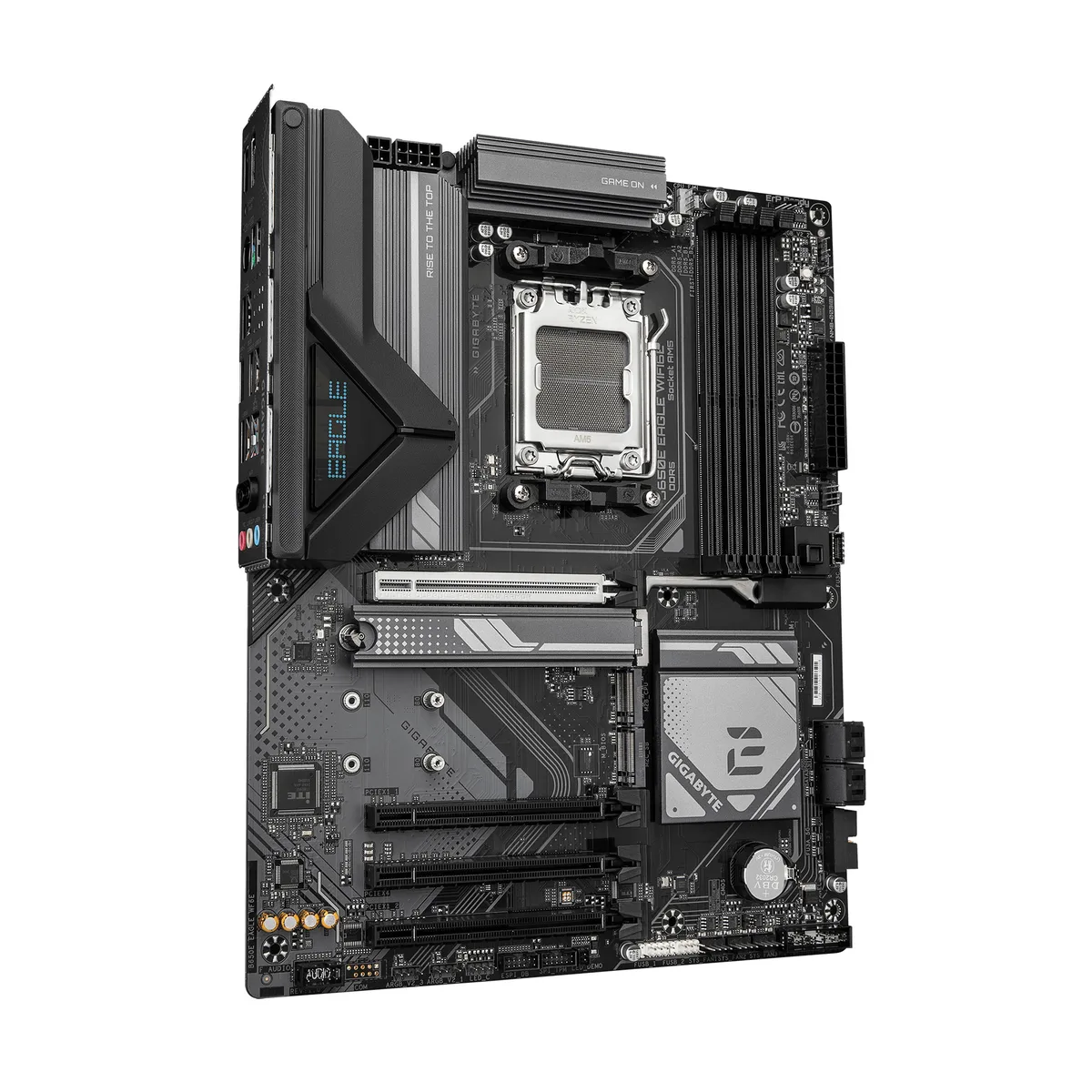

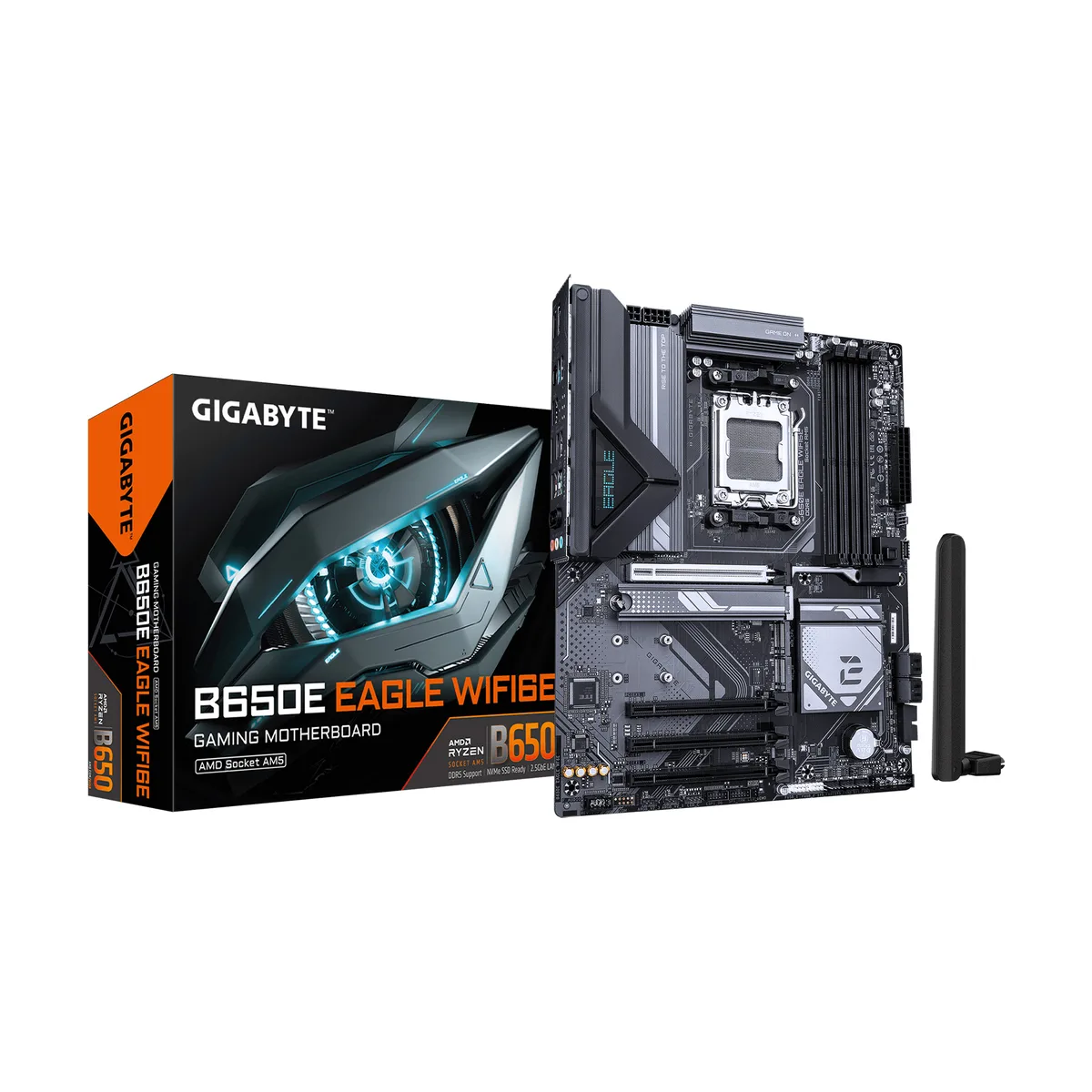

Rectangular E-ATX motherboard, matte black PCB with silver VRM heatsinks and integrated rear I/O shield

GIGABYTE

GIGABYTE B650E EAGLE WF6E AMD motherboard

SKU CH-M445-D8XPW MPN B650E EAGLE WF6E

AM5 socket board for Ryzen 7000, 8000 and 9000 CPUs with 8+2+2 digital power phases, four DDR5 slots up to 256 GB, one PCIe 5.0 x16 slot, three M.2 sockets, 2.5 GbE LAN and Wi-Fi 6E

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B650E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 6000 / DDR5 6200 /
  • Maximum Memory Supported256GB

Option

  • GIGABYTE B650E EAGLE WIFI6E AMD AM5 LGA 1718 E-ATX Motherboard, Supports AMD Ryzen 9000/8000/7000 Series Processors, DDR5, 8+2+2 Total Power Phase, 3x
  • GIGABYTE B650E EAGLE WIFI6E AMD AM5 LGA 1718 E-ATX Motherboard, Supports AMD Ryzen 9000/8000/7000 Series Processors, DDR5, 8+2+2 Total Power Phase, 3x

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 8+2+2 digital power phases deliver stable voltage to the processor
  • DDR5 memory up to 256 GB across four slots with EXPO support
  • One PCIe 5.0 and two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 6E and 2.5 GbE LAN provide high-speed wireless and wired networking

AM5 Socket for Ryzen 7000 8000 9000

The GIGABYTE B650E EAGLE WF6E is an E-ATX motherboard built for AMD Ryzen 7000 8000 and 9000 series processors on the AM5 platform. It delivers a digital 8+2+2 phase power design with premium chokes and capacitors on a 6-layer PCB. Four DDR5 slots support up to 256GB of memory with AMD EXPO and Intel XMP 3.0 profiles. The board includes WIFI 6E and 2.5GbE LAN for high-speed networking.

Suits builders who need PCIe 5.0 graphics

This board fits enthusiasts who want a PCIe 5.0 x16 slot for next-generation graphics cards and a PCIe 5.0 M.2 slot for the fastest SSDs. Two additional PCIe 4.0 M.2 slots and four SATA 6Gb/s ports give plenty of expansion room. Builders using Ryzen 8000 series Phoenix processors should note the primary x16 slot runs at PCIe 4.0 x8 and the CPU-linked M.2 slot runs at PCIe 4.0. Those needing more than four memory channels or server-grade features should look at workstation platforms.

PCIe 5.0 x16 slot and PCIe 5.0 M.2 from the CPU

The single specification that decides compatibility is the CPU-linked PCIe 5.0 x16 slot and PCIe 5.0 M.2 connector. With Ryzen 9000 or 7000 series processors these run at full PCIe 5.0 speeds for graphics and storage. With Ryzen 8000 series Phoenix processors they drop to PCIe 4.0 x8 and PCIe 4.0 x4 respectively. Choose your processor generation to match the bandwidth you require.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 8+2+2 digital power phases deliver stable voltage to the processor
  • DDR5 memory up to 256 GB across four slots with EXPO support
  • One PCIe 5.0 and two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 6E and 2.5 GbE LAN provide high-speed wireless and wired networking

Specifications

BrandGIGABYTE
ModelB650E EAGLE WF6E
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B650E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7200 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
PCI Express x1Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
* The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the SATA3 0 and SATA3 1 connectors. The SATA3 0/1 connector becomes unavailable when a device is installed in the PCIEX1_1 or PCIEX1_2 slot.
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBLUETOOTH 5.3

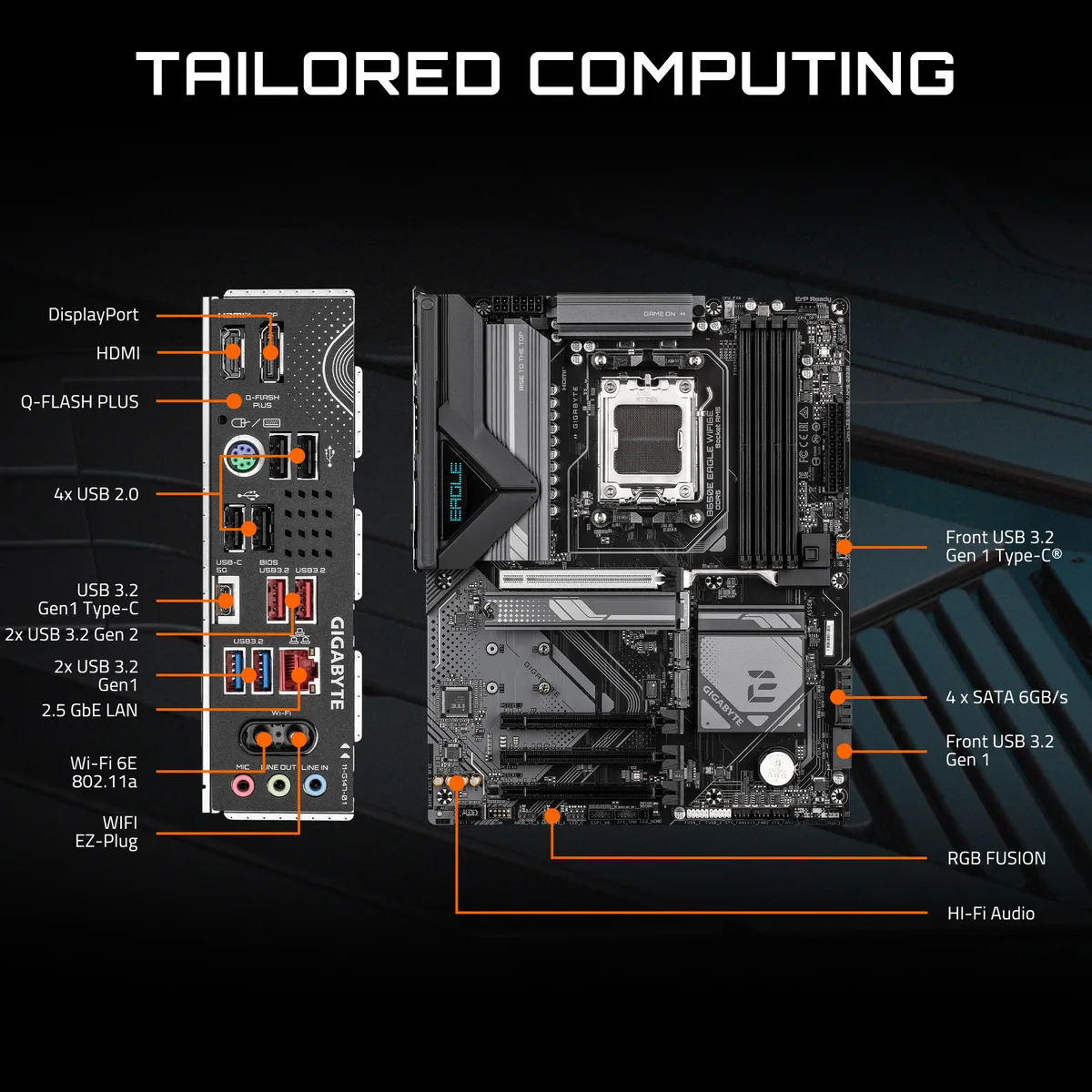

Back I/O Ports1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
2 x antenna connectors (1T1R)
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Shipping weight1.70 kg
Package size340 × 274 × 81 mm

Questions about this item

What processor socket and cooler mounting pattern does the B650E EAGLE WF6E require?

The board uses the AM5 socket with a 1718 contact count, so you need an AM5-compatible Ryzen 7000, 8000 or 9000 series CPU and a cooler that fits the AM5 mounting holes.

Will my PCIe 4.0 graphics card run at full speed in the top PCIe 5.0 x16 slot?

Yes, a PCIe 4.0 card will operate at PCIe 4.0 x16 in the CPU-linked PCIEX16 slot; the slot is backward compatible and the card will not be limited by the 5.0 interface.

How can I confirm the DDR5 memory is running at the selected EXPO speed after building?

Enter the BIOS and check the memory frequency readout — it should show the chosen EXPO data rate such as 6000, 6400 or 7200 MT/s, and the Smart Fan 6 dashboard will also report the active DRAM speed.
