Green rectangular micro-ATX motherboard with silver AM5 socket, four black DDR5 slots, three M.2 heatsinks, PCIe x16 slot

GIGABYTE

GIGABYTE B650M C V2 AMD motherboard

SKU CH-Y0CB-7HG5M MPN B650M C V2

Micro-ATX AM5 board with four DDR5 slots up to 192 GB, one PCIe 4.0 x16 slot, three M.2 connectors, four SATA 6 Gb/s ports and 1 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 660
  • Maximum Memory Supported192GB
  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Four DDR5 DIMM slots accept up to 192 GB with EXPO and XMP 3.0 profiles
  • PCIe 4.0 x16 slot plus three PCIe 4.0 M.2 connectors for fast storage
  • Realtek 1 GbE LAN and 7.1-channel high-definition audio built in
  • 5+2+2 phase digital VRM delivers stable power for overclocking

AM5 socket for Ryzen 7000, 8000, 9000 series

This micro-ATX motherboard uses the AMD B650 chipset and an AM5 LGA 1718 socket. It accepts Ryzen 7000, 8000 and 9000 series processors. The board provides four 288-pin DDR5 DIMM slots running in dual-channel mode.

DDR5 up to 7600 MT/s with EXPO and XMP 3.0

Memory support tops out at 7600 MT/s when overclocked, with standard speeds down to 4800 MT/s. AMD EXPO and Intel XMP 3.0 profiles are both supported. Maximum capacity is 192 GB using 48 GB modules. Non-ECC unbuffered DIMMs are required.

Standard micro-ATX layout with three M.2 slots

The board fits regular micro-ATX cases and uses standard mounting holes. One PCIe 4.0 x16 slot takes the graphics card. Three M.2 connectors are provided: two wired to the CPU and one to the chipset. SATA cables plug into four 6 Gb/s ports. The 24-pin and 8-pin power connectors sit in usual positions.

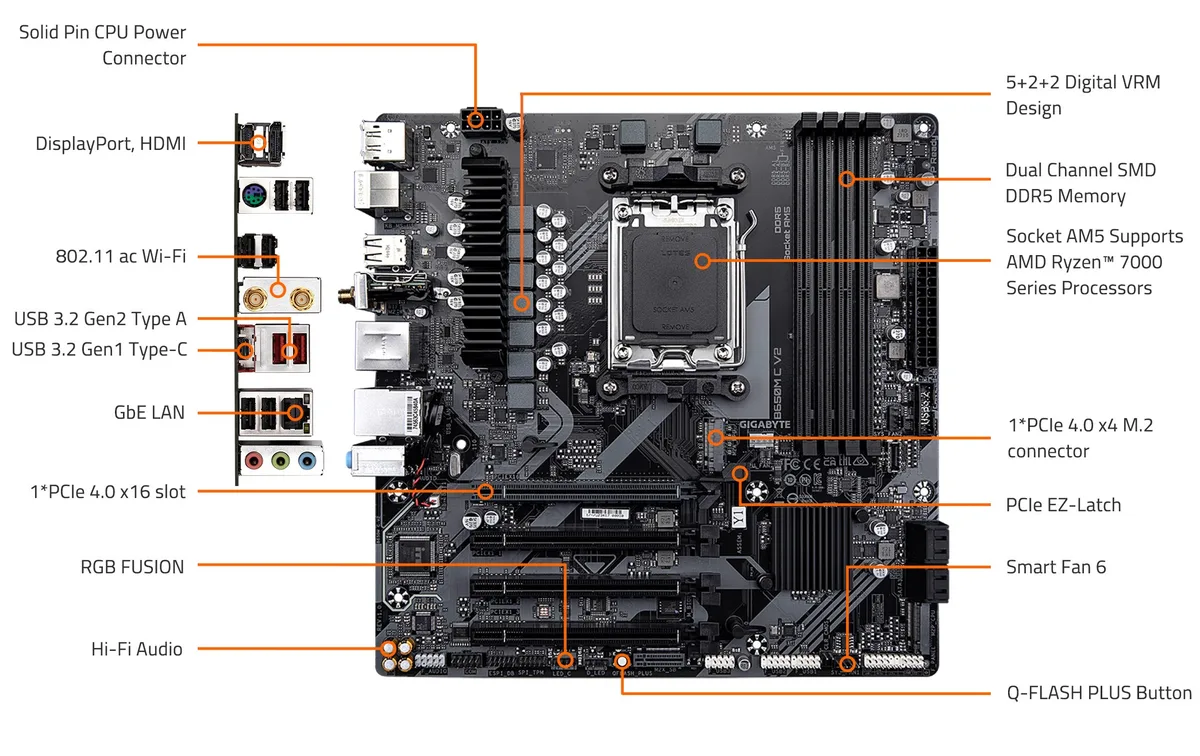

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Four DDR5 DIMM slots accept up to 192 GB with EXPO and XMP 3.0 profiles
  • PCIe 4.0 x16 slot plus three PCIe 4.0 M.2 connectors for fast storage
  • Realtek 1 GbE LAN and 7.1-channel high-definition audio built in
  • 5+2+2 phase digital VRM delivers stable power for overclocking

Specifications

BrandGIGABYTE
ModelB650M C V2
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory Feature4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
PCI Express 4.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16Chipset:
- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580/25110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x2 SSD support) (M2P_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2260 PCIe 3.0 x1 SSD support) (M2X_SB)
SATA RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio ChipsetRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels7.1 Channels
LAN ChipsetRealtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Max LAN Speed1Gbps
Wireless LANAzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)
- WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 4.2
- Support for 11ac wireless standard and up to 433 Mbps data rate
(Actual data rate may vary depending on environment and equipment.)
BluetoothYes

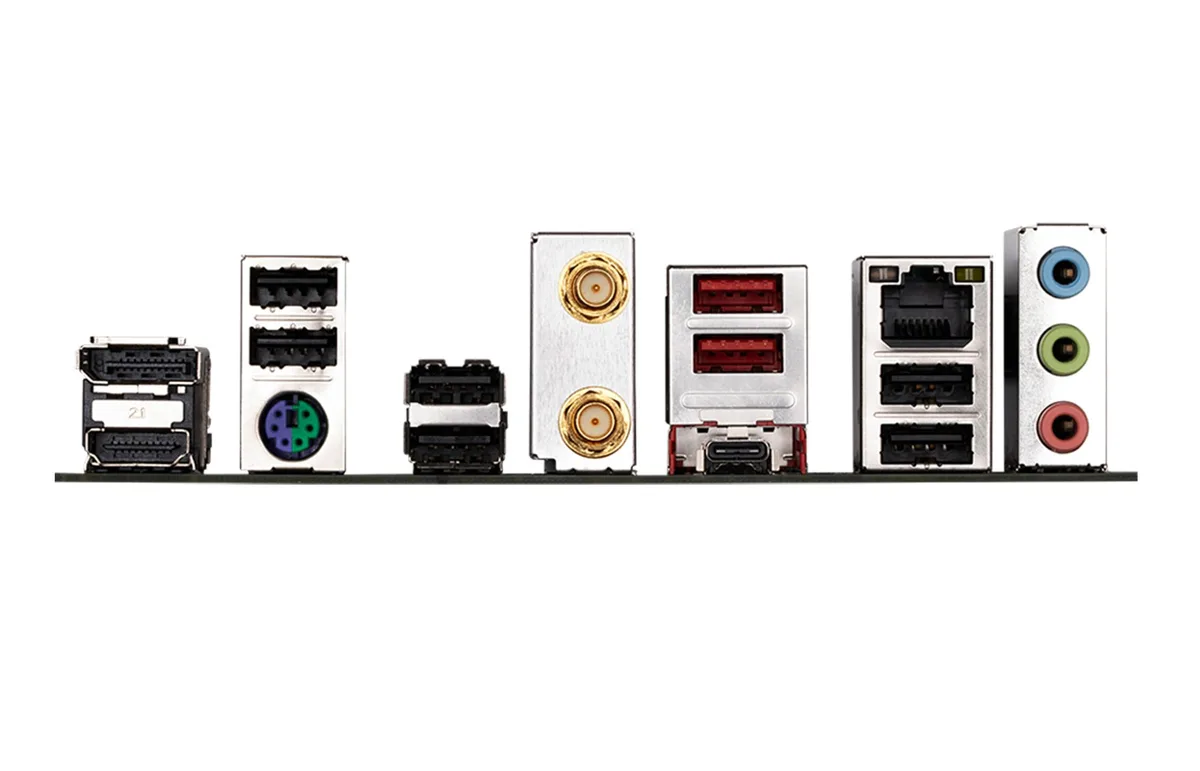

Back I/O Ports1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x serial port header
1 x Clear CMOS jumper
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Shipping weight1.09 kg
Package size267 × 267 × 76 mm

Questions about this item

What does the 192 GB maximum DDR5 capacity mean for my build?

You can install up to 192 GB across the four DDR5 slots using 48 GB modules per slot, running in dual-channel mode with AMD EXPO or Intel XMP 3.0 profiles.

How fast can the primary M.2 slot actually run?

The CPU-connected M.2 slot supports PCIe 4.0 x4, so a compatible drive can reach the full Gen 4 throughput ceiling of that interface.

What case clearance does the micro-ATX board need?

The board fits any chassis with micro-ATX mounting points and provides four DDR5 DIMM slots plus one full-length PCIe 4.0 x16 slot and three PCIe 3.0 x1 slots.
