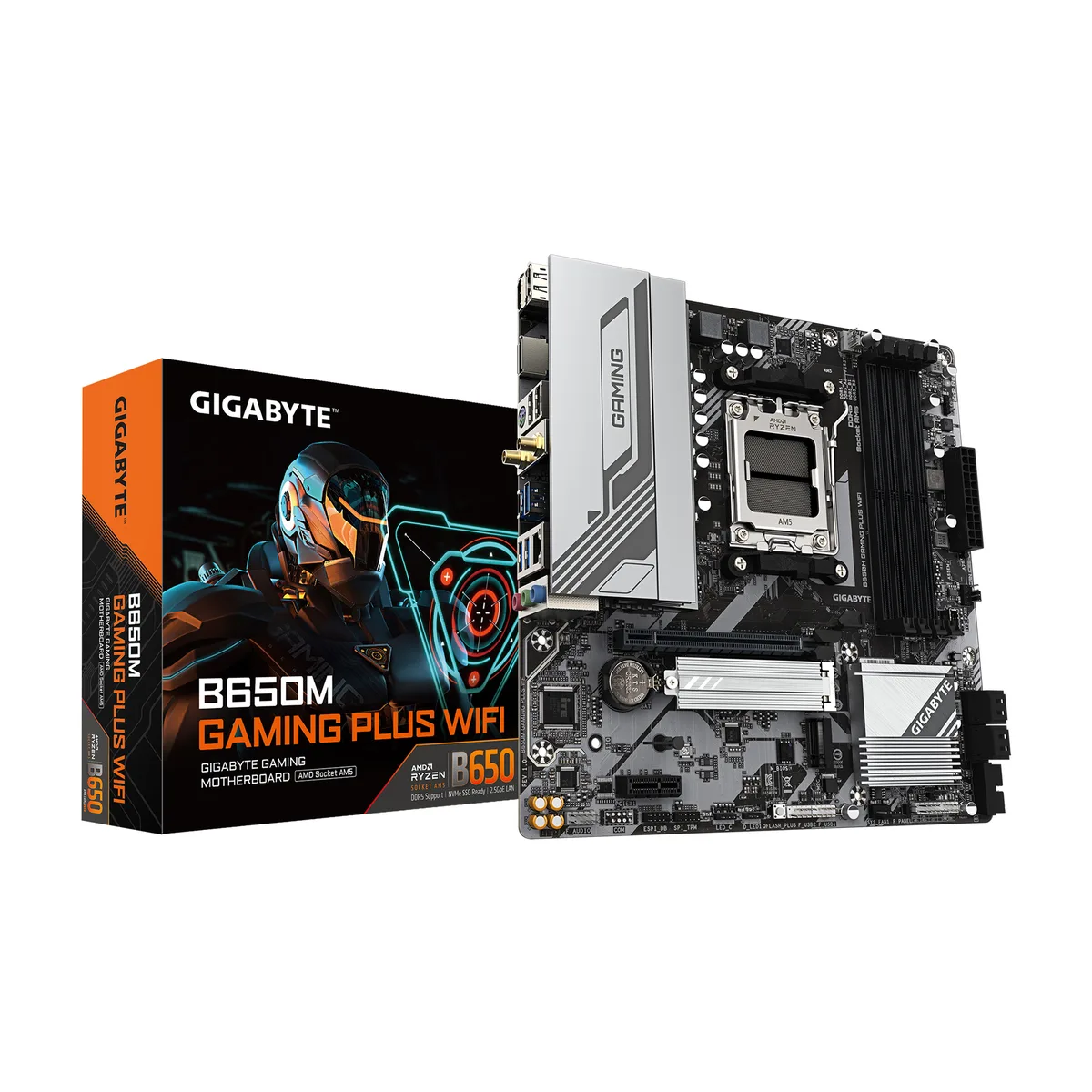

Black micro-ATX motherboard with silver AM5 socket, four DDR5 slots, full-length PCIe x16 slot, two M.2 heatsinks

GIGABYTE

GIGABYTE B650M GAMING PLUS WIFI AM5 motherboard

SKU CH-E14J-7399V MPN B650M GAMING PLUS WIFI

AM5 micro-ATX board with 4 DDR5 slots up to 192 GB, PCIe 4.0 x16, PCIe 4.0 M.2, 2.5 GbE LAN and Wi-Fi 6E

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(
  • Maximum Memory Supported192GB
  • Supports AMD Ryzen 7000, 8000 and 9000 series processors via AM5 socket
  • Four DDR5 DIMM slots deliver up to 192 GB capacity with AMD EXPO profiles
  • PCIe 4.0 x4 M.2 slot provides fast storage bandwidth for modern SSDs
  • 5 GbE LAN and Wi-Fi 6E ensure responsive wired and wireless connectivity
  • 5+2+2 phase digital VRM design supplies stable power for sustained performance

Socket AM5 DDR5 platform

The GIGABYTE B650M GAMING PLUS WIFI is a micro-ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors. It provides four 288-pin DDR5 slots with dual-channel architecture and AMD EXPO support. The board targets builders who want a compact foundation for modern AM5 CPUs.

192 GB maximum memory capacity

The single specification that decides fit is the 192 GB memory ceiling across four slots, with each slot accepting up to 48 GB non-ECC unbuffered DIMMs. Supported DDR5 data rates range from 4400 up to 7600 MT/s when overclocked. Buyers planning dense memory configurations must verify their kit matches this limit.

5+2+2 phase digital VRM with Smart Fan 6

A 5+2+2 phase digital power delivery system feeds the CPU socket, while Smart Fan 6 controls system headers for balanced airflow. The chipset and VRM heatsinks passively dissipate heat during typical workloads. Networking uses a 2.5 Gbps LAN port and Wi-Fi 6E, both drawing minimal power in daily use.

Highlights

  • Supports AMD Ryzen 7000, 8000 and 9000 series processors via AM5 socket
  • Four DDR5 DIMM slots deliver up to 192 GB capacity with AMD EXPO profiles
  • PCIe 4.0 x4 M.2 slot provides fast storage bandwidth for modern SSDs
  • 5 GbE LAN and Wi-Fi 6E ensure responsive wired and wireless connectivity
  • 5+2+2 phase digital VRM design supplies stable power for sustained performance

Specifications

BrandGIGABYTE
ModelB650M GAMING PLUS WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
Memory Feature4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules
PCI Express 4.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
PCI Express x11 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAIDRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Additional RAID ControllerRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBLUETOOTH 5.3

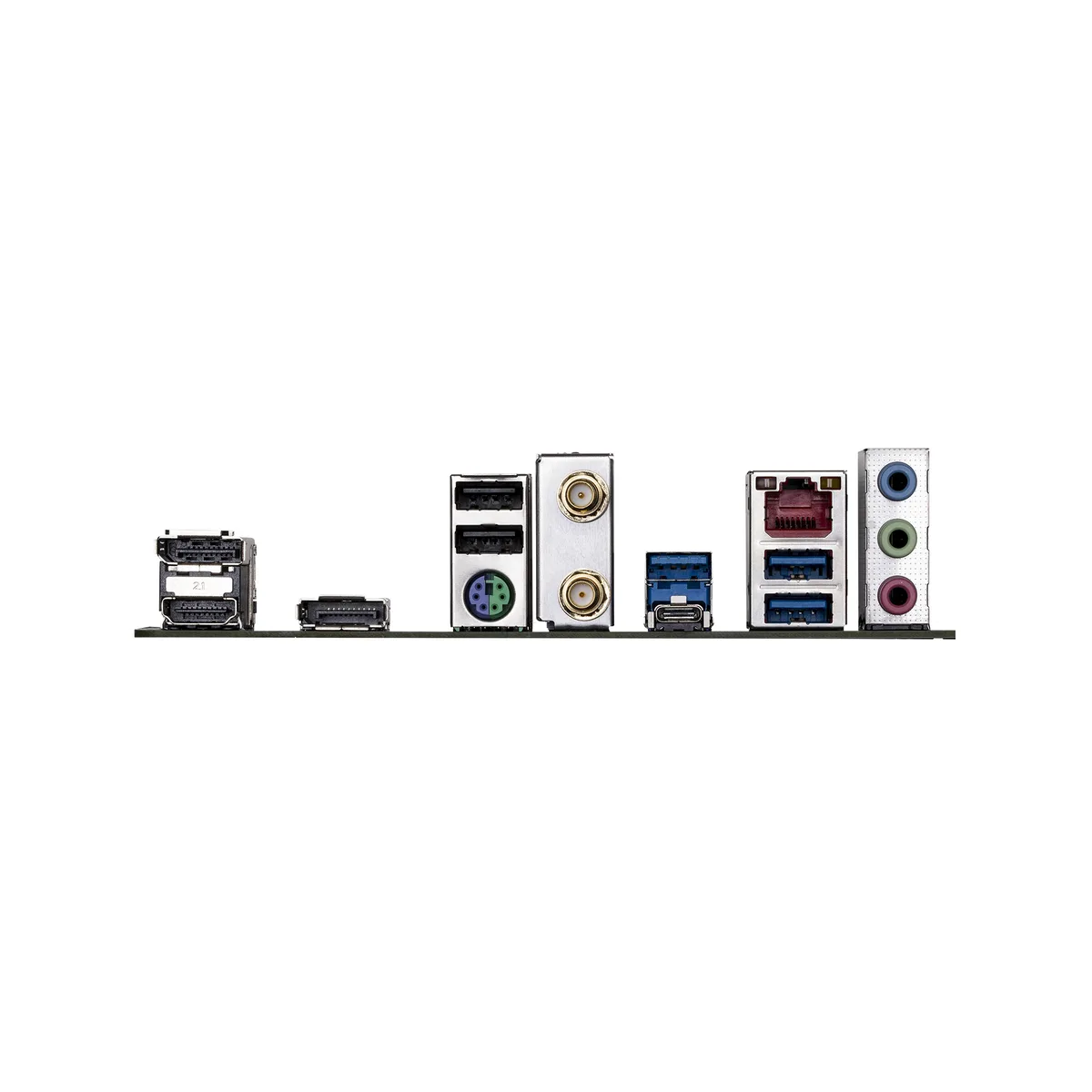

Back I/O Ports1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
2 x SMA antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Support for Windows 11 64-bit
Support for Windows 10 64-bit
FeaturesSupport for GIGABYTE Control Center
Support for Q-Flash
Support for Q-Flash Plus
Shipping weight1.43 kg
Package size276 × 268 × 70 mm

Questions about this item

What does the 192 GB maximum memory mean for a build using this board?

You can populate all four DDR5 slots with up to 48 GB modules each, giving 192 GB total in dual-channel mode.

How does the PCIe 4.0 x16 slot behave with different Ryzen CPUs?

Ryzen 7000 series runs the slot at PCIe 4.0 x16, Ryzen 8000 Phoenix 1 at x8, and Phoenix 2 at x4.

What cooler mounting pattern does the AM5 socket on this board use?

The board follows the standard AM5 mounting hole layout for compatible coolers.
