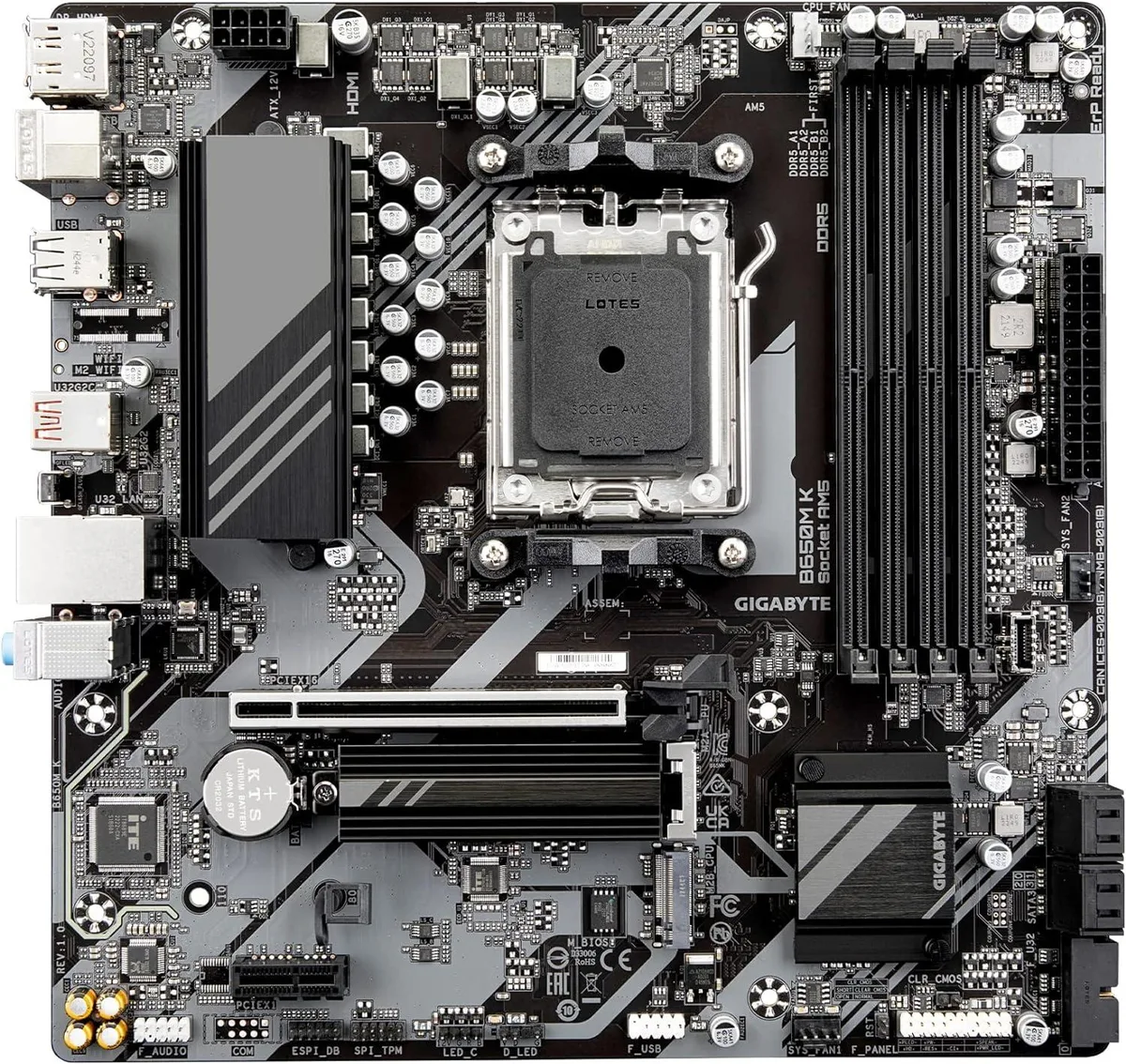

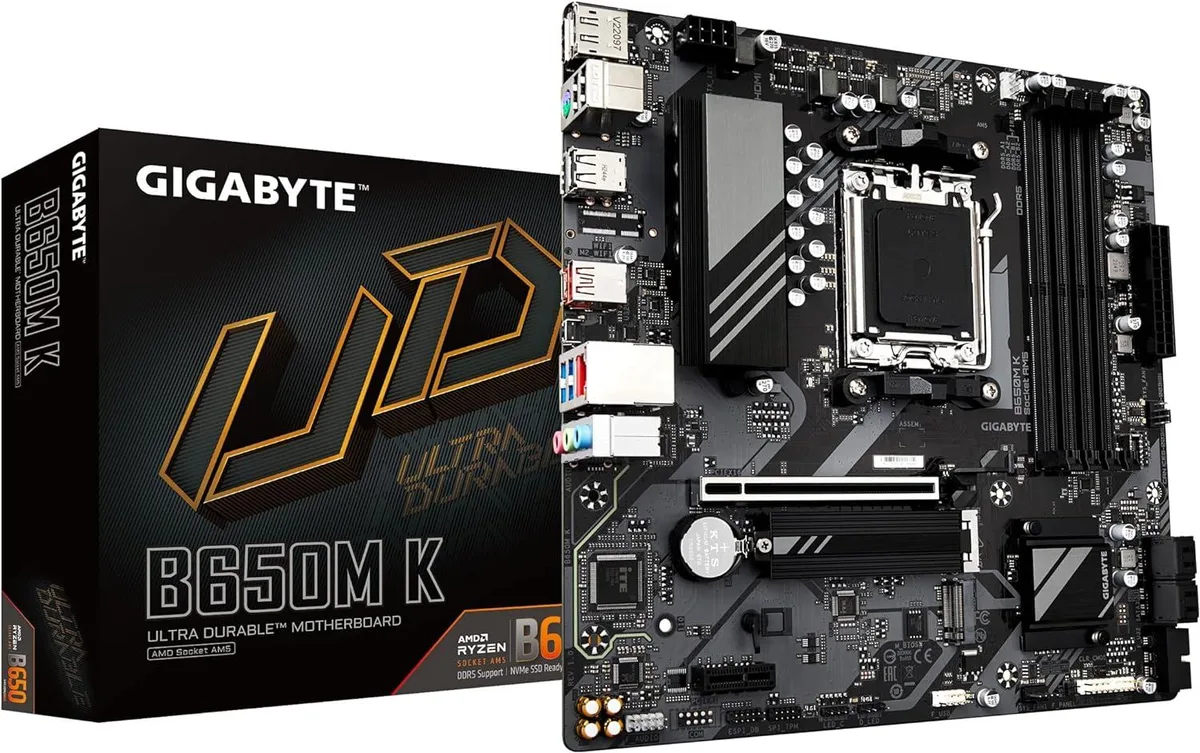

A rectangular green printed circuit board with silver metal sockets and black plastic slots, micro-ATX size

GIGABYTE

GIGABYTE B650M K AMD motherboard

SKU CH-A47M-X5FGT

Micro-ATX board for Ryzen 7000 CPUs with four DDR5 slots up to 128 GB, one PCIe 4.0 x16 slot, two PCIe 4.0 M.2 sockets, four SATA ports, 2.5 GbE LAN and USB 3.2 Gen 2 Type-C

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200/4800/4400
  • Maximum Memory Supported128GB
  • Supports Ryzen 7000 Series CPUs via AM5 socket
  • DDR5 memory up to 128 GB with AMD EXPO and XMP profiles
  • 8+2+1 phase digital VRM for stable power delivery
  • Two PCIe 4.0 M.2 slots plus USB 3.2 Gen 2 Type-C connectivity
  • 5 GbE LAN for fast wired networking

Socket AM5 DDR5 Platform

The GIGABYTE B650M K is a micro-ATX motherboard built for AMD Ryzen 7000 series processors. It uses the AMD B650 chipset and provides four 288-pin DDR5 slots supporting up to 128 GB of memory at speeds of 5200, 4800 or 4400 MT/s. A direct 8+2+1 phase digital VRM and M.2 thermal guards help maintain stable operation.

Ideal for Compact Builds

This board suits builders who want a capable AM5 foundation in a smaller chassis with dual M.2 storage and 2.5 GbE networking. It is less suited for users needing multiple PCIe x16 slots, extensive rear I/O or built-in Wi-Fi, as it offers only one full-length PCIe 4.0 x16 slot and a single PCIe 3.0 x1 slot.

Capacity and Headroom

Dual-channel DDR5 up to 128 GB gives ample headroom for gaming and content creation workloads. Two PCIe 4.0 x4 M.2 connectors and four SATA 6 Gb/s ports support RAID 0, 1 and 10 for both NVMe and SATA drives. The single x16 slot limits multi-GPU setups, and the lone x1 slot restricts additional expansion cards.

Highlights

  • Supports Ryzen 7000 Series CPUs via AM5 socket
  • DDR5 memory up to 128 GB with AMD EXPO and XMP profiles
  • 8+2+1 phase digital VRM for stable power delivery
  • Two PCIe 4.0 M.2 slots plus USB 3.2 Gen 2 Type-C connectivity
  • 5 GbE LAN for fast wired networking

Specifications

BrandGIGABYTE
ModelB650M K
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200/4800/4400
Maximum Memory Supported128GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Memory FeatureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
PCI Express 4.0 x161 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x11 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Serial ATA (SATA)4 x SATA 6Gb/s
SATA RAIDRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Additional RAID ControllerRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Audio ChipsetRealtek Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed2.5Gbps
Back I/O Ports1 x DisplayPort
1 x HDMI port
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset jumper
1 x Clear CMOS jumper
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus

Questions about this item

Do I need DDR5 memory modules for the four 288-pin slots?

Yes, the board only accepts DDR5 DIMMs at 5200, 4800 or 4400 speeds, up to 128 GB total in dual-channel mode.

Can I keep my PCIe 3.0 add-in card in the x1 slot?

The x1 slot runs at PCIe 3.0 x1, so a PCIe 3.0 card will work at its rated speed.

How do I confirm the 2.5 GbE LAN is active after build?

Check the adapter speed in the OS network settings; it should report 2.5 Gbps when connected to a 2.5 GbE switch or router.
