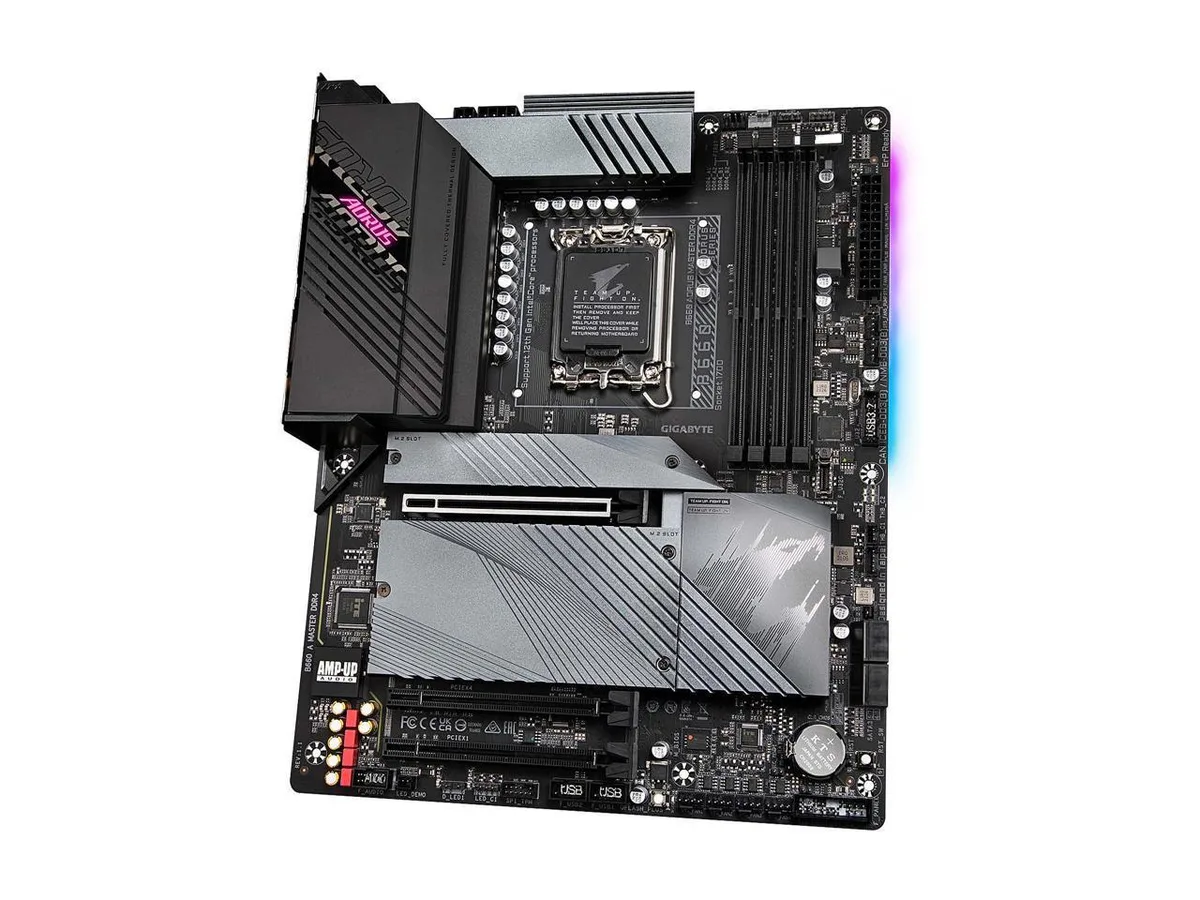

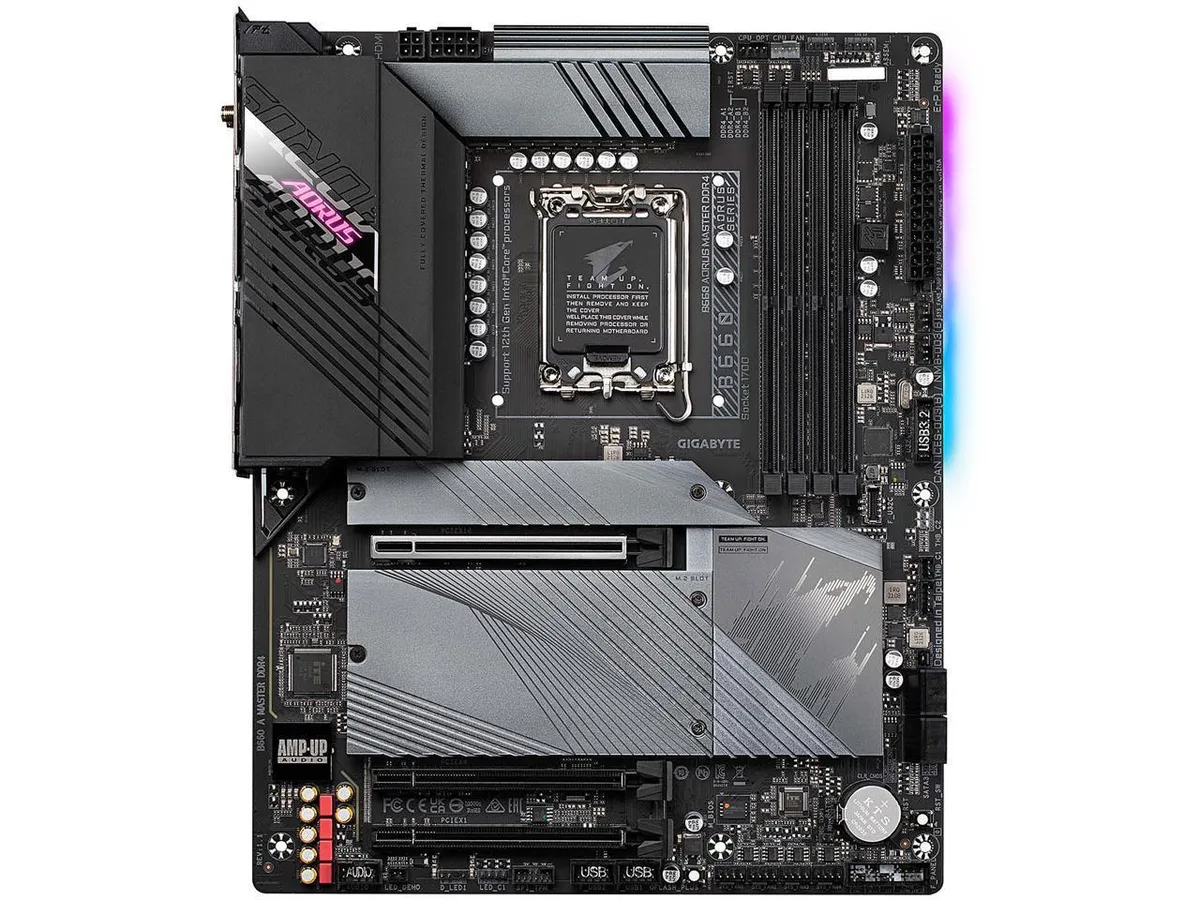

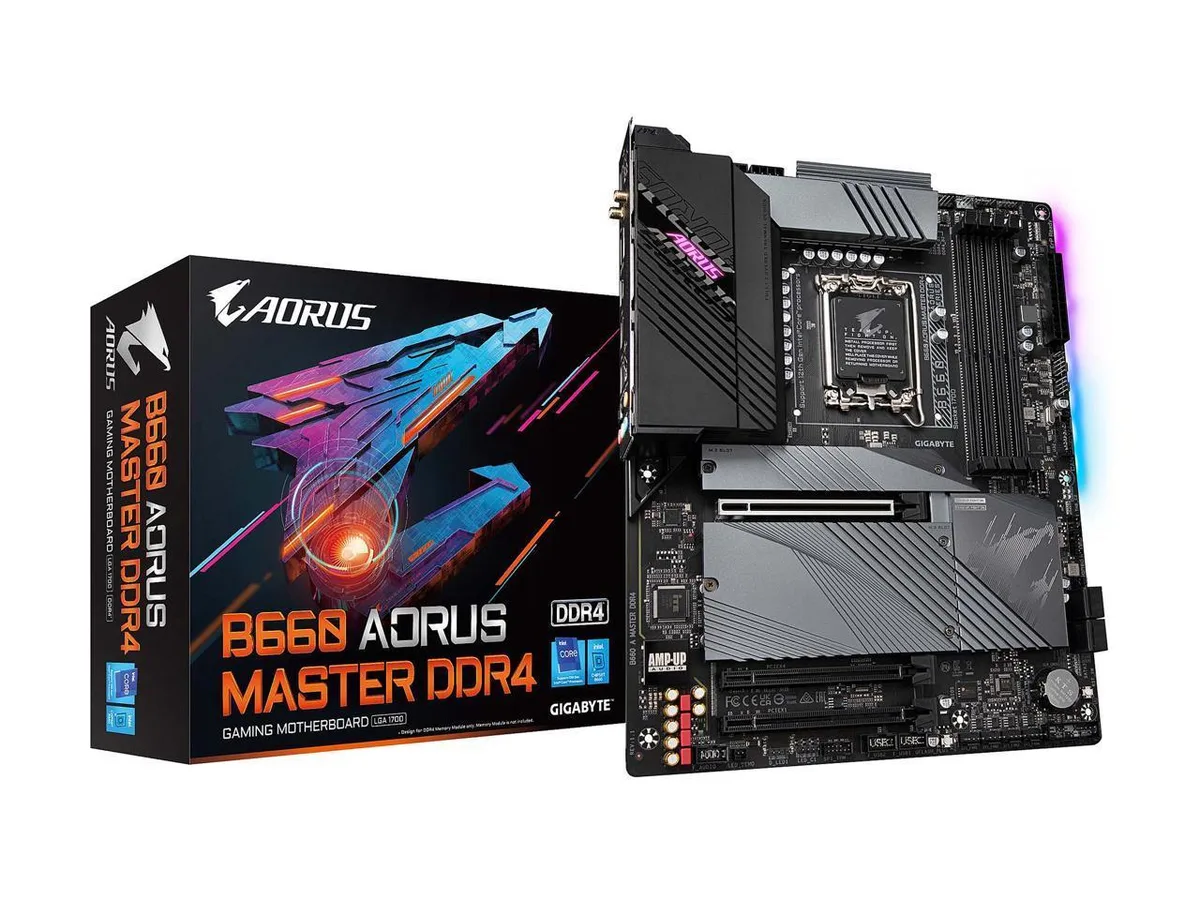

ATX motherboard with silver heatsinks, black PCB, four DDR4 slots, triple M.2 shields, rear I/O cover

GIGABYTE

GIGABYTE B660 AORUS MASTER DDR4 Intel motherboard

SKU CH-WAYN-FDKQY

ATX Intel LGA 1700 board with 16+1+1 60 A DrMOS VRM, four DDR4 3200 slots to 128 GB, triple M.2 PCIe 4.0, USB 3.2 Gen 2x2 Type-C, 2.5 GbE LAN, WIFI 6 and Realtek ALC1220 audio

  • CPU Socket TypeLGA 1700 * Dedicated LGA1700 mounting bracket is required.
  • CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron P
  • ChipsetIntel B660
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3200
  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Four DDR4 slots deliver up to 128 GB dual-channel memory at 3200 MT/s
  • 16+1+1 phase 60 A DrMOS VRM with full-coverage heatsinks keeps power delivery cool
  • Triple M.2 slots and PCIe 4.0 x16 provide high-speed storage and graphics bandwidth
  • Intel 2.5 GbE LAN, WIFI 6 and Bluetooth give fast, reliable wired and wireless connectivity

Socket and Chipset

This GIGABYTE B660 AORUS MASTER DDR4 motherboard uses the Intel LGA 1700 socket and Intel B660 chipset. It supports 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors. The board provides four 288‑pin DDR4 slots running up to 3200 MT/s in dual channel with a 128 GB maximum capacity.

Power and Connectivity

The 16+1+1 twin hybrid digital VRM uses 60 A DrMOS for stable delivery. Three M.2 connectors and four SATA 6 Gb/s ports handle storage, while one PCI Express 4.0 x16 slot and one PCI Express 3.0 x4 slot provide expansion. Networking includes Intel 2.5 GbE LAN, WIFI 6 802.11 ax and Bluetooth. Rear I/O adds USB 3.2 Gen 2x2 Type‑C.

Capacity and Limits

The four DDR4 slots accept up to 128 GB total, giving ample headroom for multitasking and content creation. Triple M.2 sockets allow multiple NVMe drives without using SATA ports. The second x16 slot runs at x4 and is disabled when the M2M_SB connector is populated, limiting multi‑GPU or add‑in card configurations.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Four DDR4 slots deliver up to 128 GB dual-channel memory at 3200 MT/s
  • 16+1+1 phase 60 A DrMOS VRM with full-coverage heatsinks keeps power delivery cool
  • Triple M.2 slots and PCIe 4.0 x16 provide high-speed storage and graphics bandwidth
  • Intel 2.5 GbE LAN, WIFI 6 and Bluetooth give fast, reliable wired and wireless connectivity

Specifications

BrandGIGABYTE
ModelB660 AORUS MASTER DDR4
CPU Socket TypeLGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
ChipsetIntel B660
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
PCI Express 3.0 x161 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2M_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2M_SB connector.
1 x PCI Express x16 slot, running at x1 (PCIEX1)
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)4 x SATA 6Gb/s
M.23 x M.2
Audio ChipsetRealtek ALC1220
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothYes
Windows 11Supported
Form FactorATX
LED LightingRGB

Questions about this item

Which DDR4 memory speed and capacity does the B660 AORUS MASTER DDR4 support?

The board runs dual-channel DDR4 at 3200 and accepts up to 128 GB across its four 288-pin slots.

Will a card in the PCIe 4.0 x16 slot and a drive in the M2M_SB M.2 slot share bandwidth?

No, the PCIe 4.0 x16 slot keeps its full x16 link; only the PCIe 3.0 x4 slot shares bandwidth with M2M_SB.

How can I verify the Intel 2.5GbE LAN and Wi-Fi 6 are active after first boot?

Open Device Manager, confirm Intel 2.5GbE Controller and Wi-Fi 6 802.11ax adapter appear without errors, then run a speed test.
