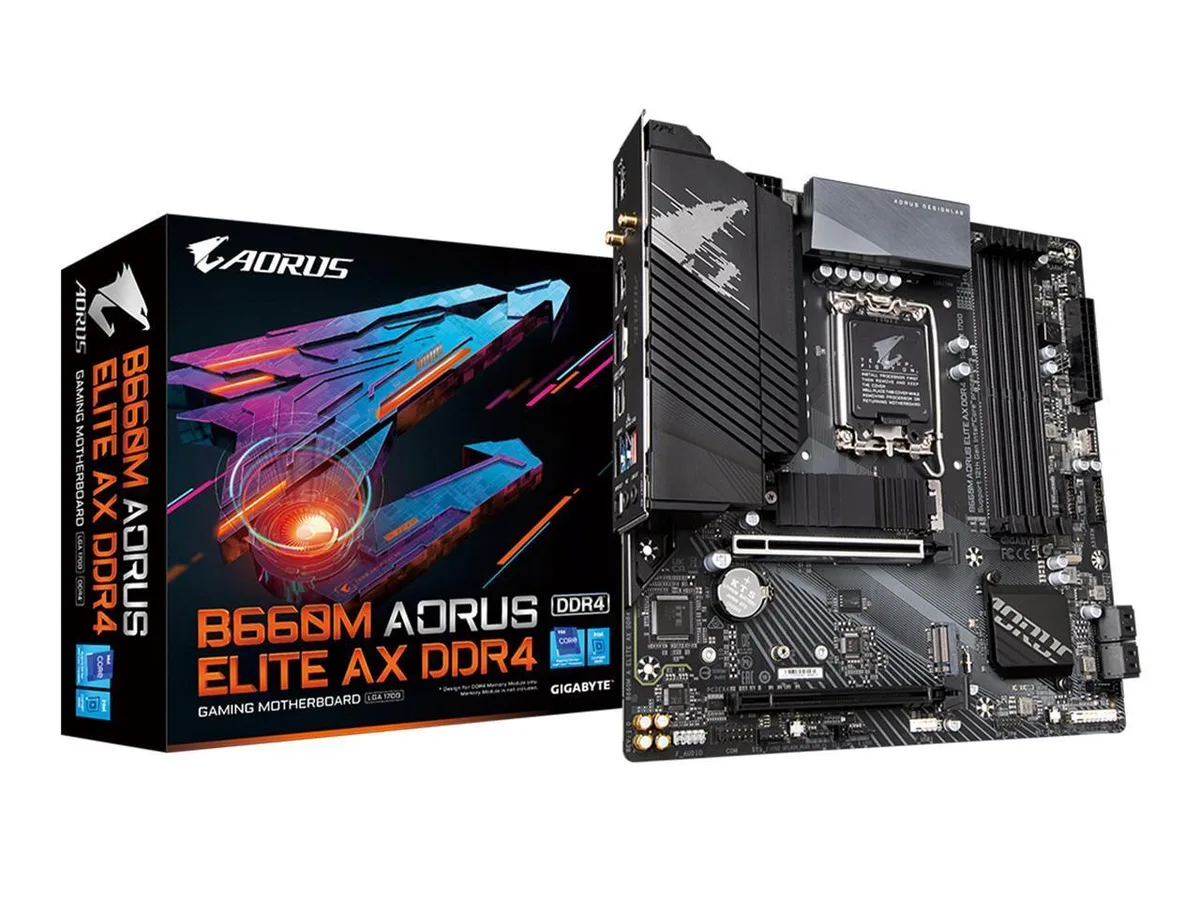

Dark grey micro-ATX board with silver heatsinks and four black DDR4 slots

GIGABYTE

GIGABYTE B660M AORUS ELITE AX DDR4 Intel motherboard

SKU CH-AJWC-HSHNY

Micro-ATX board for 12th and 13th Gen Intel Core CPUs with DDR4 memory, PCIe 4.0 M.2 slots, 2.5GbE LAN, Wi-Fi 6E and Bluetooth 5.2

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron P
  • ChipsetIntel B660
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardSupport for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)
  • Maximum Memory Supported128GB
  • Supports 12th and 13th Gen Intel Core CPUs via LGA 1700 socket
  • Four DDR4 slots deliver up to 128 GB dual-channel memory
  • 12+1+1 twin hybrid 60 A DrMOS VRM for stable power delivery
  • Dual M.2 PCIe 4.0 x4 plus four SATA 6 Gb/s ports
  • 5 GbE LAN, Wi-Fi 6E AX211 and Bluetooth 5.2 built in

Micro-ATX LGA 1700 DDR4 motherboard

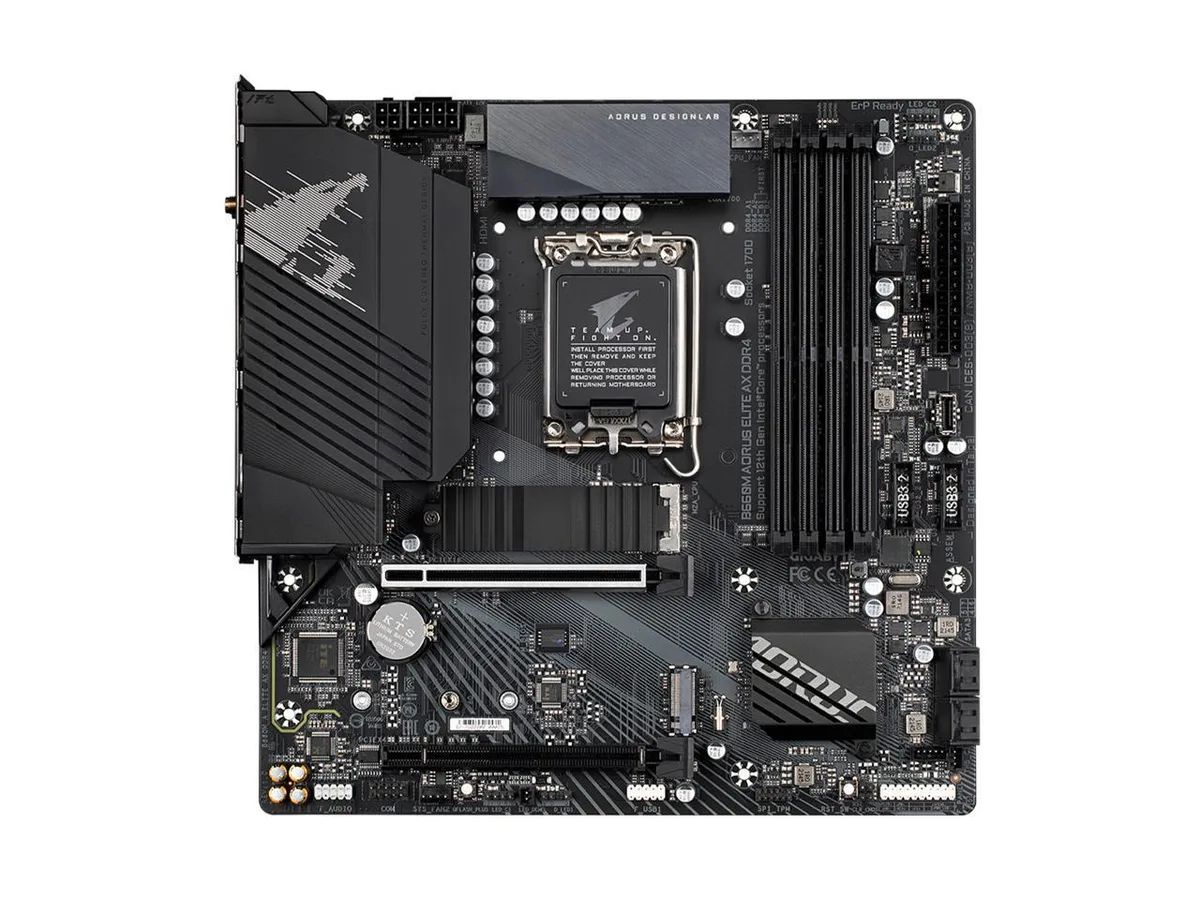

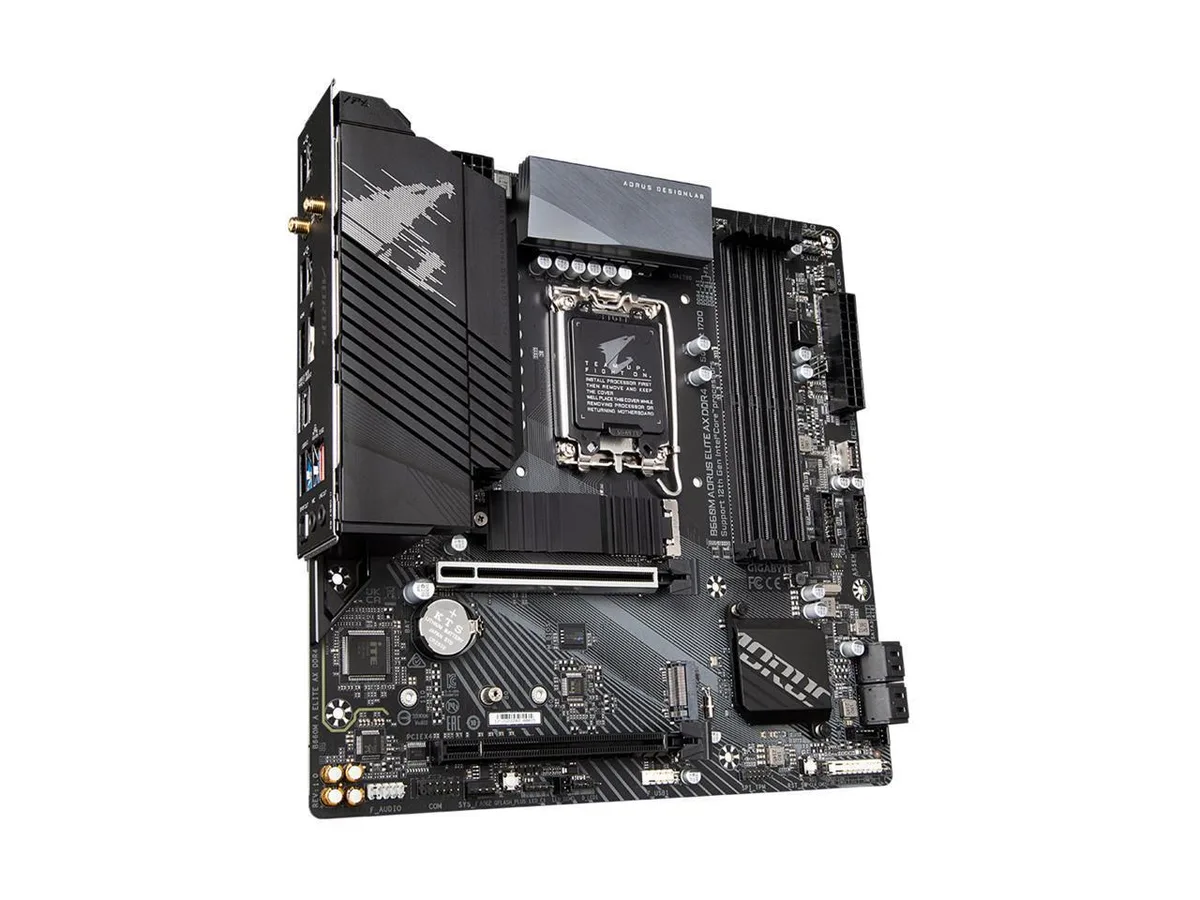

The GIGABYTE B660M AORUS ELITE AX DDR4 is an Intel B660 board built for 12th and 13th Gen Core, Pentium Gold and Celeron processors. It fits Micro-ATX cases and runs dual-channel DDR4 across four 288-pin slots up to 128 GB. A 12+1+1 phase 60 A DrMOS VRM and full-coverage heatsinks keep power delivery steady. Connectivity includes PCIe 4.0 x16, two M.2 sockets with PCIe 4.0 x4 support, four SATA 6 Gb/s ports, USB 3.2 Gen 2x2 Type-C, 2.5 GbE LAN, WIFI 6E AX211 and Bluetooth 5.2.

Builders staying on DDR4 with compact cases

This board suits builders who want current-generation Intel performance while keeping existing DDR4 memory and a smaller chassis. The four DIMM slots allow up to 128 GB in dual-channel mode. Users needing more than four memory slots, an ATX form factor or a different chipset feature set should look at other models.

DDR4 5333 MT/s overclock ceiling

The highest validated memory speed listed is DDR4 5333 (O.C.), which sets the practical limit for memory kit selection. Buyers planning to run high-frequency kits should verify their chosen modules appear on the board’s qualified vendor list to ensure stability at that data rate.

Highlights

  • Supports 12th and 13th Gen Intel Core CPUs via LGA 1700 socket
  • Four DDR4 slots deliver up to 128 GB dual-channel memory
  • 12+1+1 twin hybrid 60 A DrMOS VRM for stable power delivery
  • Dual M.2 PCIe 4.0 x4 plus four SATA 6 Gb/s ports
  • 5 GbE LAN, Wi-Fi 6E AX211 and Bluetooth 5.2 built in

Specifications

BrandGIGABYTE
ModelB660M AORUS ELITE AX DDR4
CPU Socket TypeLGA 1700
CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
ChipsetIntel B660
Number of Memory Slots4x288pin (DDR4)
Memory StandardSupport for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
PCI Express 3.0 x161 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID0/1/5/10
Audio ChipsetRealtek Audio CODEC
High Definition Audio
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5GbE LAN chip
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
BluetoothBluetooth 5.2
Back I/O Ports1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
FeaturesH/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Sma
