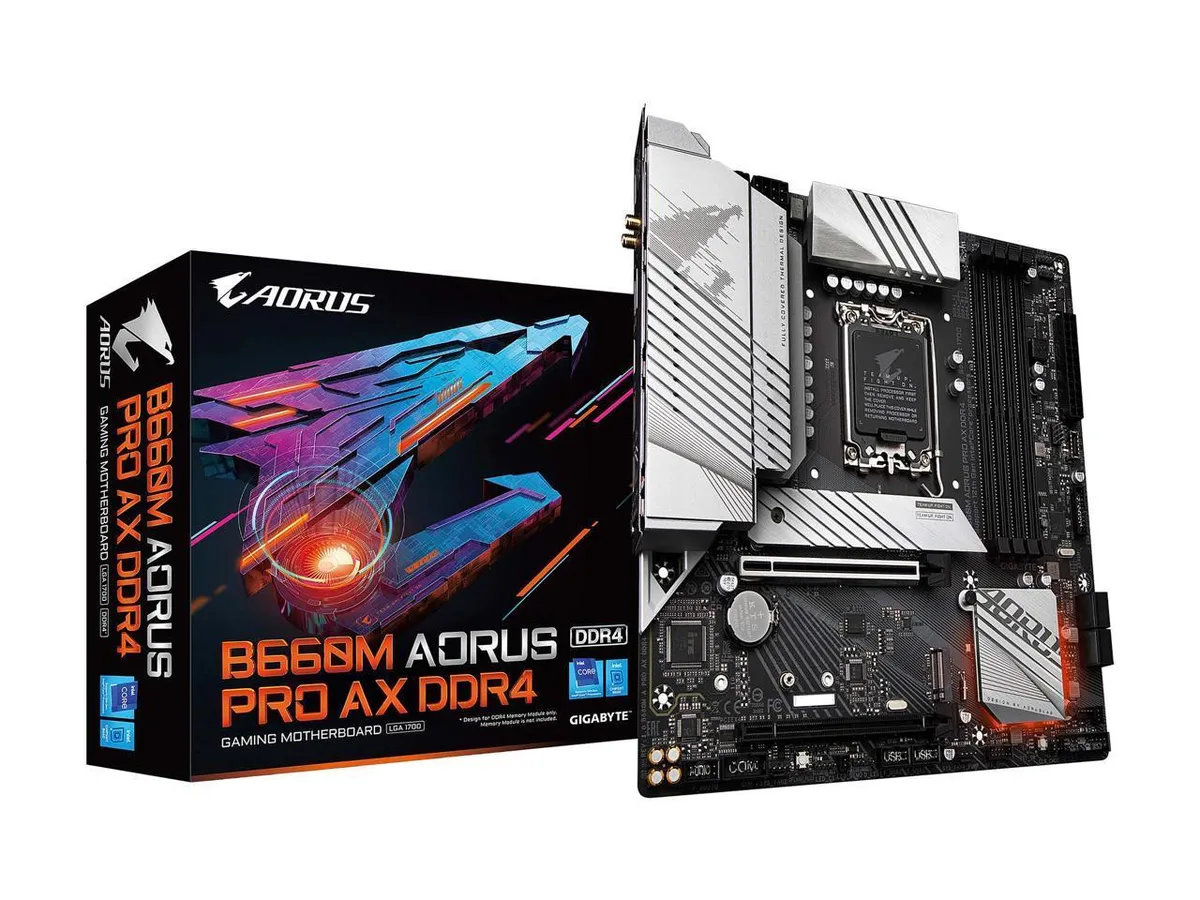

Micro-ATX motherboard in dark grey with silver heatsinks and RGB lighting

GIGABYTE

GIGABYTE B660M AORUS PRO AX DDR4 Intel motherboard

SKU CH-VCPQ-5ZBJD

Micro-ATX Intel B660 board for LGA 1700 CPUs with four DDR4 slots up to 128 GB, PCIe 4.0 x16, dual M.2, 2.5 GbE LAN, WIFI 6 and USB 3.2 Gen 2x2 Type-C

  • CPU Socket TypeLGA 1700 * Dedicated LGA1700 mounting bracket is required.
  • CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron P
  • ChipsetIntel B660
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3200
  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • 12+1+1 Twin Hybrid Digital VRM with 60A DrMOS delivers stable power
  • Dual M.2 slots with PCIe 4.0 x4 for fast NVMe storage
  • Intel 2.5GbE LAN and WIFI 6 provide high-speed connectivity
  • RGB FUSION 2.0 enables addressable LED and RGB strip control

Micro-ATX LGA 1700 DDR4 Motherboard

This GIGABYTE B660M AORUS PRO AX DDR4 motherboard uses the Intel B660 chipset on a Micro-ATX form factor. It accepts 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors in an LGA 1700 socket. The board provides four 288-pin DDR4 slots supporting dual-channel memory up to 128 GB at 3200 MT/s.

Suited for compact Intel builds with dual M.2

Builders wanting a smaller case footprint with two M.2 slots, 2.5 GbE LAN and Wi-Fi 6 802.11ax will find the features match that brief. Users who require more than one full-length PCIe 4.0 x16 slot or need a full-size ATX board should consider other form factors.

One PCIe 4.0 x16 slot and one PCIe 3.0 x4 slot

The primary PCIEX16 slot runs at PCIe 4.0 x16 for a graphics card, while the secondary PCIEX4 slot operates at PCIe 3.0 x4 for add-in cards. This lane allocation decides whether the board can host the expansion cards a particular build requires.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • 12+1+1 Twin Hybrid Digital VRM with 60A DrMOS delivers stable power
  • Dual M.2 slots with PCIe 4.0 x4 for fast NVMe storage
  • Intel 2.5GbE LAN and WIFI 6 provide high-speed connectivity
  • RGB FUSION 2.0 enables addressable LED and RGB strip control

Specifications

BrandGIGABYTE
ModelB660M AORUS PRO AX DDR4
CPU Socket TypeLGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
ChipsetIntel B660
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
PCI Express 3.0 x161 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothYes
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB

Questions about this item

What does the 12+1+1 60A VRM design mean for my CPU?

The 12+1+1 phase layout with 60A DrMOS delivers stable power to 12th and 13th Gen Intel Core processors, supporting sustained boost clocks under load.

What speed does the PCIe 4.0 x4 M.2 interface cap at?

Each M.2 slot runs at PCIe 4.0 x4, allowing compatible NVMe drives to reach their rated sequential read and write speeds.

What cooler bracket does the LGA 1700 socket need?

A dedicated LGA 1700 mounting bracket is required for cooler installation.
