Micro-ATX motherboard, black PCB with silver heatsinks and RGB lighting

GIGABYTE

GIGABYTE B660M GAMING DDR4 Intel motherboard

SKU CH-4VJW-A5AKG

Micro-ATX board for 12th Gen Intel CPUs with dual-channel DDR4, 2.5 GbE LAN and dual PCIe 4.0 M.2 slots

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 12th Gen (LGA 1700)
  • ChipsetIntel B660
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4
  • Maximum Memory Supported64GB
  • Supports 12th Gen Intel Core processors via LGA 1700 socket
  • 6+2+1 hybrid digital VRM phases with MOS heatsink for stable power delivery
  • Dual PCIe 4.0 x4 M.2 slots enable ultra-fast NVMe storage
  • 5 GbE LAN with bandwidth management for responsive networking
  • RGB Fusion 2.0 supports addressable and standard RGB LED strips

LGA 1700 mATX Board for 12th Gen Builds

This GIGABYTE B660M GAMING DDR4 motherboard uses the Intel B660 chipset on a micro-ATX form factor. It accepts 12th Generation Intel Core, Pentium Gold and Celeron processors in the LGA 1700 socket. Two DDR4 DIMM slots support up to 64 GB of dual-channel memory with a wide range of XMP speeds. Integrated graphics output includes HDMI and D-Sub ports for display connectivity.

Dual M.2 PCIe 4.0 and 2.5 GbE LAN

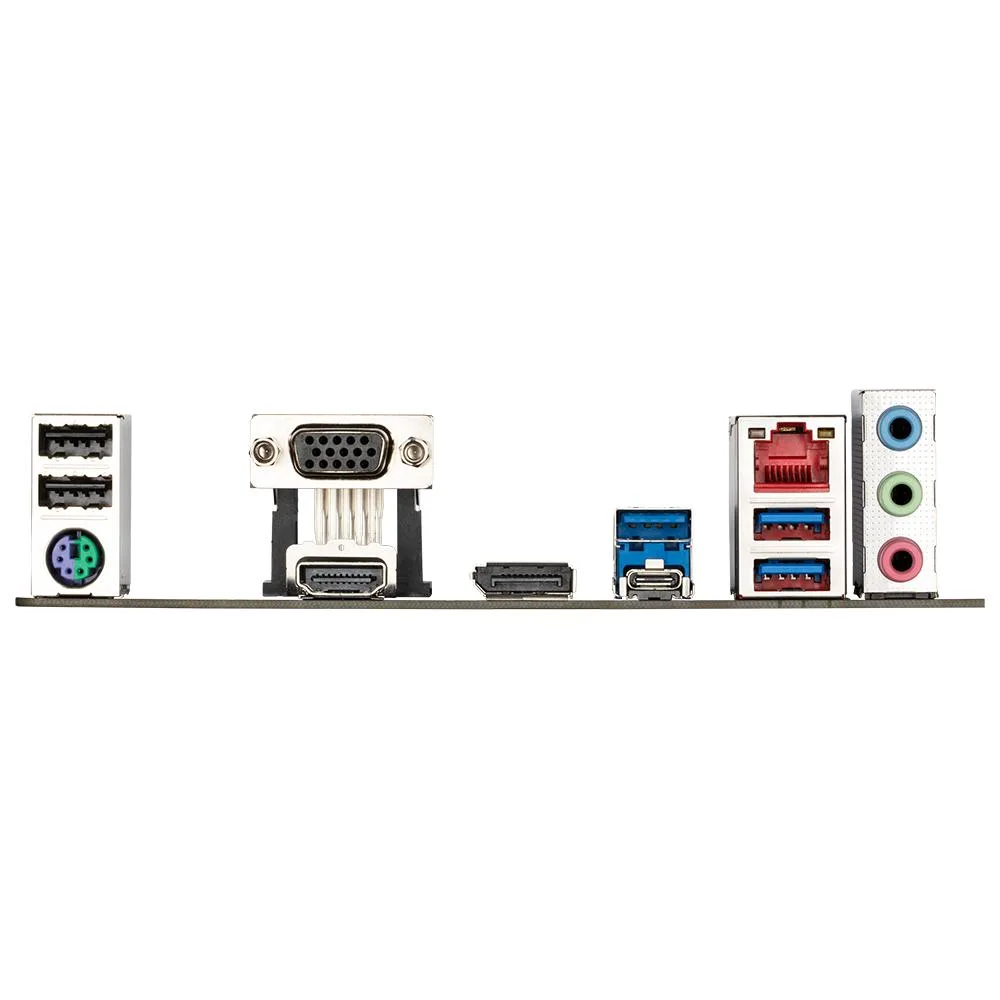

Four SATA 6 Gb/s ports handle traditional storage while two M.2 slots provide PCIe 4.0 x4 pathways for fast NVMe drives. A 2.5 GbE LAN controller with bandwidth management serves wired networking. Rear I/O adds a USB 3.2 Gen 1 Type-C port alongside standard USB connections. RGB FUSION 2.0 headers allow addressable and standard RGB strip control for case lighting.

6+2+1 Hybrid Digital VRM with MOS Heatsink

The power delivery uses a 6+2+1 phase hybrid digital design topped with a MOS heatsink to manage thermals during extended workloads. High-quality audio capacitors and an audio noise guard isolate analogue signals from digital noise. This combination aims to keep voltage stable and temperatures controlled when the system runs under sustained load rather than brief bursts.

Highlights

  • Supports 12th Gen Intel Core processors via LGA 1700 socket
  • 6+2+1 hybrid digital VRM phases with MOS heatsink for stable power delivery
  • Dual PCIe 4.0 x4 M.2 slots enable ultra-fast NVMe storage
  • 5 GbE LAN with bandwidth management for responsive networking
  • RGB Fusion 2.0 supports addressable and standard RGB LED strips

Specifications

BrandGIGABYTE
ModelB660M GAMING DDR4
CPU Socket TypeLGA 1700
CPU TypeIntel Core 12th Gen (LGA 1700)
ChipsetIntel B660
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4
Maximum Memory Supported64GB
Channel SupportedDual Channel
Serial ATA (SATA)4 x SATA 6Gb/s
Max LAN Speed2.5Gbps
HDMI1 x HDMI

Questions about this item

Will the 6+2+1 phase VRM with MOS heatsink throttle a 12th Gen Intel Core under sustained all-core load?

The board uses a 6+2+1 phases hybrid digital VRM with a MOS heatsink designed for 12th Gen Intel Core processors.

How loud or hot does the VRM heatsink get when the system runs all day at full load?

The MOS heatsink covers the 6+2+1 phase VRM to manage heat during extended operation; fan noise depends on the chassis cooling you install.

Which DDR4 memory kit do I need to have on hand before this motherboard will post?

You need two DDR4 DIMMs up to 32 GB each for a maximum of 64 GB in dual-channel mode; XMP modules are supported.
