GIGABYTE
GIGABYTE B760 DS3H AC Intel motherboard
ATX board for Intel Core 12th, 13th and 14th Gen CPUs with DDR5, dual PCIe 4.0 M.2 slots, Wi-Fi 802.11ac and rear USB 3.2 Gen 2x2 Type-C
- CPU Socket TypeLGA 1700
- CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
- ChipsetIntel B760
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardDDR5 4800
- Maximum Memory Supported192GB
- Supports Intel Core 12th, 13th and 14th Gen processors via LGA 1700 socket
- Dual-channel DDR5 with four slots and XMP 3.0 up to 7600 MT/s
- Two PCIe 4.0 x4 M.2 connectors for high-speed storage
- PCIe 4.0 x16 slot with quick-release latch for easy GPU swaps
- Rear USB-C 20 Gbps plus HDMI and DisplayPort for versatile display hook-up

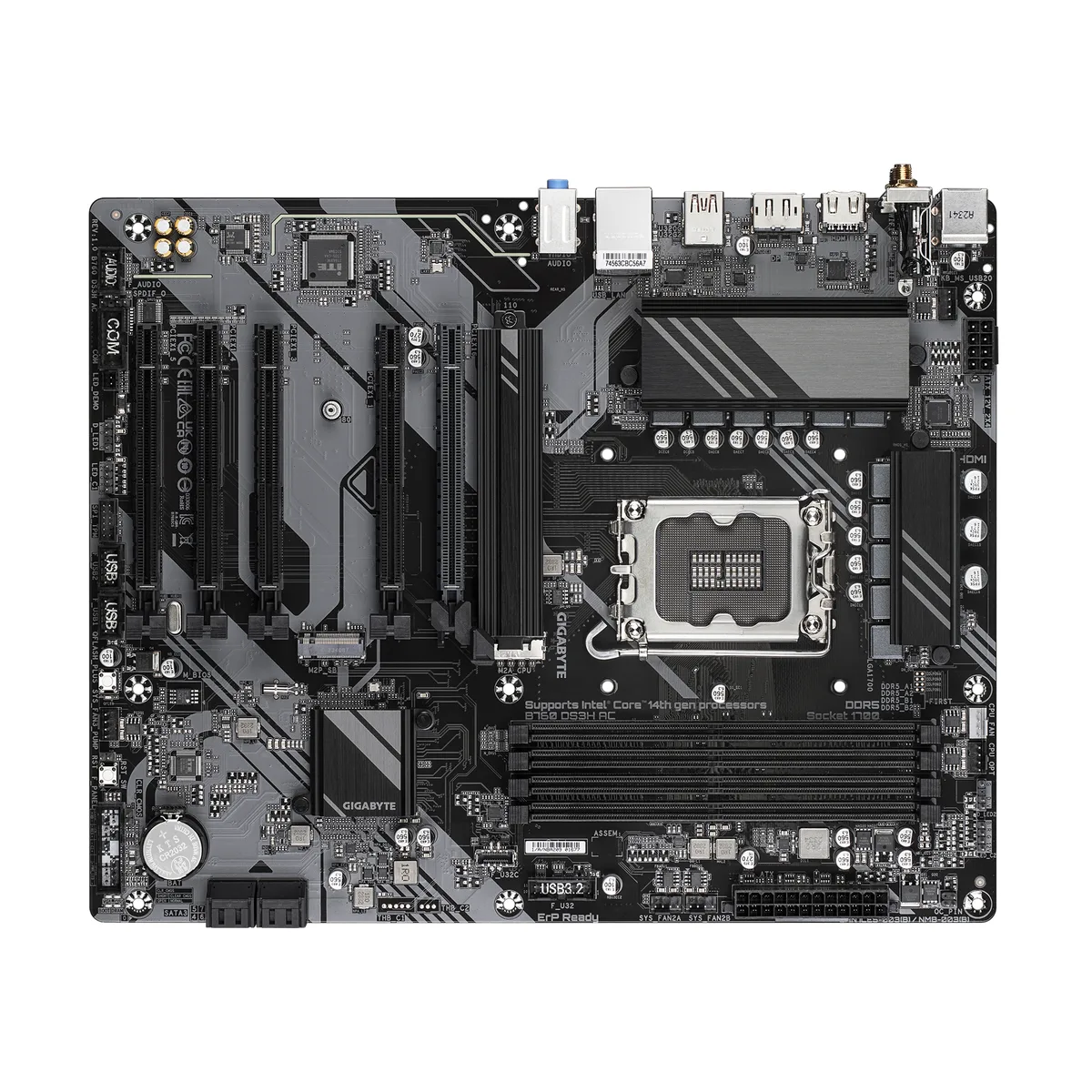

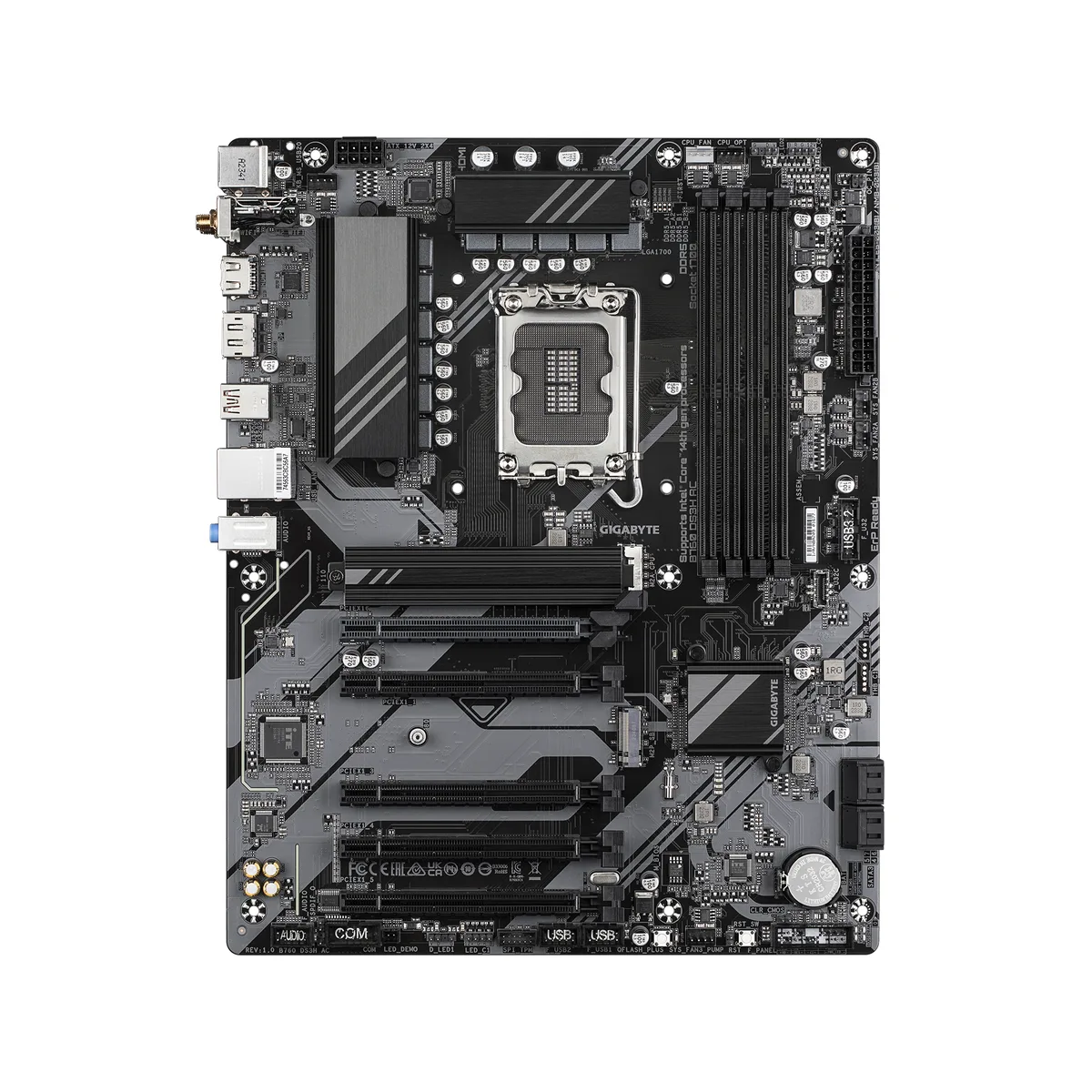

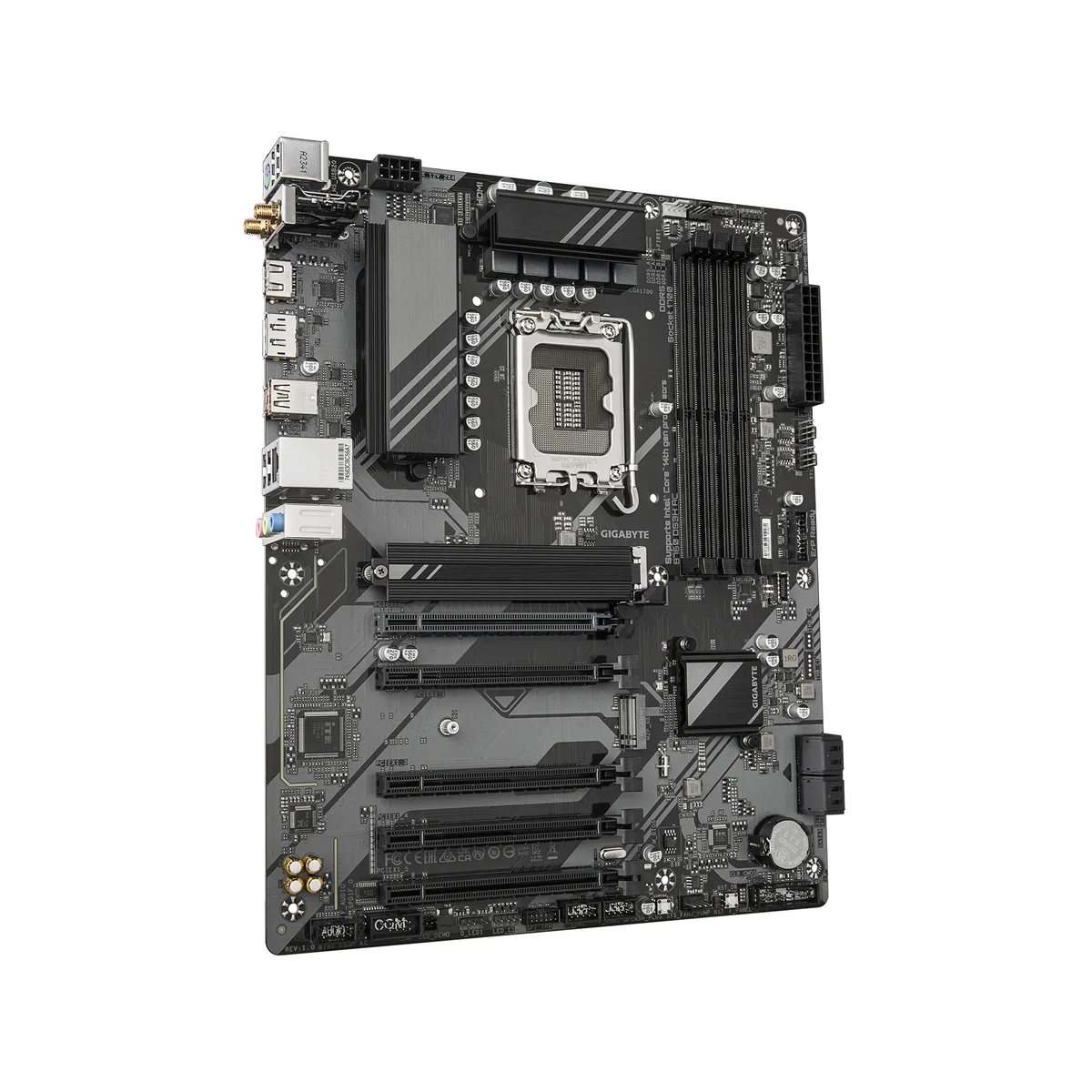

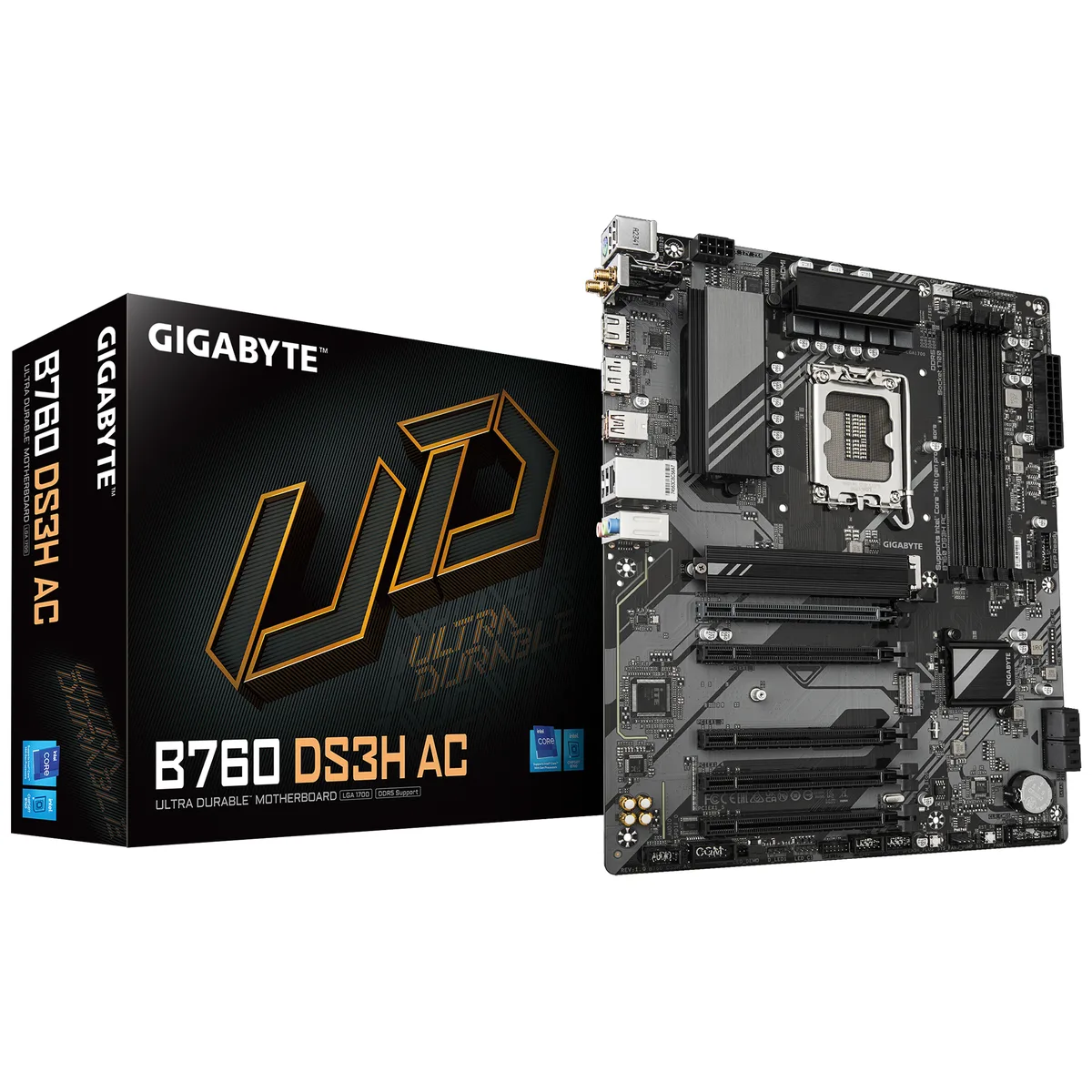

LGA 1700 Intel B760 ATX motherboard
This ATX board accepts 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron processors in the LGA 1700 socket. Four DDR5 slots support up to 192 GB in dual-channel mode with XMP 3.0 profiles. It suits builders who need current-generation Intel compatibility and high memory capacity.
EZ-Latch PCIe 4.0 x16 slot and dual M.2 connectors
The primary graphics slot uses a quick-release latch for easier card swaps. Two M.2 sockets (one CPU-attached, one chipset-attached) each accept 2280 or 22110 drives at PCIe 4.0 x4 or x2 speeds. Four SATA 6Gb/s ports add RAID 0, 1, 5 and 10 support for additional storage arrays.

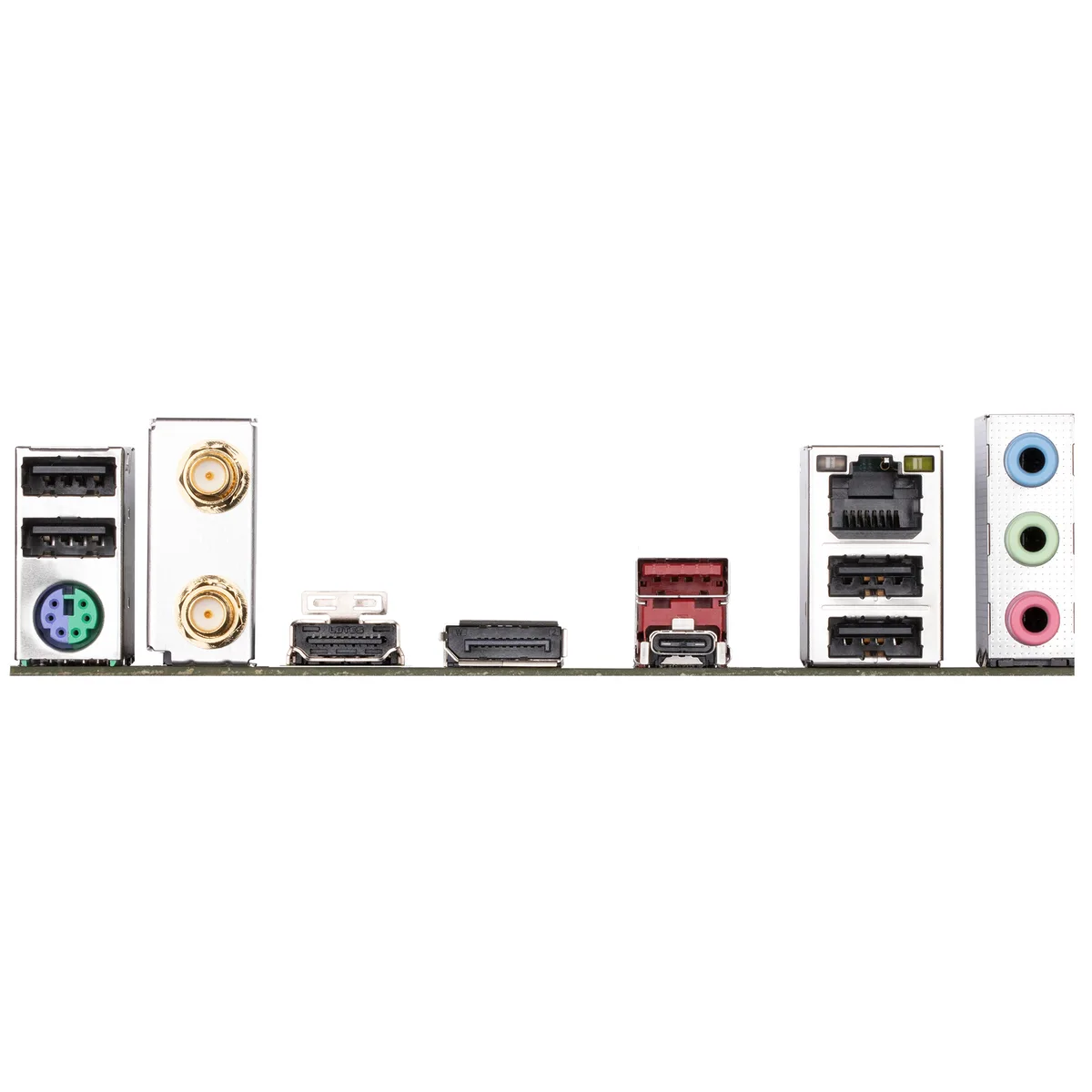

Rear USB-C 20Gb/s, Wi-Fi 802.11ac and Bluetooth 5.1
Back-panel I/O includes a USB 3.2 Gen 2x2 Type-C port, a USB 3.2 Gen 2 Type-A port, four USB 2.0 ports, HDMI, DisplayPort, 1 Gbps LAN and dual SMA antenna connectors. 7.1-channel audio and Smart Fan 6 headers with fan-stop complete the connectivity and cooling control package.
Highlights
- Supports Intel Core 12th, 13th and 14th Gen processors via LGA 1700 socket
- Dual-channel DDR5 with four slots and XMP 3.0 up to 7600 MT/s
- Two PCIe 4.0 x4 M.2 connectors for high-speed storage
- PCIe 4.0 x16 slot with quick-release latch for easy GPU swaps
- Rear USB-C 20 Gbps plus HDMI and DisplayPort for versatile display hook-up
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | B760 DS3H AC |
| CPU Socket Type | LGA 1700 |
| CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel B760 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4800 |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| Memory Feature | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PCI Express 4.0 x16 | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| PCI Express 3.0 x16 | Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi 802.11 ac |
| Back I/O Ports | 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Windows 11 | Supported |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Shipping weight | 1.54 kg |
| Package size | 335 × 270 × 80 mm |
Questions about this item
Will a 13th-gen Intel Core i5 fit this LGA 1700 socket?
Yes. The board supports Intel Core 12th, 13th and 14th generation processors in the LGA 1700 socket.
Can I run four DDR5 sticks at 6000 MT/s without manual tuning?
Enable the Intel XMP 3.0 profile in the BIOS; the board validates speeds up to 7600 MT/s, so 6000 MT/s will run automatically.
How many M.2 SSDs can I install and what speeds do they use?
Two M.2 slots are provided, both wired for PCIe 4.0 x4, giving full bandwidth to each drive.
