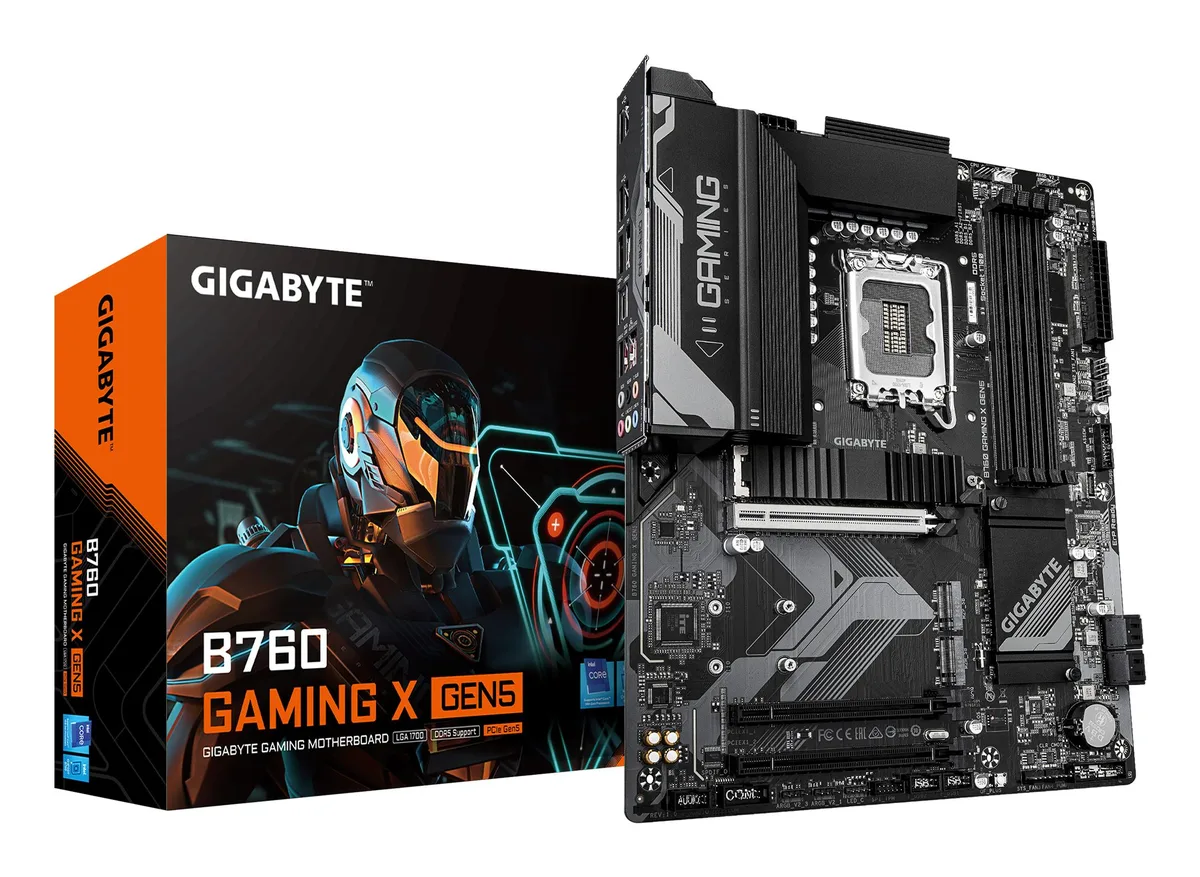

ATX motherboard, black PCB with silver heatsinks and RGB lighting

GIGABYTE

GIGABYTE B760 GAMING X GEN5 Intel motherboard

SKU CH-CSJS-BVBN9

ATX board for LGA 1700 CPUs with four DDR5 slots up to 256 GB, three PCIe 4.0 M.2 sockets, 2.5 GbE LAN, USB 3.2 Gen 2 and 7.1-channel Realtek ALC897 audio

  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • Four DDR5 slots with dual-channel architecture for up to 256 GB memory
  • Three M.2 slots using PCI Express 4.0 for fast storage expansion
  • 5 GbE LAN and USB 3.2 Gen 2 for high-speed wired and peripheral connectivity
  • 1-channel audio via Realtek ALC897 with S/PDIF output for immersive sound

Intel LGA 1700 ATX board for 12th-14th Gen Core

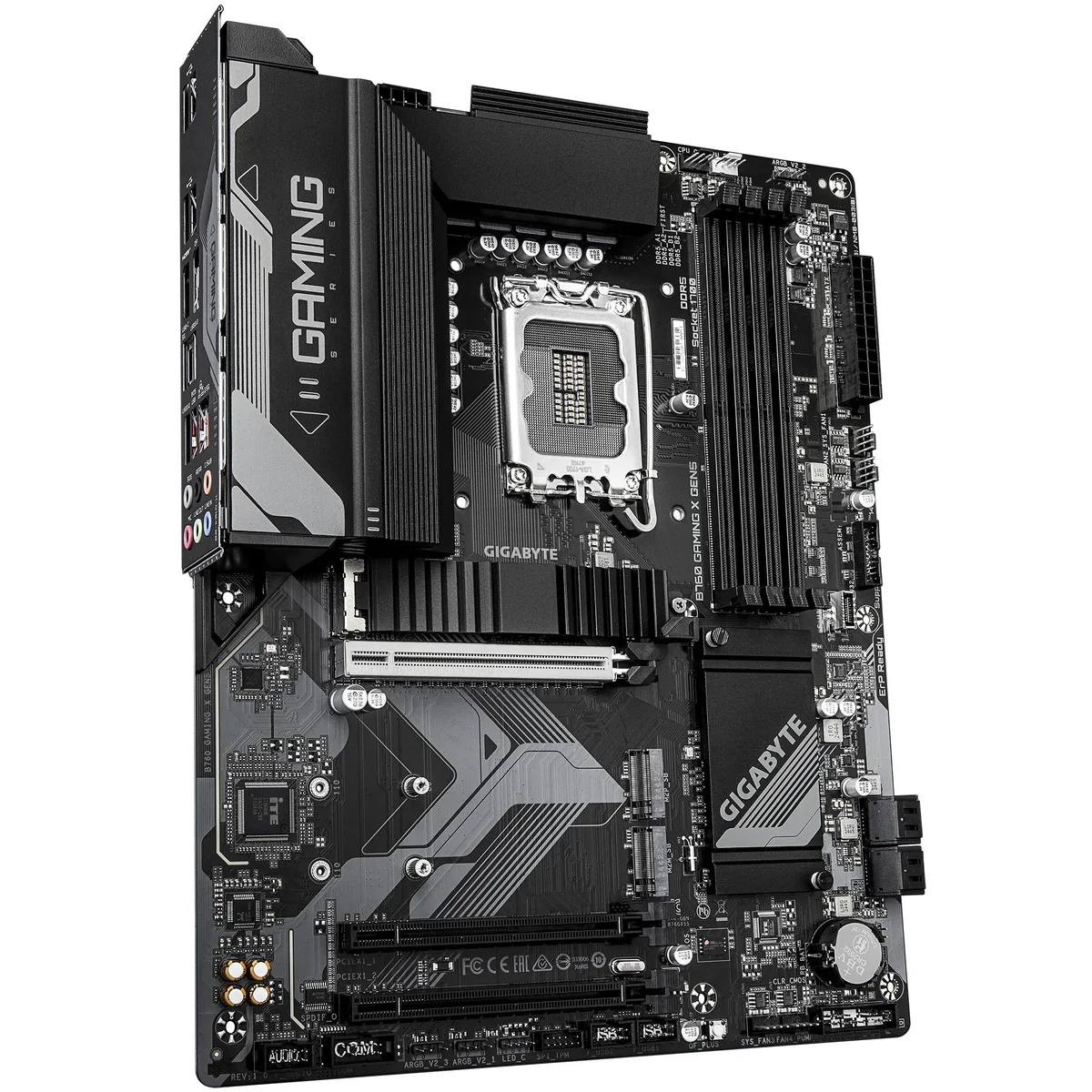

The GIGABYTE B760 GAMING X GEN5 is an ATX motherboard built for Intel LGA 1700 processors. It accepts Celeron, Pentium and Core i3, i5, i7 and i9 chips from the 12th, 13th and 14th generations. The 8+1+1 phase VRM delivers stable power for mainstream gaming and productivity workloads. It suits builders who want a modern DDR5 platform without enthusiast pricing.

Four DDR5 slots up to 5600 MHz and 256 GB

The board provides four DDR5-SDRAM slots running in dual-channel mode. Memory speeds reach 5600 MHz and total capacity stops at 256 GB. That headroom covers heavy multitasking and content creation. Builders who need more than 256 GB or faster rated kits will hit the chipset ceiling here.

Three PCIe 4.0 M.2 slots for primary storage

Three M.2 connectors run over PCIe 4.0 lanes, giving fast SSD bandwidth for OS and games. Only three such slots exist, so a fourth high-speed drive requires a slower SATA III port or an add-in card. RAID 0, 1, 5 and 10 are supported across the M.2 and four SATA III ports.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • Four DDR5 slots with dual-channel architecture for up to 256 GB memory
  • Three M.2 slots using PCI Express 4.0 for fast storage expansion
  • 5 GbE LAN and USB 3.2 Gen 2 for high-speed wired and peripheral connectivity
  • 1-channel audio via Realtek ALC897 with S/PDIF output for immersive sound

Specifications

No published specifications for this item yet.

Questions about this item

Will my existing DDR5 modules run at 5600 MHz with this motherboard?

The board supports DDR5 up to 5600 MHz across four slots with a 256 GB maximum, so compatible modules will operate at that speed.

How can I verify the 2.5 GbE LAN and 7.1-channel audio are active after building?

In Windows 10 or 11 the network adapter should show a 2.5 Gbps link speed and Realtek audio console will list 7.1 channels for the ALC897 codec.

Which storage cables or M.2 screws are included versus what I must buy separately?

The motherboard provides four SATA III ports and three PCIe 4.0 M.2 slots; SATA cables and M.2 mounting screws are typically not included and must be purchased separately.
