Mini ITX motherboard, dark PCB with silver heatsinks and rear I/O shield

GIGABYTE

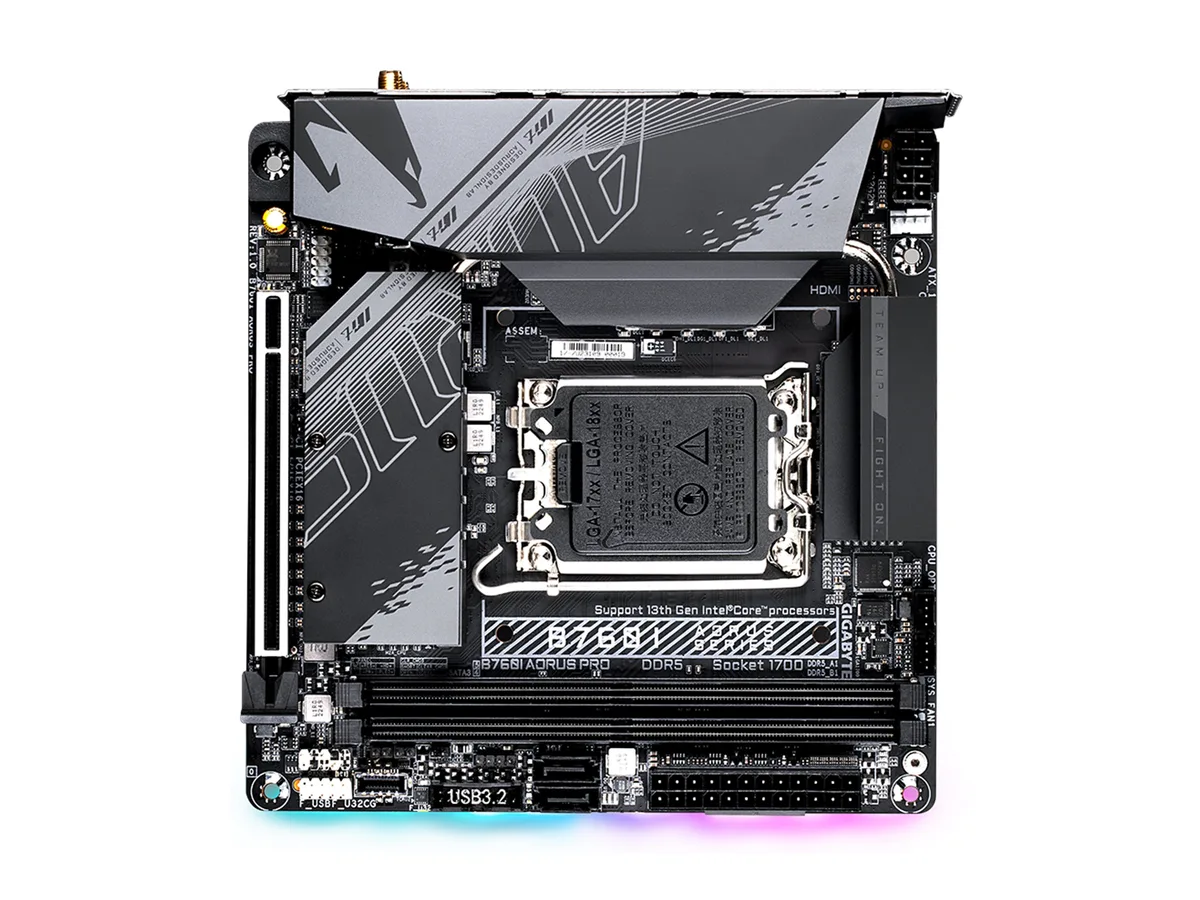

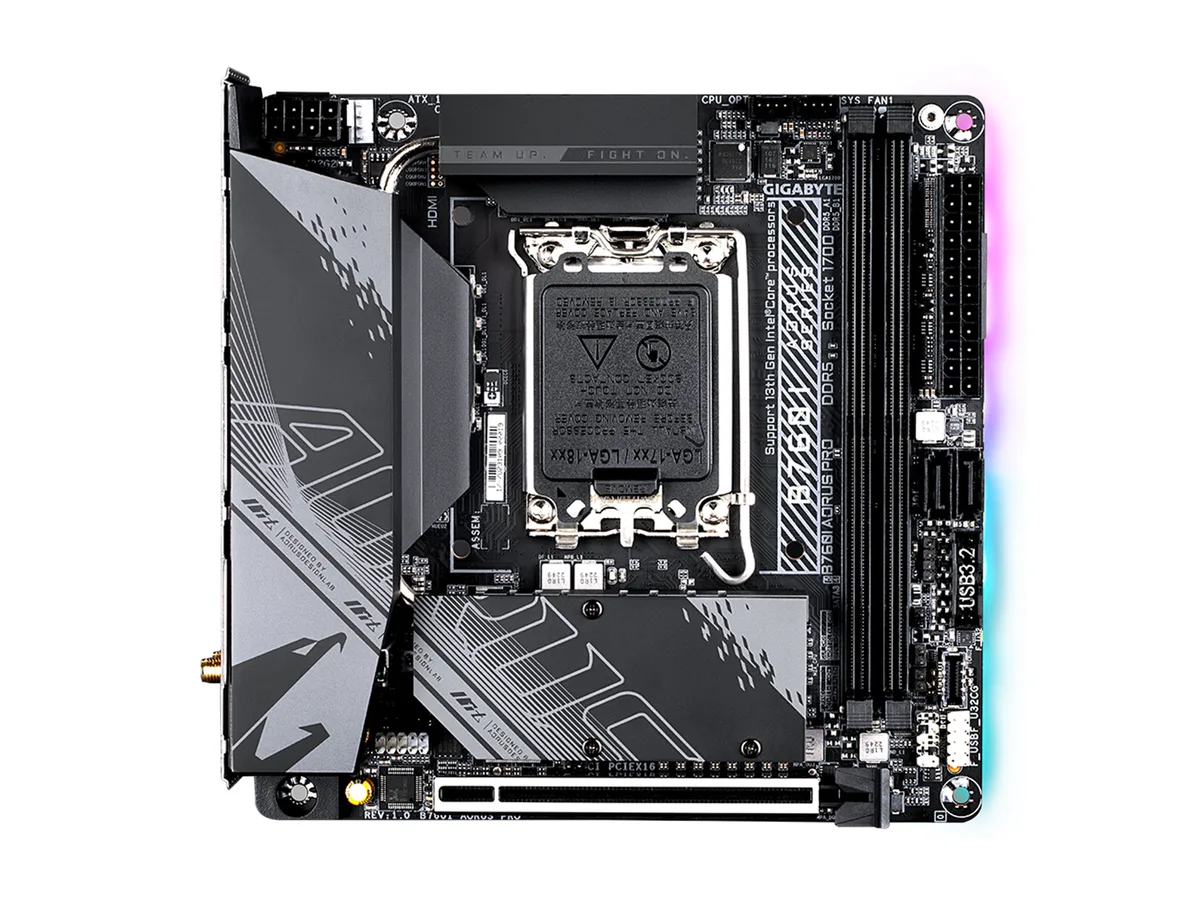

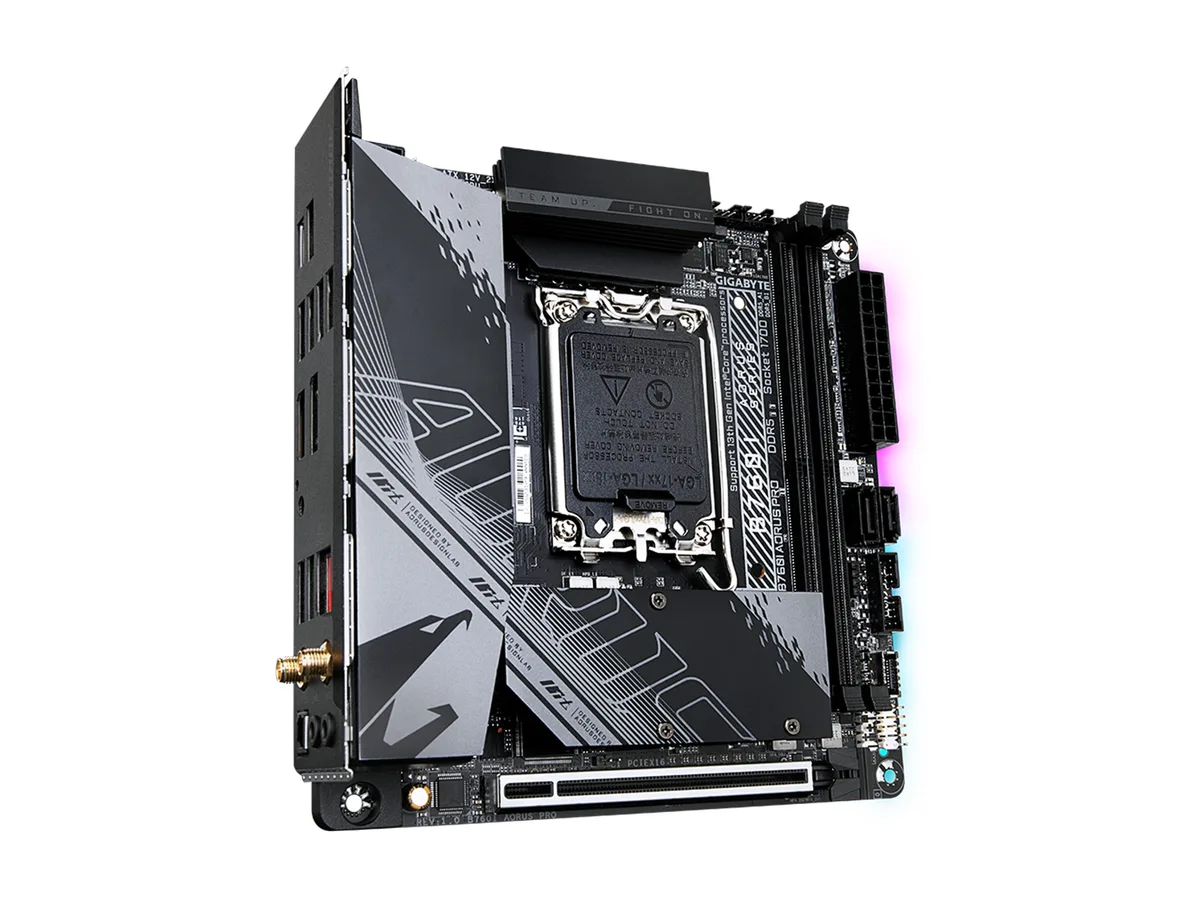

GIGABYTE B760I AORUS PRO Intel motherboard

SKU CH-H53S-9PEZQ MPN B760I AORUS PRO

Mini-ITX board with LGA 1700 socket, dual-channel DDR5 up to 96 GB, two PCIe 4.0 M.2 slots, 2.5 GbE LAN and Wi-Fi 6E

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport for the 13th and 12th Generation Intel Core, Pentium
  • ChipsetIntel B760
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardSupport for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.
  • Maximum Memory Supported96GB
  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR5 memory up to 96 GB with XMP 3.0 profiles
  • Two PCIe 4.0 x4 M.2 slots for high-speed storage expansion
  • Intel 2.5GbE LAN and Wi-Fi 6E for fast wired and wireless connectivity
  • 8+1+1 phase digital VRM with extended heatsinks for stable power delivery

Mini ITX motherboard for 12th and 13th Gen Intel

The GIGABYTE B760I AORUS PRO fits the LGA 1700 socket and the Intel B760 chipset into a Mini ITX form factor. It accepts 12th and 13th Generation Intel Core, Pentium Gold and Celeron processors. Two DDR5 DIMM slots support up to 96 GB of memory in dual channel mode. The board provides one PCIe 4.0 x16 slot, two SATA 6Gb/s ports and two M.2 2280 slots for PCIe 4.0 x4 or x2 SSDs. Intel 2.5GbE LAN and Wi-Fi 6E handle wired and wireless networking.

Thermals noise and power draw in normal use

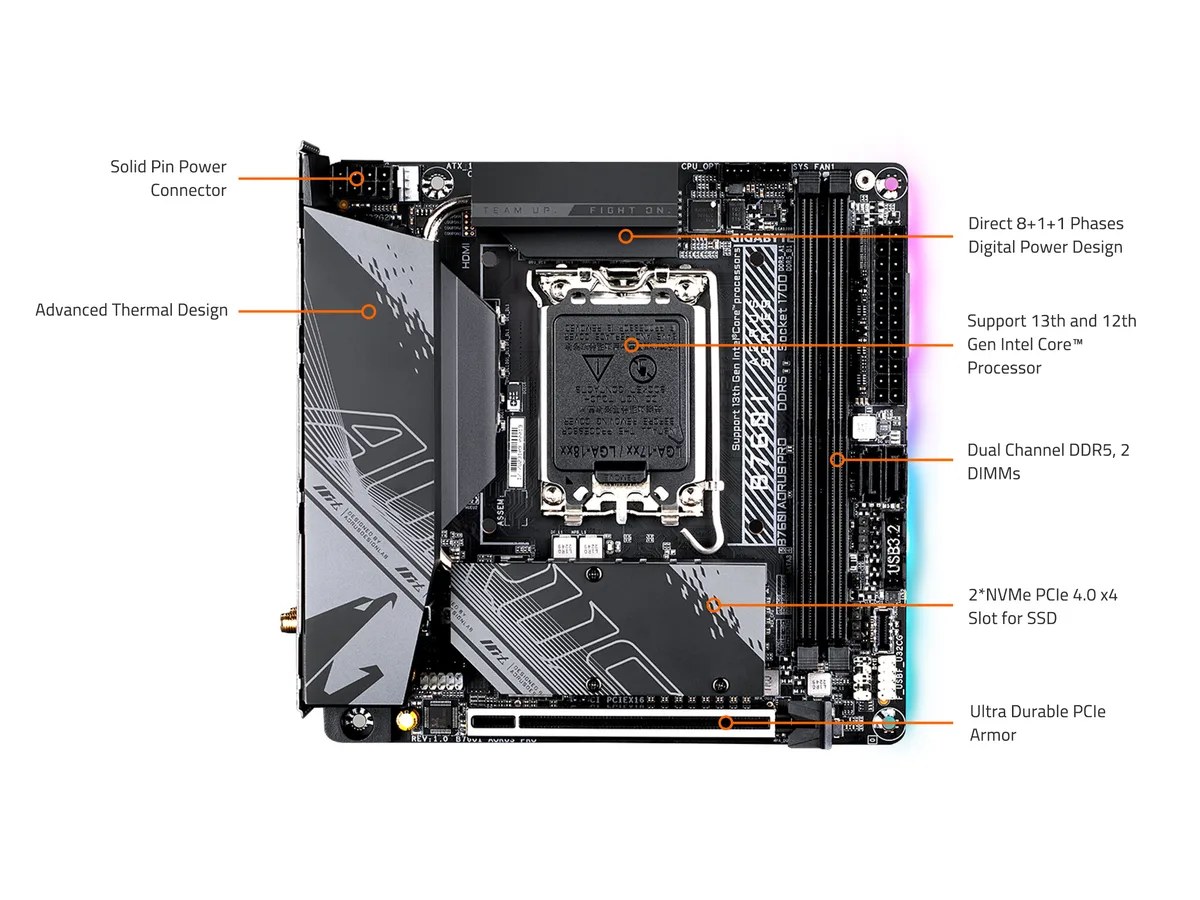

An 8+1+1 phase digital VRM is cooled by an extended MOSFET heatsink and an aluminium baseplate. A multi-layered PCH M.2 heatsink covers the rear M.2 slot. The Realtek audio codec delivers 7.1 channel output. Rear I/O includes a USB 3.2 Gen 2 USB-C port at 10 Gb/s, DisplayPort and HDMI. Front panel headers provide a USB 3.2 Gen 1 USB-C connector. RGB Fusion supports addressable and standard RGB LED strips.

Behaviour under sustained load

The direct-phase VRM and extended heatsink are designed to maintain stable power delivery during prolonged workloads on 12th and 13th Gen CPUs. Dual channel DDR5 with XMP 3.0 profiles up to 8000 MT/s sustains memory throughput without throttling. Both M.2 slots operate at PCIe 4.0 x4 or x2 speeds, and their heatsinks keep SSD temperatures in check during continuous data transfers. Intel 2.5GbE and Wi-Fi 6E preserve network bandwidth over long sessions.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR5 memory up to 96 GB with XMP 3.0 profiles
  • Two PCIe 4.0 x4 M.2 slots for high-speed storage expansion
  • Intel 2.5GbE LAN and Wi-Fi 6E for fast wired and wireless connectivity
  • 8+1+1 phase digital VRM with extended heatsinks for stable power delivery

Specifications

BrandGIGABYTE
ModelB760I AORUS PRO
CPU Socket TypeLGA 1700
CPU TypeSupport for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors*
* Please refer to "CPU Support List" for more information.
ChipsetIntel B760
Number of Memory Slots2x288pin (DDR5)
Memory StandardSupport for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported96GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory Feature2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Express 4.0 x16CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Serial ATA (SATA)2 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAIDRAID 0 and RAID 1 support for SATA storage devices
Audio ChipsetRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Audio Channels7.1 Channels
LAN ChipsetIntel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBLUETOOTH 5.3
Back I/O Ports1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header
Windows 11Supported
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Shipping weight1.32 kg
Package size241 × 229 × 97 mm

Questions about this item

Will a 13th-generation Intel Core processor fit this LGA 1700 socket without a BIOS update?

The board supports 13th and 12th generation Intel Core, Pentium Gold and Celeron processors on the LGA 1700 socket; check the CPU Support List for the exact BIOS version required for each model.

Can I install 96 GB of DDR5 memory using two 48 GB modules?

Yes, the two 288-pin DDR5 slots support up to 96 GB total with a maximum of 48 GB per DIMM in dual-channel mode.

How many M.2 drives can I connect at PCIe 4.0 x4 speeds?

Two M.2 2280 slots are wired for PCIe 4.0 x4 or x2 — one linked to the CPU and one to the chipset on the rear of the board.
