Rectangular green circuit board with silver heatsinks and rear I/O panel

GIGABYTE

GIGABYTE B760M AORUS ELITE AX D4 Intel motherboard

SKU CH-NVMW-SS6S4

Micro-ATX board for 12th and 13th Gen Intel Core CPUs with DDR4 memory, twin M.2 slots, PCIe 4.0, USB 3.2 Gen2x2 Type-C, 2.5GbE LAN and Wi-Fi 6E

  • CPU TypeIntel Core 13th Gen (LGA 1700)
  • Supports 13th and 12th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 5333 MT/s overclocked across four DIMM slots
  • 12+1+1 phase digital VRM with 60A DrMOS for stable power delivery
  • PCIe 4.0 M.2 slots and USB 3.2 Gen2x2 Type-C for high-speed storage and peripherals
  • Intel Wi-Fi 6E and 2.5GbE LAN provide fast wired and wireless networking

LGA 1700 DDR4 motherboard

The GIGABYTE B760M AORUS ELITE AX D4 is a micro-ATX board built around the Intel B760 chipset for 12th and 13th Gen Core processors. It delivers a 12+1+1 phase digital VRM with 60A DrMOS, dual-channel DDR4 support up to 5333 MT/s overclocked, and full MOSFET heatsink coverage on a 6-layer PCB with doubled copper.

Builders keeping DDR4 memory

This board suits builders who want to reuse existing DDR4 kits while moving to a current LGA 1700 platform. It provides two M.2 slots, four SATA ports, 2.5GbE LAN, Intel Wi-Fi 6E, and USB 3.2 Gen 2x2 Type-C on the rear I/O. It is not for buyers who need more than two M.2 drives, require additional full-length PCIe expansion slots, or want a full-size ATX layout with more rear connectivity.

Dual M.2 with PCIe 4.0

The deciding specification is the pair of PCIe 4.0 M.2 slots, which set the maximum number of high-speed NVMe drives you can install directly on the board. With only two such slots, storage-heavy builds that need three or more fast M.2 devices will have to add expansion cards or choose a different motherboard.

Highlights

  • Supports 13th and 12th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 5333 MT/s overclocked across four DIMM slots
  • 12+1+1 phase digital VRM with 60A DrMOS for stable power delivery
  • PCIe 4.0 M.2 slots and USB 3.2 Gen2x2 Type-C for high-speed storage and peripherals
  • Intel Wi-Fi 6E and 2.5GbE LAN provide fast wired and wireless networking

Specifications

CPU TypeIntel Core 13th Gen (LGA 1700)

Questions about this item

Will this board accept my existing DDR4 memory kit?

The board runs dual-channel DDR4 across four DIMM slots and supports speeds from 2133 up to 5333 MT/s when overclocked.

Can I add two NVMe drives without losing the PCIe x16 slot?

Yes, two M.2 slots are wired to PCIe 4.0 and the single x16 slot remains available for a graphics card.

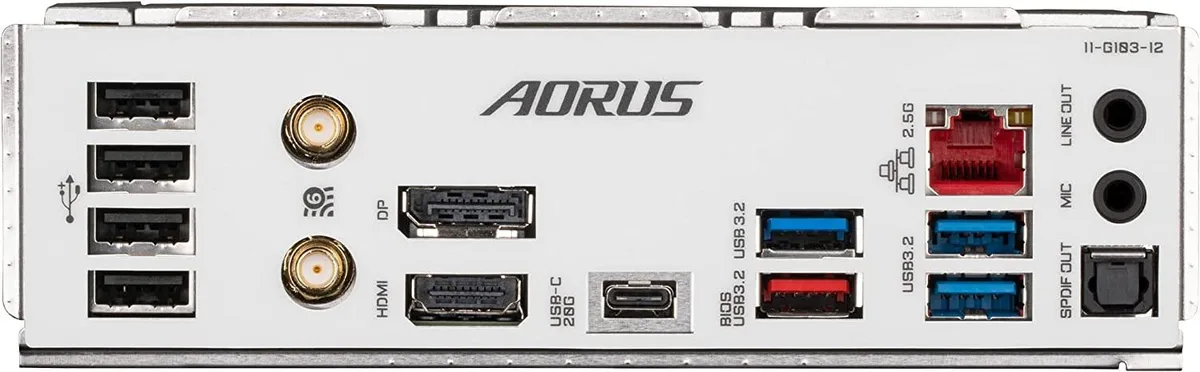

Does the rear I/O include a high-speed USB-C port for fast external storage?

One USB 3.2 Gen 2x2 Type-C port on the back panel delivers up to 20 Gbps for compatible drives.
