Green rectangular mATX board with silver CPU socket cover, four black DDR5 slots, large silver heatsink, and black PCIe slots

GIGABYTE

GIGABYTE B760M C Intel motherboard LGA 1700 DDR5 M-ATX

SKU CH-GQM7-APR07 MPN B760M C

Micro-ATX board for 12th and 13th Gen Intel Core with four DDR5 slots, PCIe 4.0 x16, dual M.2 and USB 3.2 Gen 2 Type-C

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 680
  • Maximum Memory Supported192GB

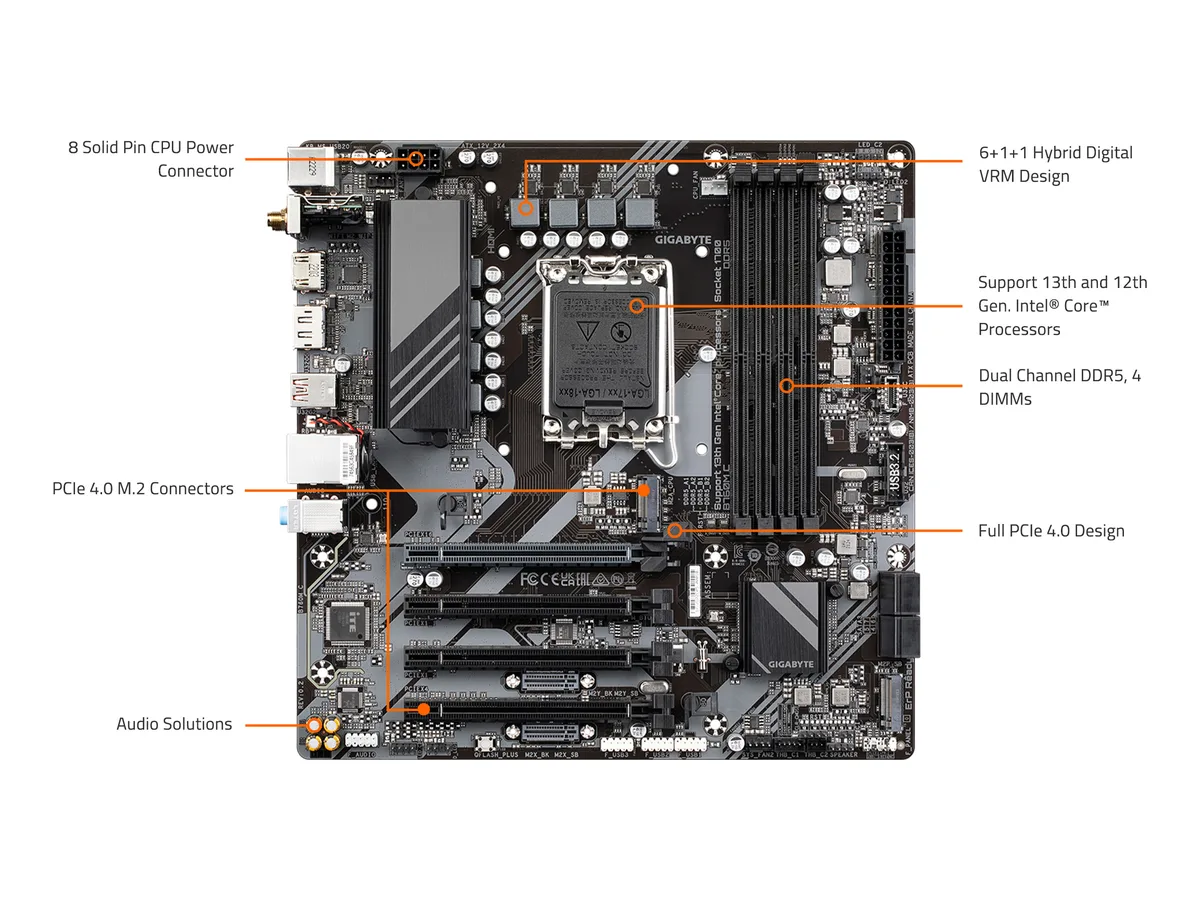

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Four DDR5 DIMM slots enable up to 192 GB dual-channel memory with XMP 3.0
  • 6+1+1 hybrid digital VRM and enlarged MOSFET heatsink deliver stable power for demanding workloads
  • PCIe 4.0 x16 slot plus two M.2 connectors provide high-speed graphics and storage expansion
  • 1 GbE LAN with Realtek Wi-Fi 802.11 ac and USB 3.2 Gen 2 Type-C for versatile connectivity

Socket LGA 1700 DDR5 mATX board

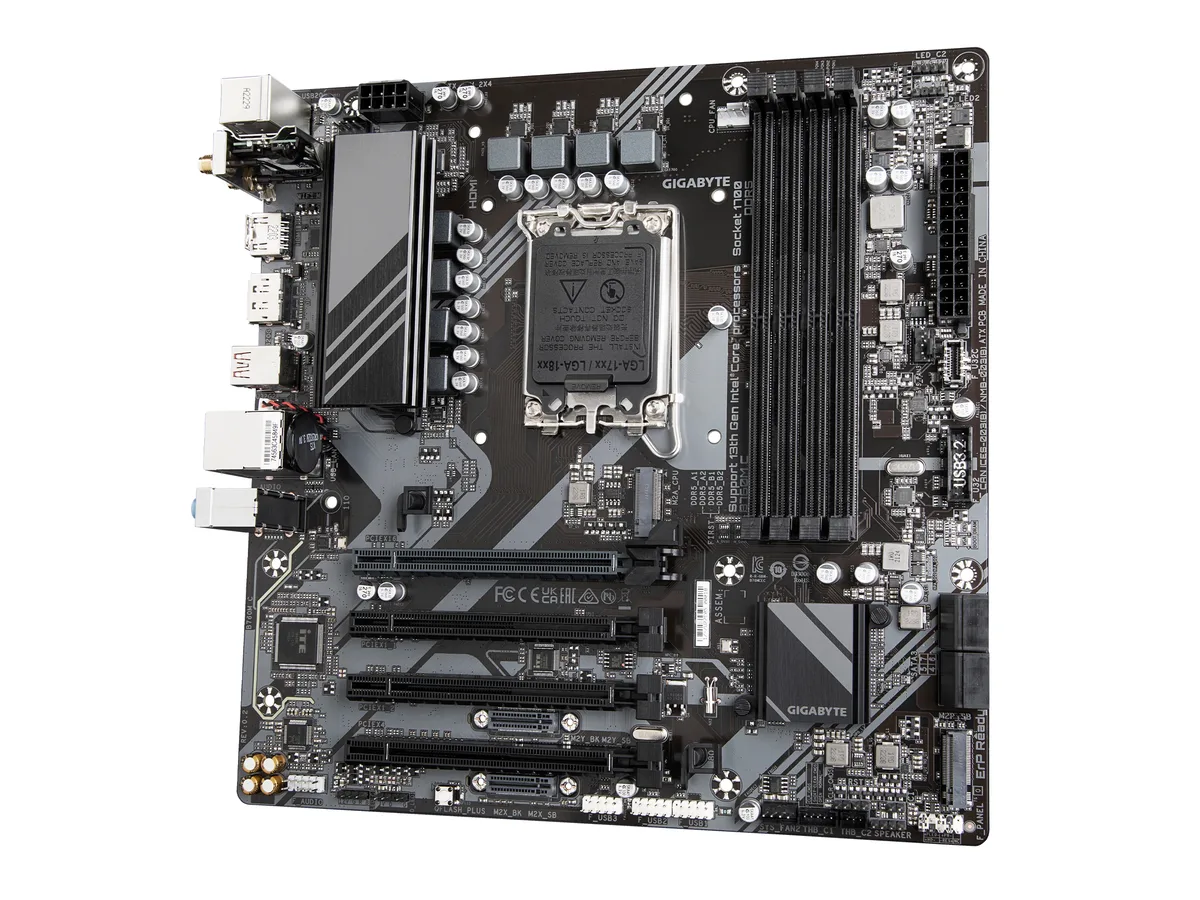

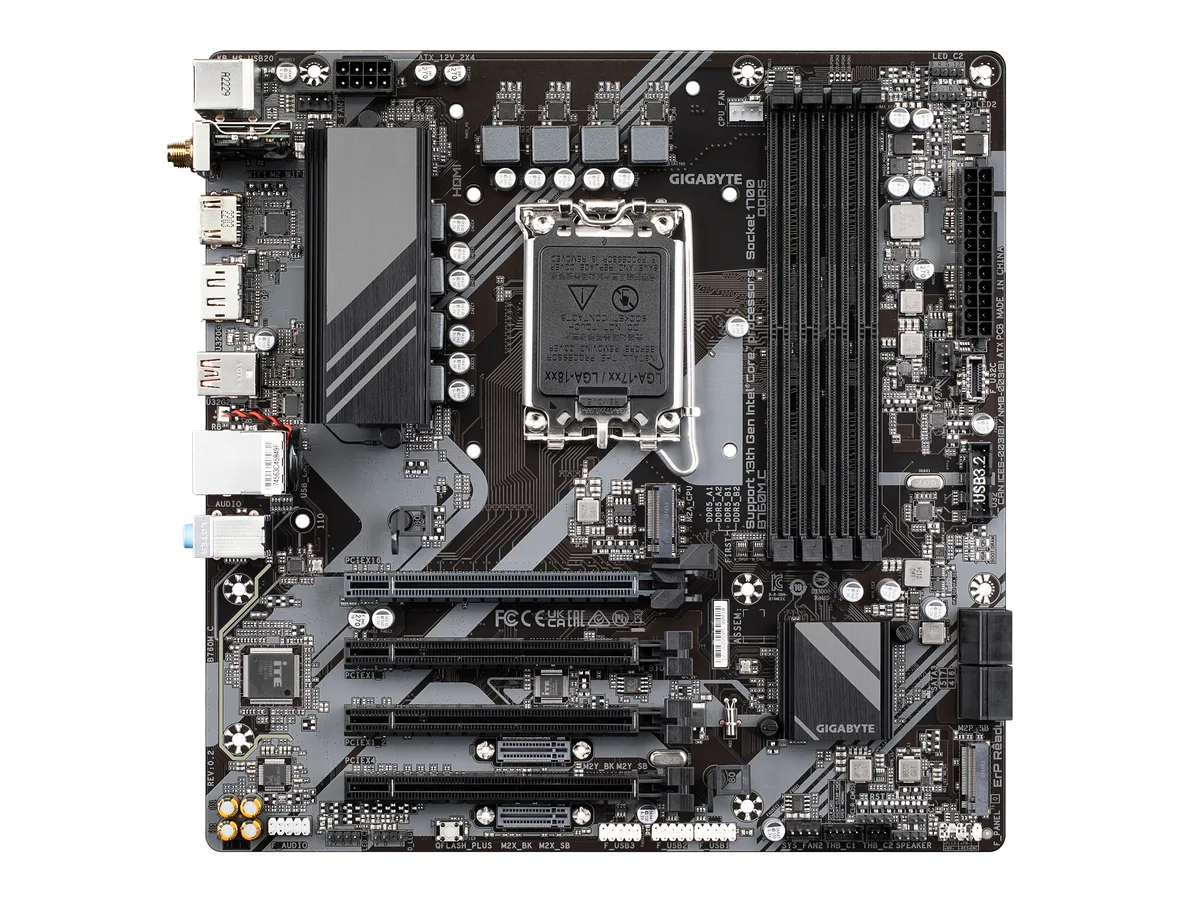

The GIGABYTE B760M C is an Intel B760 chipset motherboard built for LGA 1700 processors from the 12th and 13th generations. It fits micro-ATX cases and provides four 288-pin DDR5 slots. The board targets builders who want a compact platform with modern memory support.

DDR5 memory ceiling 192 GB

Four slots accept dual-channel DDR5 kits up to a total of 192 GB. Speeds range from 4800 MT/s at JEDEC up to 7600 MT/s with Intel XMP 3.0 profiles. Un-buffered ECC and non-ECC modules in 1Rx8, 2Rx8 or 1Rx16 organisations are all supported.

Primary x16 slot plus three M.2 drives

The top PCI Express x16 slot runs at PCIe 4.0 x16 for a graphics card. Two chipset M.2 sockets and one CPU-attached M.2 socket each take 2280 or 22110 NVMe drives at PCIe 4.0 x4 or x2. Four SATA 6 Gb/s ports remain for additional storage.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Four DDR5 DIMM slots enable up to 192 GB dual-channel memory with XMP 3.0
  • 6+1+1 hybrid digital VRM and enlarged MOSFET heatsink deliver stable power for demanding workloads
  • PCIe 4.0 x16 slot plus two M.2 connectors provide high-speed graphics and storage expansion
  • 1 GbE LAN with Realtek Wi-Fi 802.11 ac and USB 3.2 Gen 2 Type-C for versatile connectivity

Specifications

BrandGIGABYTE
ModelB760M C
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Express 4.0 x161 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)(PCB rev. 1.0)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x41 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
PCI Express x12 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 3.0 x1 SSD support) (M2Y_SB, M2X_SB)
SATA RAID0/1/5/10
Audio Channels7.1 Channels
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ac
BluetoothBluetooth 4.2

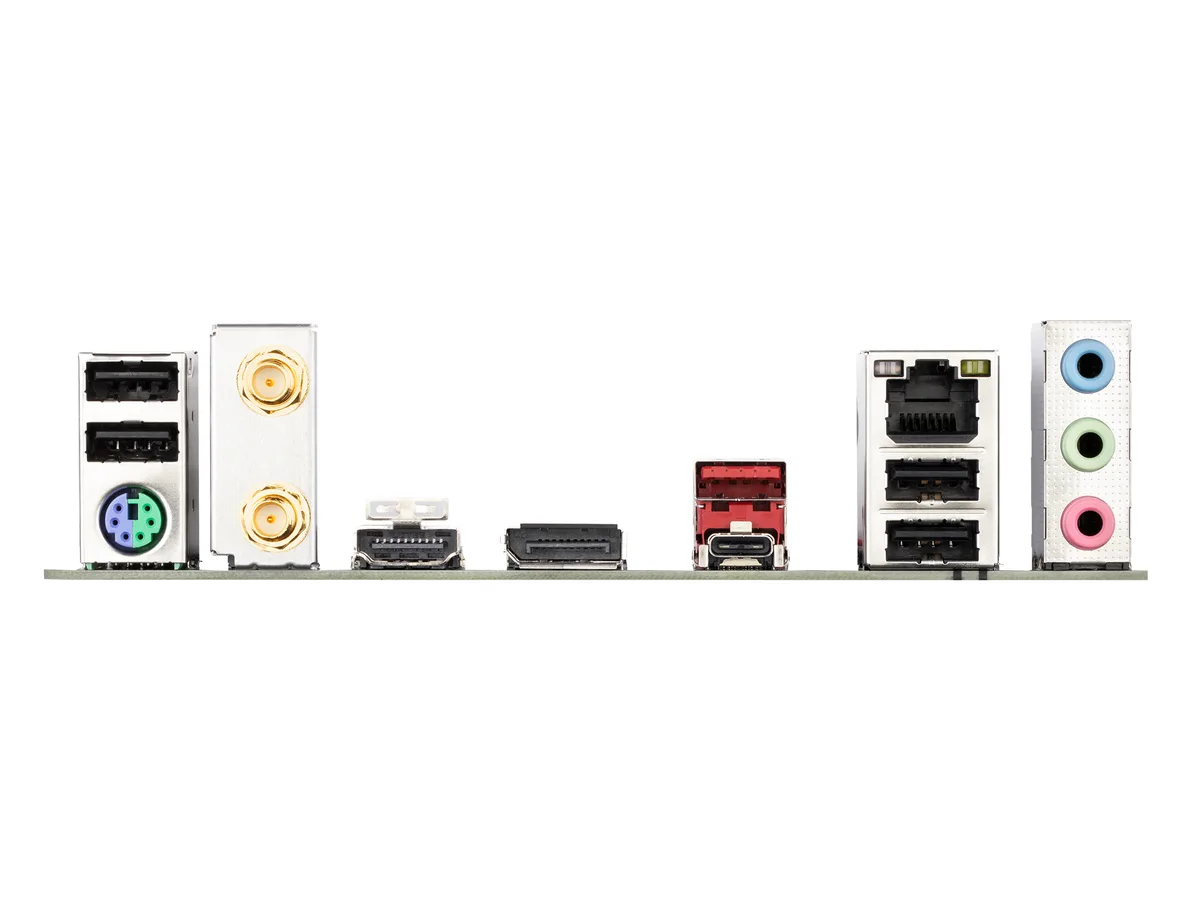

Back I/O Ports1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (1T1R)
1 x HDMI port
1 x DisplayPort
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
2 x Thunderbolt add-in card connectors
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Shipping weight1.15 kg
Package size270 × 268 × 68 mm

Questions about this item

What does the 7600(O.C.) DDR5 speed mean once the board is built?

The 7600 MT/s figure is an overclocked profile reached through Intel XMP 3.0 modules; the board runs at 4800 MT/s by default and scales up when XMP is enabled in BIOS.

How does the PCIe 4.0 x16 slot limit a graphics card in practice?

The primary PCIEX16 slot runs at PCIe 4.0 x16, so a modern GPU uses the full 4.0 bandwidth; the second x16 slot is wired for PCIe 3.0 x4 and the two x1 slots run at PCIe 3.0 x1.

What clearance does the M-ATX form factor and DDR5 layout need in a case?

The board measures standard micro-ATX dimensions with four 288-pin DDR5 slots along the top edge and an enlarged MOSFET heatsink, so allow clearance for tall memory modules and CPU cooler height.
