Green rectangular mATX motherboard with silver heatsinks and black PCB

GIGABYTE

GIGABYTE B760M C V2 Intel motherboard

SKU CH-BM10-R9EBS MPN B760M C V2

An LGA 1700 micro-ATX board with four DDR5 slots up to 192 GB, triple M.2 sockets, PCIe 4.0 x16, USB 3.2 Gen 2x2 Type-C, Wi-Fi 6 and 1 GbE LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport for the 14th, 13th, and 12th Generation Intel Core,
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.
  • Maximum Memory Supported192GB
  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Four DDR5 DIMM slots enable up to 192 GB of dual-channel memory
  • Three M.2 connectors provide PCIe 4.0 x4 NVMe storage expansion
  • USB 3.2 Gen 2x2 Type-C port delivers 20 Gbps data throughput
  • Wi-Fi 6 and 1 GbE LAN give reliable wireless and wired networking

Intel LGA 1700 DDR5 Platform

The GIGABYTE B760M C V2 is a Micro-ATX motherboard built for Intel Core, Pentium Gold and Celeron processors from the 12th, 13th and 14th generations. It uses the Intel B760 chipset to deliver a compact foundation for gaming or productivity systems. Four DDR5 DIMM slots provide the memory backbone for modern workloads.

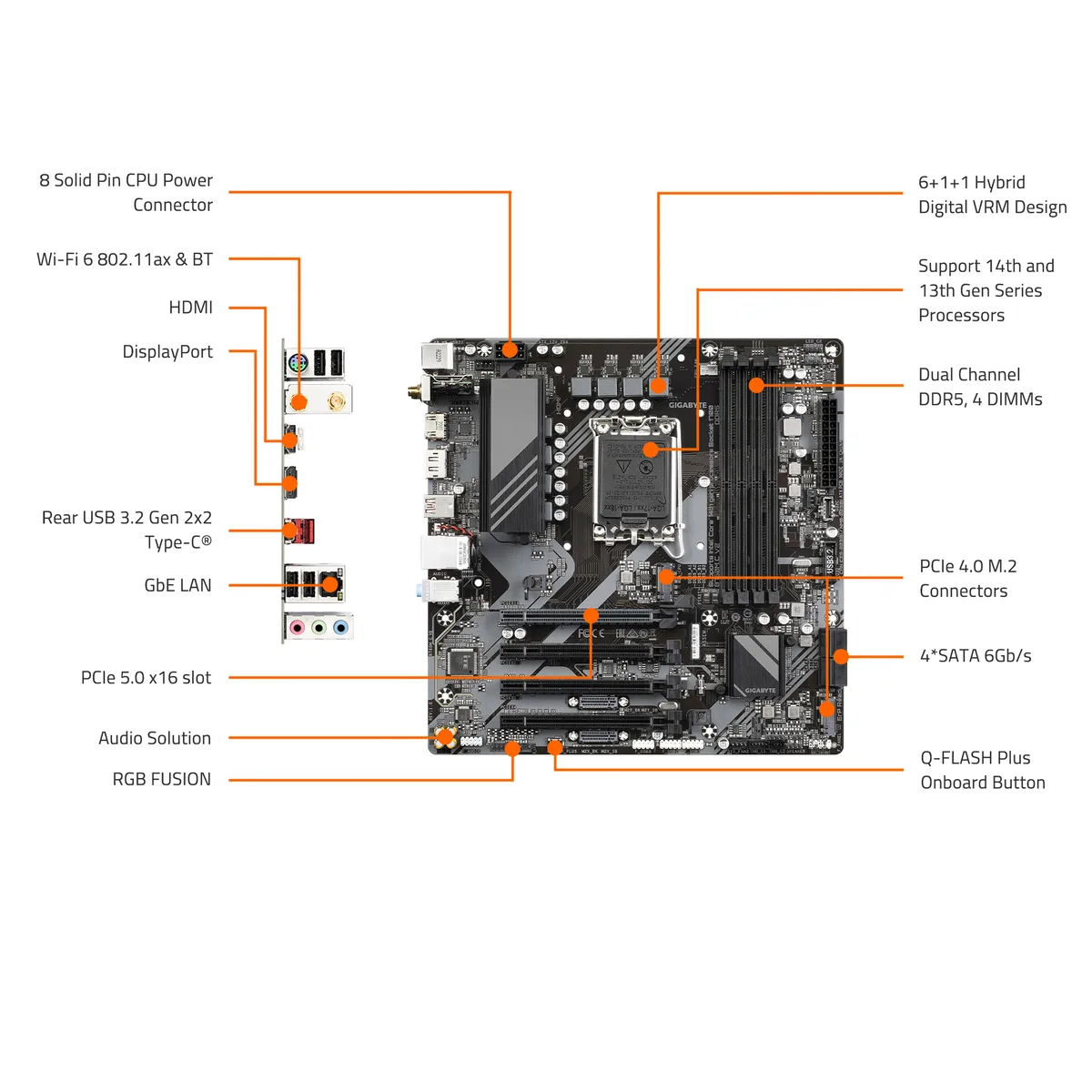

6+1+1 Hybrid VRM and Q-Flash Plus

A 6+1+1 hybrid digital VRM design supplies stable power to the CPU under sustained loads. An enlarged MOSFET heatsink dissipates heat without active cooling. Q-Flash Plus lets you update the BIOS using a USB drive without installing a processor, memory or graphics card.

192 GB Memory Ceiling and Triple M.2

The board supports up to 192 GB of DDR5 across four slots, with a single-DIMM limit of 48 GB and XMP 3.0 profiles reaching 7600 MT/s. Three M.2 connectors accept 2280 or 22110 NVMe SSDs, two wired to the chipset at PCIe 4.0 x4 and one CPU-attached at PCIe 4.0 x4. Four SATA 6Gb/s ports add bulk storage, while USB 3.2 Gen 2x2 Type-C, 1 GbE LAN and Wi-Fi 6 handle external throughput.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Four DDR5 DIMM slots enable up to 192 GB of dual-channel memory
  • Three M.2 connectors provide PCIe 4.0 x4 NVMe storage expansion
  • USB 3.2 Gen 2x2 Type-C port delivers 20 Gbps data throughput
  • Wi-Fi 6 and 1 GbE LAN give reliable wireless and wired networking

Specifications

BrandGIGABYTE
ModelB760M C V2
CPU Socket TypeLGA 1700
CPU TypeSupport for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory Feature4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Express 4.0 x16CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) (PCB rev. 1.0)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 3.0 x1 SSD support) (M2Y_SB, M2X_SB)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio ChipsetRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels7.1 Channels
LAN ChipsetRealtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Max LAN Speed1Gbps
Wireless LANRealtek Wi-Fi RTL8851BE
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
BLUETOOTH .32
Support for 11ax 80MHz wireless
(Actual data rate may vary depending on environment and equipment.)
BluetoothYes

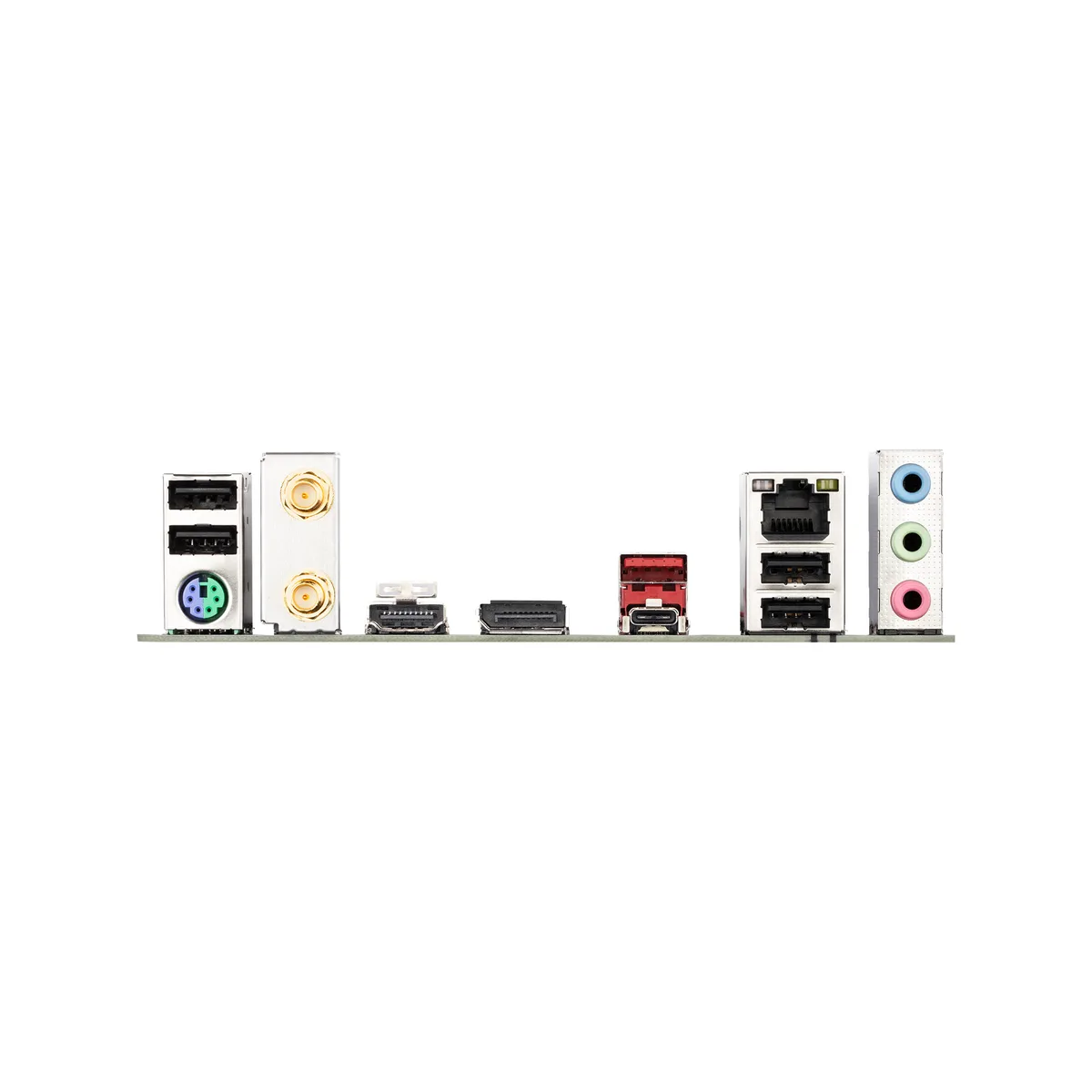

Back I/O Ports1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (1T1R)
1 x HDMI port
1 x DisplayPort
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
Other Connectors1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header
Windows 11Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Shipping weight1.13 kg
Package size269 × 267 × 66 mm

Questions about this item

Will this board take a 14th Gen Intel Core i7 and 192 GB of DDR5?

Yes. The LGA 1700 socket supports 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron processors. Four DDR5 slots accept up to 192 GB total, with a 48 GB per-DIMM limit.

Can I run two NVMe SSDs at PCIe 4.0 speeds?

Two M.2 slots are wired for PCIe 4.0 x4 or x2: one from the CPU (M2A_CPU, 22110/2280) and one from the chipset (M2P_SB, 2280). Both support NVMe drives at 4.0 speeds.

Does the rear I/O include a USB 3.2 Gen 2x2 Type-C port?

Yes. The rear panel provides a USB 3.2 Gen 2x2 Type-C connection alongside the other USB ports, 1 GbE LAN, Wi-Fi 6 and audio jacks.
