A dark green micro-ATX board with silver heatsinks, four DDR5 slots, a reinforced PCIe 5.0 x16 slot and rear I/O shield

GIGABYTE

GIGABYTE B760M DS3H WIFI6E GEN5 Intel motherboard

SKU CH-JW19-0VGGW MPN B760M DS3H WIFI6E GEN5

Micro-ATX board for LGA 1700 CPUs with DDR5 up to 7600, PCIe 5.0 x16, dual M.2, 2.5GbE LAN, WiFi 6E and BLUETOOTH 5.3

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.
  • Maximum Memory Supported256GB
  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR5 memory up to 256 GB across four 288-pin slots
  • PCIe 5.0 x16 slot plus two PCIe 4.0 M.2 connectors for high-speed storage
  • 5 GbE LAN with WiFi 6E and BLUETOOTH 5.3 for fast wireless connectivity
  • DIY-friendly WIFI EZ-Plug and PCIe EZ-Latch simplify installation and upgrades

LGA 1700 DDR5 motherboard for Intel Core

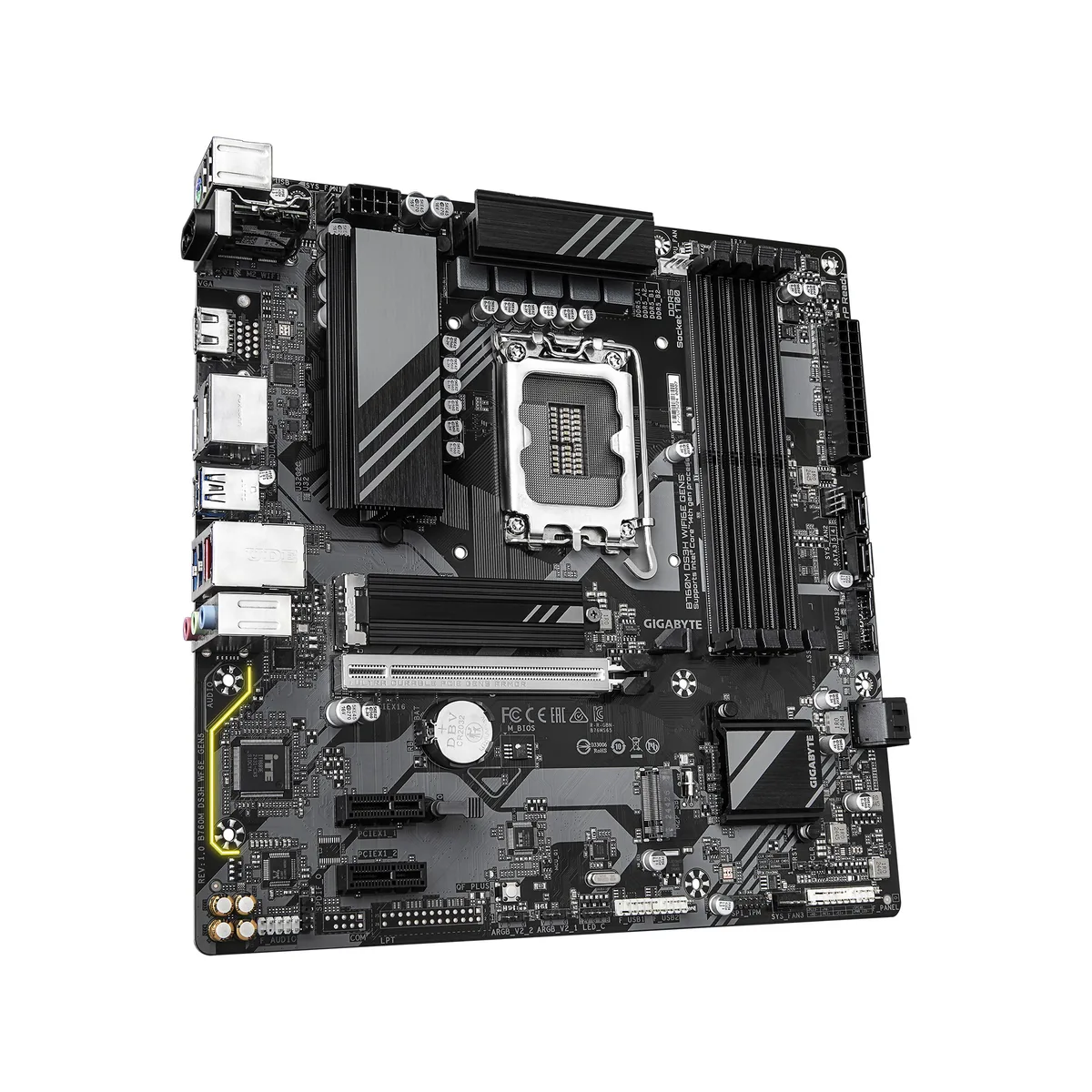

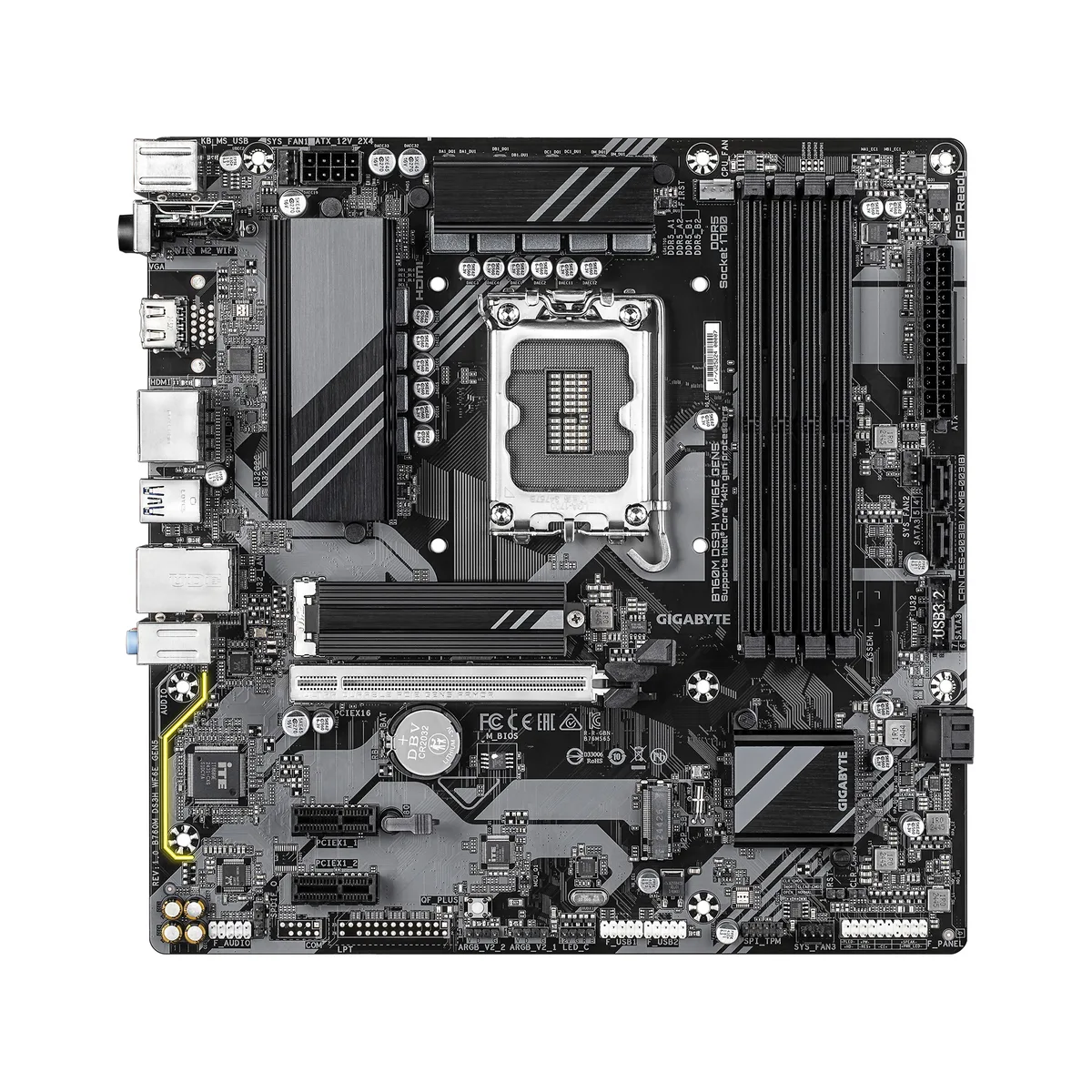

This Intel B760 motherboard uses the LGA 1700 socket and supports 12th, 13th and 14th generation Core, Pentium Gold and Celeron processors. Four 288‑pin DDR5 slots accept up to 256 GB in dual‑channel mode with XMP 3.0 profiles. It is aimed at builders who want a compact M‑ATX board with modern memory and connectivity.

Hybrid 6+2+1 phase VRM with M.2 thermal guard

A hybrid 6+2+1 phase digital VRM supplies the CPU while a heatsink covers the power stages. An M.2 thermal guard sits over the primary slot to keep drive temperatures in check. The board draws power through a solid‑pin UD connector and runs its 2.5 GbE LAN, Wi‑Fi 6E and Bluetooth 5.3 without extra cooling noise in typical workloads.

PCIe 5.0 x16 and USB 3.2 Gen 2 Type‑C upgrade

The single PCIe 5.0 x16 slot doubles lane bandwidth to 32 GT/s compared with 16 GT/s on PCIe 4.0, benefiting newer graphics cards and high‑speed storage. A rear USB 3.2 Gen 2 Type‑C port adds 10 Gbps throughput. The jump is worthwhile when moving from a PCIe 4.0 platform or when adding a Gen5 GPU or SSD that can use the extra bandwidth.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR5 memory up to 256 GB across four 288-pin slots
  • PCIe 5.0 x16 slot plus two PCIe 4.0 M.2 connectors for high-speed storage
  • 5 GbE LAN with WiFi 6E and BLUETOOTH 5.3 for fast wireless connectivity
  • DIY-friendly WIFI EZ-Plug and PCIe EZ-Latch simplify installation and upgrades

Specifications

BrandGIGABYTE
ModelB760M DS3H WIFI6E GEN5
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x12 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBLUETOOTH 5.3

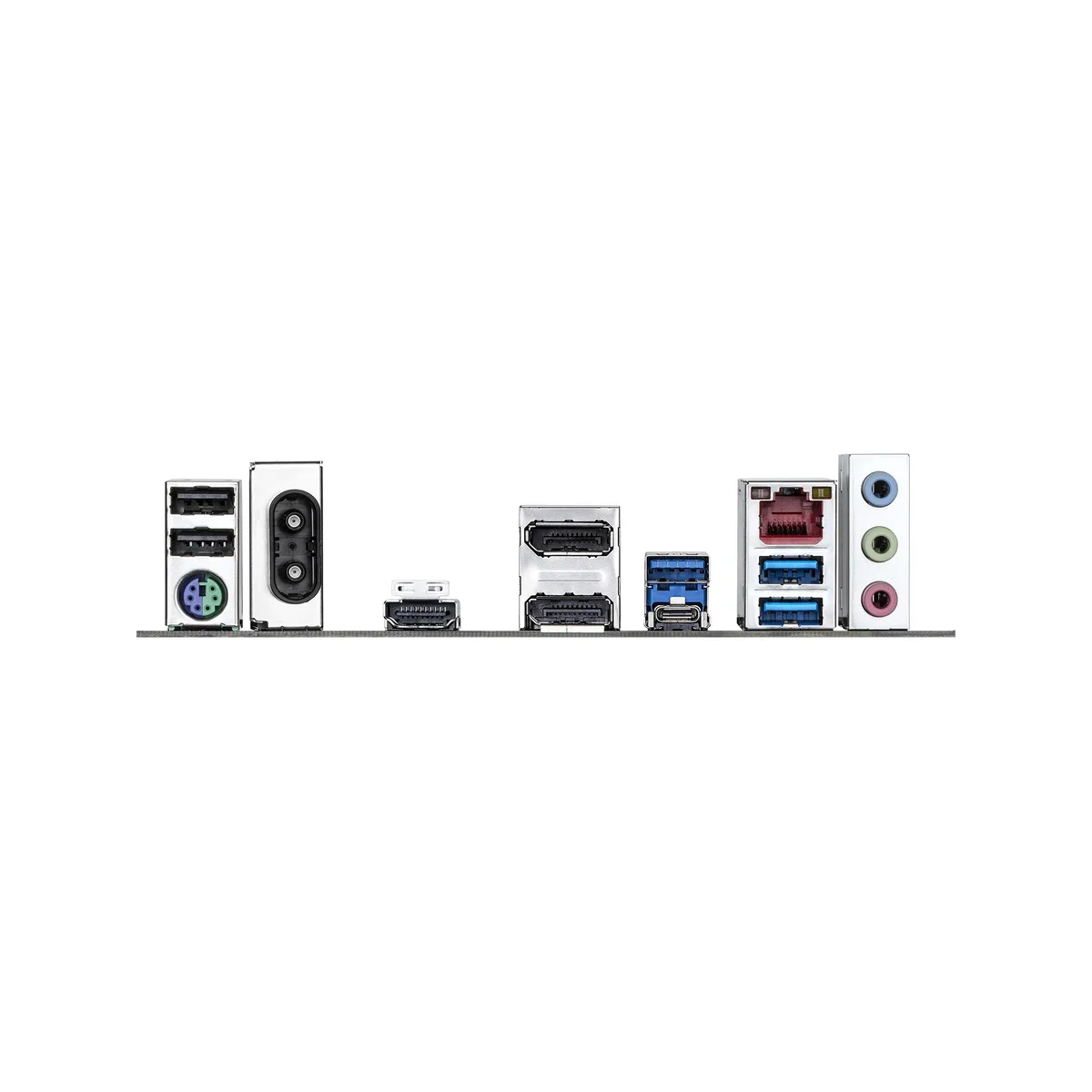

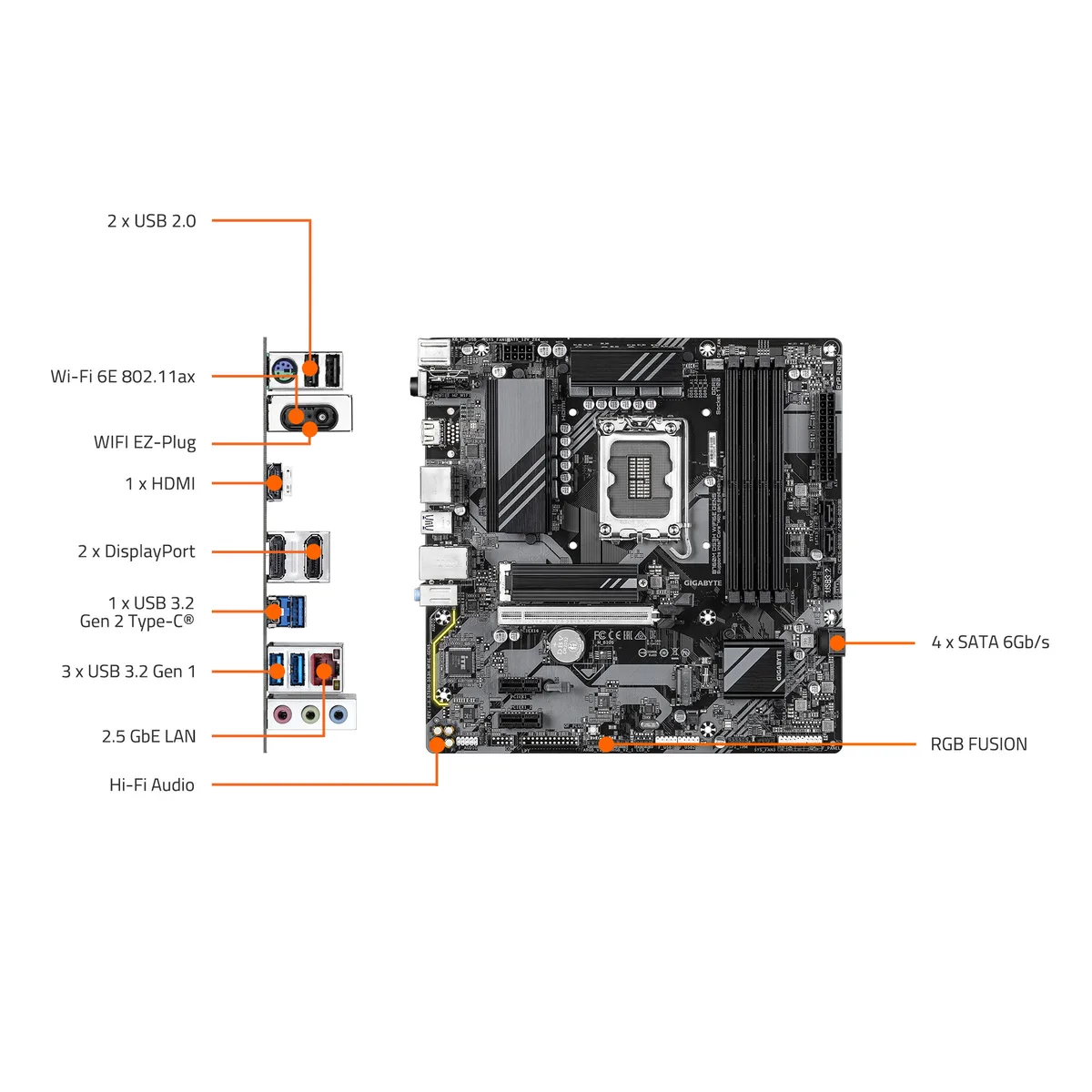

Back I/O Ports2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
2 x DisplayPorts (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
3 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
BIOS Feature1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Shipping weight1.13 kg
Package size276 × 269 × 70 mm

Questions about this item

How do I install the Wi-Fi 6E antennas and what step is often missed?

Screw the two supplied antennas onto the gold 2T2R connectors on the rear I/O; the step often missed is tightening both until the base sits flush so the signal path is complete.

What maintenance or replacement will the board need later?

The only user-replaceable part with a finite lifespan is the BIOS backup battery; when the system loses time or settings after power-off, replace it with the same coin-cell type.

What limit appears first under sustained load with a high-wattage CPU?

The hybrid 6+2+1 phase VRM heatsink is the first thermal bottleneck; prolonged all-core loads will throttle before the PCIe 5.0 slot or DDR5 memory reaches its ceiling.
