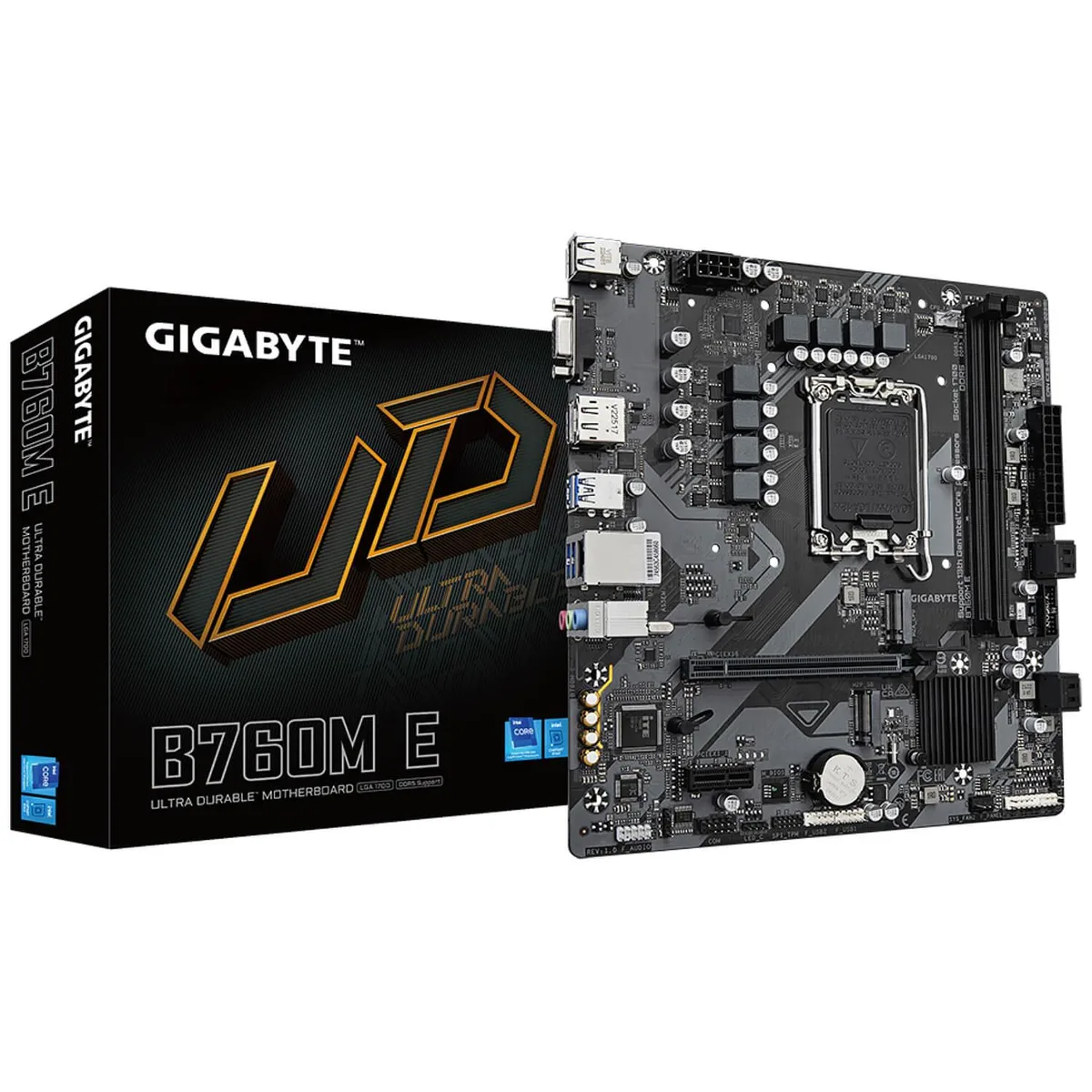

Micro-ATX motherboard with black PCB, silver heatsinks, LGA1700 socket, two DDR5 slots, PCIe x16 slot, dual M.2 covers

GIGABYTE

GIGABYTE B760M E 2 Intel motherboard LGA1700 DDR5

SKU CH-STWF-8HWD5

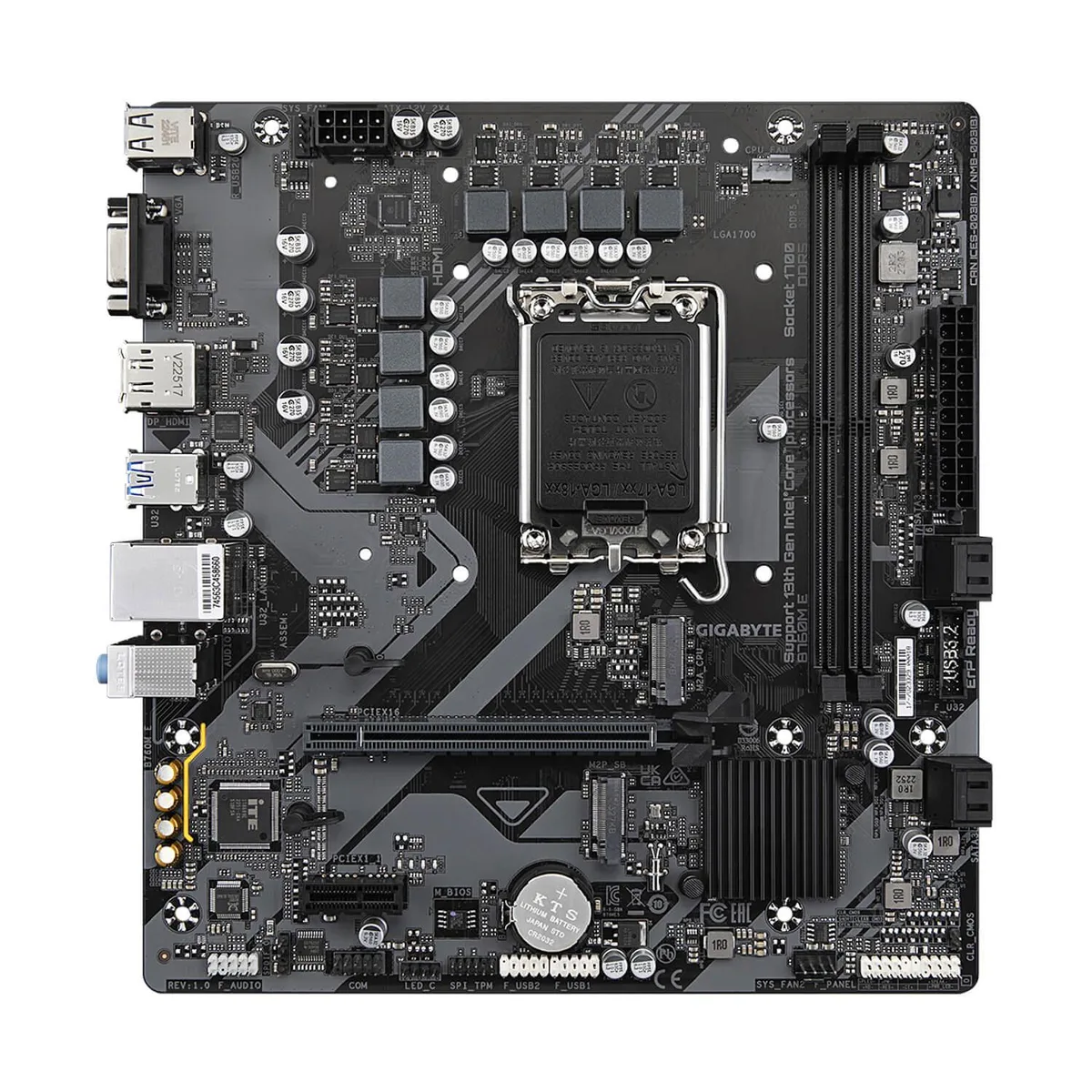

Micro-ATX board with a 6+1+1 phase VRM for 12th, 13th and 14th Gen Intel CPUs, two DDR5 slots up to 128 GB, two PCIe 4.0 M.2 sockets, a PCIe 4.0 x16 slot with quick-release, GbE LAN and DisplayPort.

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA1700 socket
  • Hybrid 6+1+1 phase digital VRM delivers stable power for demanding workloads
  • Dual-channel DDR5 with XMP support up to 7200 MT/s for high-speed memory performance
  • Two PCIe 4.0 x4 M.2 connectors enable fast next-generation storage expansion

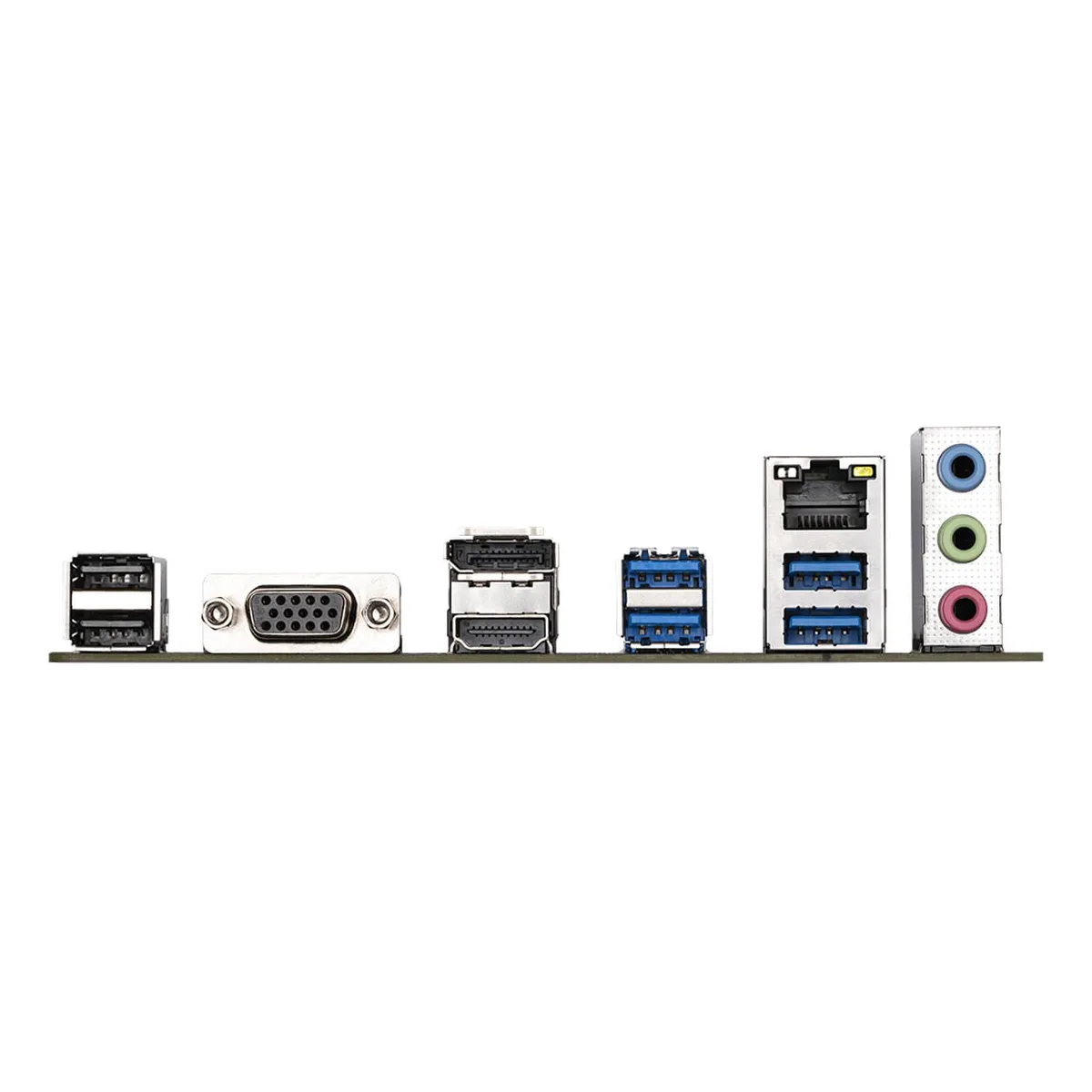

  • DisplayPort, HDMI and D-Sub outputs drive multiple displays up to 4096x2304 resolution

B760M E 2 DDR5 micro-ATX motherboard

This board uses the Intel B760 chipset and an LGA1700 socket for 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron processors. It provides two DDR5 DIMM slots with dual-channel architecture and a 6+1+1 phase digital VRM design. Video outputs include D-Sub, DisplayPort 1.2 and HDMI for integrated graphics.

Check CPU cooler clearance and DDR5 memory kit

Verify that your chosen LGA1700 cooler fits the micro-ATX layout around the VRM heatsinks. You must buy DDR5 modules; the board has only two slots supporting up to 128 GB total and speeds from 4800 to 7200 MT/s via XMP. Ensure your power supply has the required 12 V and 24-pin connectors for this platform.

Suits compact builds with integrated graphics

Builders wanting a small-form-factor system using the CPU's built-in graphics will appreciate the triple video outputs and two PCIe 4.0 M.2 slots. Users needing four memory slots, additional PCIe expansion slots or discrete graphics as a primary focus should consider a full-size ATX alternative.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA1700 socket
  • Hybrid 6+1+1 phase digital VRM delivers stable power for demanding workloads
  • Dual-channel DDR5 with XMP support up to 7200 MT/s for high-speed memory performance
  • Two PCIe 4.0 x4 M.2 connectors enable fast next-generation storage expansion
  • DisplayPort, HDMI and D-Sub outputs drive multiple displays up to 4096x2304 resolution

Specifications

No published specifications for this item yet.

Questions about this item

What comes in the box with the GIGABYTE B760M E 2 motherboard, and which parts must I source separately?

The board ships with the motherboard itself, an I/O shield, a driver disc and the usual paperwork; DDR5 memory, an LGA1700 CPU cooler and any expansion cards or storage drives are not included and must be purchased separately.

Which DDR5 speed should I choose for the B760M E 2 given the listed supported data rates?

The board validates DDR5 from 4800 MT/s up to 7200 MT/s (overclocked) in 200 MT/s steps; pick a kit that matches your CPU's memory controller and your budget, knowing that speeds above 4800 MT/s require XMP.

What does the 6+1+1 phase digital VRM mean for daily use with a 12th, 13th or 14th Gen Intel Core processor?

The hybrid 6+1+1 phase design delivers clean power to the CPU cores, integrated graphics and system agent, helping maintain stable boost clocks during sustained workloads without throttling.
