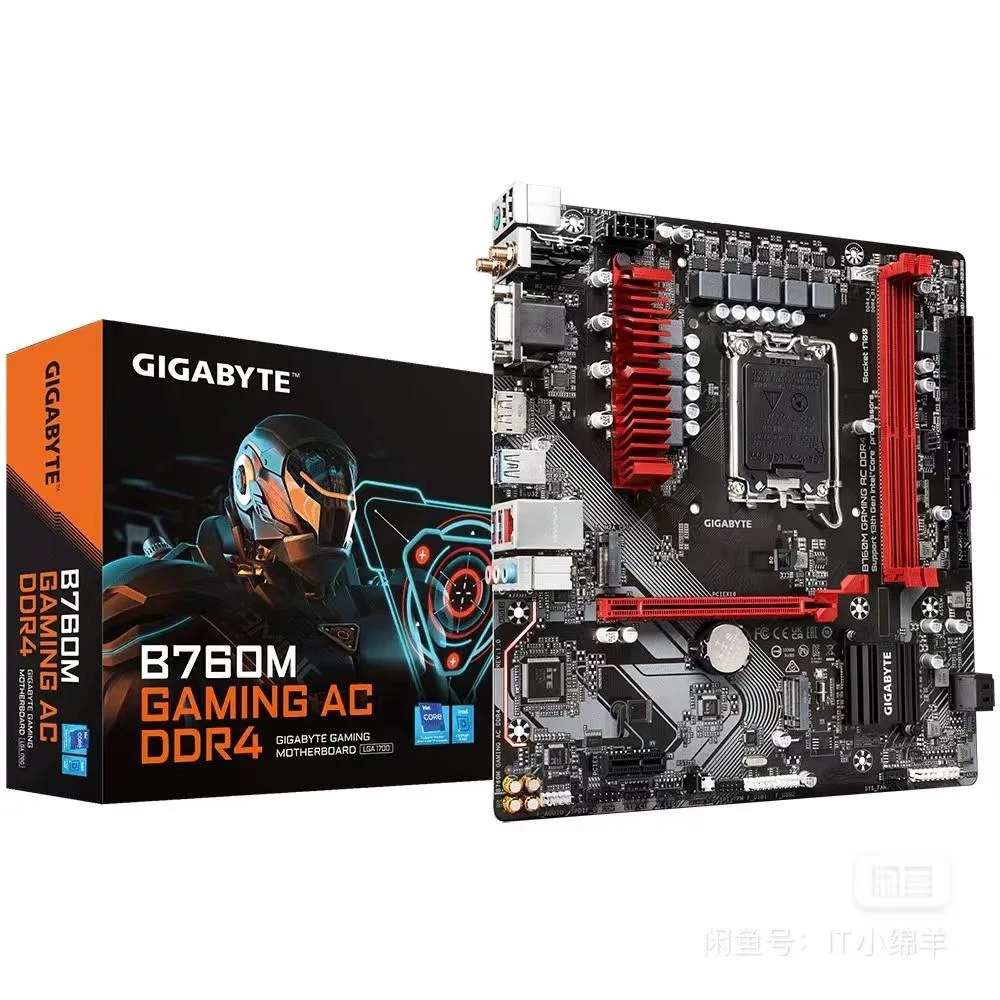

Micro-ATX motherboard, black PCB with silver heatsinks and rear I/O shield

GIGABYTE

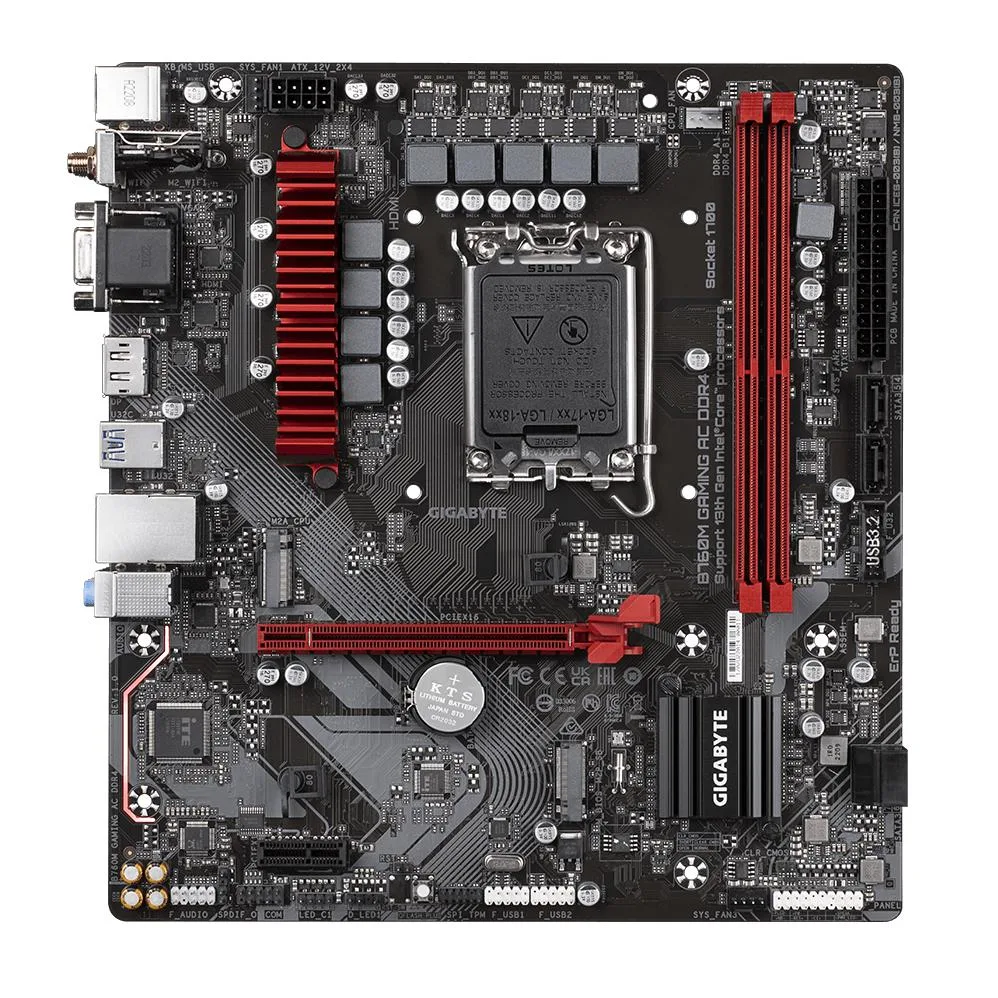

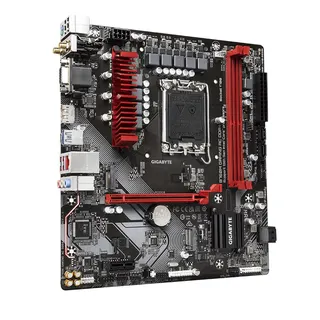

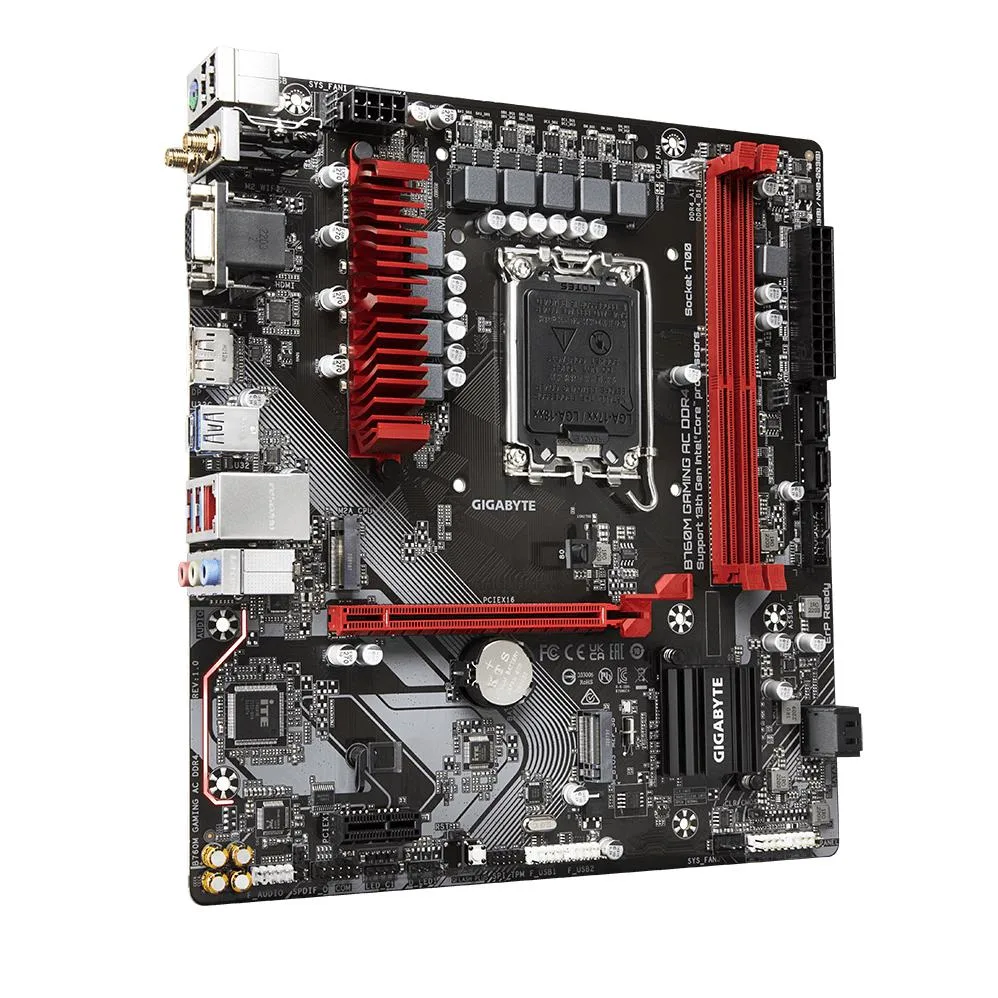

GIGABYTE B760M Gaming AC WIFI DDR4 Intel motherboard

SKU CH-995C-0XG41

Supports 12th and 13th Gen Intel LGA 1700 CPUs with 6+2+1 phase power, dual-channel DDR4 up to 64 GB, two PCIe 4.0 M.2 slots, 2.5 GbE LAN, Wi-Fi 5, USB 3.2 Gen 1 Type-C, and VGA, HDMI, DP outputs

  • CPU TypeIntel Core 13th Gen (LGA 1700)
  • Supports 13th and 12th generation Intel processors via LGA 1700 socket
  • 6+2+1 phase power design delivers stable voltage for strong performance
  • Dual-channel DDR4 with XMP support up to 5333 MHz OC and 64 GB capacity
  • Two PCIe 4.0 x4 M.2 slots provide next-generation storage speed
  • 5 GbE LAN plus WIFI 5 give high-speed wired and wireless networking

Socket and Chipset

This board uses the Intel LGA 1700 socket paired with the B760 Express chipset. It accepts 12th and 13th generation Intel Core, Pentium Gold and Celeron processors. Two DDR4 DIMM slots support dual-channel memory up to 64 GB with XMP profiles.

Power Delivery and Cooling

A 6+2+1 phase power design feeds the CPU during extended workloads. Smart Fan 6 monitors several onboard sensors and can stop compatible fans completely when temperatures allow. The hybrid fan headers adapt to both PWM and voltage-controlled coolers.

Storage and Display Limits

Two PCIe 4.0 x4 M.2 slots provide high-speed storage bandwidth. Rear video outputs include VGA at 1920x1200, HDMI 2.0 at 4096x2160 and DP 1.2 at 4096x2304, all at 60 Hz. Three simultaneous displays are supported depending on the installed processor.

Highlights

  • Supports 13th and 12th generation Intel processors via LGA 1700 socket
  • 6+2+1 phase power design delivers stable voltage for strong performance
  • Dual-channel DDR4 with XMP support up to 5333 MHz OC and 64 GB capacity
  • Two PCIe 4.0 x4 M.2 slots provide next-generation storage speed
  • 5 GbE LAN plus WIFI 5 give high-speed wired and wireless networking

Specifications

CPU TypeIntel Core 13th Gen (LGA 1700)

Questions about this item

How much heat and fan noise does the 6+2+1 phase power supply design produce when the board runs all day?

The Smart Fan 6 system monitors multiple temperature points, uses hybrid fan sockets and supports FAN STOP technology to keep the 6+2+1 phase VRM cool and quiet during continuous operation.

What memory must I already own to use the dual-channel DDR4 controller?

You need DDR4 DIMMs; the board has two slots supporting up to 64 GB total, 32 GB per slot, and runs XMP profiles up to 5333 MHz.

Can I keep my current monitor if it only has VGA, HDMI or DP inputs?

Yes — the rear I/O provides one VGA port up to 1920x1200@60 Hz, one HDMI 2.0 port up to 4096x2160@60 Hz and one DP 1.2 port up to 4096x2304@60 Hz, allowing up to three displays simultaneously.
