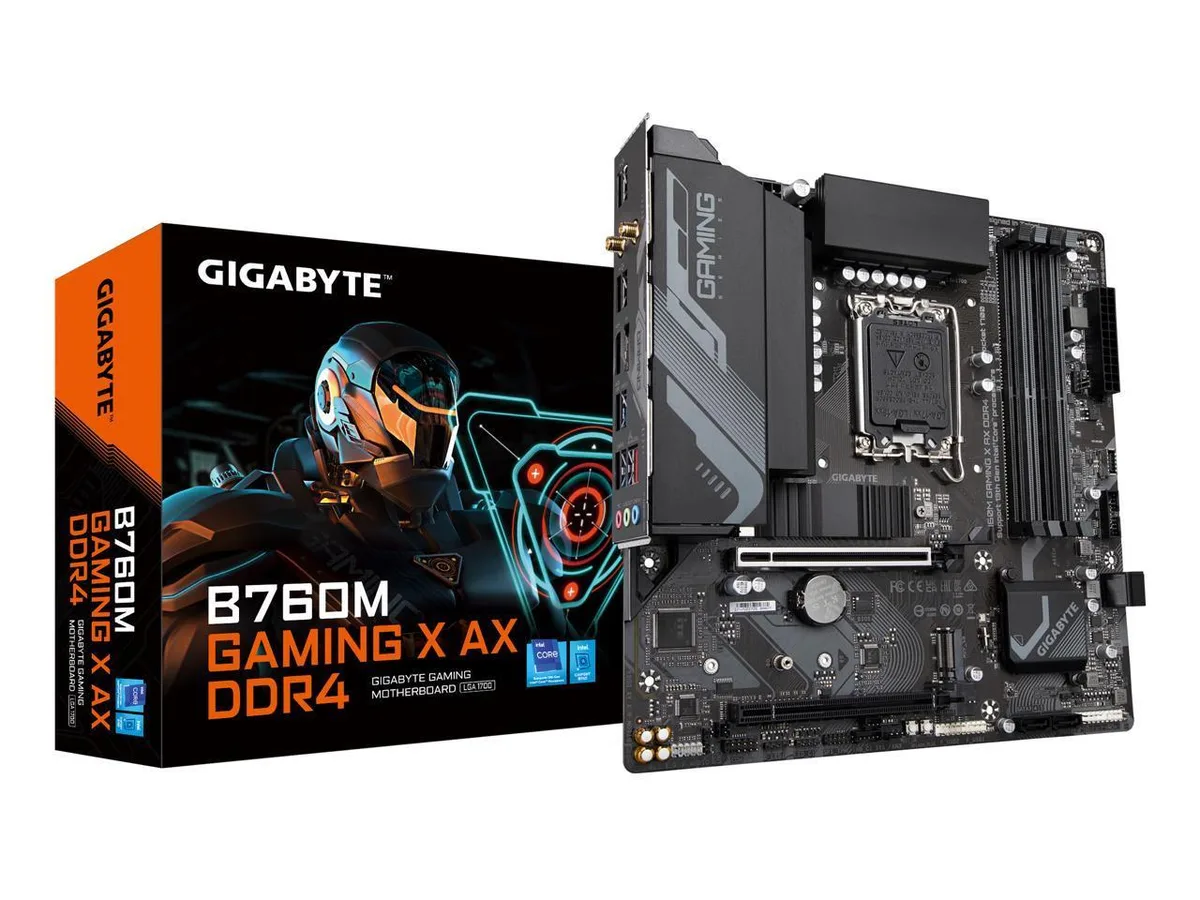

Micro ATX board, black PCB, silver heatsinks covering VRM and M.2 slots, four DDR4 slots, reinforced PCIe x16 slot

GIGABYTE

GIGABYTE B760M GAMING X AX DDR4 Intel motherboard

SKU CH-Y8V7-E7VAN

Micro-ATX board for 12th and 13th Gen Intel CPUs with DDR4, dual M.2 slots, 2.5GbE LAN, Wi-Fi 802.11ax, and front USB 3.2 Gen 2 Type-C

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 13th Gen (LGA 1700)
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardSupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.
  • Maximum Memory Supported128GB
  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Four DDR4 DIMM slots enable up to 128 GB dual-channel memory
  • 8+1+1 phase hybrid digital VRM with 60 A DrMOS delivers stable power
  • Dual M.2 slots with PCIe 4.0 x4 plus front USB 3.2 Gen 2 Type-C
  • 5 GbE LAN and Wi-Fi 802.11 ax provide fast wired and wireless networking

B760M Micro-ATX board for LGA 1700 CPUs

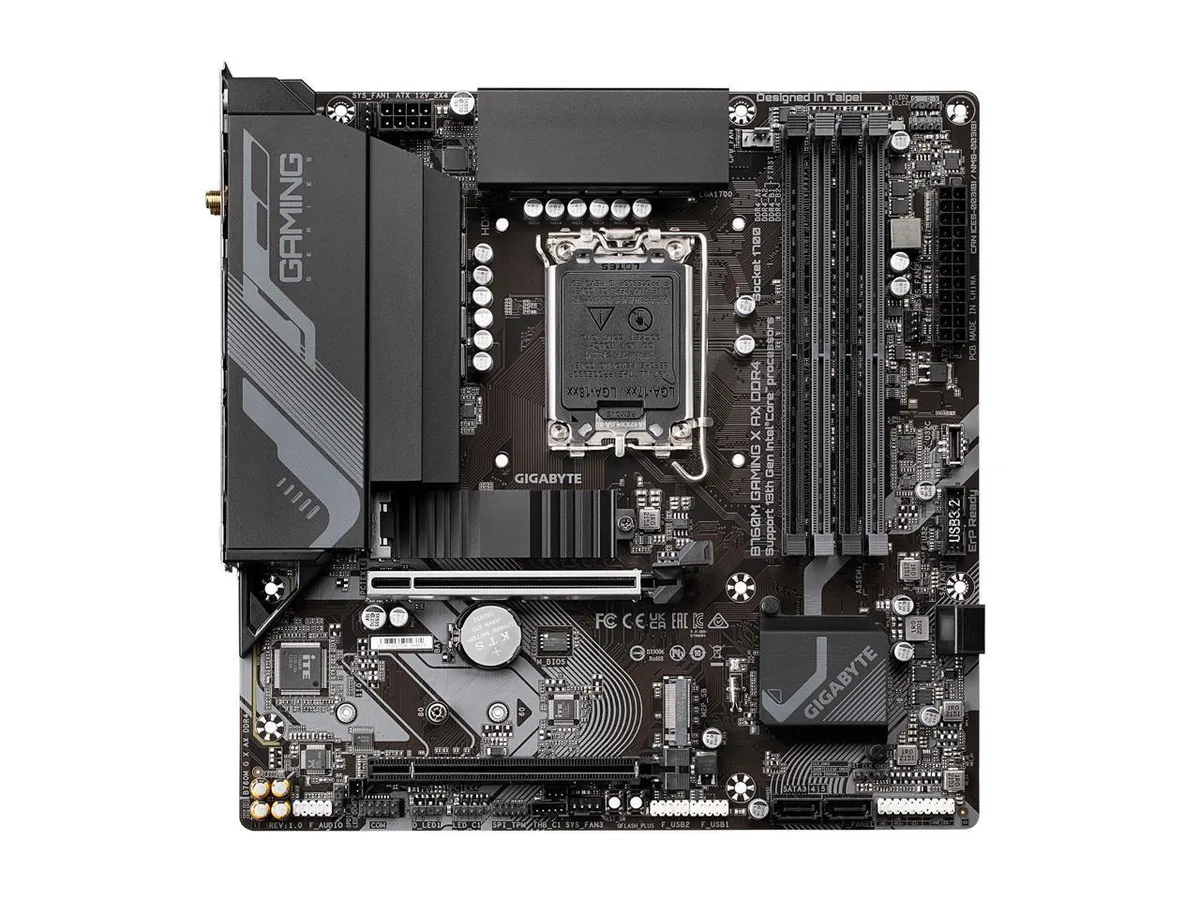

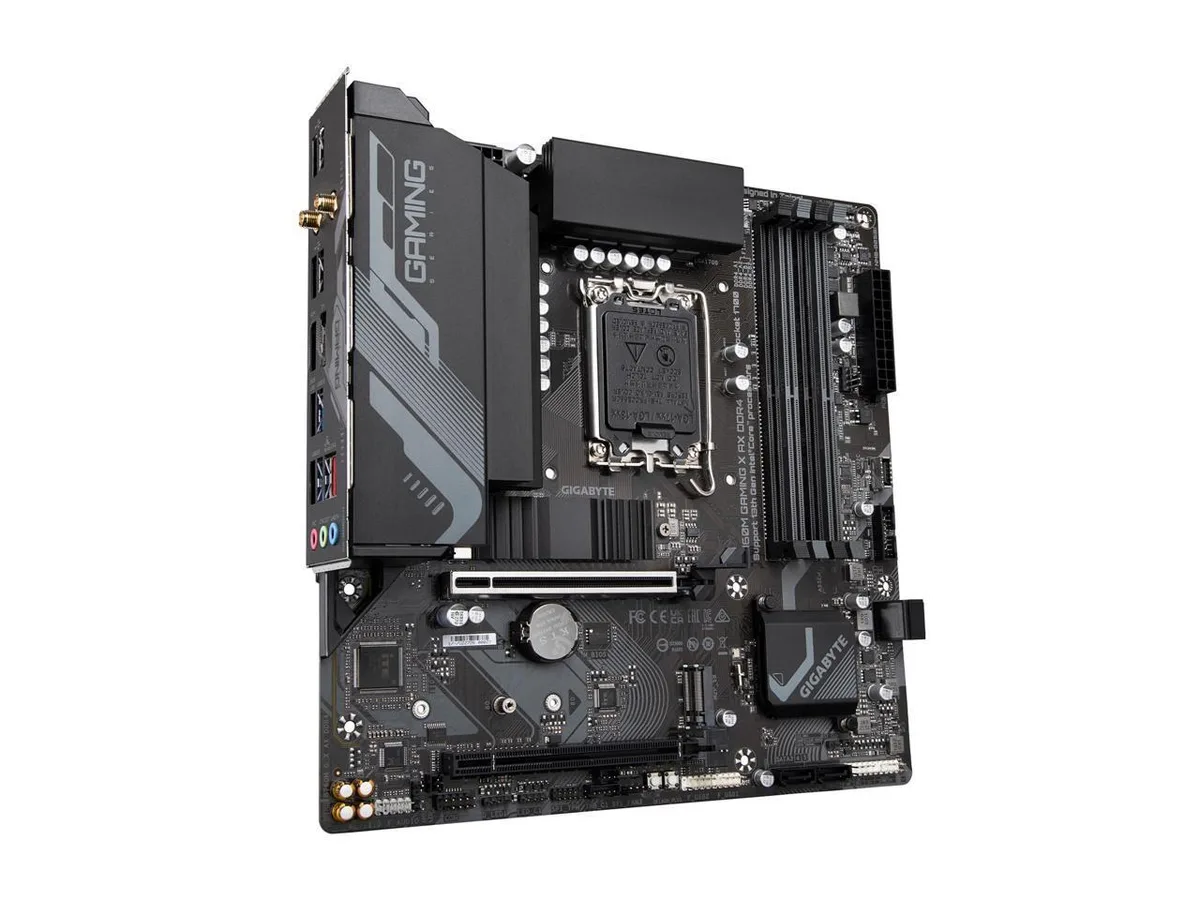

This GIGABYTE B760M GAMING X AX DDR4 motherboard uses the Intel B760 chipset on a Micro-ATX form factor. It accepts 12th and 13th Gen Intel Core processors in the LGA 1700 socket and provides four 288-pin DDR4 slots supporting dual-channel memory up to 128 GB. The board includes a single PCI Express 4.0 x16 slot, four SATA 6Gb/s ports and two M.2 connectors for PCIe 4.0 x4 storage.

Suits DDR4 system builders needing 2.5 GbE

The board fits builders who want DDR4 memory, 2.5 GbE LAN and Wi-Fi 802.11 ax on a compact Micro-ATX layout. It also offers front-panel USB 3.2 Gen 2 Type-C, Q-Flash Plus for BIOS updates without a CPU installed and an 8+1+1 phase hybrid digital VRM with 60 A DrMOS. Users requiring a full-size ATX layout or more than two M.2 slots should consider other form factors.

Dual M.2 PCIe 4.0 x4 storage capacity

Two M.2 sockets are provided: one wired to the CPU supporting 2280 drives, and one wired to the chipset supporting 2280 or 22110 drives, both running at PCIe 4.0 x4 speeds. This dual NVMe arrangement is the key specification that determines whether the board meets a build's fast storage requirements.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • Four DDR4 DIMM slots enable up to 128 GB dual-channel memory
  • 8+1+1 phase hybrid digital VRM with 60 A DrMOS delivers stable power
  • Dual M.2 slots with PCIe 4.0 x4 plus front USB 3.2 Gen 2 Type-C
  • 5 GbE LAN and Wi-Fi 802.11 ax provide fast wired and wireless networking

Specifications

BrandGIGABYTE
ModelB760M GAMING X AX DDR4
CPU Socket TypeLGA 1700
CPU TypeIntel Core 13th Gen (LGA 1700)
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR4)
Memory StandardSupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
Form FactorMicro ATX

Questions about this item

What does the 128 GB maximum memory mean for a build using this board?

You can install up to 128 GB across the four DDR4 slots, giving headroom for heavy multitasking or content-creation workloads.

How does the PCIe 4.0 x16 slot and the two M.2 connectors affect storage and GPU bandwidth?

The single PCIe 4.0 x16 slot runs at full speed for a graphics card, while both M.2 sockets support PCIe 4.0 x4 NVMe drives without sharing lanes with the GPU.

What clearance and mounting requirements should I check for this Micro ATX board?

The board uses the Micro ATX form factor with an LGA 1700 socket, four 288-pin DDR4 slots, and standard mounting holes, so it fits any Micro ATX or larger case with matching standoffs.
