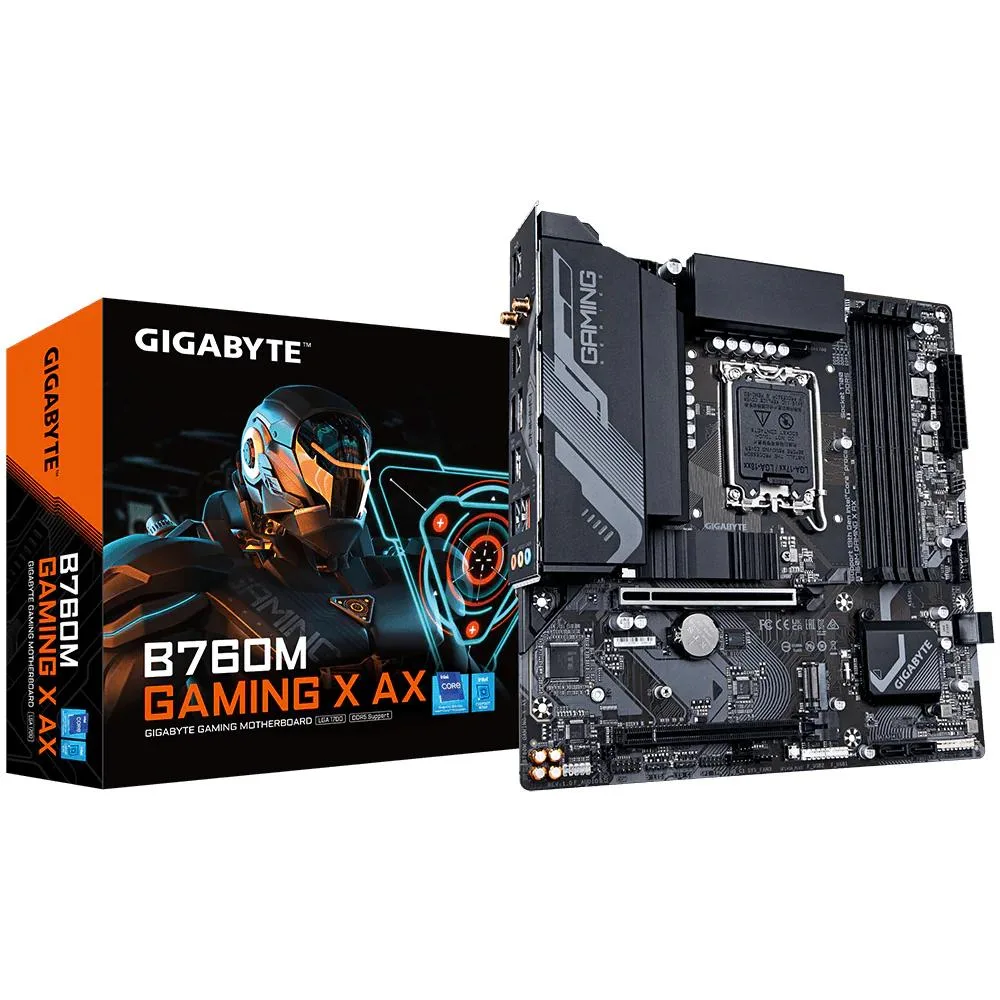

Micro-ATX board, dark PCB with silver heatsinks, LGA 1700 socket, four DDR5 slots, two M.2 shields

GIGABYTE

GIGABYTE B760M GAMING X AX DDR5 Intel motherboard

SKU CH-5XYE-4B0EM

An LGA 1700 micro-ATX board with DDR5 memory support up to 7600 MT/s, dual PCIe 4.0 M.2 slots, 2.5 GbE LAN, Wi-Fi 6E and front USB 3.2 Gen 2 Type-C

  • CPU TypeIntel Core 13th Gen (LGA 1700)
  • Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
  • Four DDR5 DIMM slots accept up to 192 GB with XMP profiles up to 7600 MT/s
  • Two PCIe 4.0 x4 M.2 connectors for high-speed storage expansion
  • 5 GbE LAN plus Wi-Fi 6E for fast wired and wireless networking
  • Front-panel USB 3.2 Gen 2 Type-C port delivers 10 Gb/s data transfer

Socket and Memory Foundation

This LGA 1700 motherboard accepts 12th and 13th Generation Intel Core, Pentium Gold and Celeron processors. Four DDR5 DIMM slots support dual-channel memory up to 192 GB with XMP profiles reaching 7600 MT/s. The Intel B760 Express chipset provides the platform base for gaming or productivity builds.

Expansion and Connectivity Layout

Two PCIe 4.0 x4 M.2 connectors handle next-generation storage while a PCIe 4.0 x16 slot with EZ-Latch quick release simplifies graphics card installation. Front-panel USB 3.2 Gen 2 Type-C delivers 10 Gb/s bandwidth. Networking uses 2.5 GbE LAN and Wi-Fi 6E 802.11ax. Display outputs comprise DisplayPort 1.2 and HDMI for integrated graphics.

Ideal Builder Profile

Suits builders who want DDR5 capacity up to 192 GB, dual M.2 slots and 2.5 GbE with Wi-Fi 6E on a micro-ATX board. Not for buyers who need more than two M.2 connectors, additional PCIe x16 slots, or memory speeds beyond the listed XMP range.

Highlights

  • Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
  • Four DDR5 DIMM slots accept up to 192 GB with XMP profiles up to 7600 MT/s
  • Two PCIe 4.0 x4 M.2 connectors for high-speed storage expansion
  • 5 GbE LAN plus Wi-Fi 6E for fast wired and wireless networking
  • Front-panel USB 3.2 Gen 2 Type-C port delivers 10 Gb/s data transfer

Specifications

CPU TypeIntel Core 13th Gen (LGA 1700)

Questions about this item

Will the 8+1+1 phase VRM throttle during sustained heavy loads?

The hybrid 8+1+1 phase digital VRM is paired with an advanced thermal design and M.2 thermal guard to maintain power stability and SSD performance under continuous use.

How loud and hot does the board run with Wi-Fi 6E and 2.5GbE active all day?

The advanced thermal design and M.2 thermal guard are built to ensure VRM power stability and M.2 SSD performance during extended operation with networking active.

Which DDR5 memory kit do I need to reach the listed 7600 MT/s speed?

The board supports DDR5 up to 7600(O.C.) MT/s via XMP across four DIMM slots, with a maximum capacity of 192 GB using 48 GB modules.
