Gigabyte B840M Gaming Plus WIFI6E mATX motherboard, black PCB with silver heatsinks and integrated rear I/O shield

GIGABYTE

GIGABYTE B840M GAMING PLUS WIFI6E AMD motherboard

SKU CH-GFZ9-DMM8T MPN B840M GAMING PLUS WIFI6E

Micro-ATX AM5 board supports Ryzen 7000, 8000 and 9000 CPUs with 8+2+2 power phases, four DDR5 slots up to 6400 MT/s, two PCIe 4.0 M.2 slots, USB 3.2 Gen 1 Type-C, Wi-Fi 6E and Bluetooth 5.3

  • CPU Socket TypeAM5
  • ChipsetAMD B840
  • South BridgeAMD B840
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 6400
  • Maximum Memory Supported256GB
  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 8+2+2 digital VRM with six-layer PCB delivers stable power for high-end CPUs
  • Four DDR5 slots up to 256 GB with EXPO support for faster memory
  • Two PCIe 4.0 M.2 slots (2280/2260) plus four SATA ports for storage expansion
  • Wi-Fi 6E, Bluetooth 5.3 and GbE LAN provide low-latency wired and wireless networking

Socket AM5 DDR5 Platform

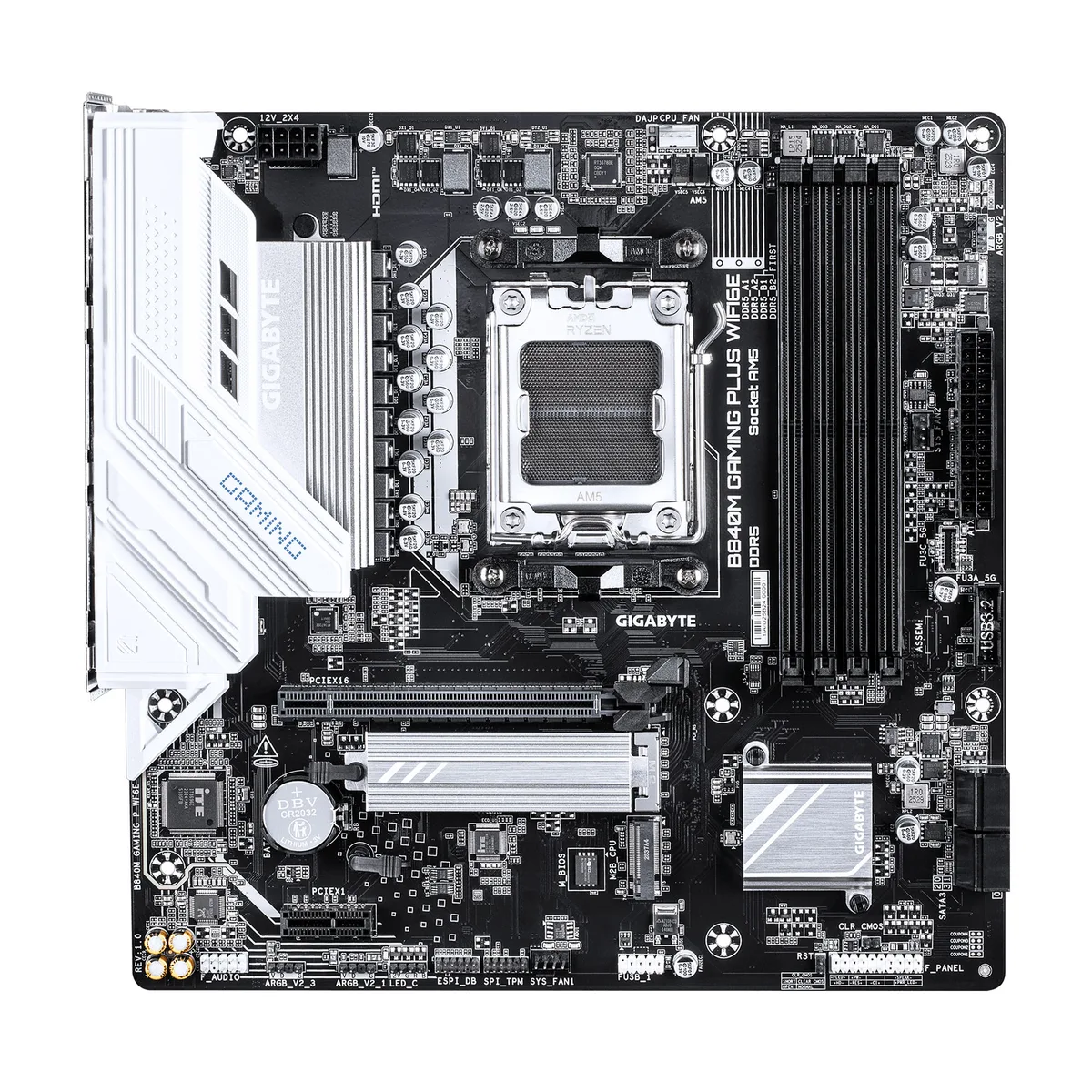

The B840M GAMING PLUS WIFI6E is an AMD AM5 micro-ATX motherboard built for Ryzen 9000, 8000 and 7000 series processors. It delivers an 8+2+2 digital VRM on a 6-layer PCB to keep power delivery stable under load. Four 288-pin slots support up to 256 GB of DDR5 6400 with AMD EXPO profiles for straightforward memory tuning.

Build Integration Essentials

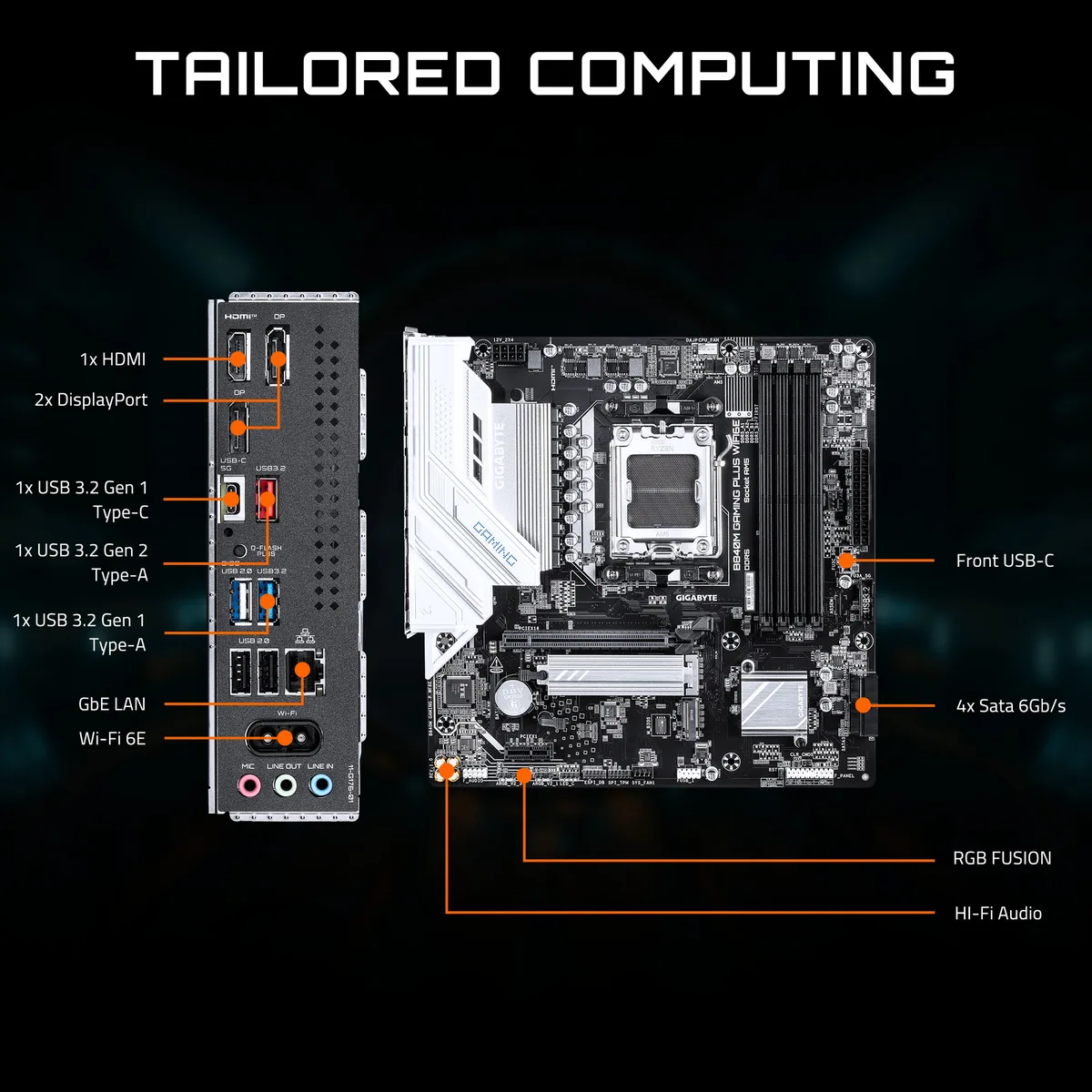

A single PCIe 4.0 x16 slot with reinforced UD latch handles the graphics card while two CPU-sourced M.2 sockets accept 2280 or 2260 drives at PCIe 4.0 x4 speeds. Four SATA 6Gb/s ports and RAID 0/1/10 cover additional storage. Rear I/O supplies USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A and Type-C plus a front-panel USB 3.2 Gen 1 Type-C header for case connectivity.

EZ-Latch And Wireless Suite

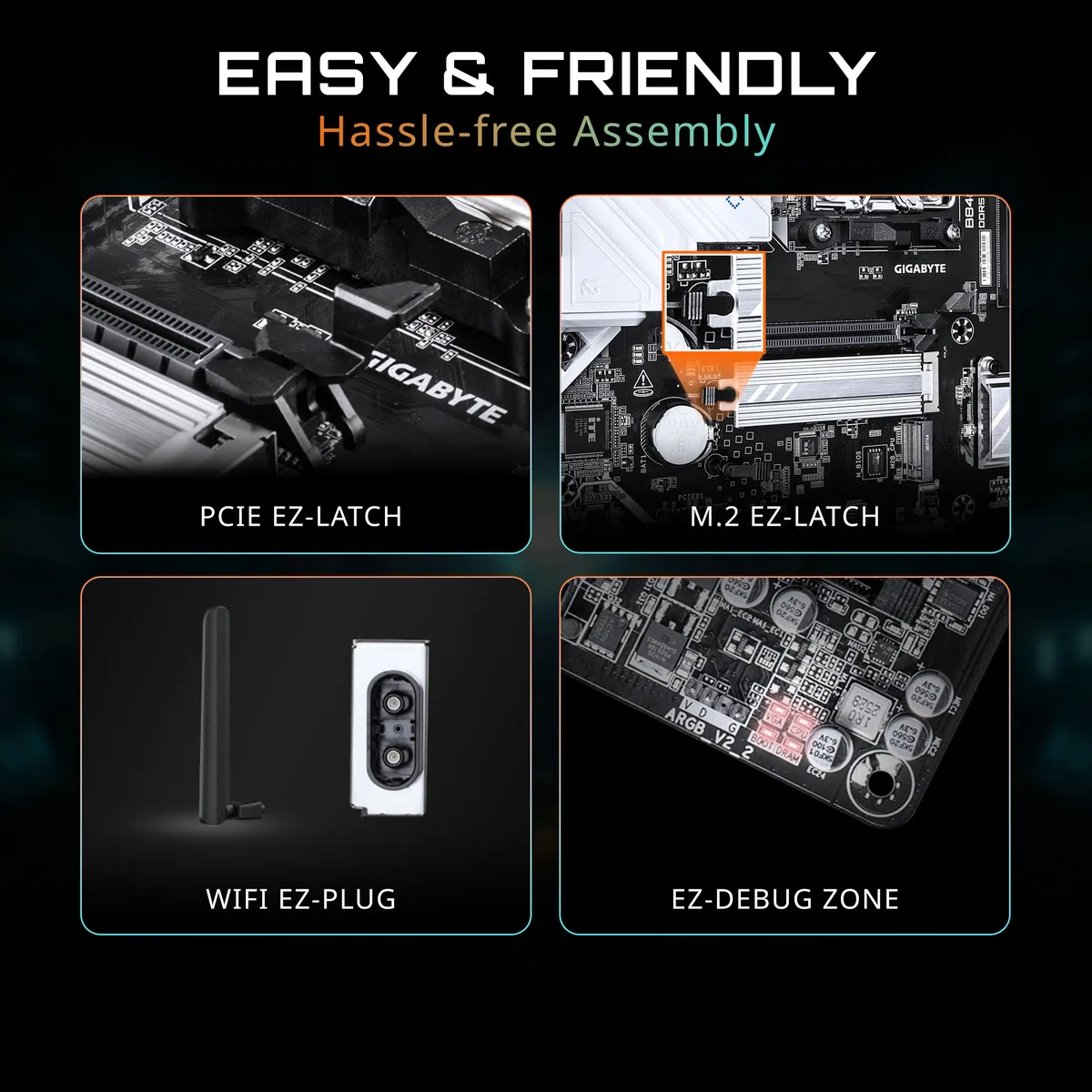

PCIe EZ-Latch releases the graphics card with one click and M.2 EZ-Latch secures drives without screws. WIFI EZ-Plug simplifies antenna attachment for the onboard Wi-Fi 6E and Bluetooth 5.3 module. The integrated I/O shield speeds assembly and the BIOS adds X3D Turbo Mode for one-click gaming optimisation on compatible Ryzen CPUs.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 8+2+2 digital VRM with six-layer PCB delivers stable power for high-end CPUs
  • Four DDR5 slots up to 256 GB with EXPO support for faster memory
  • Two PCIe 4.0 M.2 slots (2280/2260) plus four SATA ports for storage expansion
  • Wi-Fi 6E, Bluetooth 5.3 and GbE LAN provide low-latency wired and wireless networking

Specifications

BrandGIGABYTE
SeriesGAMING
CPU Socket TypeAM5
ChipsetAMD B840
South BridgeAMD B840
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 6400
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 2.0 x160 x PCI Express 2.0 x16
PCI Express x161 x PCI Express x16
PCI Express x11 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
SATA RAID0/1/10
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek GbE LAN chip
Max LAN Speed1Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax
BluetoothYes
Back I/O Ports1 x USB Type-C, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1, 3 x USB 2.0/1.1, 1 x HDMI, 2 x DisplayPort, 1 x Q-Flash Plus button, 1 x RJ-45, 2 x antenna connectors, 3 x audio jacks
Video PortsHDMI + 2 x Display Port
S-VideoNo
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort2 x DisplayPort
USB 3.05 x USB 3.0
USB 1.1/2.03 x USB 2.0/1.1 ports
USB Type-C2 x USB Type-C port, with USB 3.2 Gen 1 support
Audio Ports3 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 + 1 x USB 3.2 Gen 1 + 1 x USB 2.0
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)24.4cm x 24.4cm
Power Pin24 Pin
Windows 11Supported
Shipping weight1.13 kg
Package size269 × 267 × 71 mm

Questions about this item

How does the 8+2+2 VRM handle heat during sustained loads?

The 8+2+2 digital VRM uses advanced heatsinks on a six-layer PCB to dissipate heat and keep power delivery stable under continuous use.

What noise or thermal output should I expect from the board itself when running all day?

The motherboard is passively cooled with VRM heatsinks and an integrated I/O shield, so it adds no fan noise and minimal heat to the chassis.

Which DDR5 memory kit do I need to have ready for this board to post?

You need unbuffered non-ECC DDR5 DIMMs; the board supports up to 256 GB across four slots at 6400 MT/s with AMD EXPO profiles.
