Green ATX motherboard with silver CPU socket, black memory slots and blue expansion slots

GIGABYTE

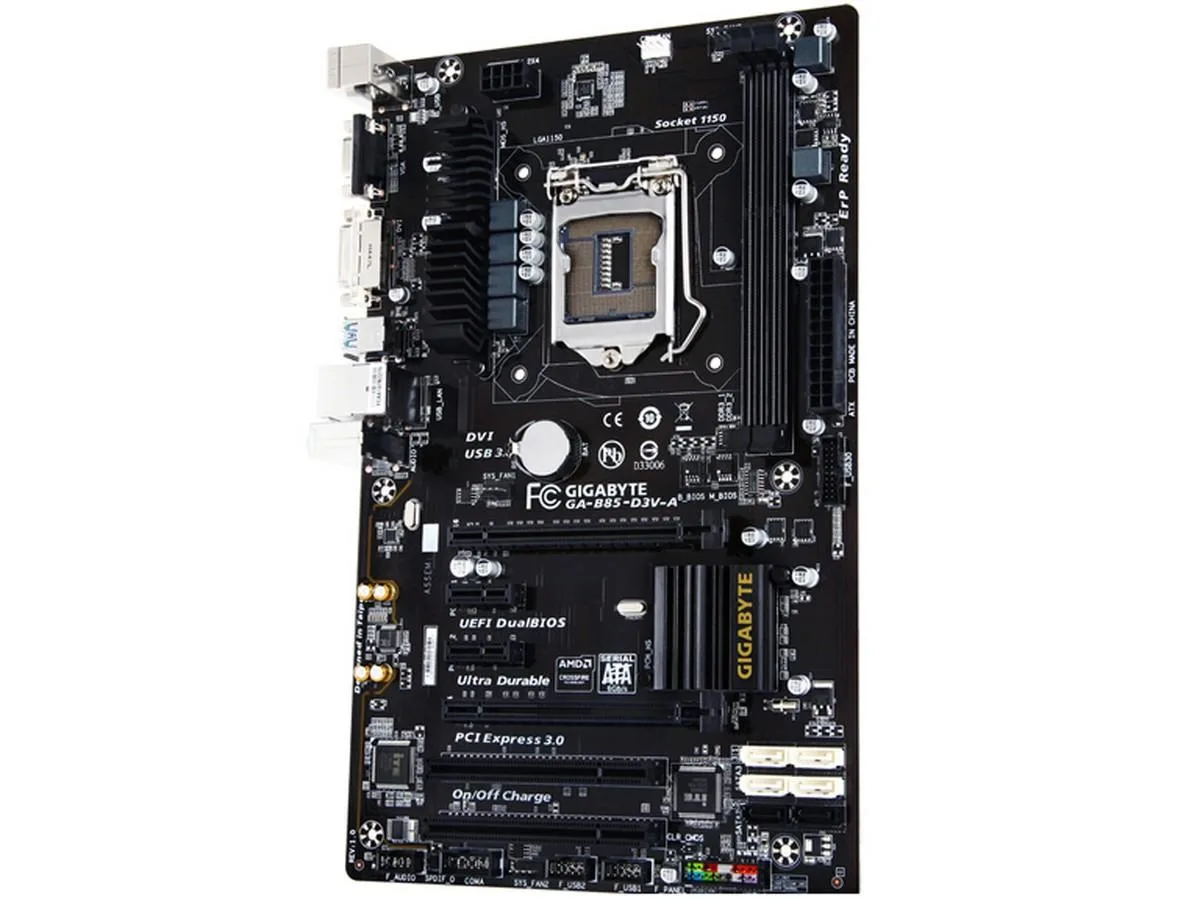

GIGABYTE B85-D3V-A rev 1.0 Intel motherboard

SKU CH-BCEE-S26ZD

LGA 1150 ATX board with Intel B85 chipset, two DDR3 slots for up to 16 GB, one PCIe 3.0 x16 slot, one PCIe x4 slot, two PCIe x1 slots, four SATA III and two SATA II ports, Realtek ALC887 7.1 audio.

  • CPU Socket TypeLGA 1150
  • CPU Type1. Support LGA1150 slot processor: Intel Core ™ i7 processor
  • ChipsetIntel B85
  • Maximum Memory Supported16GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID4xSATA III interface, 2xSATA II interface
  • Supports Intel Core i7, i5, i3, Pentium and Celeron processors on LGA 1150 socket
  • Up to 16 GB DDR3 memory across two DIMM slots for everyday workloads
  • One PCI Express 3.0 x16 slot plus x4 and two x1 slots for expansion cards
  • Four SATA III and two SATA II ports give six drive connections
  • Realtek ALC887 codec delivers 7.1-channel high-definition audio with front-panel support

Socket & Chipset

This GIGABYTE B85-D3V-A rev 1.0 motherboard uses the Intel B85 chipset and an LGA 1150 socket. It accepts Intel Core i7, i5, i3, Pentium and Celeron processors that fit LGA 1150. The board follows the ATX form factor at 30.5 by 19 cm.

Memory & Expansion Fit

Two DDR3 DIMM slots support up to 16 GB of system memory. One PCI Express x16 slot runs at 3.0 x16, a second x16 slot runs at x4, and two PCI Express x1 slots are available. Four SATA III and two SATA II ports handle storage, while the rear I/O provides two USB 3.0 and four USB 2.0 ports plus two internal USB 3.0 and four internal USB 2.0 headers.

Maximum Memory Limit

The 16 GB memory ceiling is the single specification that decides suitability. Workloads that require more than 16 GB cannot use this board. Buyers who need higher capacity should consider platforms that support larger memory configurations.

Highlights

  • Supports Intel Core i7, i5, i3, Pentium and Celeron processors on LGA 1150 socket
  • Up to 16 GB DDR3 memory across two DIMM slots for everyday workloads
  • One PCI Express 3.0 x16 slot plus x4 and two x1 slots for expansion cards
  • Four SATA III and two SATA II ports give six drive connections
  • Realtek ALC887 codec delivers 7.1-channel high-definition audio with front-panel support

Specifications

BrandGIGABYTE
SeriesGIGABYTE B85-D3V-A(rev.1.0)
ModelGIGABYTE B85-D3V-A(rev.1.0)
CPU Socket TypeLGA 1150
CPU Type1. Support LGA1150 slot processor: Intel Core ™ i7 processor/Intel Core ™ i5 processor/Intel Core ™ i3 processor/Intel Pentium processor/Intel Celeron processor
2. L3 cache depends on CPU
ChipsetIntel B85
Maximum Memory Supported16GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
(PCI Express x16 slot supports PCI Express 3.0)
1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)
3. 2 PCI Express x1 slots
PCIEX4 and PCI Express x1 slots both support PCI Express 2.0.
4. 2 PCI slots
SATA RAID4xSATA III interface, 2xSATA II interface
Audio Chipset1. Built-in Realtek ALC887 chip ®
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
To activate the 7.1 channel audio output, you must use the front panel audio output of the HD (High Definition, High Fax) audio module and select the multi-channel audio function through the audio software.
4. Support S/PDIF Out
LAN ChipsetBuilt-in Realtek GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1.4 USB 3.0/2 ports (2 on the rear panel, 2 to be connected from the USB socket in the main board via cable)
2.8 USB 2.0/1 ports (4 on the rear panel, 4 to be connected from the USB socket in the main board via cable)

Questions about this item

How can I verify the Realtek ALC887 audio is active after assembly?

Boot into the OS, open the sound control panel and confirm the Realtek High Definition Audio device lists 7.1-channel output; play a test tone on each channel to ensure all speakers produce sound.

What ships with the board and which essentials must I source myself?

The parcel contains the motherboard, one SATA cable and the rear I/O shield; you must supply a compatible LGA 1150 processor, up to 16 GB of DDR3 memory, a power supply with 24-pin ATX and 4-pin CPU connectors, storage drives and a chassis.

The spec sheet shows two PCI Express x16 slots — one at x16 and one at x4 — which should hold my graphics card?

Install the graphics card in the top PCI Express x16 slot that operates at x16 electrical; the second x16-sized slot runs at x4 and is intended for additional expansion cards.
