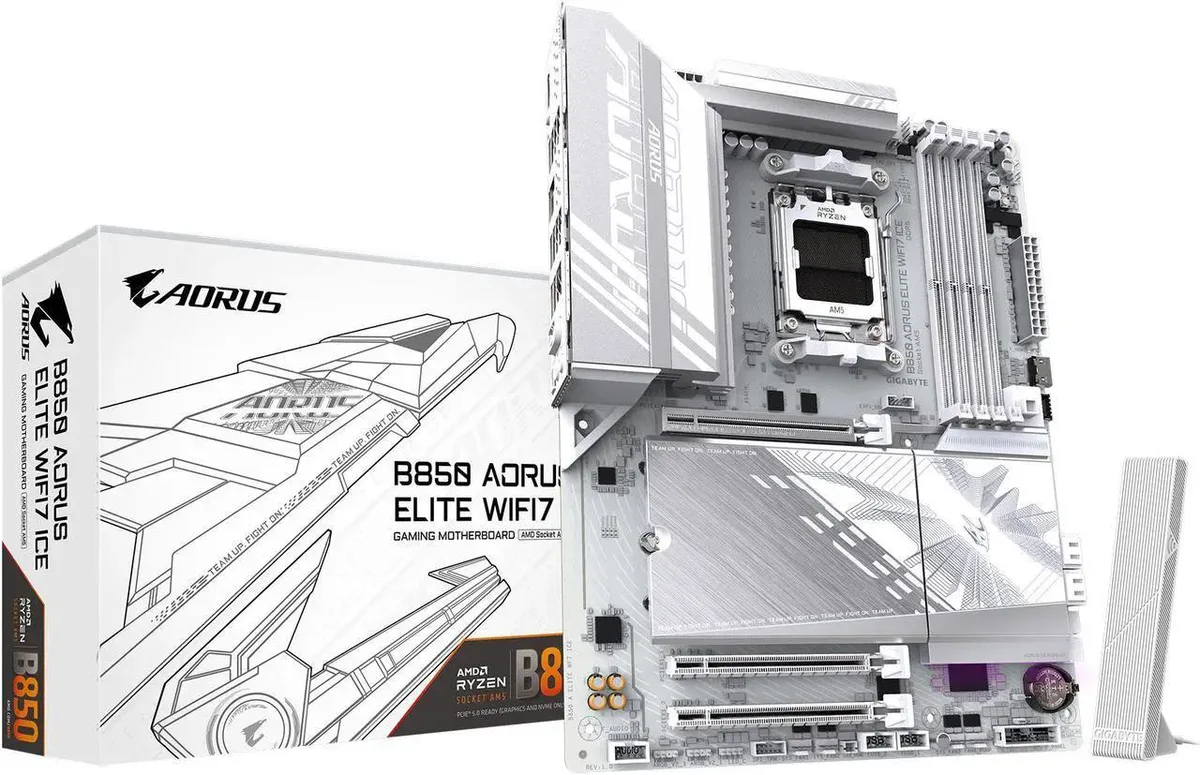

White ATX motherboard with silver heatsinks and four DDR5 slots

GIGABYTE

GIGABYTE B850 AORUS ELITE WIFI7 ICE AMD motherboard

SKU CH-6J3D-3W86D

ATX motherboard with AM5 socket supporting Ryzen 7000, 8000 and 9000 series, four DDR5 slots up to 8200 MT/s, PCIe 5.0 graphics slot, three M.2 sockets, Wi-Fi 802.11 be.

  • CPU Socket TypeAM5
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 8200(O.C)
  • Maximum Memory Supported256GB
  • PCI Express 5.0 x161 x PCI Express 5.0 x16
  • Supports Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • 14+2+2 phase power design delivers stable voltage for high-performance CPUs
  • Four DDR5 slots accept up to 256 GB at 8200 MT/s overclocked
  • PCIe 5.0 x16 slot plus three M.2 slots for fast GPUs and storage
  • Wi-Fi 7, 2.5 GbE LAN and Bluetooth built in for modern connectivity

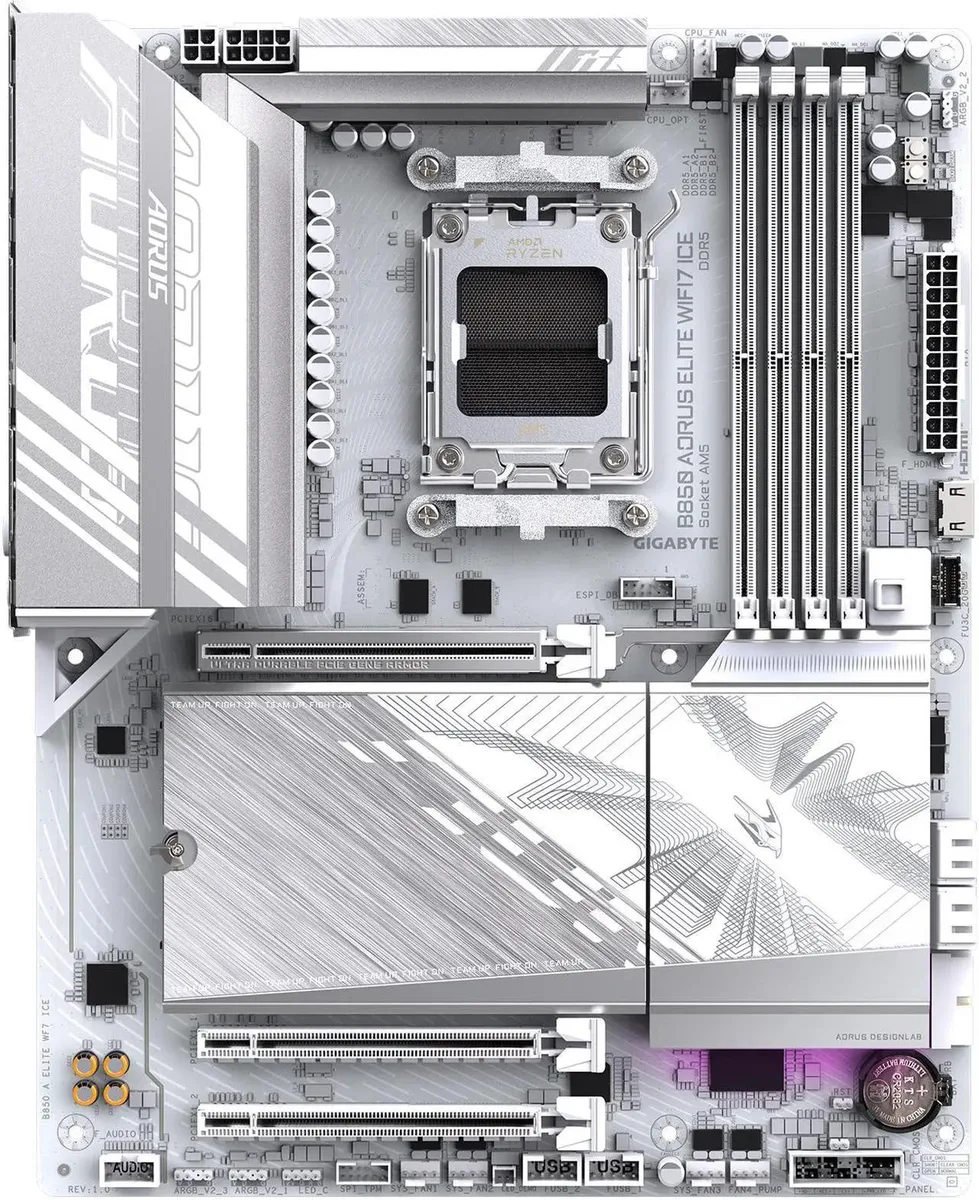

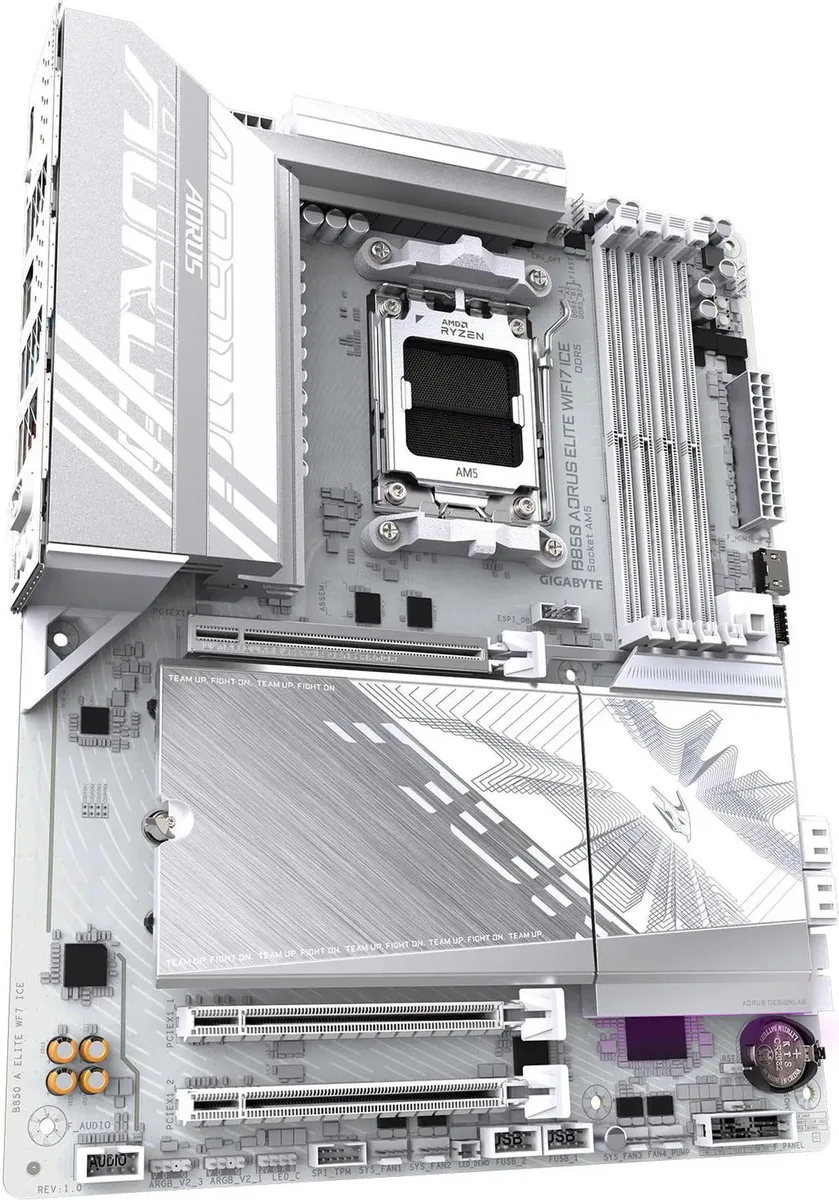

B850 AORUS ELITE WIFI7 ICE AM5 Platform

This ATX motherboard uses the AMD B850 chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series processors. It provides four DDR5 slots for up to 256GB of memory and a 14+2+2 phase power design for stable delivery.

Builders Wanting PCIe 5.0 And WIFI7

The board suits users who need a single PCIe 5.0 x16 slot, three M.2 sockets, 2.5GbE LAN and WIFI7 in a standard ATX layout. Builders requiring additional PCIe 5.0 lanes or a smaller form factor should consider other options.

DDR5 8200 O.C. Memory Ceiling

The maximum supported memory speed is DDR5 8200 (O.C.), which determines the practical performance ceiling for high-frequency kits. Verify that your chosen modules match this rating before purchase.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • 14+2+2 phase power design delivers stable voltage for high-performance CPUs
  • Four DDR5 slots accept up to 256 GB at 8200 MT/s overclocked
  • PCIe 5.0 x16 slot plus three M.2 slots for fast GPUs and storage
  • Wi-Fi 7, 2.5 GbE LAN and Bluetooth built in for modern connectivity

Specifications

BrandGIGABYTE
ModelB850 AORUS ELITE WIFI7 ICE
CPU Socket TypeAM5
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 8200(O.C)
Maximum Memory Supported256GB
PCI Express 5.0 x161 x PCI Express 5.0 x16
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Form FactorATX

Questions about this item

Will this AM5 board work with my existing Ryzen 7000 or 8000 series CPU?

Yes, the socket supports Ryzen 7000, 8000 and 9000 series processors so your current chip will fit and run.

How can I confirm the 2.5GbE LAN and WIFI7 are active after building?

Check Device Manager for the 2.5GbE controller and Wi-Fi 802.11 be adapter, then run a speed test to verify link rates.

Does the box include the Wi-Fi antenna and M.2 screws, or must I buy them separately?

The motherboard, I/O shield, Wi-Fi antenna and M.2 mounting hardware are included; DDR5 memory and storage drives are purchased separately.
