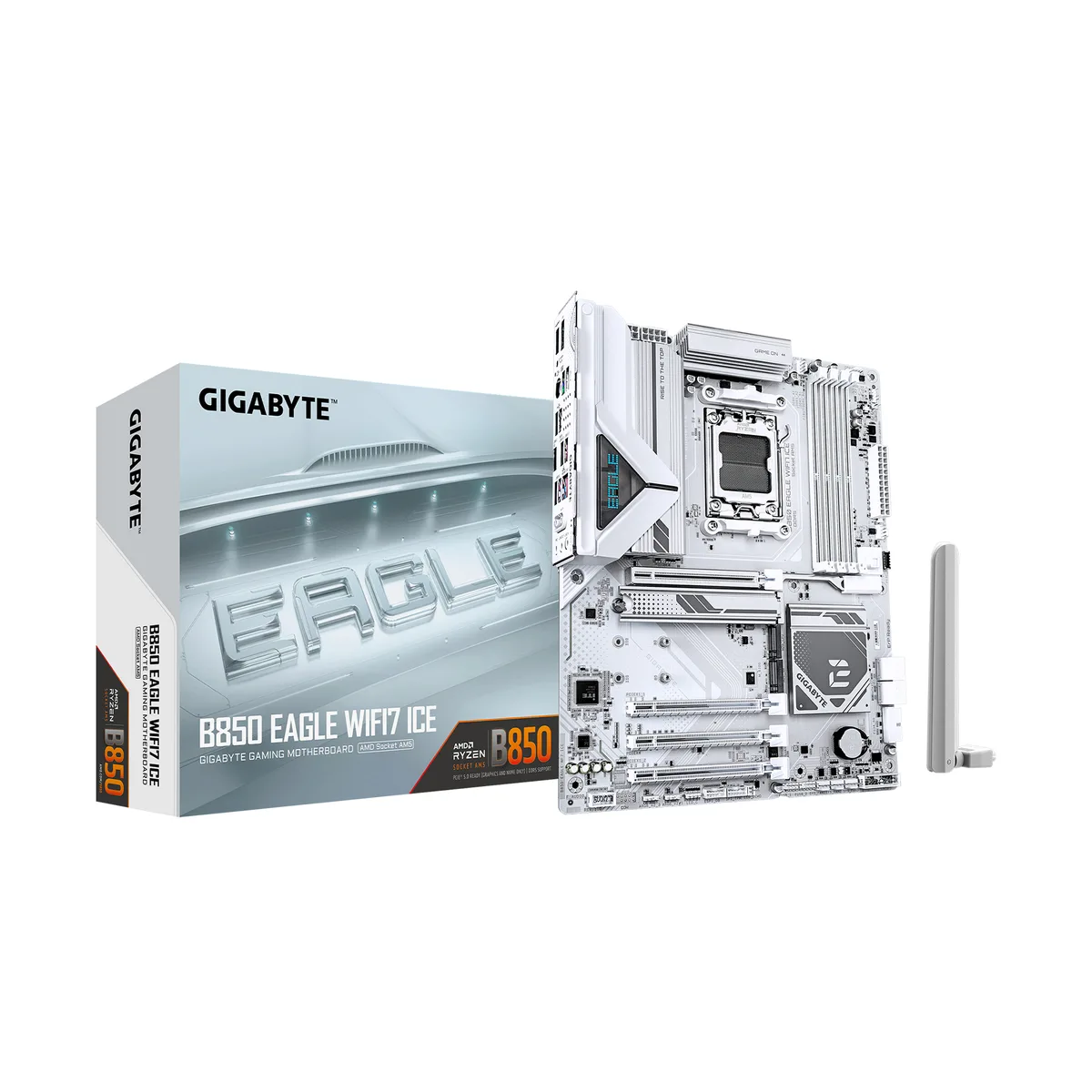

White ATX motherboard with silver heatsinks and blue accents

GIGABYTE

GIGABYTE B850 EAGLE WIFI7 ICE AMD motherboard

SKU CH-188E-61DJZ MPN B850 EAGLE WIFI7 ICE

ATX AM5 board for Ryzen 7000, 8000 and 9000 CPUs with DDR5 up to 8200, PCIe 5.0 x16, three M.2 slots, 2.5GbE LAN and WIFI7

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 6000 /
  • Maximum Memory Supported256GB

Option

  • GIGABYTE B850 EAGLE WIFI7 ICE AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 3x M.2, PCIe 5.0, USB-C, WIFI7, 2.5GbE LAN, EZ-Latch
  • GIGABYTE B850 EAGLE WIFI7 ICE AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 3x M.2, PCIe 5.0, USB-C, WIFI7, 2.5GbE LAN, EZ-Latch + AMD Ryzen 5 9600X 6-Core

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • DDR5 memory up to 8200 MT/s across four slots for 256 GB capacity
  • PCIe 5.0 graphics slot and M.2 drive ready for next-gen bandwidth
  • WIFI7 and 2.5 GbE LAN deliver fast, low-latency networking
  • EZ-Latch mechanisms simplify M.2, PCIe and Wi-Fi installation

Socket AM5 DDR5 Platform

This ATX motherboard accepts Ryzen 7000, 8000 and 9000 series processors in the AM5 LGA 1718 socket. Four 288-pin slots support up to 256 GB of dual-channel DDR5 at speeds from 4400 to 8200 MT/s using AMD EXPO or Intel XMP 3.0 profiles.

Thermals Power Noise

An 8+2+2 phase power design delivers stable current to the CPU while running typical workloads quietly. The board draws only the power required by the installed components and produces no audible fan noise of its own.

Upgrade Path Value

The platform adds PCIe 5.0 x16 for graphics, a CPU-linked M.2 slot at PCIe 5.0 x4, two further M.2 sockets, 2.5 GbE LAN and WIFI7 connectivity. Builders moving from an older AM4 system gain the higher memory bandwidth and faster storage lanes; the jump is worthwhile when a new Ryzen processor and DDR5 kit are also planned.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • DDR5 memory up to 8200 MT/s across four slots for 256 GB capacity
  • PCIe 5.0 graphics slot and M.2 drive ready for next-gen bandwidth
  • WIFI7 and 2.5 GbE LAN deliver fast, low-latency networking
  • EZ-Latch mechanisms simplify M.2, PCIe and Wi-Fi installation

Specifications

BrandGIGABYTE
ModelB850 EAGLE WIFI7 ICE
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x41 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
PCI Express x12 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
* The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the SATA3 0 and SATA3 1 connectors. The SATA3 0/1 connector becomes unavailable when a device is installed in the PCIEX1_1 or PCIEX1_2 slot.
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix
SATA RAIDRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

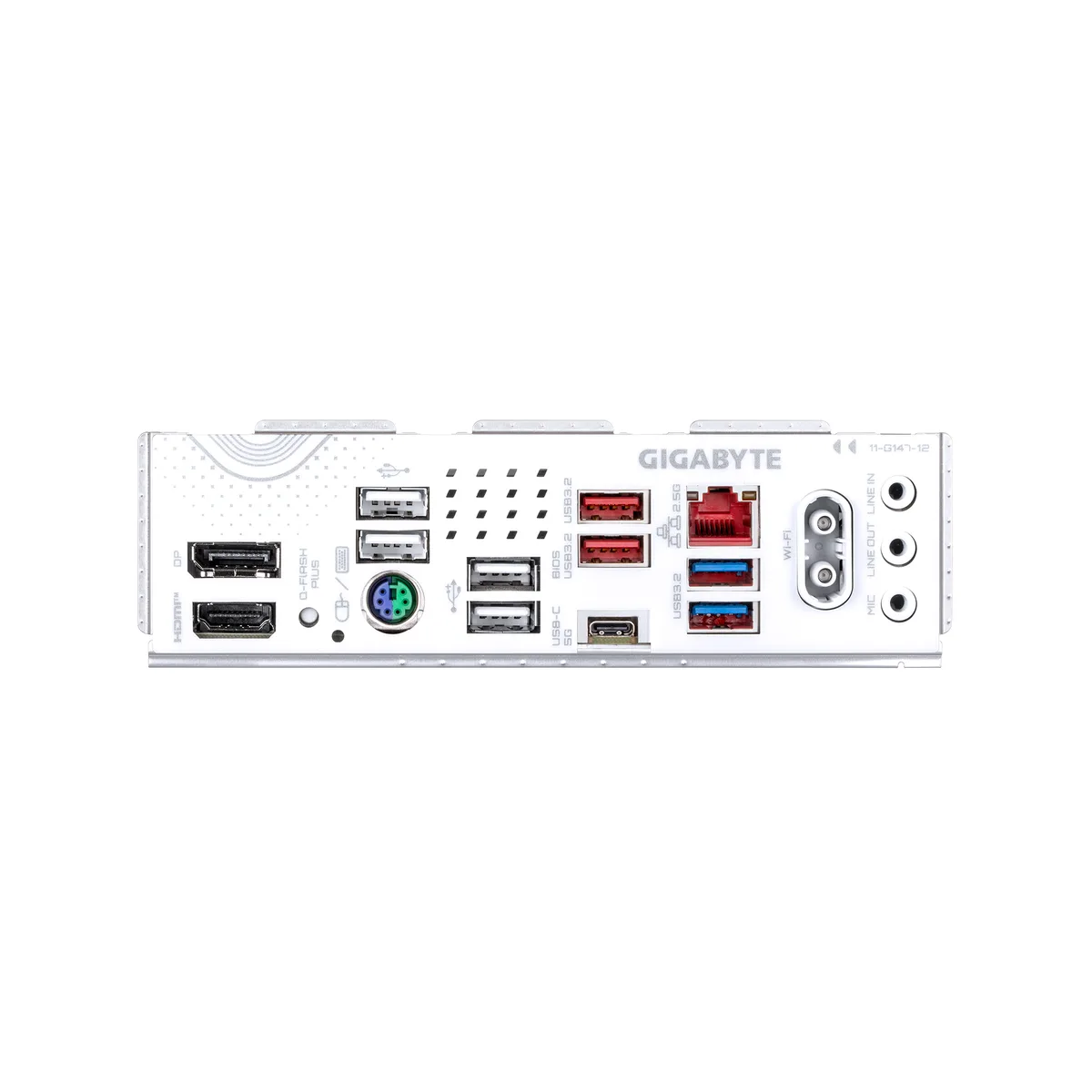

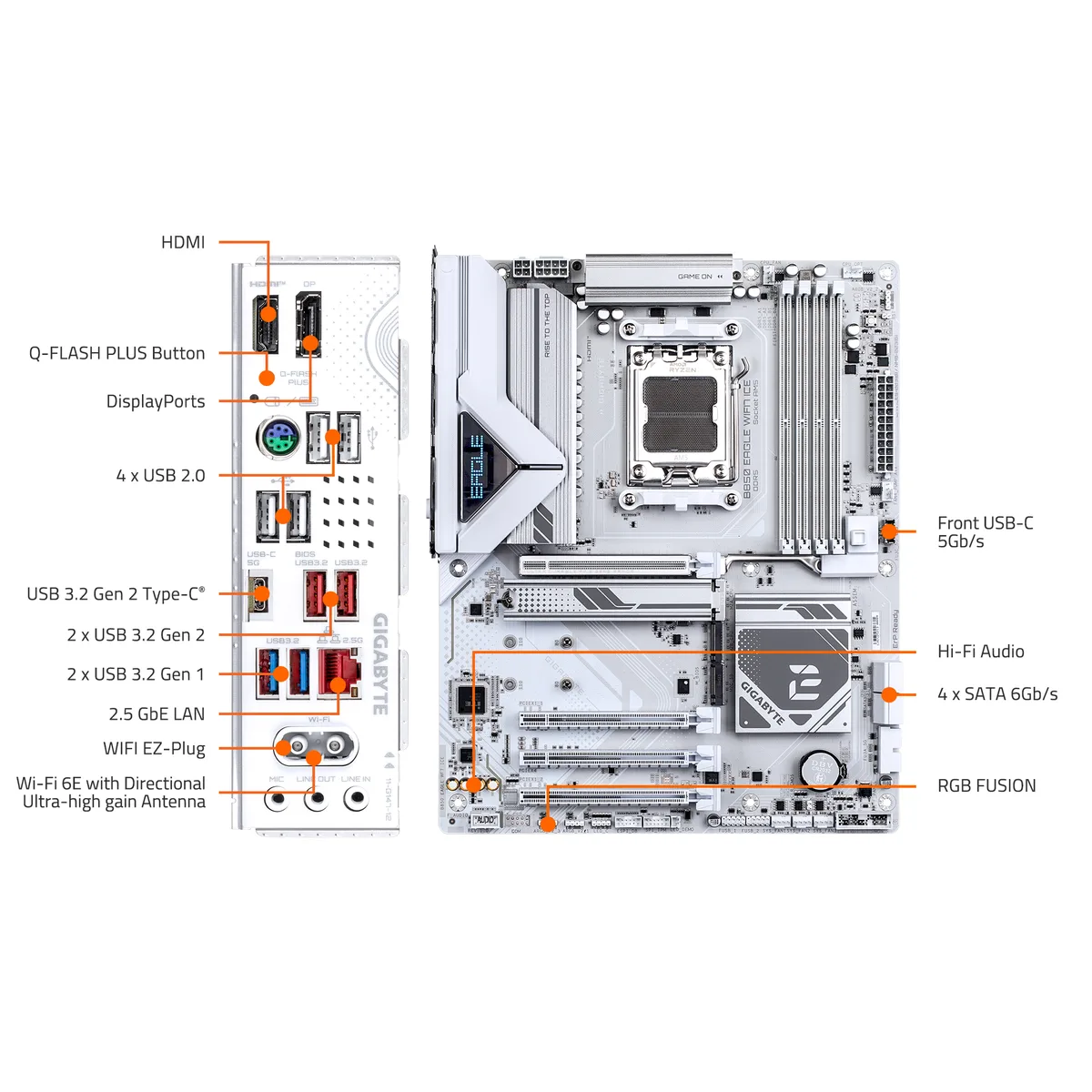

Back I/O Ports1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11Supported
Shipping weight1.66 kg
Package size343 × 272 × 84 mm

Questions about this item

Will my existing DDR5 memory kits work with this board?

The board supports DDR5 speeds from 4400 up to 8200 and runs in dual-channel mode across four slots, so any non-ECC unbuffered DDR5 DIMM within that range will be compatible.

Can I install a Ryzen 9000 series CPU and still use all three M.2 slots at full speed?

With a Ryzen 9000 processor the primary M.2 slot runs at PCIe 5.0 x4 while the other two operate at PCIe 4.0 x4, giving you full-speed access to all three drives simultaneously.

What do I need to add for wired networking if my router only has 1 GbE ports?

The integrated 2.5GbE LAN port will negotiate down to 1 GbE automatically, so no extra hardware is required; you simply connect the board to your existing router with a standard Ethernet cable.
