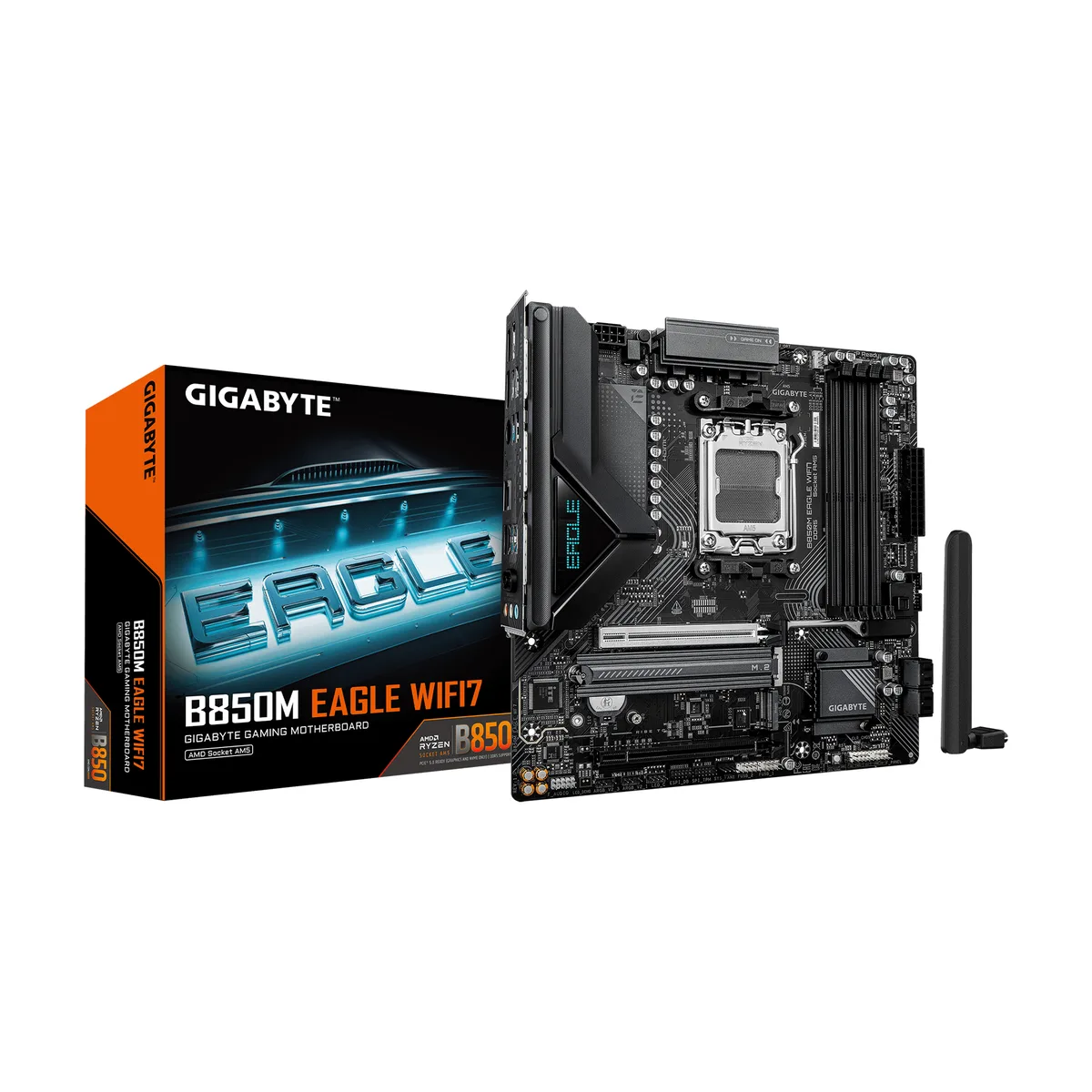

Micro-ATX motherboard in dark grey with silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE B850M EAGLE WF7 AMD motherboard

SKU CH-G75Y-2Z51F MPN B850M EAGLE WF7

Micro-ATX AM5 board supports Ryzen 9000, 8000 and 7000 CPUs with DDR5 up to 6400, PCIe 5.0 graphics and M.2 slots, WiFi 7, Bluetooth 5.4 and 2.5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
  • ChipsetAMD B850
  • South BridgeAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 6400
  • Ready for Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 8+2+2 twin digital VRM with 6-layer PCB delivers steady power
  • DDR5 up to 6400 MT/s across four slots with AMD EXPO support
  • WiFi 7, Bluetooth 5.4 and 2.5 GbE LAN for fast wireless and wired links
  • PCIe 5.0 x16 slot, PCIe 5.0 and 4.0 M.2, plus front USB-C 10 Gb/s

AM5 mATX motherboard for Ryzen 9000 and 7000 series

The GIGABYTE B850M EAGLE WF7 fits the AM5 socket and supports Ryzen 9000, 8000 and 7000 series processors in a compact micro-ATX layout. Four DDR5 slots accept up to 256 GB of memory running at 6400 MT/s with AMD EXPO profiles. The board provides one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot and one PCIe 3.0 x16 slot plus a PCIe 4.0 x4 slot for add-in cards. Connectivity includes WiFi 7, Bluetooth 5.4, 2.5 GbE LAN and USB 3.2 Gen 2 Type-C.

8+2+2 digital VRM with heatsinks for steady delivery

An 8+2+2 twin digital VRM design on a six-layer PCB uses premium chokes and capacitors to keep voltage stable during extended workloads. Large VRM heatsinks spread heat across the surface area so the power stage stays cool when the CPU draws sustained current. The integrated I/O shield reduces assembly time and improves grounding. This power solution is built for multi-core loads that run for minutes or hours rather than short bursts.

EZ-Latch Plus and Click simplify GPU and M.2

PCIe EZ-Latch Plus releases the graphics card with a single click while M.2 EZ-Latch Click and Plus secure both the heatsink and the SSD without screws. The WiFi EZ-Plug antenna connector snaps on in seconds. An EZ-Debug zone groups diagnostic LEDs for quick troubleshooting. The screwless M.2 design avoids the common issue of dropped or stripped screws during installation.

Highlights

  • Ready for Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 8+2+2 twin digital VRM with 6-layer PCB delivers steady power
  • DDR5 up to 6400 MT/s across four slots with AMD EXPO support
  • WiFi 7, Bluetooth 5.4 and 2.5 GbE LAN for fast wireless and wired links
  • PCIe 5.0 x16 slot, PCIe 5.0 and 4.0 M.2, plus front USB-C 10 Gb/s

Specifications

BrandGIGABYTE
ModelB850M EAGLE WIFI7
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
ChipsetAMD B850
South BridgeAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 6400
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x160 x PCI Express 2.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4/x2)
SATA RAID0/1/10
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5GbE
Max LAN Speed2.5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes

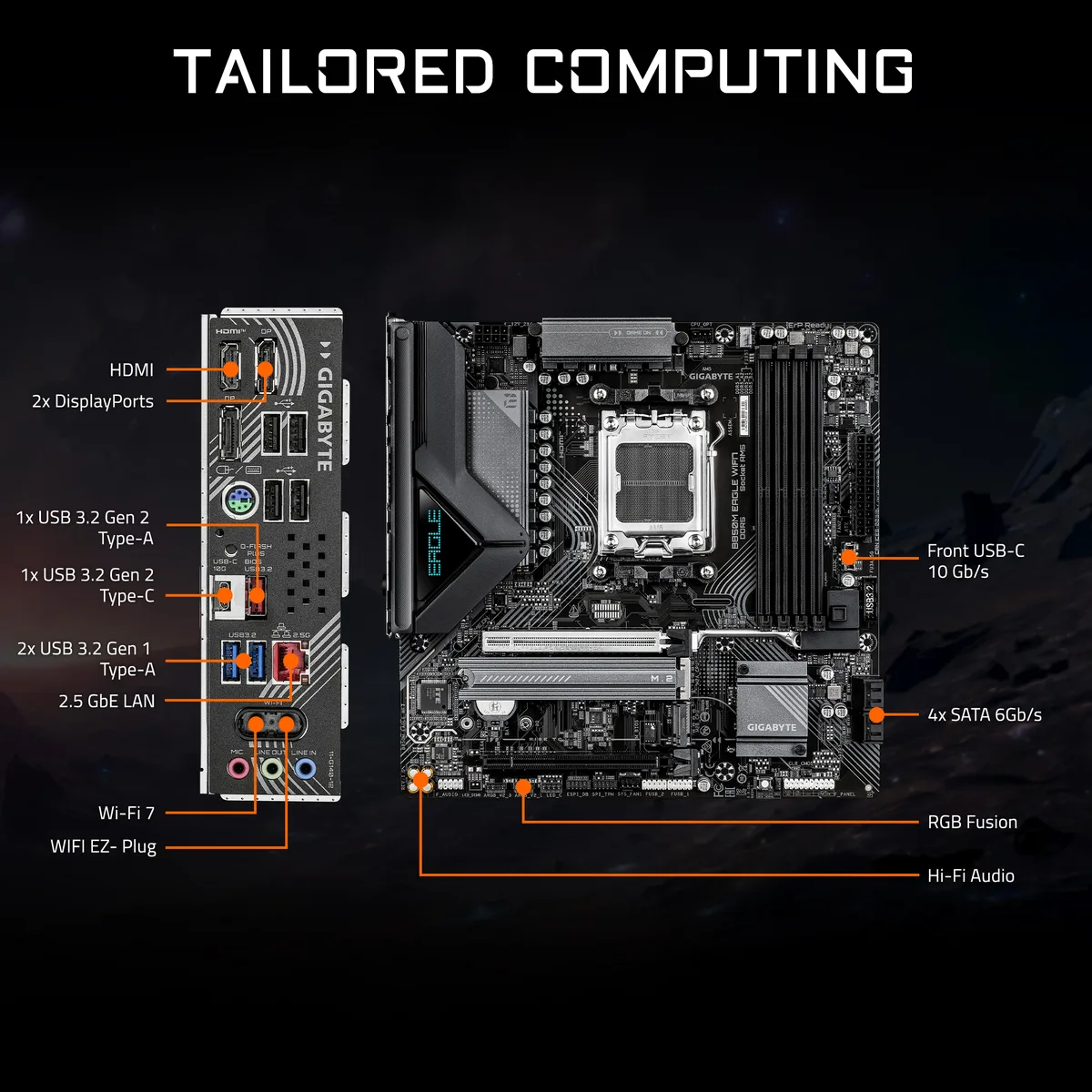

Back I/O Ports1 x HDMI port, 2 x DisplayPorts, 1 x Q-Flash Plus button, 1 x PS/2 keyboard/mouse port, 1 x USB 3.2 Gen 2 Type-A port, 1 x USB Type-C port with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 2 x antenna connectors, 3 x audio jacks
PS/21 x PS/2 keyboard/mouse port
Video PortsHDMI + 2 x Display Port
S-VideoNo
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort2 x DisplayPort
USB 3.14 x USB 3.1
USB 3.04 x USB 3.0
USB 1.1/2.08 x USB 2.0/1.1 ports
USB Type-C2 x USB Type-C® port, with USB 3.2 Gen 2 support
Audio Ports3 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 header + 2 x USB 2.0 headers
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)24.4cm x 24.4cm
Power Pin24 Pin
Windows 11Supported
Shipping weight1.27 kg
Package size279 × 267 × 76 mm

Questions about this item

How hot does the 8+2+2 VRM design run when a Ryzen 9000 CPU is under all-day load?

The 8+2+2 twin digital VRM uses premium chokes and capacitors on a six-layer PCB, and advanced VRM heatsinks are fitted to dissipate heat during sustained workloads.

Which DDR5 modules must I already own to populate the four 288-pin slots?

The board accepts unbuffered non-ECC DDR5 DIMMs up to 6400 MT/s with AMD EXPO profiles, to a maximum of 256 GB across the four slots.

Will my existing PCIe 3.0 x16 graphics card work in the second full-length slot?

Yes, the second PCIe x16 slot operates at PCIe 3.0 x16 electrically, so a PCIe 3.0 graphics card will function normally.
