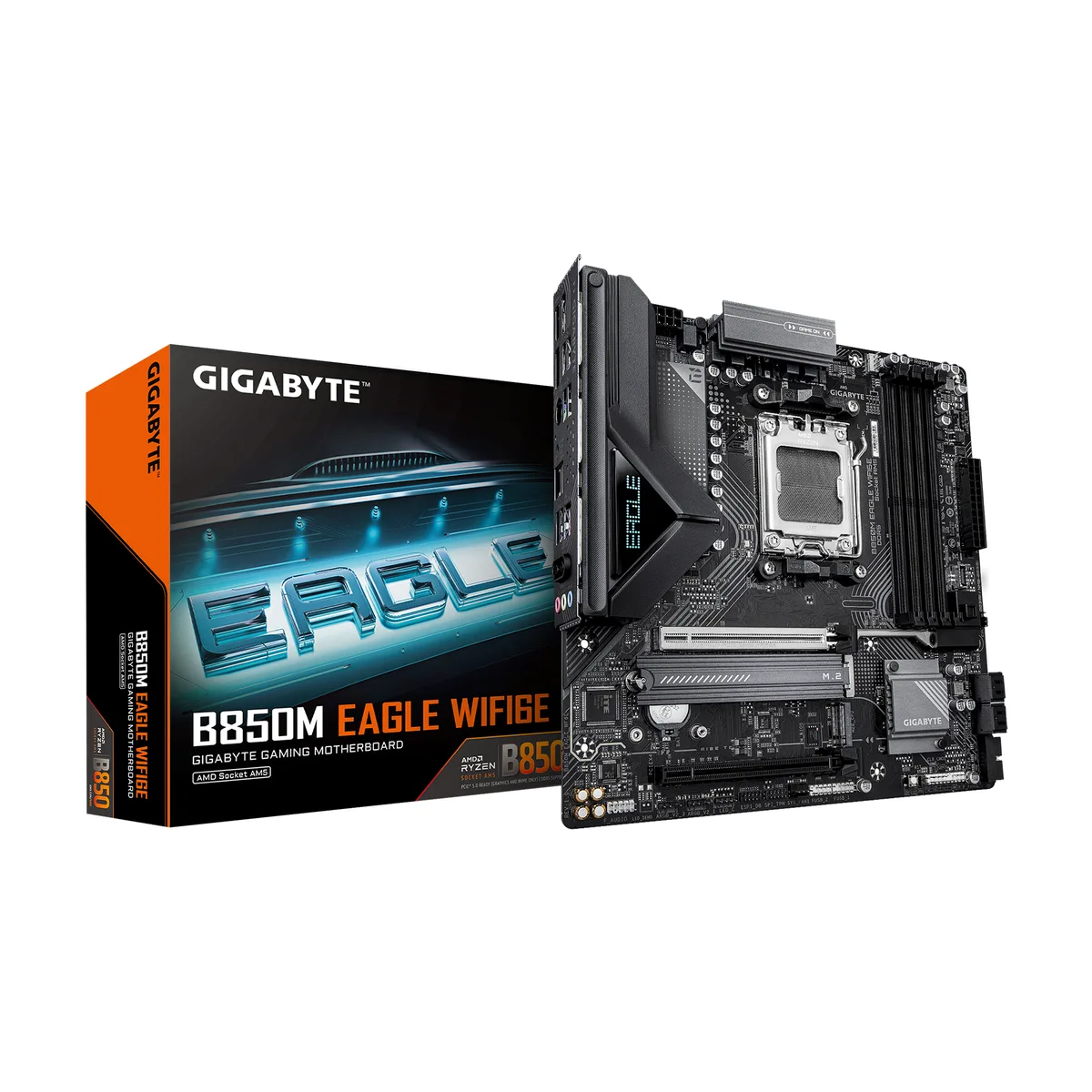

Micro-ATX motherboard, black PCB with silver heatsinks, AM5 socket, four DDR5 slots, dual M.2 covers, rear I/O shield attached

GIGABYTE

GIGABYTE B850M EAGLE WIFI6E AMD motherboard

SKU CH-2F6Q-Q0SPK MPN B850M EAGLE WIFI6E

Micro-ATX AM5 board supports Ryzen 7000, 8000 and 9000 CPUs with four DDR5 slots up to 256 GB, PCIe 5.0 graphics, dual M.2, USB-C, 2.5 GbE LAN and WIFI6E

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • South BridgeAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200

Option

  • GIGABYTE B850M EAGLE WIFI6E AMD AM5 Motherboard, M-ATX, DDR5, 2x M.2, PCIe 5.0, USB-C, USB 3.2 Gen 2, WIFI6E, 2.5GbE LAN, EZ-Latch, Wi-Fi EZ-Plug
  • GIGABYTE B850M EAGLE WIFI6E AMD AM5 Motherboard, M-ATX, DDR5, 2x M.2, PCIe 5.0, USB-C, USB 3.2 Gen 2, WIFI6E, 2.5GbE LAN, EZ-Latch, Wi-Fi EZ-Plug + AM

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Four DDR5 slots deliver up to 256 GB at 5200 MT/s with EXPO profiles
  • PCIe 5.0 graphics slot plus two M.2 sockets for high-speed storage expansion
  • 5 GbE LAN and WIFI6E provide fast wired and wireless connectivity
  • EZ-Latch mechanisms simplify M.2 and PCIe card installation without tools

Platform foundation

The GIGABYTE B850M EAGLE WIFI6E is an AMD B850 motherboard built for the AM5 socket. It accepts Ryzen 7000, 8000 and 9000 series processors and provides four DDR5 slots running at 5200 MT/s with a maximum capacity of 256 GB. Dual-channel operation and AMD EXPO profiles are supported for memory tuning.

Who it suits

Builders who want a micro-ATX board with PCIe 5.0 graphics support, two M.2 slots and integrated WIFI6E plus 2.5 GbE LAN will find the feature set complete. The EZ-Latch mechanisms simplify installation of expansion cards and M.2 drives. Users needing more than three PCIe x16 slots or a different form factor should consider other models.

Deciding specification

The single specification that decides fit is the AM5 socket paired with the B850 chipset. This combination determines which Ryzen 7000, 8000 and 9000 series CPUs are compatible and enables the PCIe 5.0 x16 link from the processor. Verify your chosen processor generation matches the supported list before purchase.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Four DDR5 slots deliver up to 256 GB at 5200 MT/s with EXPO profiles
  • PCIe 5.0 graphics slot plus two M.2 sockets for high-speed storage expansion
  • 5 GbE LAN and WIFI6E provide fast wired and wireless connectivity
  • EZ-Latch mechanisms simplify M.2 and PCIe card installation without tools

Specifications

BrandGIGABYTE
ModelB850M EAGLE WIFI6E
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
South BridgeAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
RegisteredNo
Buffer SupportedUn-buffered
Memory FeatureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5GbE
Max LAN Speed2.5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax
BluetoothBLUETOOTH 5.3

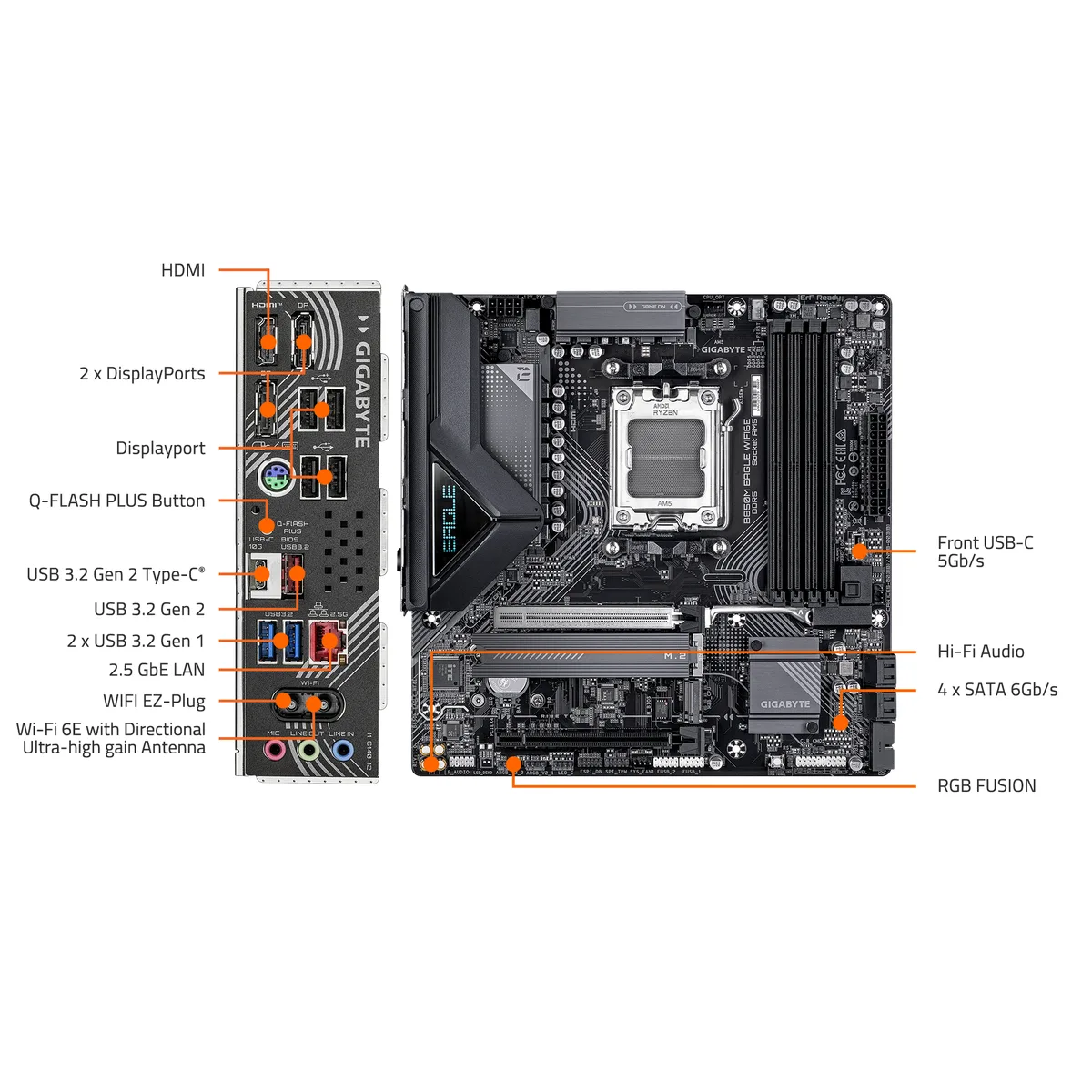

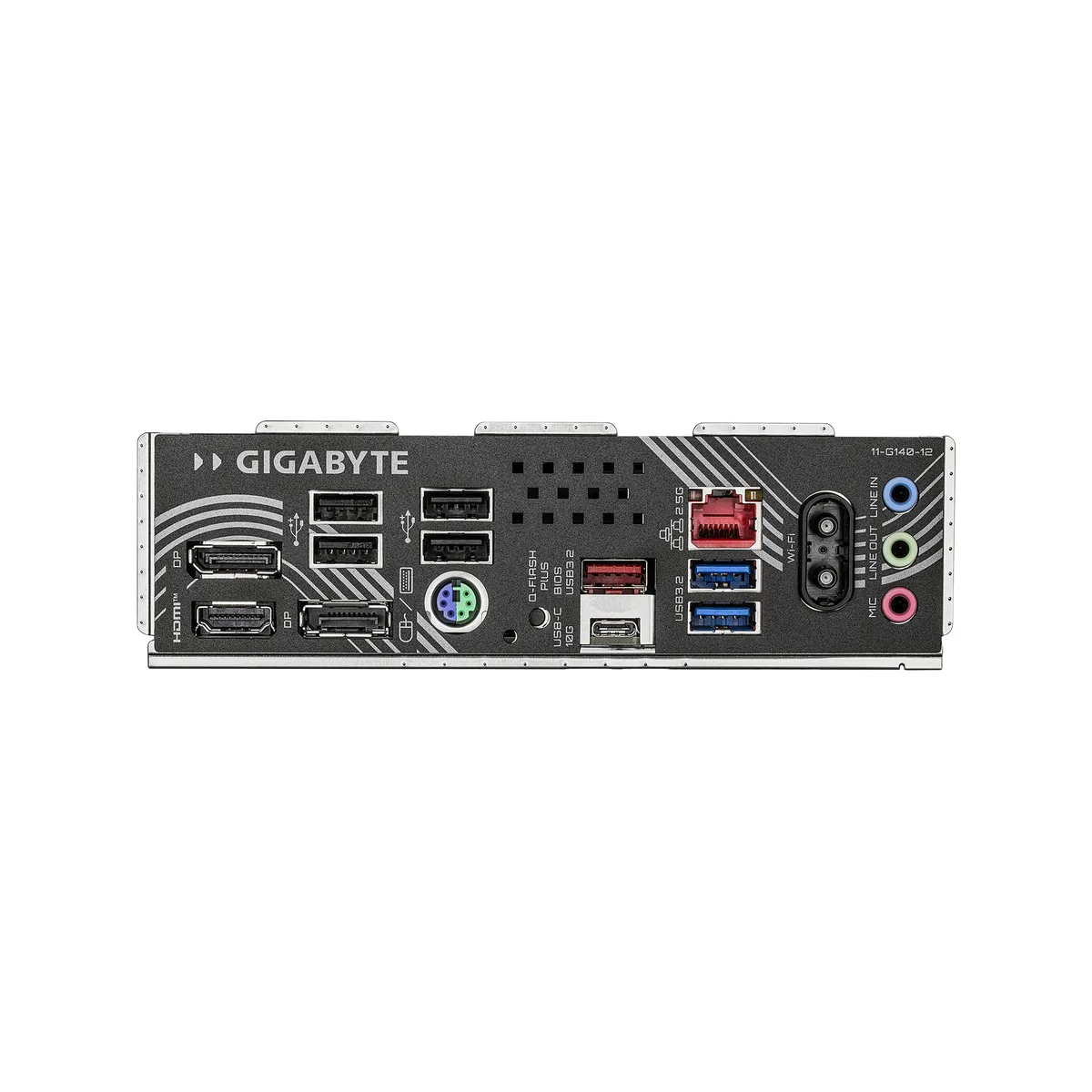

Back I/O Ports1 x HDMI 2.1 1 x DisplayPort 1.4 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2 Type-C 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x RJ-45 2 x antenna connectors 3 x audio jacks
PS/21 x PS/2 keyboard/mouse port
Video PortsHDMI + 2 x Display Port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort2 x DisplayPort
USB 3.16 x USB 3.1
USB 3.04 x USB 3.0
USB 1.1/2.08 x USB 2.0/1.1 ports
USB Type-C2 x USB Type-C® port, with USB 3.2 Gen 2 support
Game/MIDI Ports0
Audio Ports3 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 header + 2 x USB 2.0
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorMicro ATX
LED LightingNone RGB
Dimensions (W x L)24.4cm x 24.4cm
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Shipping weight1.25 kg
Package size274 × 272 × 71 mm

Questions about this item

Does the GIGABYTE B850M EAGLE WIFI6E include mounting hardware for the two M.2 slots or must I buy screws separately?

The board ships with M.2 EZ-Latch clips that secure drives without screws, so no separate mounting hardware is needed for the two M.2 slots.

Should I choose the 4-DIMM DDR5 version or a 2-DIMM alternative for a Ryzen 9000 build?

This model only comes with four DDR5 slots supporting up to 256 GB, so there is no 2-DIMM variant to choose between.

What does the 18 % uplift quoted for X3D Turbo Mode mean once the board is in a real machine?

It is a one-click BIOS setting that can raise gaming frame rates by up to 18 percent on Ryzen 9000 X3D and non-X3D CPUs, varying by title.
