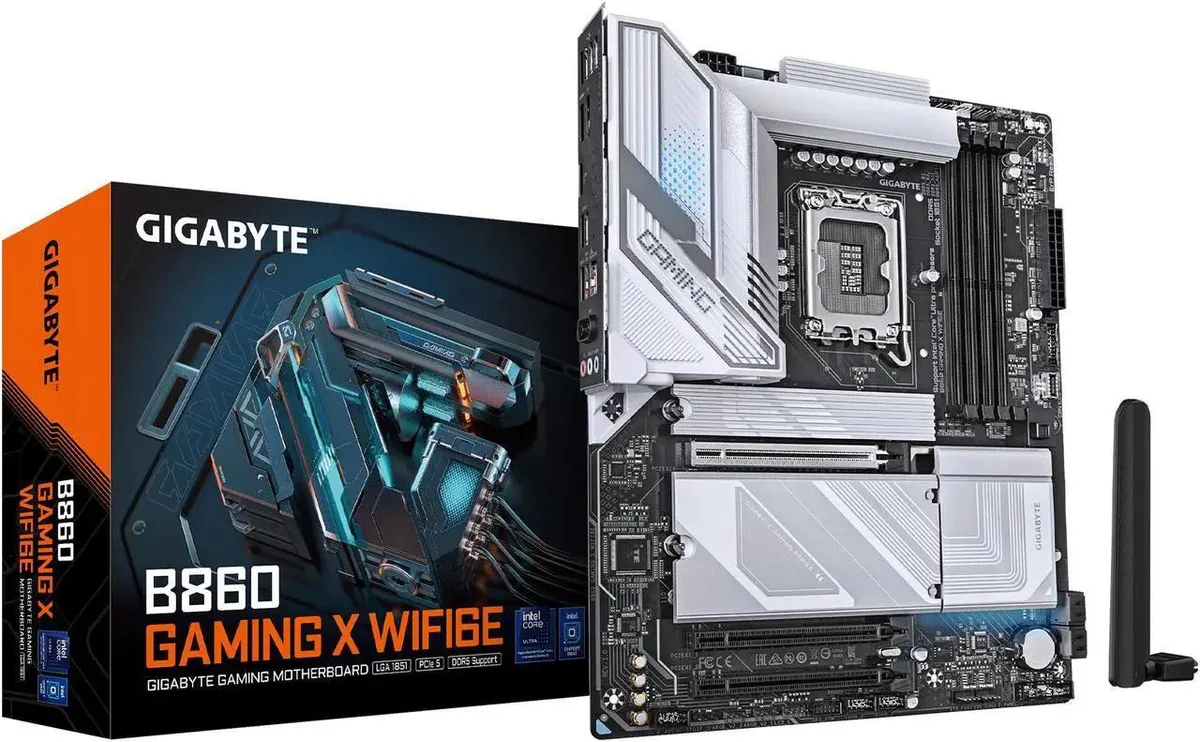

ATX motherboard with black PCB, silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE B860 GAMING X WIFI6E Intel motherboard

SKU CH-838D-6RP57

An ATX board for Intel Core Ultra Series 2 processors with DDR5, PCIe 5.0, three M.2 slots, WIFI6E and 2.5GbE LAN

  • CPU Socket TypeLGA 1851
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory FeatureDual channel memory architecture Support for ECC Un-buffered
  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Four DDR5 slots deliver up to 256 GB dual-channel memory capacity
  • 12+1+2+1 phase VRM with 50 A power stages ensures stable CPU delivery
  • PCIe 5.0 x16 slot plus three M.2 connectors for high-speed storage expansion
  • WIFI6E and 2.5 GbE LAN provide fast wired and wireless connectivity

Socket LGA 1851 Platform

The GIGABYTE B860 GAMING X WIFI6E is an ATX motherboard built for Intel Core Ultra Series 2 processors. It uses the B860 chipset and provides four DDR5 memory slots supporting up to 256 GB in dual-channel mode. The board targets builders who want a modern LGA 1851 foundation with integrated WIFI6E and 2.5 GbE networking.

PCIe 5.0 x16 and Three M.2 Slots

The primary PCI Express x16 slot runs at PCIe 5.0 x16 and accepts either a graphics card or an NVMe SSD. Two additional chipset slots operate at PCIe 4.0 x1. Storage expansion includes one CPU-attached M.2 connector with PCIe 5.0 x4 support and two chipset M.2 connectors with PCIe 4.0 x4 support. Users needing multiple PCIe 5.0 x16 graphics slots should consider a different chipset.

12+1+2+1 Phase 50A VRM

The power delivery uses a 12+1+2+1 phase design with 50 A PPAK stages. This configuration is the key specification for determining whether the board can sustain the thermal and current demands of your chosen Core Ultra processor under load.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • Four DDR5 slots deliver up to 256 GB dual-channel memory capacity
  • 12+1+2+1 phase VRM with 50 A power stages ensures stable CPU delivery
  • PCIe 5.0 x16 slot plus three M.2 connectors for high-speed storage expansion
  • WIFI6E and 2.5 GbE LAN provide fast wired and wireless connectivity

Specifications

BrandGIGABYTE
ModelB860 GAMING X WIFI6E
CPU Socket TypeLGA 1851
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory FeatureDual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Express 5.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1,PCIEX1_2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBLUETOOTH 5.3
Back I/O Ports1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB4 USB Type-C port (DisplayPort (Note))
2 x USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 2 Type-A port (red)
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Questions about this item

Will my existing CPU cooler fit this LGA 1851 socket?

Only coolers that list LGA 1851 support will mount correctly; older LGA sockets use a different hole pattern.

Can I run four DDR5 sticks at the rated 256 GB maximum?

Yes, the four 288-pin slots support up to 256 GB in dual-channel mode with non-ECC or ECC unbuffered DIMMs.

Which M.2 slot should I use for a PCIe 5.0 NVMe drive?

The CPU-linked M2A_CPU slot is the only one wired for PCIe 5.0 x4; the other two chipset slots run at PCIe 4.0 x4.
