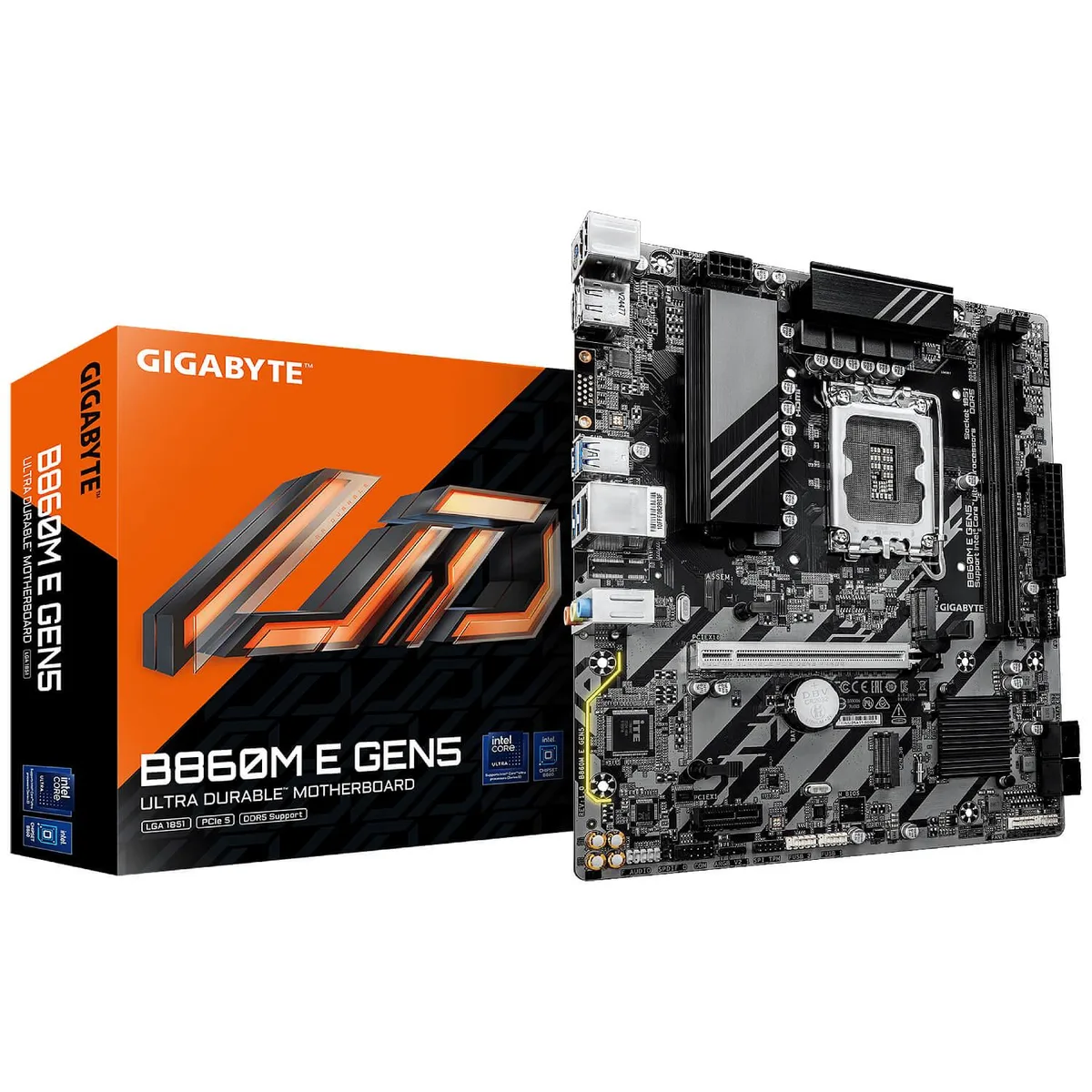

Micro ATX motherboard with black PCB and silver heatsinks

GIGABYTE

GIGABYTE B860M E GEN5 Intel motherboard

SKU CH-NJA1-TMEAH

Micro-ATX board with LGA 1851 socket, DDR5 support to 8800 MT/s, PCIe 5.0 x16 slot and DisplayPort output

  • PCIe 5.0 doubles bandwidth to 32 GT/s for faster graphics and storage
  • Supports Intel Core Ultra processors on LGA 1851 socket
  • DDR5 memory up to 8800 MT/s overclocked with 128 GB capacity
  • Hybrid 4+1+2 phase VRM delivers stable power for high performance
  • EZ-Latch PCIe 5.0 x16 slot enables tool-free graphics card installation

Micro ATX board for Intel Core Ultra Series 2

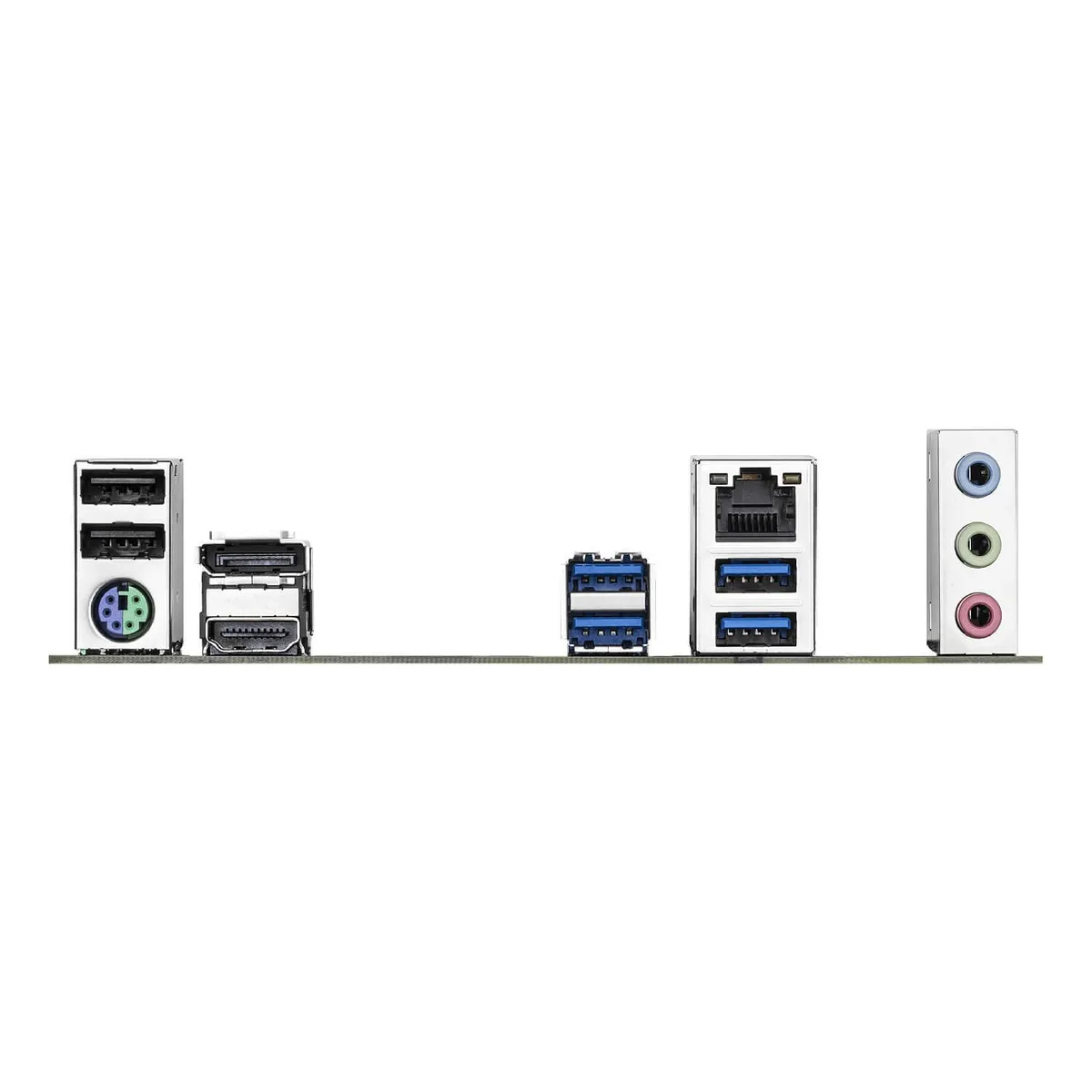

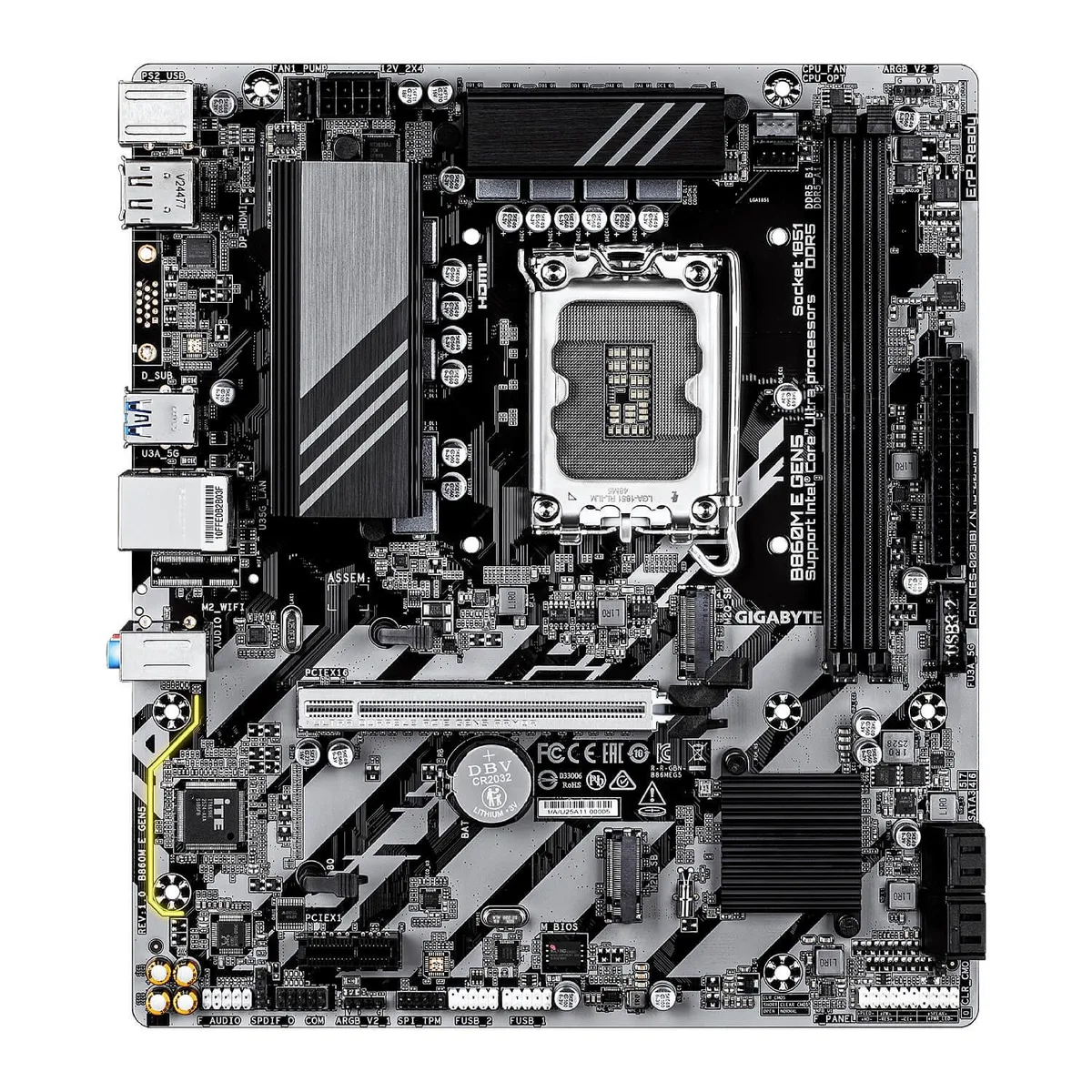

This Micro ATX motherboard uses the Intel B860 Express Chipset and an LGA1851 socket for Intel Core Ultra Series 2 processors. Two DDR5 DIMM slots support up to 128 GB of system memory in dual-channel mode. A PCIe 5.0 x16 slot with EZ-Latch quick release accepts modern graphics cards or AI accelerators. Onboard video outputs include HDMI 2.1 and DisplayPort for integrated graphics.

Hybrid VRM and AI BIOS tuning

A hybrid 4+1+2 phase VRM delivers stable power to the CPU during sustained workloads. The D5 Bionic Corsa engine optimises DDR5 signalling for higher memory frequencies. AI Perfdrive supplies customised BIOS preset profiles that balance performance, thermals and power draw without manual tuning. Q-Flash Auto Scan and a multi-theme BIOS simplify firmware updates and fan control.

DDR5 memory up to 8800 MT/s and PCIe 5.0 storage

Memory speeds scale from 5600 MT/s to 8800 MT/s (O.C.) with support for ECC and non-ECC unbuffered DIMMs. The PCIe 5.0 x16 slot doubles bandwidth to 32 GT/s per lane compared with PCIe 4.0, freeing throughput for high-speed GPUs and storage devices. Builders needing more than two DIMM slots or additional full-length expansion cards should consider a full-size ATX alternative.

Highlights

  • PCIe 5.0 doubles bandwidth to 32 GT/s for faster graphics and storage
  • Supports Intel Core Ultra processors on LGA 1851 socket
  • DDR5 memory up to 8800 MT/s overclocked with 128 GB capacity
  • Hybrid 4+1+2 phase VRM delivers stable power for high performance
  • EZ-Latch PCIe 5.0 x16 slot enables tool-free graphics card installation

Specifications

No published specifications for this item yet.

Questions about this item

How do I fit a graphics card into the PCIe 5.0 x16 slot and what step is often missed?

Press the EZ-Latch release lever on the slot before inserting the card, then push the card down until the lever clicks back into place to lock it.

What upkeep will the memory configuration need over time?

The two DDR5 DIMM slots support up to 128 GB total; if capacity needs grow later, both modules must be replaced as a matched pair to keep dual-channel performance.

What limit appears first when the VRM runs under a long heavy load?

The hybrid 4+1+2 phase power design sets the thermal ceiling for sustained current delivery to the CPU.
